W211 Alignment Specifications with KMAC front/MB ARTS rear

Subscribe
Search this Thread
Oct 6, 2011 | 07:14 PM
  #1
£ C43 £ AMG £'s Avatar
Thread Starter
Super Member
£ C43 £ AMG £
Super Member
close
  • Join Date
    Jan 2008
  • Location
    UK
  • Posts:
    626
  • iTrader Positive Feedback
    0
  • iTrader Feedback Score
    (0)
  • Vehicle(s) I drive
    E55K AMG
  • Likes:
    6
  • Liked:
    8 Times in 8 Posts

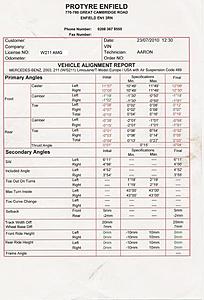

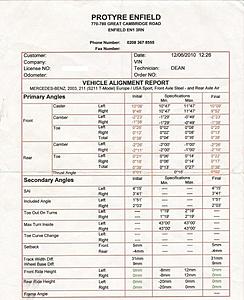

As requested.....................1st scan is after install, 2nd scan is before install

tyre wear is even and car feels like a train on rails even after a year and the huge hole I hit the other day!

castor is as far forward as possible.................

W211 Alignment Specifications with KMAC front/MB ARTS rear-scan0001.jpg   W211 Alignment Specifications with KMAC front/MB ARTS rear-scan0002.jpg

Reply 0
Oct 6, 2011 | 08:02 PM
  #2
tbone's Avatar
MBWorld Fanatic!
tbone
MBWorld Fanatic!
close
  • Join Date
    Apr 2003
  • Location
    Bay Area
  • Posts:
    1,907
  • iTrader Positive Feedback
    0
  • iTrader Feedback Score
    (0)
  • Vehicle(s) I drive
    E500 Sport
  • Likes:
    0
  • Liked:
    2 Times in 2 Posts
Can you post close up pics of your rear ride height?
Reply 0
Oct 6, 2011 | 08:23 PM
  #3
£ C43 £ AMG £'s Avatar
Thread Starter
Super Member
£ C43 £ AMG £
Super Member
close
  • Join Date
    Jan 2008
  • Location
    UK
  • Posts:
    626
  • iTrader Positive Feedback
    0
  • iTrader Feedback Score
    (0)
  • Vehicle(s) I drive
    E55K AMG
  • Likes:
    6
  • Liked:
    8 Times in 8 Posts
Quote:
Originally Posted by tbone
Can you post close up pics of your rear ride height?

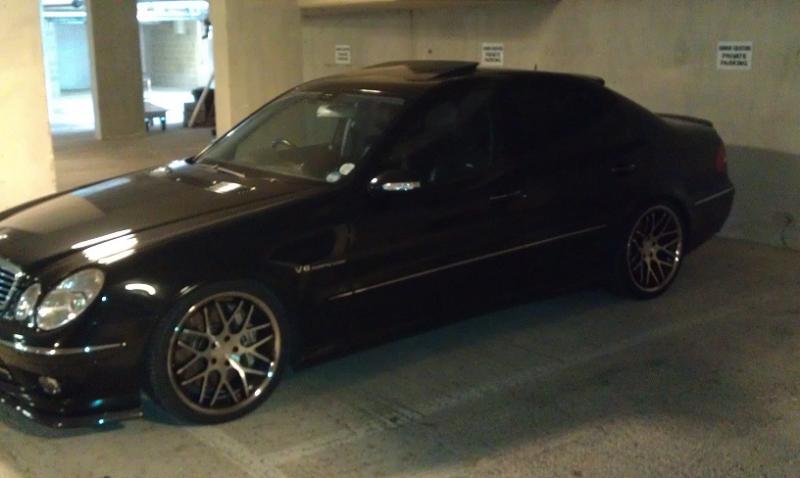

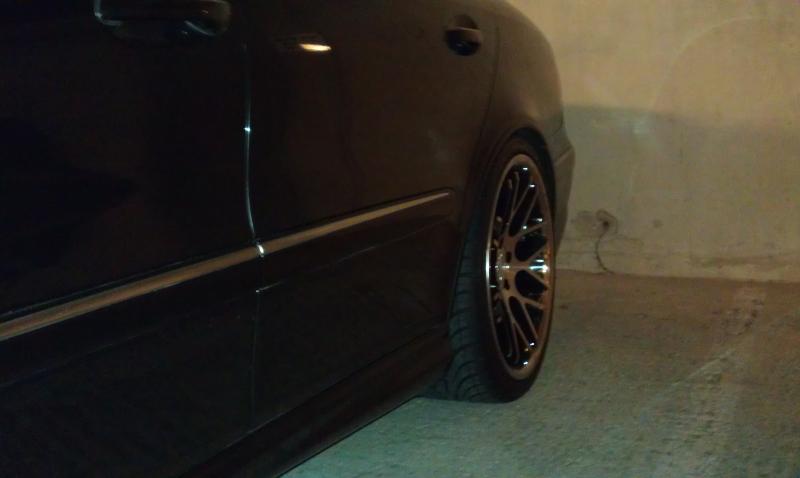

slight gap between arch and tyre approx and no less than 5mm ...........maybe its more like 10mm
