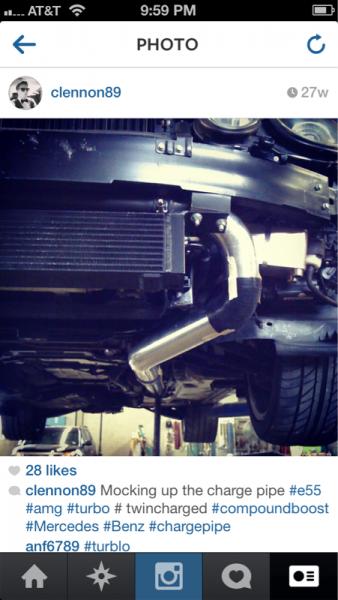

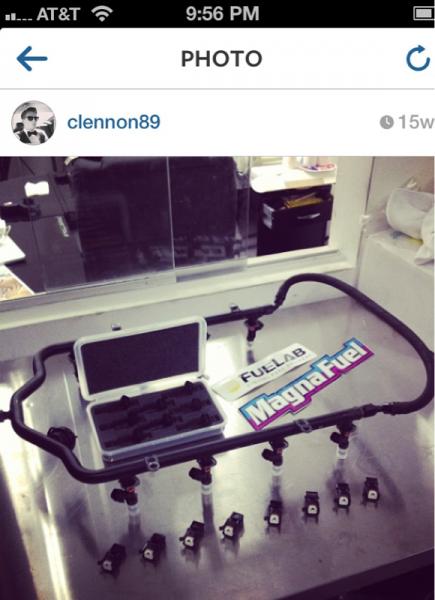

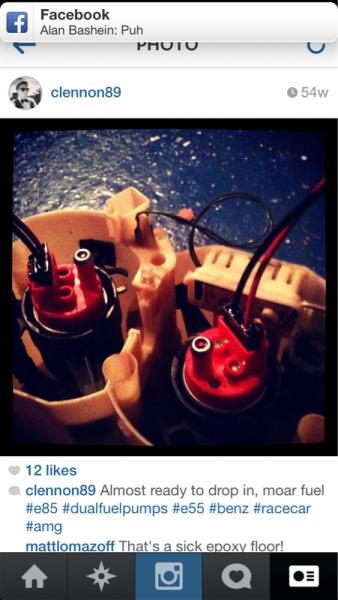

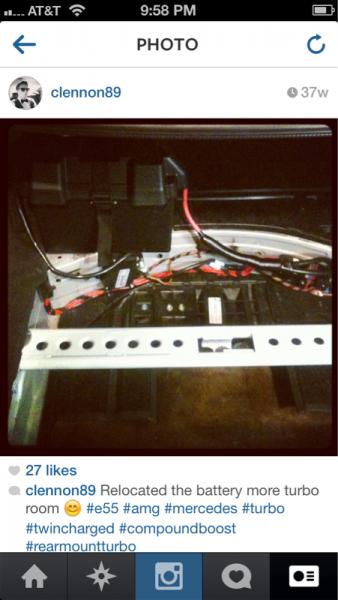

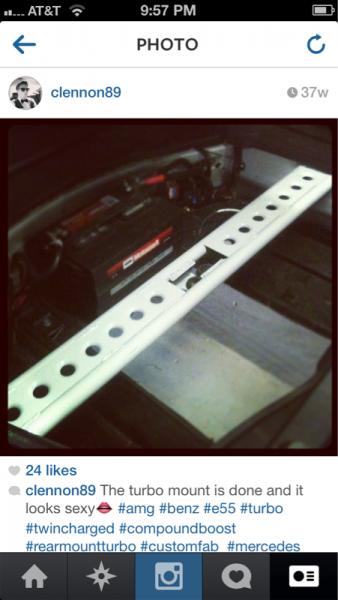

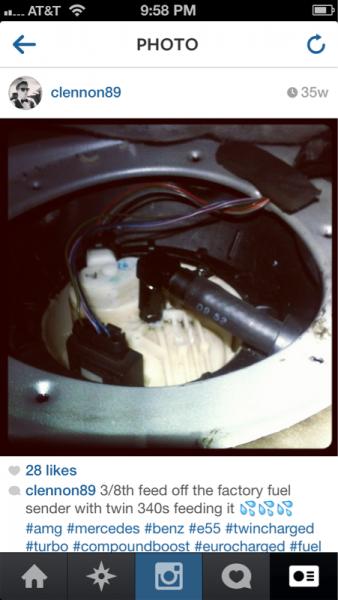

I figured in the spirit of sharing knowledge and experience to fellow m113k and W211 E55 owners, I would post a thread chronicling the uncharted territory of my twincharged, compound boost, e85 build...there are descriptions in most of the IG photos, but feel free to ask any questions...Enjoy



























































































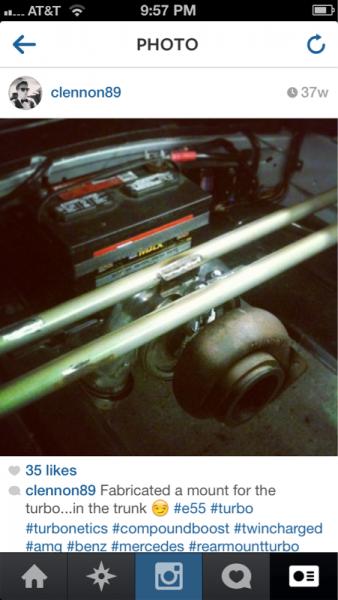

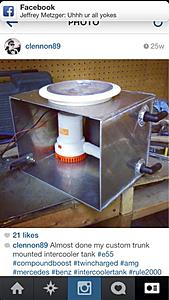

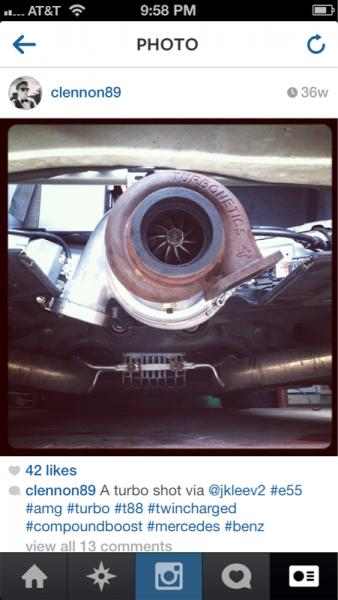

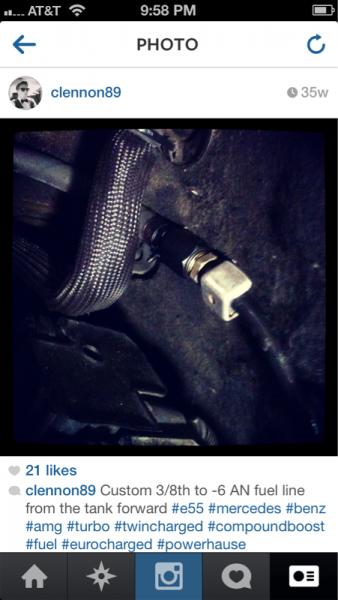

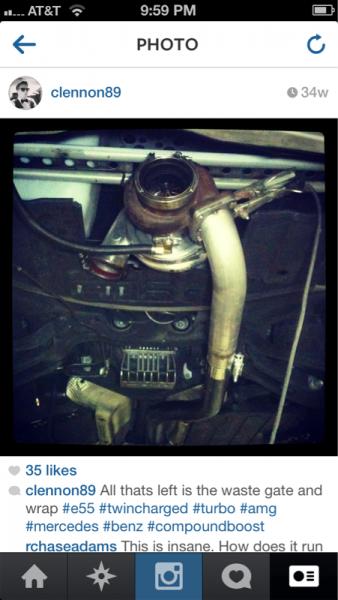

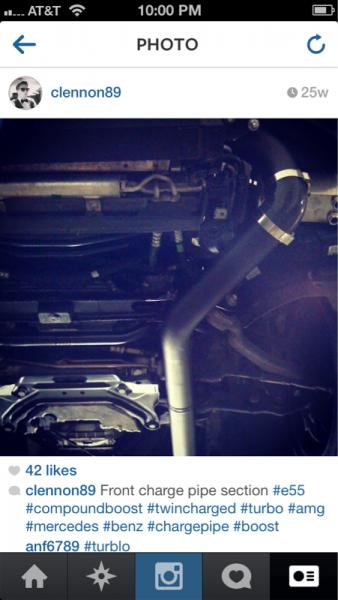

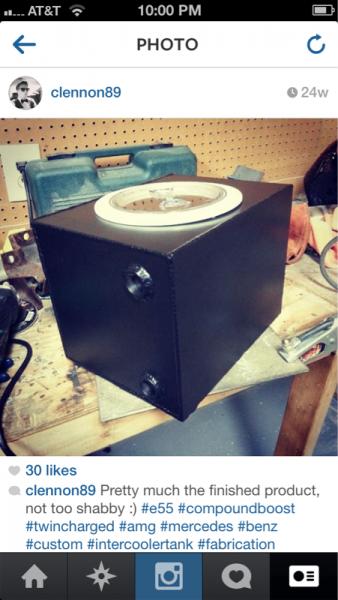

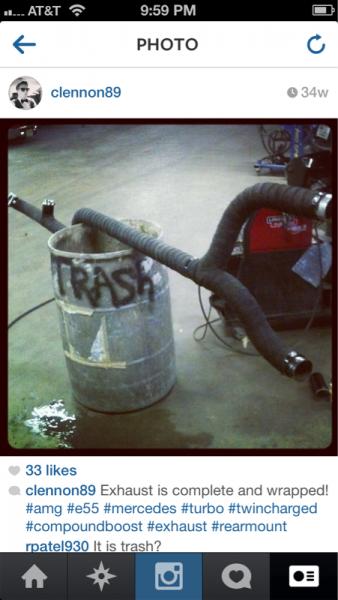

Here is the 4th and final dyno pull a of this date, boost peaks at about 17psi and drops to 14.5/15psi at 6300 afr's were around 11.7 at 6300 with methanol injection. Peak power was around 590rwhp and peak torque was around 610rwtq, on our mustang dyno which on average reads about 15% lower than the average dynojet, I will be switching to a electronic boost controller to help the boost hold at 17 like I want and add a tad more fuel on top
A little street print on the Hoosiers

http://instagram.com/p/hZpmC5mTwJ/ and a little street flyby with some buddies

MAN55LE

So sick...RESPECT!

RedBullJnky

Congrats!!!!!

berti_00

good job colin looks great and impressive work... i still wana talk to you about building that trunk tank

twinscrewFTW

Thanks guys!

I'll pm you later this week Berti_00 we can def get one of those made for you

Joncl

You are the real deal man! Congrats!!

blackbenzz

Nice build! Let's hit up MIR

shardul

iTrader: (1)

Very Nice!

AKnight55

Awesome build. Congrats.

Yacht Master

Nice, I like it. Compound best of both worlds.

hpV12

I'm still trying to see why you went with a compound set up. Doesn't the blower effectively choke the turbo in the upper rpm range? With all the rift-raft here lately I would like to make clear I am not trying to hate on it one bit just wondering.

Really cool project.

schino

looks good man. I forget if I asked you when I was down there checking out the car. just out of curiosity how big of a wastegates or wastegates are you running. am I correct in saying one of the bigger hurdles is keeping it from over boosting? do you have a boost gauge pre blower?

twinscrewFTW

Honestly it was mostly a cost issue, to be truthful this isn't an all out build it actually very budget minded, the compound set up is actually much less costly and there is quit a bit less custom fabrication required as a whole. As for the blower chocking the the turbo In the upper rpms, I have done tons of research and the truth of the matter is it doesn't, the only inefficiency compared to a straight turbo set up is the parasitic loss from the blower, or at least that's what you would think, what we found in comparing the Clstt to my car is almost no difference in peak hp between the cars with my car actually producing 2ps1 less boos at 6300rpm, so go figure!?!?

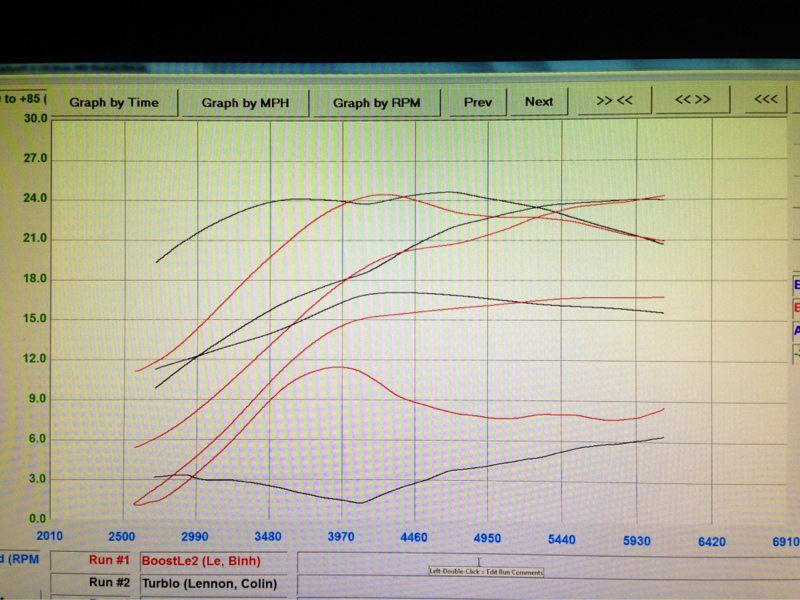

Black is my car, and red is the CLSTT

G_Money

mistery

twinscrewFTW

Thanks man, you are correct in that statement, it is much more of a task to keep the boost down, I run a single 60mm waste gate, and sided the turbo large enough as to lessen over boosting and or boost spikes due to compounding pressure ratios. I have yet to test for pre blower boost pressure but I assume is less than 4psi by math because my peak boost pressures are under 18psi

twinscrewFTW

A little inside joke G_Money sorry if it confused you

G_Money

Just messing with you friend

Nice car, sounds like a monster on that dyno!

d613

LOVE IT!!!!

Great work.

efiftyfizzle

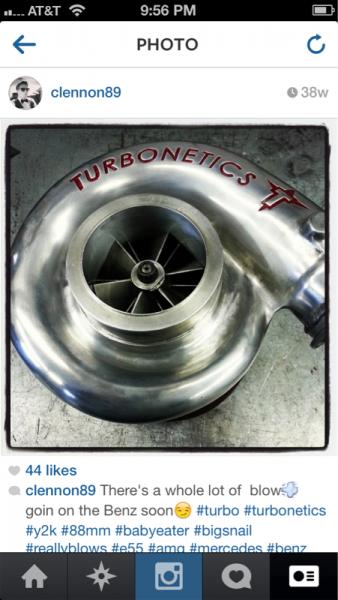

What was the reason for using an 88mm turbo? That's huge and what most 1000+hp Supra guys use... very laggy but puts down monstrous power. Did you want the lag on purpose for the sake of producing too much boost with the blower and the turbo?

SilverStrk

Absolute Respect Killer build, keep the info coming...

twinscrewFTW

When dealing with compound boost your biggest enemy is over boosting due to the nature of multiplying pressure ratios of each compressor, so if you size the turbo on the large side you minimize boost spikes the large turbo builds boost gradually so your boost is compounded progressively, making it much easier to control overall boost and tuning. Also as a result having a supercharger still, "lag" is non exists t being you are always in boost, and you must also size your turbo to feed the theoretical displacement of the engine + the supercharger at its fixed boost pressure, i.e. the stock motor displacement if I am not mistaken is around 336ci with the supercharger at 10psi it behaves as if it is actually a 660ci motor, and an 88mm turbo is perfectly sized for a 660ci motor

typhoon43

This man has done his homework

Killer looking setup. I just reeeeeeeally wish there was a way to control IAT's besides meth with these kind of nutty setups. I just can't hop onboard the spray-train, and going from Air/Water to Air/Air is just $$$$$$$$. Been there, done it, not going back

Jakpro1

I will never stop saying it. Will someone please please make the next major mod putting the new 7 speed on these cars!!!

I just can't imagine this car with lightning fast shifts. I am a E55 modding geezer. My modding days are over.

W109 W211 6.2L

Props for being on the leading edge of innovation! Thank you for being our spending mule! Whats the durability, miles driven?

twinscrewFTW

Thanks! Drivability is pretty much normal aside from serous traction issues on street tires, lol. I still have traction control so it's not that bad, so far I would say I put 200miles on it but weather has bee horrible lately here in nj, with e85 the sub 32 degree cold start is a bit tricky so garage storage is a must it you don't want starting problems
