Drive By Wire wiring
Hi guys. I'm hoping some of you tech geniuses can help me figure out the wiring for the DBW system on my M113K engine. I'm wiring it all up to an aftermarket ECU so need to know which wire does what (i.e motor -, motor +, sensor -, sensor + etc)


Pedal


Throttle Body


Thanks for all your help. I love this forum
Reply
0
Old Apr 13, 2018 | 11:56 AM
Share
  #2
hayseed's Avatar
hayseed
Super Member
15 Year Member
Liked
iTrader: (2)

Joined: Feb 2009
Posts: 578
Likes: 34
From: Plano Tx
04 e55
this does not give you a specific answer but you may want to look for sprintbooster info and another vendor "pedalbox" I think -- they take the electrical pedal outputs and amplify them somehow for increase response -- there may be some documentation for them -- not sure
Reply
0
Old Apr 24, 2018 | 12:08 PM
Share
  #3
h0tr0dder_uk's Avatar
h0tr0dder_uk
Thread Starter
Junior Member

Joined: Dec 2012
Posts: 42
Likes: 5
From: San Diego, CA
2005 BMW M3, 1974 Opel Manta

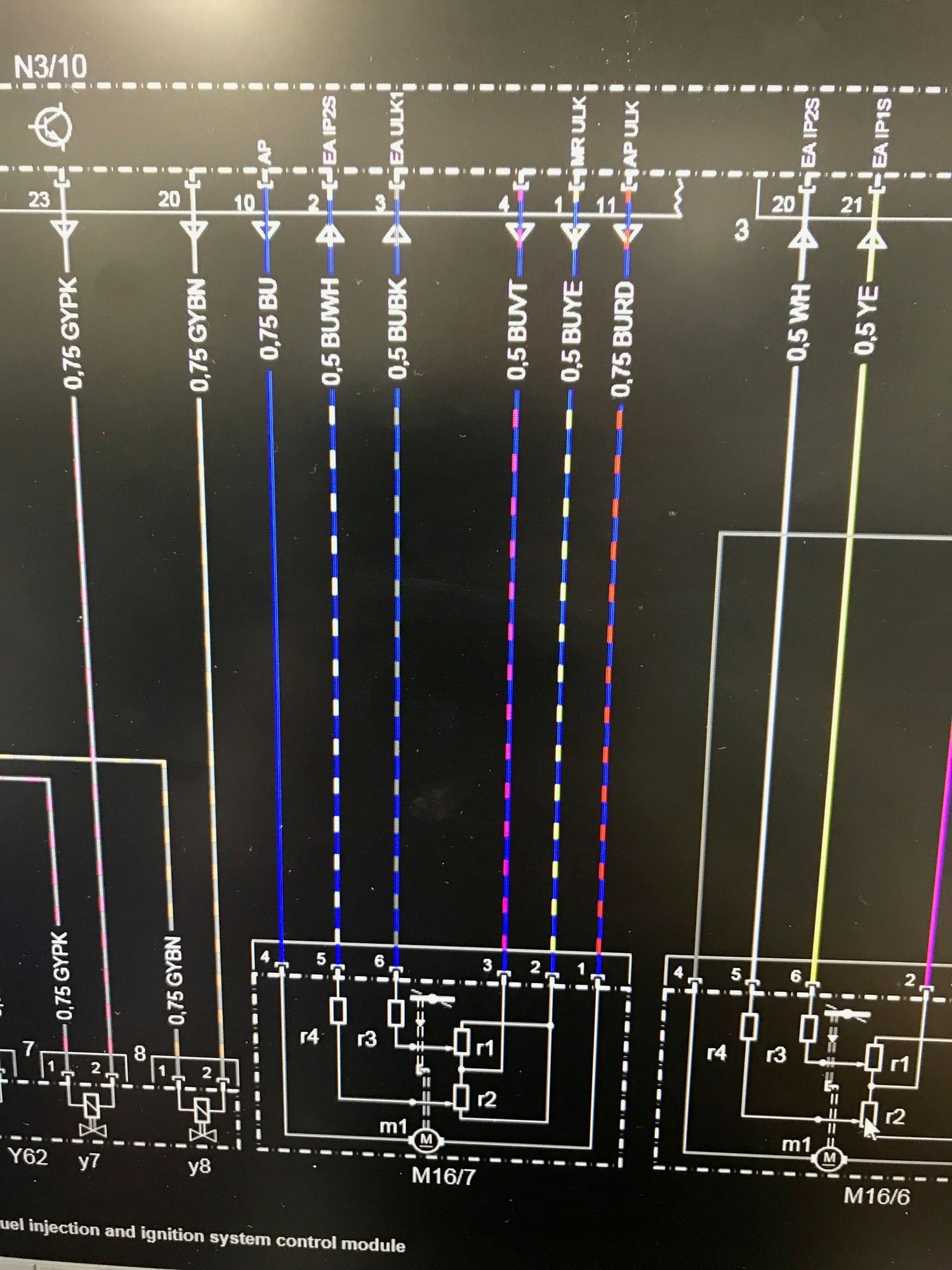

I've been looking at the wiring diagrams and think this is correct

Reply
0
Old Apr 24, 2018 | 02:48 PM
Share
  #4
JoeJErnst's Avatar
JoeJErnst
MBWorld Fanatic!

Joined: Jun 2014
Posts: 1,036
Likes: 169
From: Portland, Oregon
2019 Jeep Trackhawk, 2002 CLK55, 2014 911 Carrera
Sorry I can't help answer this, but I am interested in your project. Do you have a project page somewhere that I can follow?
Reply
0
Old Apr 28, 2018 | 08:14 AM
Share
  #5
East Coast Euro's Avatar
East Coast Euro
Former Vendor of MBWorld

Joined: Jan 2018
Posts: 301
Likes: 69
C63 and CLK55
Does this help?
Reply
0
Old Apr 28, 2018 | 01:20 PM
Share
  #6
h0tr0dder_uk's Avatar
h0tr0dder_uk
Thread Starter
Junior Member

Joined: Dec 2012
Posts: 42
Likes: 5
From: San Diego, CA
2005 BMW M3, 1974 Opel Manta
Originally Posted by JoeJErnst
Sorry I can't help answer this, but I am interested in your project. Do you have a project page somewhere that I can follow?
unfortunately I dont
Reply
0
Old Apr 28, 2018 | 01:21 PM
Share
  #7
h0tr0dder_uk's Avatar
h0tr0dder_uk
Thread Starter
Junior Member

Joined: Dec 2012
Posts: 42
Likes: 5
From: San Diego, CA
2005 BMW M3, 1974 Opel Manta
Originally Posted by East Coast Euro
Does this help?
Thanks - I think that contains the same info as the pic I got from WIS. Ideally I need to know what EA IP25 means etc
Reply
0
