Audio 10 to Comand 2.0 retrofit w203 (including lots of pics)
------------------------------------
Audio 10 to Comand 2.0 retrofit w203
------------------------------------
This is for a w203 2000-2004 PRE FACELIFT model
Before a start I will answer a few questions.
1. Why update to comand 2.0 isn't it old? Because it is OEM
2. Why not update to the Dynavin it has more functions? It is not OEM
Now that's out of the way lets get down to business
------------------------------------
A FEW THINGS YOU SHOULD KNOW
------------------------------------
- GPS antenna does not work under dash (tried it) almost no signal under there.
- Car phone D2B and/or CD stacker work perfectly from Audio 10 to Comand 2.0 unit
- Bluetooth via Viseeo works perfectly with the Comand 2.0 unit
- All steering wheel buttons work perfectly with Comand 2.0
- NAVI function on instrument cluster will have to be enabled by a Star Computer (Not needed for the Comand 2.0 to work perfectly, but nice to have directions appear on cluster while driving)
- TV button will not work unless you buy a Multimedia Adapter (tricks the Comand 2.0 in thinking there is a TV tuner)
- You do not need to plug in the Speed Sensor wire on the C2 connector. The Comand 2.0 will work fine without it on the w203 model.
------------------------------------
PARTS NEEDED
------------------------------------
1. C plug adapter to convert to the comand 2.0 C1 and C2 plug
http://www.ebay.com.au/itm/260853265908
2. GPS antenna (about $10)
http://www.ebay.com.au/itm/230802850631
3. The Comand 2.0 unit (Make sure you buy the right shape one)
EBAY price between $200 to $500
------------------------------------
OPTIONAL PARTS
------------------------------------
4. 3.5mm Socket for AUX (cost $1)
5. Old computer speaker cable to run from back of unit to AUX socket
------------------------------------
PREPARATION WORK FOR AUX
------------------------------------

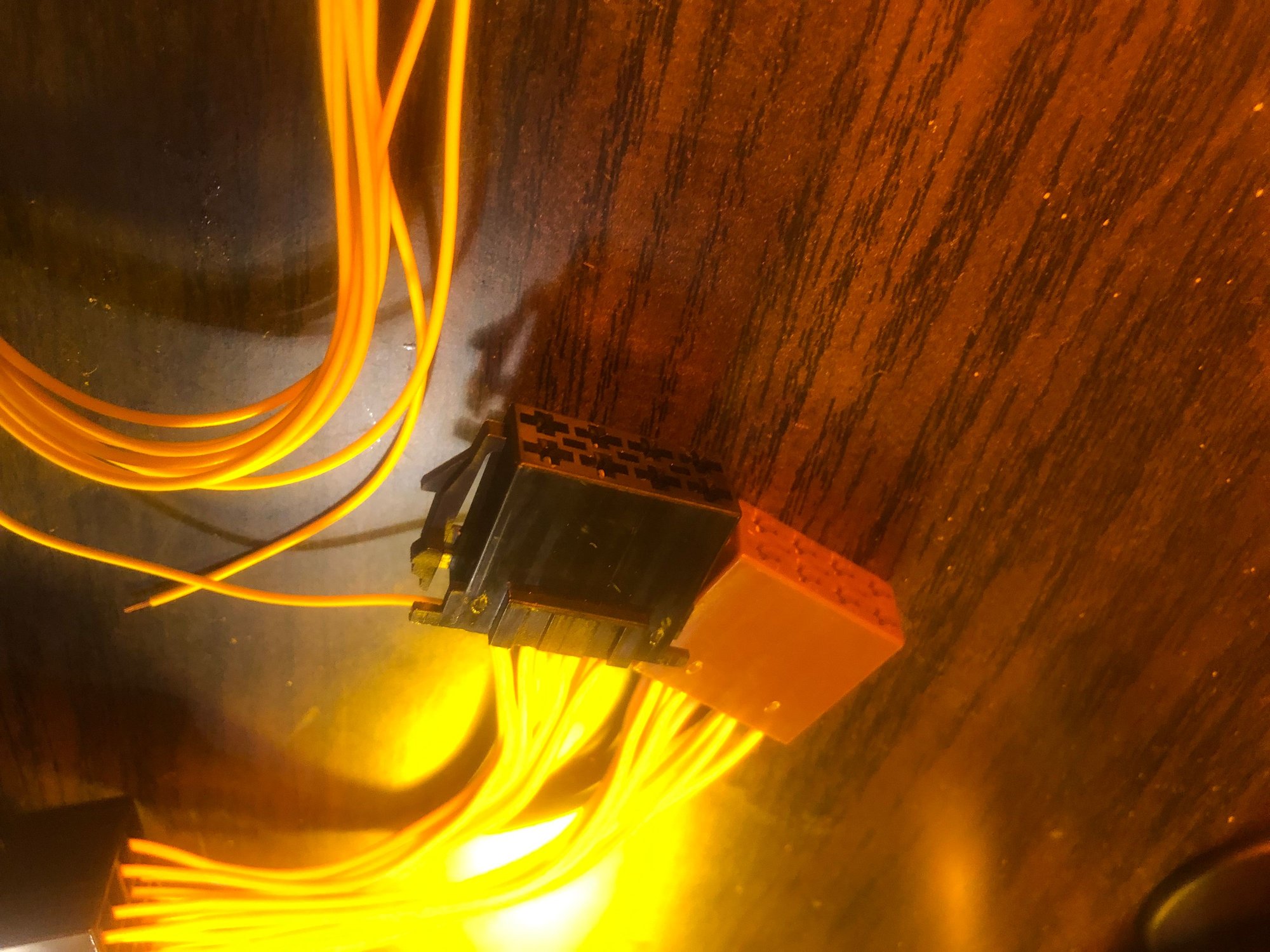

1. Grab the C to C1 and C2 adapter and on the C2 plug (biggest one with 18 little pin holes)
2. Undo side of the casing (once side is off, the casing will just slip out)
3. Insert Red computer wire into PIN 4 (RIGHT SOUND)
4. Insert Green computer wire into PIN 13 (LEFT SOUND)
5. Also insert 2 ground wires (in my case White and Black wires) into PIN 5 and PIN 14 (GROUND)
NOTE: There is a notch out of the computer wires that works perfectly with the C2 connector casing. Sort of like a lock in channel (groove), hard to explain but you'll get it when you have it all in-front of you.
6. Put the C2 connector back together making sure all the wires you have connected stay in place.
7. Once the Comand 2.0 unit is in place, solder the appropriate wires to the socket (I don't recommend to solder socket to end of wires before installation as you don't know where you might need to push these wires through)
------------------------------------
PIN OUTS
------------------------------------
------------------------------------
INSTALLATION
not going to go into too much detail here there is a lot of info on this part on forums
------------------------------------
1. Park-brake on, car off
2. Remove wood panel around gear knob
3. move gear stick into drive (to make room to pull out ash tray) (use park break release flap) Lift up grate next to cig lighter release catch, release is in there.
4. pull out inner ash tray, undo 2 clips holding outer ash tray and remove it, unplug ashtray light.
5. remove two screws underneath where ash tray used to be. (also undo 2 clips holding wood backing plate)
6. MOVE TO TOP VENTS, Close top vents.
7. Remove top vent screws (they only unscrew they don't come out)
8. Push down on top vent grab clips and pull out vent, one side at a time.
9. Once vents are out don't unplug them just put them to the side on dash.
10. Whole wood-panel plate should now be loose.
11. Separate Heater/AC unit from wood-panel plate (do not unplug) and put to the side.
11. Leave Upper Control Panel (UCP) attached to wood-panel plate (do not unplug) put it up on the dash.
12. You now will have access to the Audio 10 unit, there will be 2 more screws to undo.
13. Pull out the Audio 10 unit, unplug all the wires and remove it.
14. Insert the Comand 2.0 unit making sure you plug in all the wires you unplugged. It will all be plug in and play as long as you bought the C to C1 and C2 adapter.
15. Make sure you plug in your GPS antenna amd your AUX cable is coming down behind the unit and out the bottom near the ash tray.
16. Start putting it all back together in reverse order.
^ BEFORE and AFTER \/
Good luck with your own project. Tijn
Audio 10 to Comand 2.0 retrofit w203
------------------------------------
This is for a w203 2000-2004 PRE FACELIFT model
Before a start I will answer a few questions.
1. Why update to comand 2.0 isn't it old? Because it is OEM
2. Why not update to the Dynavin it has more functions? It is not OEM
Now that's out of the way lets get down to business
------------------------------------
A FEW THINGS YOU SHOULD KNOW
------------------------------------
- GPS antenna does not work under dash (tried it) almost no signal under there.
- Car phone D2B and/or CD stacker work perfectly from Audio 10 to Comand 2.0 unit
- Bluetooth via Viseeo works perfectly with the Comand 2.0 unit
- All steering wheel buttons work perfectly with Comand 2.0
- NAVI function on instrument cluster will have to be enabled by a Star Computer (Not needed for the Comand 2.0 to work perfectly, but nice to have directions appear on cluster while driving)
- TV button will not work unless you buy a Multimedia Adapter (tricks the Comand 2.0 in thinking there is a TV tuner)
- You do not need to plug in the Speed Sensor wire on the C2 connector. The Comand 2.0 will work fine without it on the w203 model.
------------------------------------
PARTS NEEDED
------------------------------------
1. C plug adapter to convert to the comand 2.0 C1 and C2 plug
http://www.ebay.com.au/itm/260853265908
2. GPS antenna (about $10)
http://www.ebay.com.au/itm/230802850631
3. The Comand 2.0 unit (Make sure you buy the right shape one)
EBAY price between $200 to $500
------------------------------------
OPTIONAL PARTS
------------------------------------
4. 3.5mm Socket for AUX (cost $1)
5. Old computer speaker cable to run from back of unit to AUX socket
------------------------------------
PREPARATION WORK FOR AUX
------------------------------------
1. Grab the C to C1 and C2 adapter and on the C2 plug (biggest one with 18 little pin holes)
2. Undo side of the casing (once side is off, the casing will just slip out)
3. Insert Red computer wire into PIN 4 (RIGHT SOUND)
4. Insert Green computer wire into PIN 13 (LEFT SOUND)
5. Also insert 2 ground wires (in my case White and Black wires) into PIN 5 and PIN 14 (GROUND)
NOTE: There is a notch out of the computer wires that works perfectly with the C2 connector casing. Sort of like a lock in channel (groove), hard to explain but you'll get it when you have it all in-front of you.
6. Put the C2 connector back together making sure all the wires you have connected stay in place.
7. Once the Comand 2.0 unit is in place, solder the appropriate wires to the socket (I don't recommend to solder socket to end of wires before installation as you don't know where you might need to push these wires through)
------------------------------------
PIN OUTS
------------------------------------
------------------------------------
INSTALLATION
not going to go into too much detail here there is a lot of info on this part on forums
------------------------------------
1. Park-brake on, car off
2. Remove wood panel around gear knob
3. move gear stick into drive (to make room to pull out ash tray) (use park break release flap) Lift up grate next to cig lighter release catch, release is in there.
4. pull out inner ash tray, undo 2 clips holding outer ash tray and remove it, unplug ashtray light.
5. remove two screws underneath where ash tray used to be. (also undo 2 clips holding wood backing plate)
6. MOVE TO TOP VENTS, Close top vents.
7. Remove top vent screws (they only unscrew they don't come out)
8. Push down on top vent grab clips and pull out vent, one side at a time.
9. Once vents are out don't unplug them just put them to the side on dash.
10. Whole wood-panel plate should now be loose.
11. Separate Heater/AC unit from wood-panel plate (do not unplug) and put to the side.
11. Leave Upper Control Panel (UCP) attached to wood-panel plate (do not unplug) put it up on the dash.
12. You now will have access to the Audio 10 unit, there will be 2 more screws to undo.
13. Pull out the Audio 10 unit, unplug all the wires and remove it.
14. Insert the Comand 2.0 unit making sure you plug in all the wires you unplugged. It will all be plug in and play as long as you bought the C to C1 and C2 adapter.
15. Make sure you plug in your GPS antenna amd your AUX cable is coming down behind the unit and out the bottom near the ash tray.
16. Start putting it all back together in reverse order.
^ BEFORE and AFTER \/
Good luck with your own project. Tijn
Last edited by tijn; 06-08-2012 at 08:28 PM.
