Very cold day here today in UK and went to start my car and blower motor wasn't running. Left engine on for 5 minutes and it kicked in for around 30s before stopping again. Did this one more time before stopped working altogether.
I took the cover off passenger side footwell and found the blower motor, see photo. However I couldn't for the life of me get it out. Unfortunately I snapped off the plastic tab whilst trying to get it out, even then it won't rotate either clockwise/anti-clockwise.
Strangely with the engine off when I was in the footwell I could hear the blower running at very slow speed.
A few questions:
How do I get the dam thing out!
I ordered a 2nd hand blower motor off eBay - link

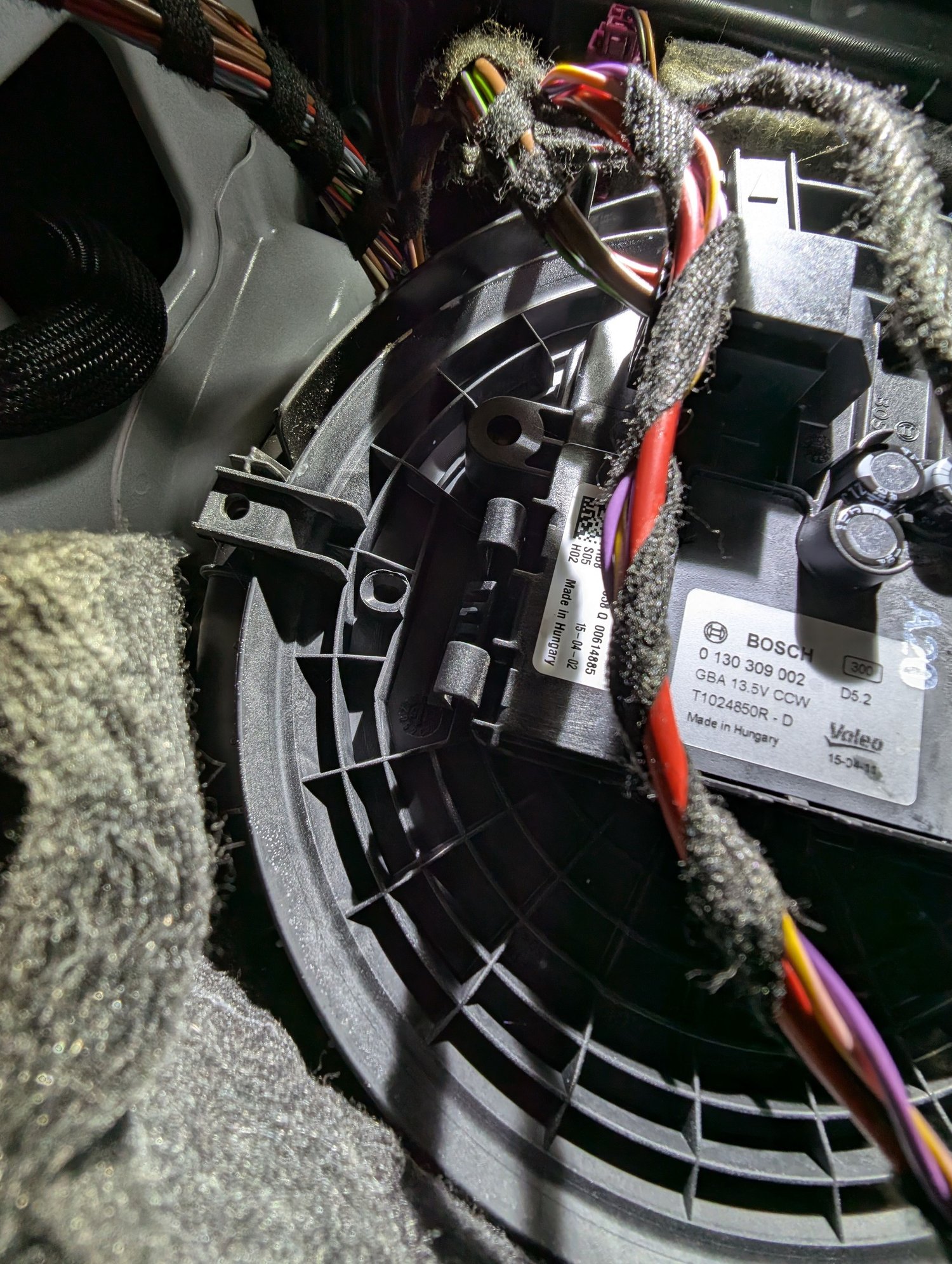

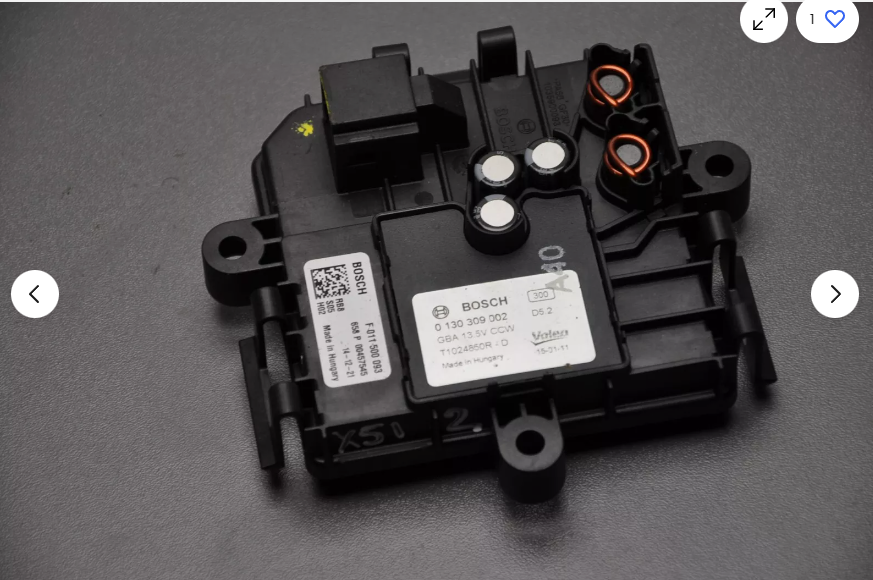

Am I right in thinking the resistor is built into the assembly? Photo of blower motor (before I snapped the tabs)
You should check for power at the blower and the resistor if it has One. I'm not to familiar with your year.
You should post in the W205 forum because that's what your car is. It's not a W204 as we all have in this forum thread.

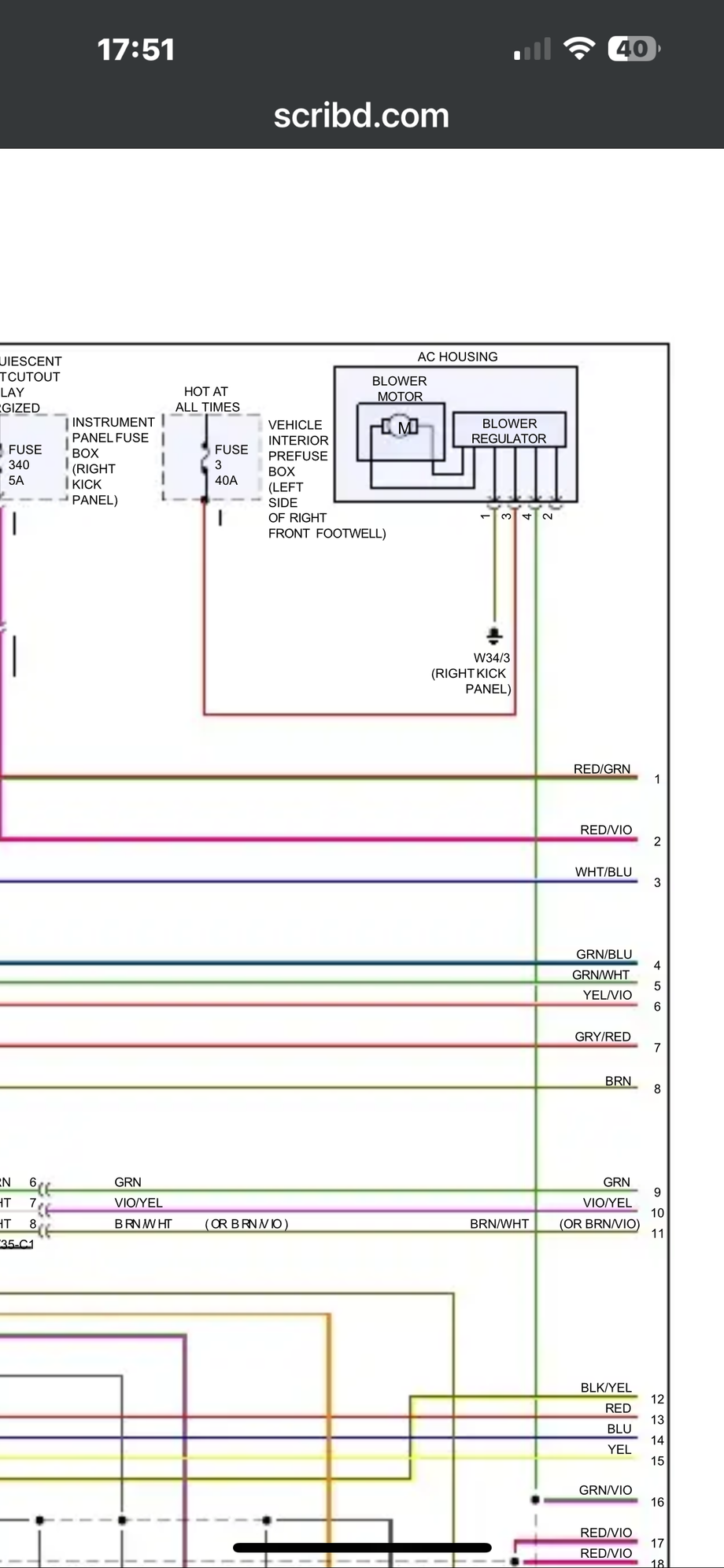

So I did a little looking and here is the wiring for the blower I believe. I know it's the wrong engine but it should be similar. The wire that comes off your blower plugs into the blower control module/resistor for the control of the motor speeds. I took a screen shot of the blower wiring diagram
and I will post the link to the page that I found it on. It has a explanation of how it works I believe but you have to register to the site but I think it's free. Good luck
I dont have much experience figuring out electrical issues. But i did look at the W204 diagrams i have to try and understand how the blower motor system works. Should be similar to the W205.
I have a wiring diagram that matches up with the diagram shown above. Pin 1 is Ground, Pin 3 is +12v, Pin 4 goes to the climate control unit, and Pin 2 is dead. Try to test and see if this is how yours works. Connect the multimeter to a good ground on the car, you should see 12v at Pin 3, test Pin 1 for continuity with ground, then Pin 4 voltage should vary when you switch the fan speed setting on the climate control unit.
Thanks again for the reply. So after testing I reassembled the blower motor and today had to drive for 2 hours.
About half an hour in blower comes on for around 30s, then goes off. Half an hour later it comes on and stays on for the remainder of the journey.
Could this be a loose wiring connector? Also, might be a coincidence but I drove through some pretty deep flood water around a week ago. Maybe moisture somewhere had caused an issue?
I am booked to take it to mercedes on Thursday but have another 2 hour journey on Wednesday so will see what happens on that before I take it in. Very strange!
Just an update on this. I ended up taking car to mercedes for diagnostics. £1200 later they found the issue. There was an electrical anomaly causing power to feed the motor when it shouldn't have been. Hence intermittent operation. They got into the guts of the wiring under dash etc to try and isolate the fault. Ended up there was corrosion inside the plug and socket for the AC compressor. They cleaned up the terminals and this has resolved the issue. Recommended changing out the AC compressor to prevent recurrence but need to save a bit of cash for that!
2015 SL400 (M276 Turbo), 2014 C350 Sport (M276 NA), 2004 SL500 (M113), 2004 Audi TT225 (BEA)
Originally Posted by tuna212
Just an update on this. I ended up taking car to mercedes for diagnostics. £1200 later they found the issue. There was an electrical anomaly causing power to feed the motor when it shouldn't have been. Hence intermittent operation. They got into the guts of the wiring under dash etc to try and isolate the fault. Ended up there was corrosion inside the plug and socket for the AC compressor. They cleaned up the terminals and this has resolved the issue. Recommended changing out the AC compressor to prevent recurrence but need to save a bit of cash for that!
not sure I see the correlation if all is working now. I would hit the terminals in the connector with electrical contact protectant and call it done.
