W205 Illuminated Star DIY

Old 08-31-2014, 03:55 PM
  #1
Junior Member
Thread Starter

jayband's Avatar

Join Date: Aug 2014
Location: Saratoga, CA
Posts: 34
Thanks: 0
Thanked 1 Time in 1 Post
C3004Matic
W205 Illuminated Star DIY

Provide a DIY guid for installing illuminated star in your W205. This guide is for car without the Driver Assistance Package (Distronic Plus) Code 997 option.

Let me know if you have any questions.



LED illuminated star





wire harness assembly





Remove the star counter clockwise from the grill








Locate your engine fuse box in you driver side





Remove the plastic cover and expose the fusebox





Use a Torx screwdriver and remove the 2 screws and remove the top cover. Use a pry tool to carefully pry back side of the fuse/relay module





Life up the edge of the fuse/relay module. There is sufficient wire underneath so you can pull the entire module out and set it aside.





-Mark center of the top side edge and place another marker 1 inch down. Drill a 3/4" hole<br/><br/>-Route your red wire that comes with the kit through hole in grommet





In the back of the fuse/relay module, locate the S8 connector and connect the red wire to position 8 of the connector





Reinstall the fuse/relay module back to the box and install a 5A fuse into position F123 (B)





Remove plastic rivets (1) that secure the radiator support panel





Remove plastic rivets (2)





Remove plastic rivets (3)





-Route the cable towards to the center of the radiator<br/><br/>-Route the ground cable towards to the passenger side





Connect ground wire to ground terminal (passenger side)





Connect the star wiring harness

Reassemble in reverse order.

Last edited by jayband; 08-31-2014 at 03:59 PM. Reason: add pics
jayband is offline
The Following User Says Thank You to jayband For This Useful Post:
benzdude (11-16-2018)
Old 08-31-2014, 04:33 PM
  #2
MBWorld Fanatic!

vic viper's Avatar

Join Date: Mar 2009
Location: Sweden
Posts: 3,053
Thanked 182 Times in 121 Posts
S213
And this connection will lit the star when?
vic viper is offline
Old 08-31-2014, 04:44 PM
  #3
Junior Member
Thread Starter

jayband's Avatar

Join Date: Aug 2014
Location: Saratoga, CA
Posts: 34
Thanks: 0
Thanked 1 Time in 1 Post
C3004Matic
Originally Posted by vic viper View Post
And this connection will lit the star when?
That's correct, will post the result picture when it's dark....
jayband is offline
Old 08-31-2014, 06:52 PM
  #4
Senior Member

Join Date: Oct 2012
Posts: 377
Thanks: 0
Thanked 1 Time in 1 Post
2013 C250 sport
Is it always on, or only upon approach and/or unlocking? Or does it come on and stay on while driving when the headlights come on (at night)?
djejglk is offline
Old 08-31-2014, 06:57 PM
  #5
MBWorld Fanatic!

joshg1001's Avatar

Join Date: Jun 2008
Location: San Francisco, CA
Posts: 1,877
Thanks: 0
Thanked 35 Times in 31 Posts
2017 E300
I think Vic is asking when the star actually turns on. Is it on all the time? with headlights? etc. If its just to the fuse box, its probably always on...

Thanks for the detailed pics. Funny, its so easy to remove the front star just by turning it counter clockwise. Hope there isn't too much theft. lol
joshg1001 is offline
Old 08-31-2014, 07:28 PM
  #6
Senior Member

NYC-Style's Avatar

Join Date: Apr 2014
Location: Las Vegas NV
Posts: 332
Thanked 7 Times in 7 Posts
Corvette/2017 E-300
First of all very good instructions... My understanding is that it'll illuminate as long as the headlights are on. Although MBUSA showed it as an accessory that's available to be ordered...it wasn't listed during the ordering/build of my car at the dealership...so I'll also have to add it afterwards as well...
NYC-Style is offline
Old 08-31-2014, 07:30 PM
  #7
Senior Member

Join Date: Jan 2007
Posts: 456
Thanks: 0
Thanked 0 Times in 0 Posts
16 C450
Originally Posted by joshg1001 View Post
I think Vic is asking when the star actually turns on. Is it on all the time? with headlights? etc. If its just to the fuse box, its probably always on...

Thanks for the detailed pics. Funny, its so easy to remove the front star just by turning it counter clockwise. Hope there isn't too much theft. lol
Looks like lots of people will come back to their cars and say , where is my star
cleankutazn is offline
Old 08-31-2014, 07:39 PM
  #8
Member

Join Date: Jul 2014
Location: Toronto Ontario Canada
Posts: 116
Thanks: 0
Thanked 1 Time in 1 Post
2015 C400 4Matic
now.....what colours does it come in with?
utsenmo is offline
Old 08-31-2014, 11:37 PM
  #9
Member

Join Date: Aug 2014
Posts: 83
Thanks: 0
Thanked 4 Times in 4 Posts
E300
Originally Posted by NYC-Style View Post
First of all very good instructions... My understanding is that it'll illuminate as long as the headlights are on. Although MBUSA showed it as an accessory that's available to be ordered...it wasn't listed during the ordering/build of my car at the dealership...so I'll also have to add it afterwards as well...
Has anyone been able to order it during their build?
Latinnftl is offline
Old 09-01-2014, 12:09 AM
  #10
MBWorld Fanatic!

joshg1001's Avatar

Join Date: Jun 2008
Location: San Francisco, CA
Posts: 1,877
Thanks: 0
Thanked 35 Times in 31 Posts
2017 E300
Im pretty sure the illuminate star is dealer installed, not from factory
joshg1001 is offline
Old 09-01-2014, 12:18 AM
  #11
Junior Member
Thread Starter

jayband's Avatar

Join Date: Aug 2014
Location: Saratoga, CA
Posts: 34
Thanks: 0
Thanked 1 Time in 1 Post
C3004Matic

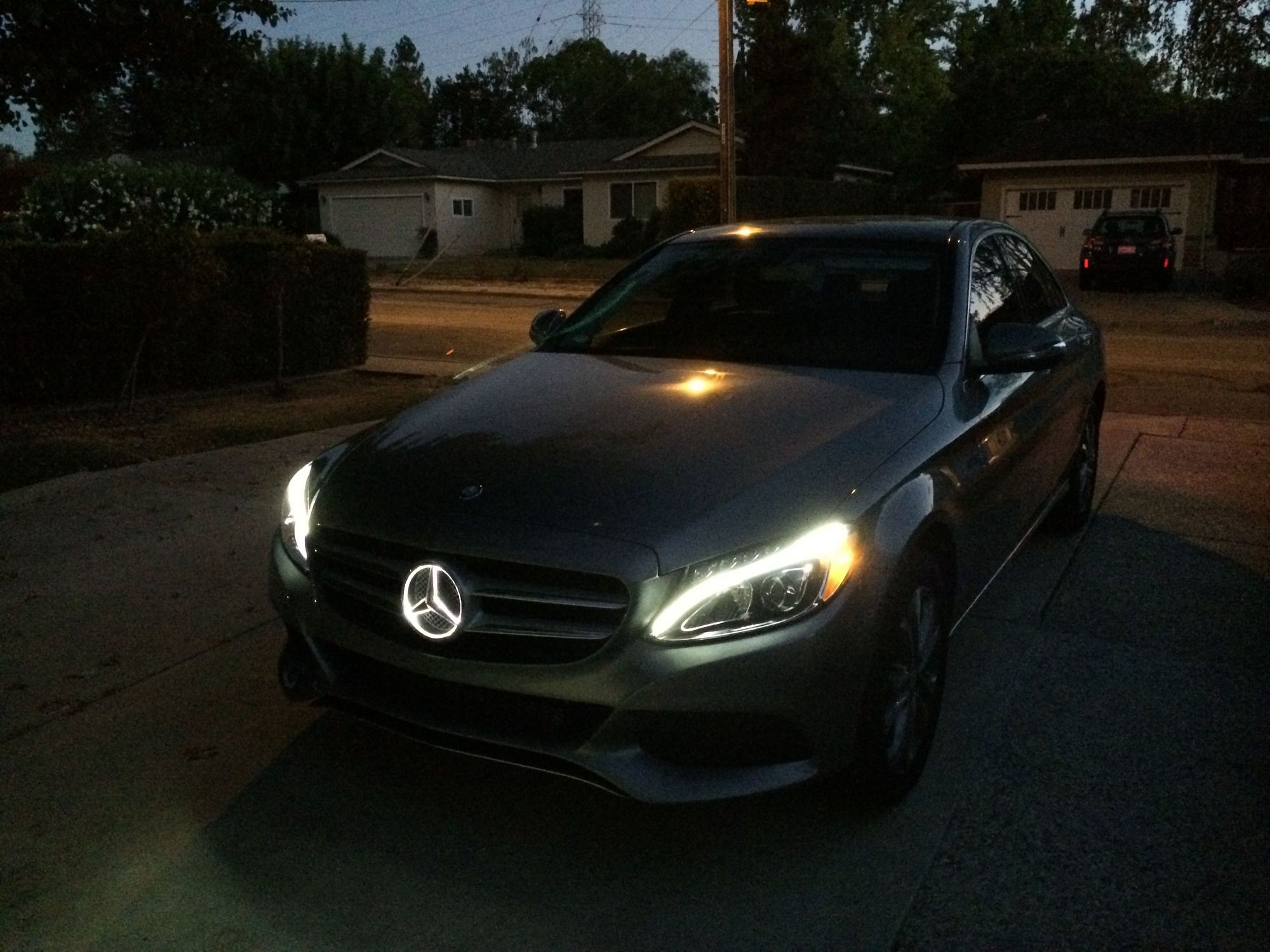

Welcome lights (engine off), star does not illuminated. (as long as engine is off, no matter what light setting you do, star will not illuminated




Engine on, star lights up!!




Light switch in "Auto" position, star on...
jayband is offline
Old 09-01-2014, 01:12 AM
  #12
MBWorld Fanatic!

vic viper's Avatar

Join Date: Mar 2009
Location: Sweden
Posts: 3,053
Thanked 182 Times in 121 Posts
S213
Would be nicer if the star followed the DRL.s, this way it would lit up as soon as the car is unlocked in dark conditions.
vic viper is offline
Old 09-01-2014, 01:12 AM
  #13
Member

Join Date: Jul 2014
Location: Toronto Ontario Canada
Posts: 116
Thanks: 0
Thanked 1 Time in 1 Post
2015 C400 4Matic
looks good, could you confirm if the star stays on when you take off?

we should sticky this thread.

like +1
utsenmo is offline
Old 09-01-2014, 01:19 AM
  #14
Junior Member
Thread Starter

jayband's Avatar

Join Date: Aug 2014
Location: Saratoga, CA
Posts: 34
Thanks: 0
Thanked 1 Time in 1 Post
C3004Matic
Originally Posted by utsenmo View Post
looks good, could you confirm if the star stays on when you take off?

we should sticky this thread.

like +1
Drove around and see the reflection from the front and definitely stays on.
jayband is offline
Old 09-01-2014, 02:24 AM
  #15
Senior Member

NYC-Style's Avatar

Join Date: Apr 2014
Location: Las Vegas NV
Posts: 332
Thanked 7 Times in 7 Posts
Corvette/2017 E-300
Originally Posted by joshg1001 View Post
Im pretty sure the illuminate star is dealer installed, not from factory

You're probably right...although with the CLA you could order and it came delivered with the illuminated star. MBUSA should put a footnote which indicates that it's dealer installed...or the salesman should know that. He did say it could be installed at the dealer...but didn't know why he couldn't order it into the build.
NYC-Style is offline
Old 09-01-2014, 02:35 AM
  #16
Junior Member
Thread Starter

jayband's Avatar

Join Date: Aug 2014
Location: Saratoga, CA
Posts: 34
Thanks: 0
Thanked 1 Time in 1 Post
C3004Matic
Dealer is charging arm and leg like $500-600 to install....
jayband is offline
Old 09-01-2014, 03:26 AM
  #17
MBWorld Fanatic!

vic viper's Avatar

Join Date: Mar 2009
Location: Sweden
Posts: 3,053
Thanked 182 Times in 121 Posts
S213
If a dealer is going to install they most likely will also install the control unit included in the retrofit set.
There are two different control units, one with the traditional lighting pattern an one with "always on", the latter is only available for the US market.
vic viper is offline
Old 09-01-2014, 03:48 AM
  #18
Senior Member

Join Date: Jan 2007
Posts: 456
Thanks: 0
Thanked 0 Times in 0 Posts
16 C450
We will see this on hondas and toyotas soon.
cleankutazn is offline
Old 09-01-2014, 10:32 AM
  #19
Junior Member
Thread Starter

jayband's Avatar

Join Date: Aug 2014
Location: Saratoga, CA
Posts: 34
Thanks: 0
Thanked 1 Time in 1 Post
C3004Matic
Originally Posted by vic viper View Post
If a dealer is going to install they most likely will also install the control unit included in the retrofit set.
There are two different control units, one with the traditional lighting pattern an one with "always on", the latter is only available for the US market.
How is the traditional lighting pattern different than the always on? What features do you have?
jayband is offline
Old 09-01-2014, 11:08 AM
  #20
MBWorld Fanatic!

vic viper's Avatar

Join Date: Mar 2009
Location: Sweden
Posts: 3,053
Thanked 182 Times in 121 Posts
S213
The initial light patten and the only one available over here, is that the star lights up when the car is unlocked during dark ambient conditons, but when driving the star is dark.


The "always on" control unit only works in a non ECE spec vehicle.
vic viper is offline
Old 09-01-2014, 11:11 AM
  #21
Junior Member
Thread Starter

jayband's Avatar

Join Date: Aug 2014
Location: Saratoga, CA
Posts: 34
Thanks: 0
Thanked 1 Time in 1 Post
C3004Matic
Originally Posted by vic viper View Post
The initial light patten and the only one available over here, is that the star lights up when the car is unlocked during dark ambient conditons, but when driving the star is dark.


The "always on" control unit only works in a non ECE spec vehicle.
Is there a reason the star is not on when driving? European law?
jayband is offline
Old 09-01-2014, 11:21 AM
  #22
Junior Member
Thread Starter

jayband's Avatar

Join Date: Aug 2014
Location: Saratoga, CA
Posts: 34
Thanks: 0
Thanked 1 Time in 1 Post
C3004Matic
After doing so googling, interesting to find out there are 2 kits from Mercedes. One as "vic viper" said it will:

- After unlocking with the key; the Star will be illuminated for 40 seconds
- If any door is opened, the Star will stay illuminated for total of 5 minutes
- If doors are closed, the Star turns off
- If vehicle is started, the Star turns off
- After driving and parking, the Star will be illuminated for 60 seconds after the engine is switched off

The other kit will only turn on following the eye brow LED and low/high beam when engine is on.

Not sure if W205 even has the 1st kit available (seems like the 1st kit is considered as 1st generation in the CLA classes etc), I have yet to seen ppl mentioned the 1st kit installed in the W205.

vic viper, do you have experience on the 1st kit only in the W205? I saw yours in W204

Last edited by jayband; 09-01-2014 at 11:42 AM.
jayband is offline
Old 10-10-2014, 06:06 PM
  #23
Junior Member

n3cr1d's Avatar

Join Date: Sep 2013
Posts: 34
Thanks: 0
Thanked 0 Times in 0 Posts
w204
Does anyone know where can i buy the illuminated star? w205
Not the "always on".

This one:
- After unlocking with the key; the Star will be illuminated for 40 seconds
- If any door is opened, the Star will stay illuminated for total of 5 minutes
- If doors are closed, the Star turns off
- If vehicle is started, the Star turns off
- After driving and parking, the Star will be illuminated for 60 seconds after the engine is switched off.


thanks!
n3cr1d is offline
Old 10-10-2014, 06:24 PM
  #24
Member

Join Date: Jan 2012
Location: Sydney, Australia
Posts: 180
Thanks: 0
Thanked 0 Times in 0 Posts
C250 CDI coupe, Obsidian Black Vision Pack, Drive Assist Plus pack, Comfort Pack, Rev Camera
Can this mod be done with a distribution plus option?
jkyriakou is offline
Old 10-10-2014, 09:05 PM
  #25
MBWorld Fanatic!

joshg1001's Avatar

Join Date: Jun 2008
Location: San Francisco, CA
Posts: 1,877
Thanks: 0
Thanked 35 Times in 31 Posts
2017 E300
On the MBUSA website, the disclaimer for the illuminated start states "not available with driver assistance package or luxury package"
joshg1001 is offline
