Retrofitted Illuminated Door Sills on a C450
Here is the link to my google drive containing the documents that you can download for yourself.
https://drive.google.com/drive/folde...gZ?usp=sharing

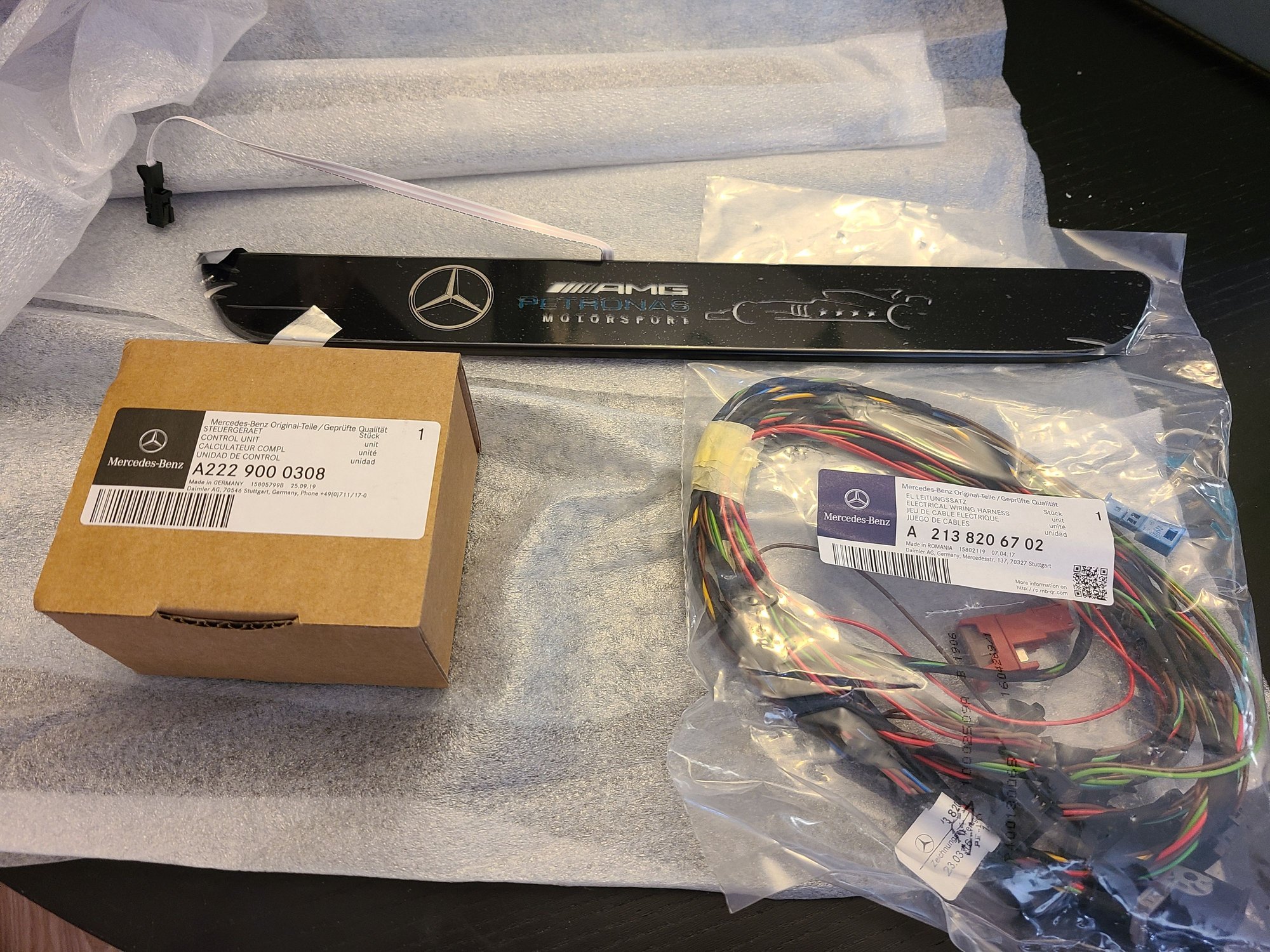

No programming is required and the part numbers are:
- A2229000308 for the control box
- A2138206702 for the wiring harness
- A2056804011 for the F1 illuminated door sills
The WIS document for the install asks you to first release the front SAM module, I did this but then shortly after realized that there was absolutely no reason to do this. So I mounted it back up into place.

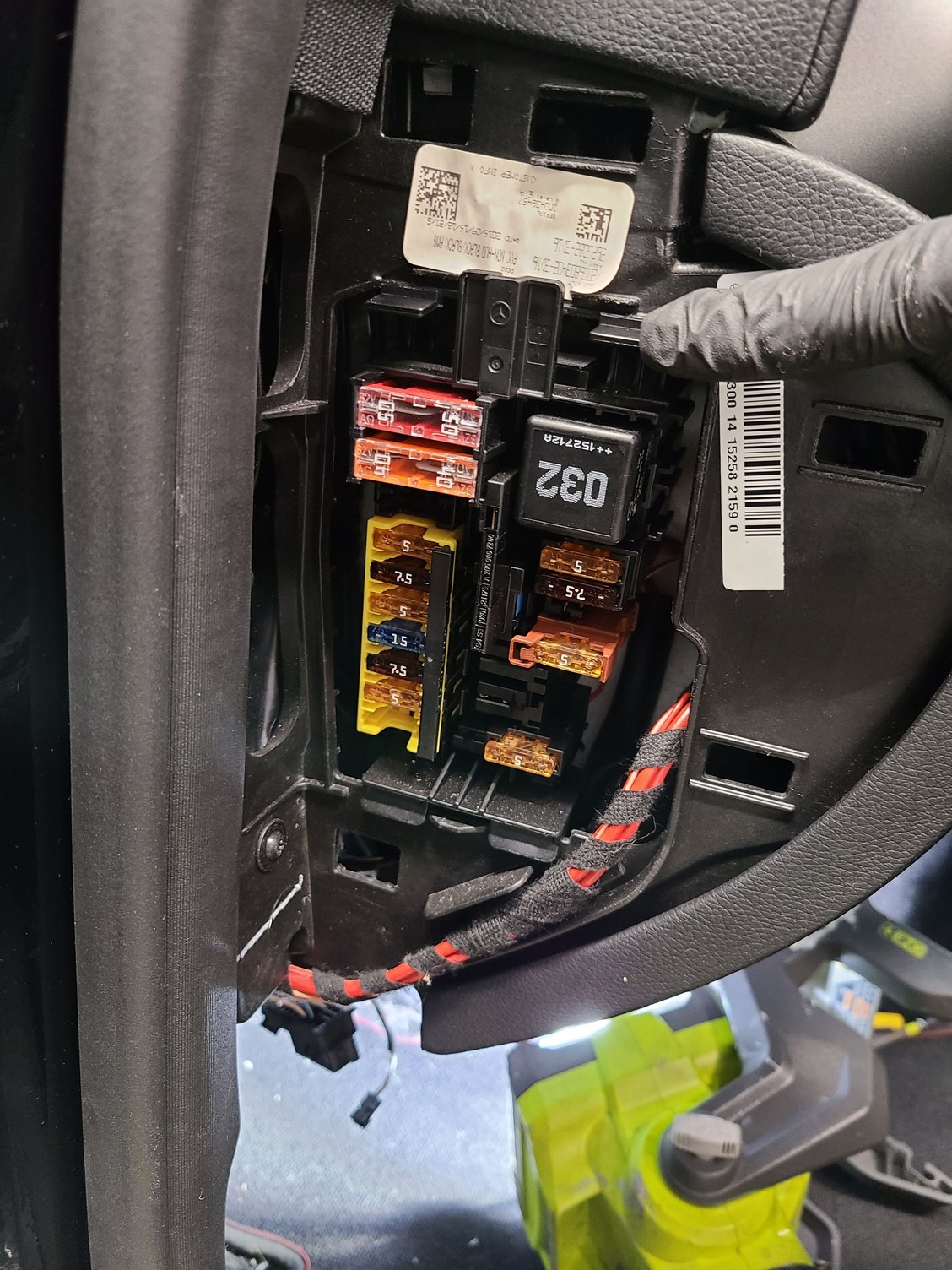

The fuse/relay block that you need to access for the install is released by pressing down the two tabs at the top, then you pull it forward from the top. The fuse box will then hang out a bit for you to do the work.

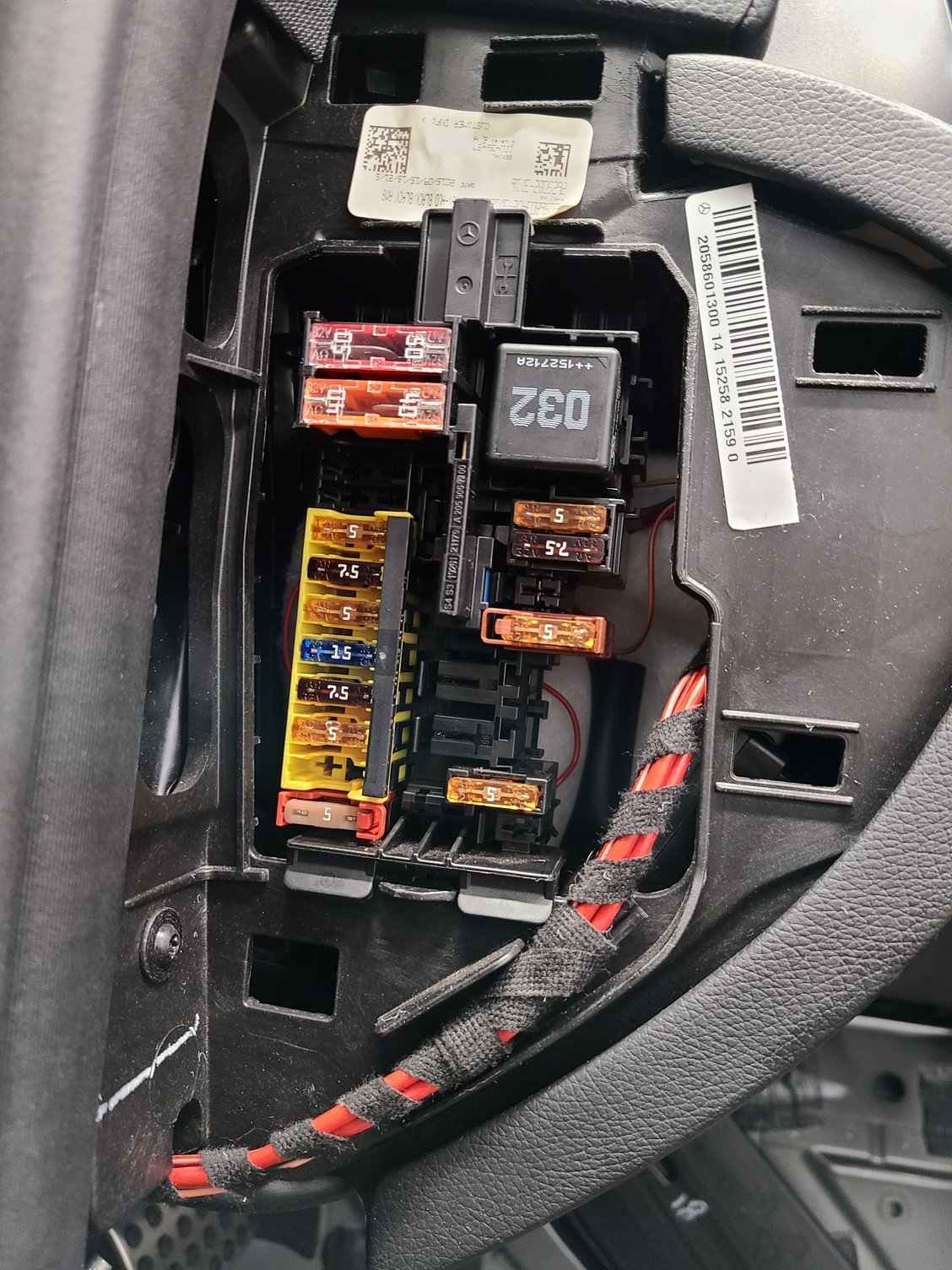

The WIS doc says if there is no appropriate fuse contact that's available to use, then to use a jumper wire at the back of the fuse box between "S7" and "chamber 9" and install the fuse to "S7". Well, I did a continuity test and found a few open spots with constant power but only one that was suitable to fit the fuse holder type that's on the new wire harness.

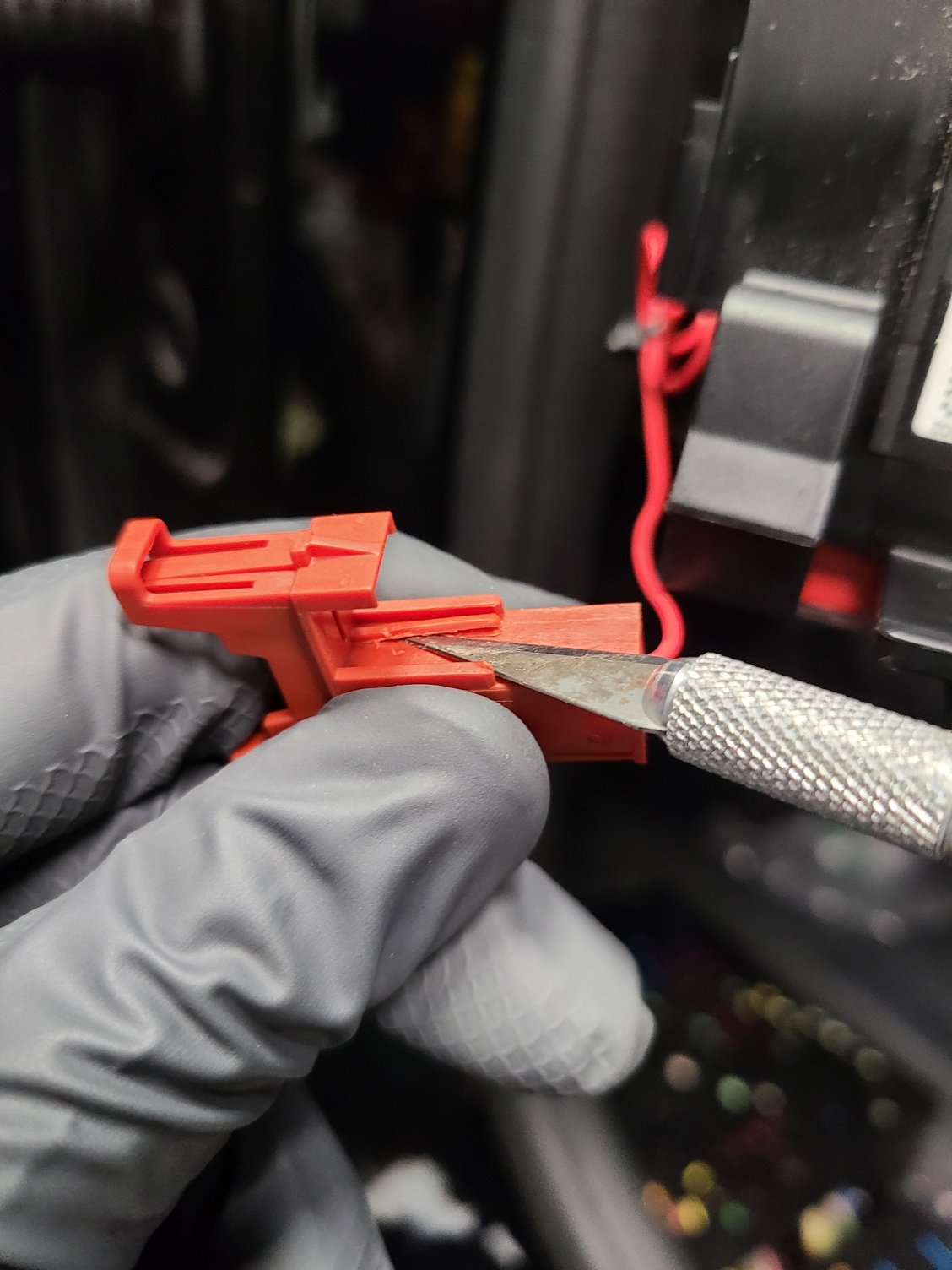

By design, the fuse holder on the wire harness was only be able to be installed on the right hand side of the fuse box. I needed to install it on the left. The only difference between the left and right hand side fuse slots are how the guiding part of the fuse holder plastic is offset/positioned. So I just cut off the guiding part so it can fit the other side.

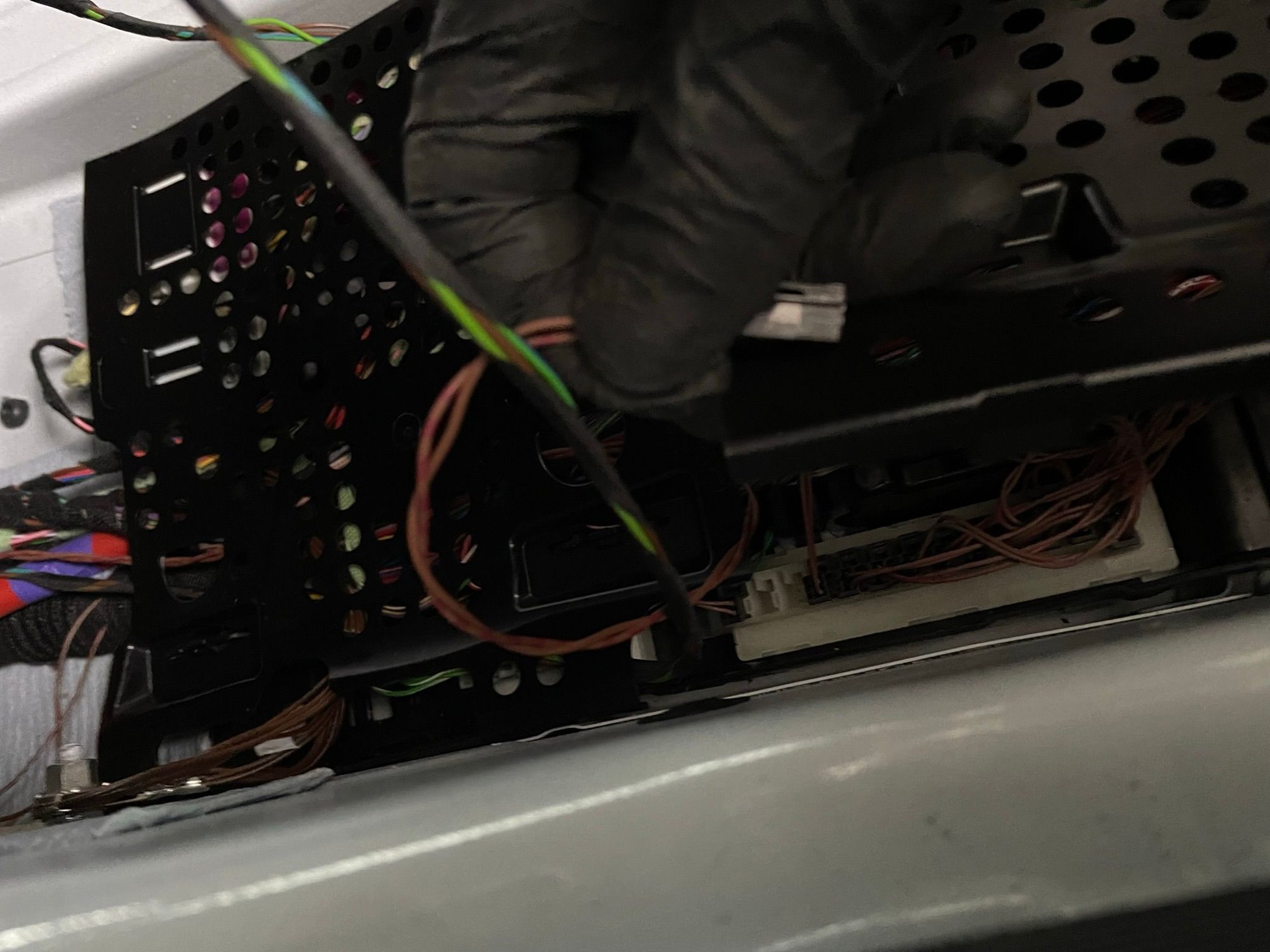

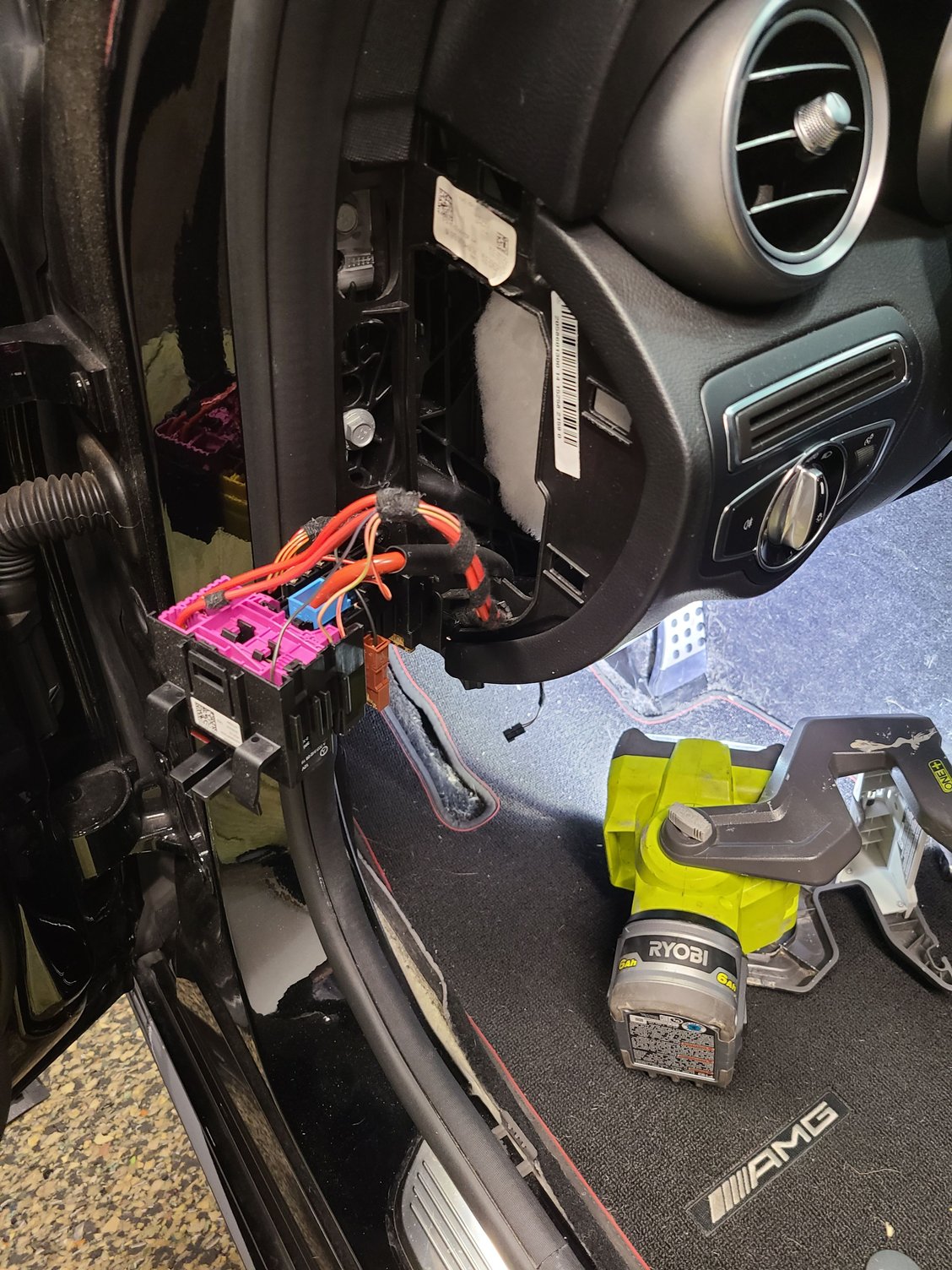

The CAN connector on the new wire harness goes here where all the other black colored connectors are.
This is the X30/32 CAN B distributor and if you don't have an open spot available, you can ask the dealership for a "distributor extension adapter line" to add another spot.

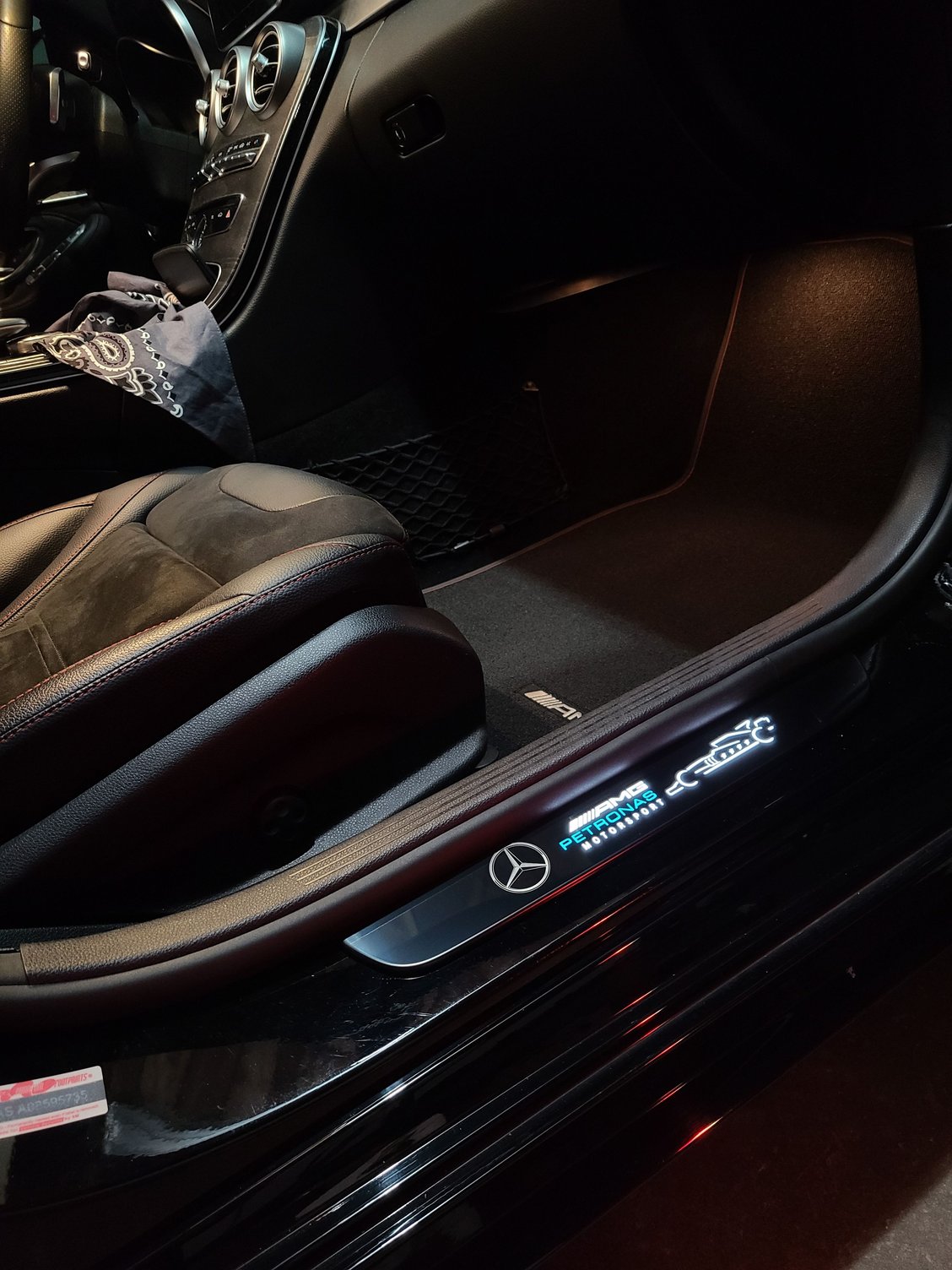

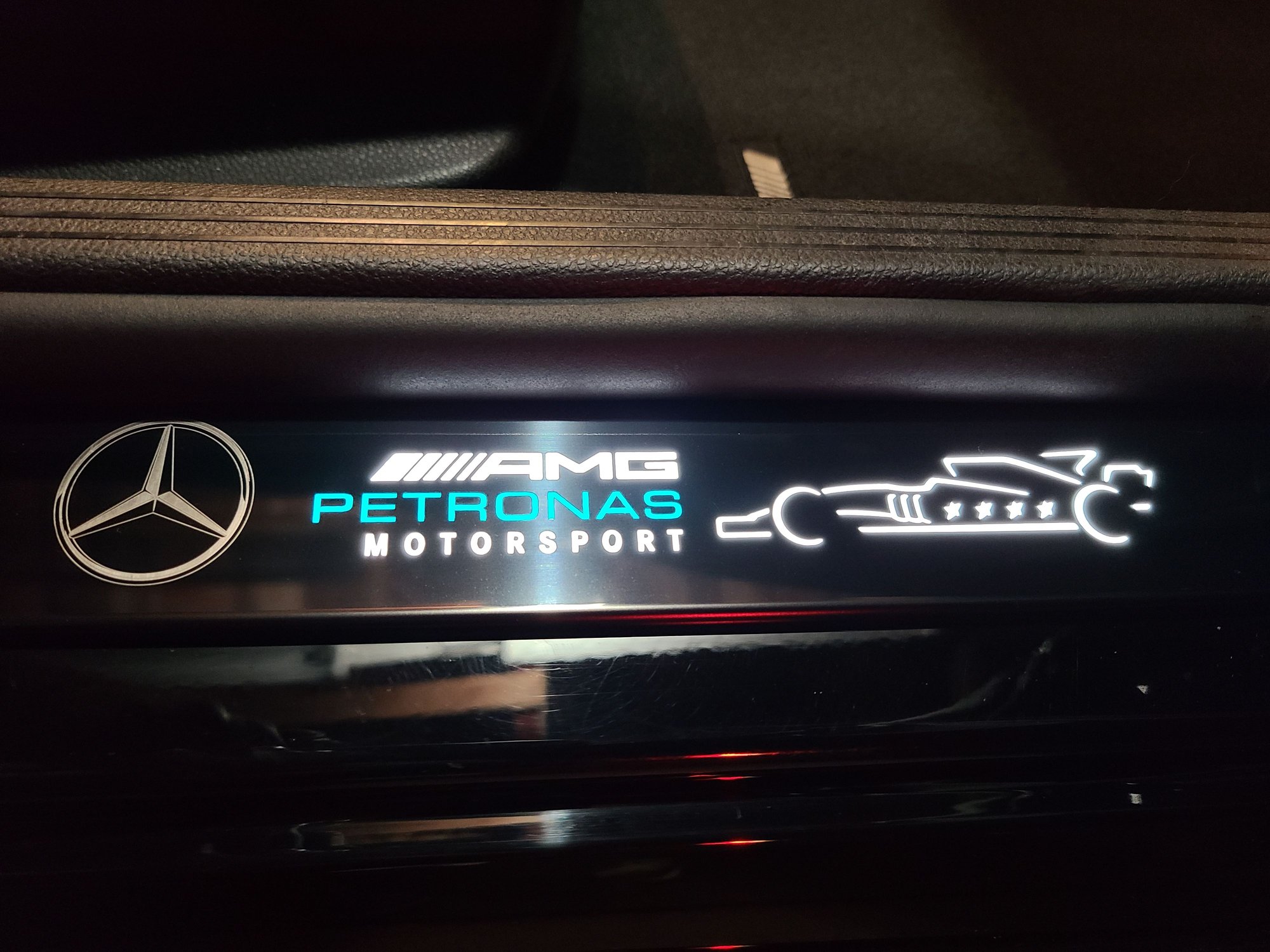

Anyhow, here's a few pics after install
It's a bit of work in that you must remove the front carpets, some plastics, route the wiring and zip tie it into place. That's the most time consuming part of it all especially if you've not done it before. Oh and removing the existing door sills cam be done fairly quick with the right tools. The wiring harness is all plug and play though.
https://drive.google.com/folderview?...MvKNhTOaDut-gZ
Please let me know if it doesn't work
Is there any coding required or could there be a fault in the control box ?
Thanks in advance!
Dennis
There's certainly no coding necessary and the control box takes care of everything by communicating to the car through CAN bus. It would know if doors open or close and would control the lights accordingly. If it is blinking, perhaps faulty control box or it is connected into the incorrect CAN distributer.
