Help with s/c issue diagnosis (see photo)
Thread Starter
Member
Joined: Jul 2009
Posts: 125
Likes: 2
From: Marlton
'02 325 xi; '02 C32; '90 ZX; '08 CBR 6RR, '86 V45 Magna
Help with s/c issue diagnosis (see photo)

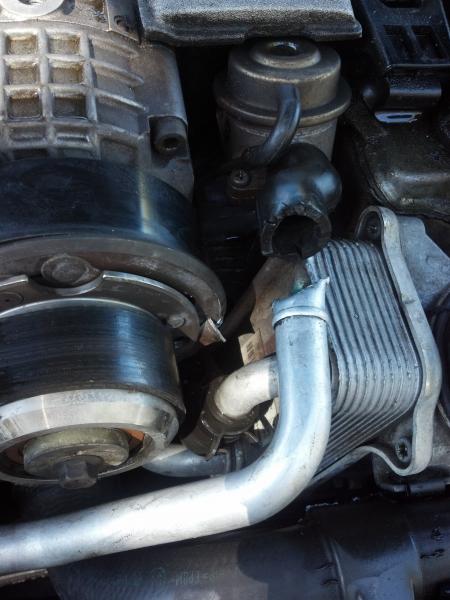

As you can see, a jagged piece of metal came out from behind the pulley and slashed my coolant lines. This happened as I was driving about .5 mi from the car wash to my house. I saw no performance loss, but the "check coolant level" warning came up on the led display. No CEL or other lights. When I got home, I popped the hood to see the car covered in coolant. I then found the source. The aluminum line that runs in front of the serpentine was sheared right at its rubber coupler on the right side of motor (facing the motor from the front). I then looked for the cause and found the little piece of jagged metal from behind the sc pulley. I was able to turn the clutch by hand but it does not turn easily or smoothly. Anyone have a clue as to the cause? I know t can be one f many issues some much more expensive than others.
Thread Starter
Member
Joined: Jul 2009
Posts: 125
Likes: 2
From: Marlton
'02 325 xi; '02 C32; '90 ZX; '08 CBR 6RR, '86 V45 Magna
Without taking the pulley off and knowing the anatomy of the pulley, I'm thinking the metal could be a spacer shim. Maybe. But what could cause the failure?
Thread Starter
Member
Joined: Jul 2009
Posts: 125
Likes: 2
From: Marlton
'02 325 xi; '02 C32; '90 ZX; '08 CBR 6RR, '86 V45 Magna
Nothing. ?? No replies. As it sits I've ordered the pulle rebuild kit from mb which will run me $1200+. Throw in another several hundred for the carnage caused. I initially thought seized bearing. But my mechanic tells me the rogue metal piece part of the clutch mechanism. I checked it out myself and it doesn't appear the debris from a seized bearing. I'm told the clutch freewheels until engaged electronically with the ever turning pulley. When engaged, there is metal pieces on the rear of the pulley that hook up to the clutch. One of those pieces went AWoL causing all the carnage. It sliced the aluminum and rubber air pump line (which are *** worthless), a coolant line under that and even cracked chunks out of the idler pulley to the left of sc pulley. There even appears a slight crack in the right side air in take.
All I want to know is whether the pulley is shot or whether this could all becaused by a bad bearing. Mind you, I've never had any prior indication that the bearing was on its way out. So could my mechanic be correct? Bare in mind, he's my dads best friend and isn't trying to f us over.
All I want to know is whether the pulley is shot or whether this could all becaused by a bad bearing. Mind you, I've never had any prior indication that the bearing was on its way out. So could my mechanic be correct? Bare in mind, he's my dads best friend and isn't trying to f us over.
MBWorld Fanatic!
Joined: Jul 2007
Posts: 2,000
Likes: 20
From: East Bay, Bay Area
2002 C32, 2012 S550
Why don't you just buy a replacement pulley from Eurocharged?
You get a little more power and it's much cheaper.
http://www.eurocharged.com/products/mercedes-tuning/c-class/c32/pulleys/eurocharged-c32-slk-amg-supercharger-pulley-detail
You get a little more power and it's much cheaper.
http://www.eurocharged.com/products/mercedes-tuning/c-class/c32/pulleys/eurocharged-c32-slk-amg-supercharger-pulley-detail
Super Member
Joined: Jun 2011
Posts: 601
Likes: 4
From: I liva at da land down under
Porsche 2004 911
Why don't you just buy a replacement pulley from Eurocharged?
You get a little more power and it's much cheaper.
http://www.eurocharged.com/products/mercedes-tuning/c-class/c32/pulleys/eurocharged-c32-slk-amg-supercharger-pulley-detail
You get a little more power and it's much cheaper.
http://www.eurocharged.com/products/mercedes-tuning/c-class/c32/pulleys/eurocharged-c32-slk-amg-supercharger-pulley-detail
Thread Starter
Member
Joined: Jul 2009
Posts: 125
Likes: 2
From: Marlton
'02 325 xi; '02 C32; '90 ZX; '08 CBR 6RR, '86 V45 Magna
Why don't you just buy a replacement pulley from Eurocharged?
You get a little more power and it's much cheaper.
http://www.eurocharged.com/products/mercedes-tuning/c-class/c32/pulleys/eurocharged-c32-slk-amg-supercharger-pulley-detail
You get a little more power and it's much cheaper.
http://www.eurocharged.com/products/mercedes-tuning/c-class/c32/pulleys/eurocharged-c32-slk-amg-supercharger-pulley-detail
Trending Topics
SPONSOR
Joined: Jul 2007
Posts: 5,459
Likes: 152
From: Houston/ Austin /Toronto / UAE / Minneapolis / Orlando /Cincinnati
Eurocharged Performance ML63 and TT lambo
Our pulley was made to OEM specs...
MB World Stories
The Best of Mercedes & AMG
Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun
Verdad Gallardo
Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren
Verdad Gallardo
8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine
Verdad Gallardo
Flawlessly Restored Mercedes 190E Evo II Heads to Auction
Verdad Gallardo
Electric Mercedes C-Class Unveiled: 11 Things You Need to Know
Verdad Gallardo
Mercedes EQS Gets A Major Update: Everything You Need to Know
Verdad Gallardo
5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve
Verdad Gallardo
Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping
Verdad Gallardo
10 Most Reliable Mercedes-Benz Models You Can Buy Used
Verdad Gallardo
Super Member
Joined: Jun 2011
Posts: 601
Likes: 4
From: I liva at da land down under
Porsche 2004 911
Also as a suggestion, have a good look at the clutch and perhaps take the clutch to a machinist and have it shaved to be perfectly flat. Mine was ever so sightly out and had started to wear (again ever so sightly) the connecting plate of the previous replacement pulley (EC 65mm) A result of a perfectly flat pulley(new) and a worn clutch. I took the s/c to a local machinist and got the clutch shaved flat and installed the EC 61mm. A new clutch surface for a new pulley. With your situation the clutch could have be worn which over time imbalanced the revolutions of the pulley and may have been the catalyst of the pulley popping that small rivet(?) and a bit flinging off and cutting up that metal egr hose thing. Or the shim setting was too far out increasing wear over time. Your car is over 10yrs old. New parts on worn components may have an adverse effect with the balance of the assembly. Perhaps that is where some chirp sounds(slip) originate and slippage stops once the surfaces bed in. Don't know - I am no engineer nor mechanic. But for my experience I have had over 40,000kms with EC pulleys. (65mm &61mm) No issues at all.
Last edited by macbryanie; May 30, 2013 at 09:40 AM.
Super Member
Joined: Jun 2011
Posts: 601
Likes: 4
From: I liva at da land down under
Porsche 2004 911
You will get a new bearing with the new pulley.
Have a look at the pdf on this thread - pdf Code 3 Pulley install
https://mbworld.org/forums/c32-amg-c...ns-thread.html
Last edited by macbryanie; May 30, 2013 at 10:14 AM.
MBWorld Fanatic!
Joined: Jun 2003
Posts: 4,705
Likes: 2
From: nj
a car that can't do the throttle reset.
Guy offered some help when you mentioned price. His post was more "responsive" than your pulley.
Thread Starter
Member
Joined: Jul 2009
Posts: 125
Likes: 2
From: Marlton
'02 325 xi; '02 C32; '90 ZX; '08 CBR 6RR, '86 V45 Magna
Thanks for relevant responses. All that I was and still am seeking is a reason as to why the clutch on the rear of the pulley blew apart. It seems that pulley, clutch, clutch pulley, and fieldcoil are used interchangeably on the forum. I just wanted some assistance in diagnosis why the clutch - attached to the rear of the pulley assembly - catastrophically failed. I've not seen any write ups like that before. All problems that I've read about deal with a bad sc pulley bearing. No offense intended, I just wanted to know if anyone experienced similar failure and under what circumstances.
I was departing a car wash about 3/4 mi from home. No problems when I entered the car wash but after I came out, hit the accelerator to clean all the tire shiner crap that coats every inch of the lot. So a quick spin of the tires before pulling out on main road. Perhaps the quick change in temps caused the failure. I don't know. I do know, that by the time I reached the jug handle (New Jersey left turn), my coolant level was reading low. We are talking maybe 500 yds from point I excited the lot, spun tires, hit the jug handle. PS- plastic shroud was off motor as I had been servicing the engine earlier that day.
I was departing a car wash about 3/4 mi from home. No problems when I entered the car wash but after I came out, hit the accelerator to clean all the tire shiner crap that coats every inch of the lot. So a quick spin of the tires before pulling out on main road. Perhaps the quick change in temps caused the failure. I don't know. I do know, that by the time I reached the jug handle (New Jersey left turn), my coolant level was reading low. We are talking maybe 500 yds from point I excited the lot, spun tires, hit the jug handle. PS- plastic shroud was off motor as I had been servicing the engine earlier that day.
Thread Starter
Member
Joined: Jul 2009
Posts: 125
Likes: 2
From: Marlton
'02 325 xi; '02 C32; '90 ZX; '08 CBR 6RR, '86 V45 Magna
$1700 all said and done for MB pulley kit, tensioner pulley, aluminum air pump hose, rubber coupler and coolant hose under the air line and labor. That's not too bad. What's a MB dealer charge for work like that? MB wanted $1500 just for the kit. Dealer cost was $1200.
MBWorld Fanatic!
Joined: Mar 2004
Posts: 2,073
Likes: 27
From: North NJ
2002 C32 AMG, 2013 GLK 350/4, 2015 E63S AMG Wagon
Super Member
Joined: Apr 2010
Posts: 754
Likes: 10
From: Houston, TX
a car.
It was a prototype EC pulley, the first 65MM they had made. Ran the production 65MM for about 10k miles with no issues and then moved to the 61MM and I've had no issues on it for about 5k miles.
Last edited by chris.bachman; Jun 3, 2013 at 04:00 PM.
MBWorld Fanatic!
Joined: Mar 2004
Posts: 2,073
Likes: 27
From: North NJ
2002 C32 AMG, 2013 GLK 350/4, 2015 E63S AMG Wagon
Link, can you take off the pulley and take some pictures?
Super Member
Joined: Jul 2006
Posts: 925
Likes: 2
From: Maine
Not an AMG :(
As you can see, a jagged piece of metal came out from behind the pulley and slashed my coolant lines. This happened as I was driving about .5 mi from the car wash to my house. I saw no performance loss, but the "check coolant level" warning came up on the led display. No CEL or other lights. When I got home, I popped the hood to see the car covered in coolant. I then found the source. The aluminum line that runs in front of the serpentine was sheared right at its rubber coupler on the right side of motor (facing the motor from the front). I then looked for the cause and found the little piece of jagged metal from behind the sc pulley. I was able to turn the clutch by hand but it does not turn easily or smoothly. Anyone have a clue as to the cause? I know t can be one f many issues some much more expensive than others.
I wouldn't be surprised if the aluminum conduit from the secondary air injection pump system came free from the rubber coupler and made contact with the SC pulley. There is a natural stress on the left secondary air injection conduit to deviate towards the supercharger.
The reason I think this may be a possibility is because first, your rubber coupler looks cracked and aged, and second, it doesn't take a lot for that aluminum conduit to be pulled out of the rubber coupling. Were you pressure washing your car?
I'm glad your motor is most likely fine though!
Purchasing everything new from the dealer will cost a lot, no doubt. If you have another car to drive in the meantime, you could put a WTB ad on this forum and the X-fire forum and pick up a used one from somebody who has upgraded theirs.
MBWorld Fanatic!
Joined: Mar 2011
Posts: 1,008
Likes: 8
From: Nashville, TN
SLK55 AMG - Renntech Supercharged
Are you sure the piece of jagged metal associated with the SC pulley is from the SC pulley itself? I think it may be from the aluminum conduit.
I wouldn't be surprised if the aluminum conduit from the secondary air injection pump system came free from the rubber coupler and made contact with the SC pulley. There is a natural stress on the left secondary air injection conduit to deviate towards the supercharger.
The reason I think this may be a possibility is because first, your rubber coupler looks cracked and aged, and second, it doesn't take a lot for that aluminum conduit to be pulled out of the rubber coupling. Were you pressure washing your car?
I wouldn't be surprised if the aluminum conduit from the secondary air injection pump system came free from the rubber coupler and made contact with the SC pulley. There is a natural stress on the left secondary air injection conduit to deviate towards the supercharger.
The reason I think this may be a possibility is because first, your rubber coupler looks cracked and aged, and second, it doesn't take a lot for that aluminum conduit to be pulled out of the rubber coupling. Were you pressure washing your car?
Last edited by Grip Grip; Jun 8, 2013 at 10:49 AM.
