H&R FSB Install Problem
Thread Starter
Senior Member
Joined: Jun 2009
Posts: 263
Likes: 1
From: Los Angeles, CA
03 C32 AMG
H&R FSB Install Problem
I finally got my hands on that 26mm fsb, and as I was putting it in with the main mounts to the subframe, I noticed the bar was colliding with the power steering lines. There was about a half inch gap between the mounts and subframe when it had clearance to the lines, any less and I'm afraid it'll break them.
Did anyone else run into this problem?
Did anyone else run into this problem?
MBWorld Fanatic!
Joined: Sep 2010
Posts: 1,545
Likes: 6
From: Washington DC
1999 E320 4matic Wagon, 2005 C55 AMG - sold, 1998 VW Jetta TDI - sold, 2006 C230 Sport - Totaled :(
I just installed mine 2-3 weeks ago with no issue. It should just go in the same way as the old one came out.
You should also note that the H&R bar has 2 bolt holes on either side, I think to make it adjustable? If I remember correctly, I had to use the hole towards the front of my car, but I'm really not sure. It may make a difference of where your bar is located, but if you've got the bolt holes for the subframe brackets lined up you shouldn't have a problem. But a quick couple of tips:
1) slide the bar onto the links, put the nuts on but don't tighten them just yet
2) line up the subframe brackets and tighten those bolts first. This will line up the bar where it needs to be.
3) now you can use an 18mm wrench and can't remember the size torx bit to tighten the links. I found that the sway bar link bolt actually spins so what MB did is put a torx hole on the end of the bolt, so you have to hold the nut with a wrench and spin the bolt the opposite direction at the same time to tighten it. It's a bit of a PITA, but that's what you've gotta do
You should also note that the H&R bar has 2 bolt holes on either side, I think to make it adjustable? If I remember correctly, I had to use the hole towards the front of my car, but I'm really not sure. It may make a difference of where your bar is located, but if you've got the bolt holes for the subframe brackets lined up you shouldn't have a problem. But a quick couple of tips:
1) slide the bar onto the links, put the nuts on but don't tighten them just yet
2) line up the subframe brackets and tighten those bolts first. This will line up the bar where it needs to be.
3) now you can use an 18mm wrench and can't remember the size torx bit to tighten the links. I found that the sway bar link bolt actually spins so what MB did is put a torx hole on the end of the bolt, so you have to hold the nut with a wrench and spin the bolt the opposite direction at the same time to tighten it. It's a bit of a PITA, but that's what you've gotta do
Thread Starter
Senior Member
Joined: Jun 2009
Posts: 263
Likes: 1
From: Los Angeles, CA
03 C32 AMG

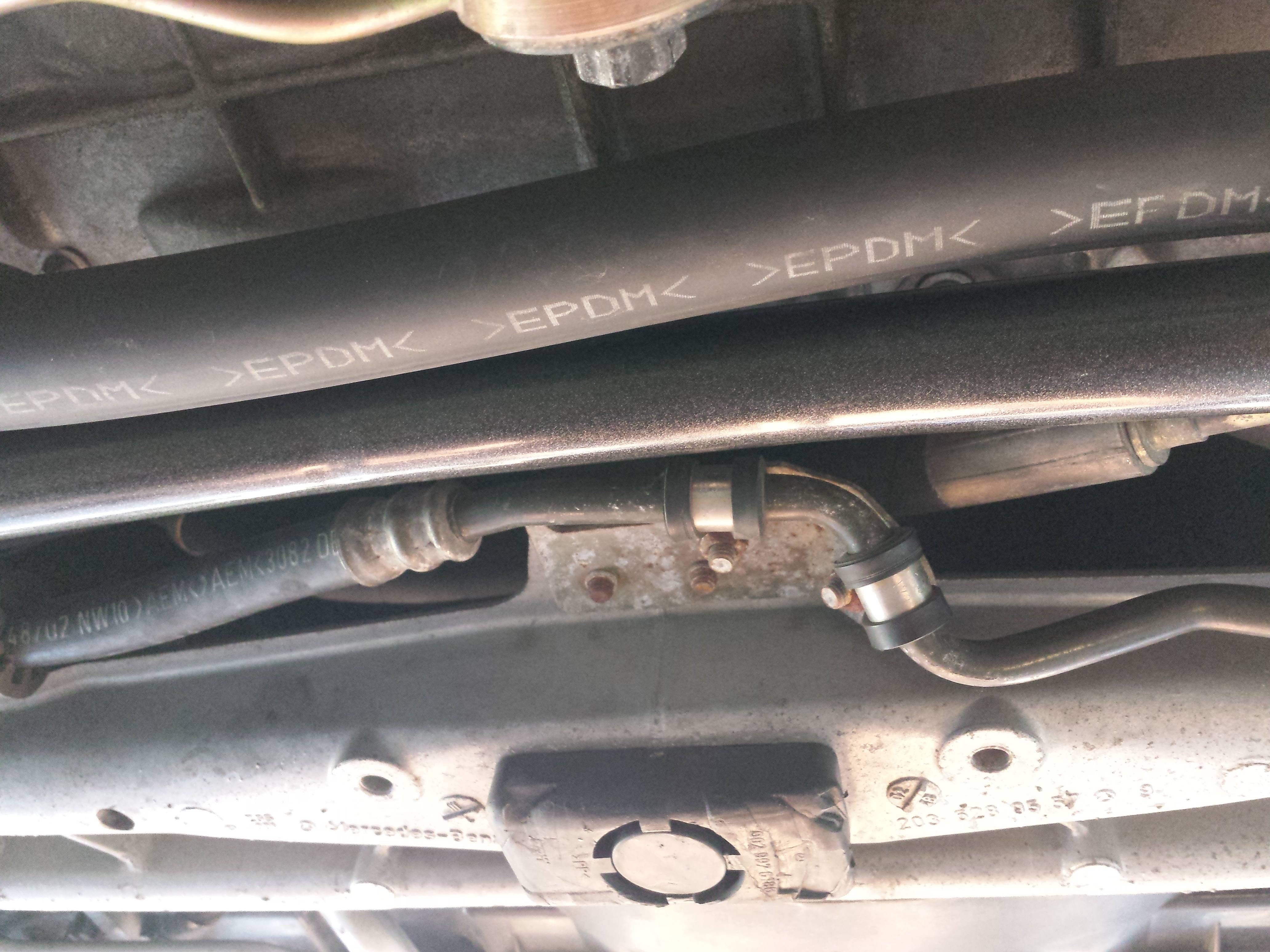

That's what I'm doing, maybe I have a bad bar. Part number is correct though. See pics below, if I bolt the mounts all the way up to the subframe, I'm pretty sure the ps lines won't like it!
MBWorld Fanatic!
Joined: Sep 2010
Posts: 1,545
Likes: 6
From: Washington DC
1999 E320 4matic Wagon, 2005 C55 AMG - sold, 1998 VW Jetta TDI - sold, 2006 C230 Sport - Totaled :(
Maybe I'm not seeing what you are in the pics...any way you can make red mark-ups in Adobe/Bluebeam or something? The pics look like you're okay to me.
Thread Starter
Senior Member
Joined: Jun 2009
Posts: 263
Likes: 1
From: Los Angeles, CA
03 C32 AMG
Cliffnotes: those pics are with the bar not fully up to the subframe on both mounts. There's just no clearance if you go any further and I definitely don't want the sway bar to smash the ps lines if the front end gets the suspension unloaded.
Contacting H&R today....
Contacting H&R today....
MBWorld Fanatic!
Joined: Sep 2010
Posts: 1,545
Likes: 6
From: Washington DC
1999 E320 4matic Wagon, 2005 C55 AMG - sold, 1998 VW Jetta TDI - sold, 2006 C230 Sport - Totaled :(
Maybe I'm being an idiot, but where are these PS lines you speak of in the pictures???
Thread Starter
Senior Member
Joined: Jun 2009
Posts: 263
Likes: 1
From: Los Angeles, CA
03 C32 AMG
It's directly above where the swaybar sits when mounted up, between the subframe and swaybar.

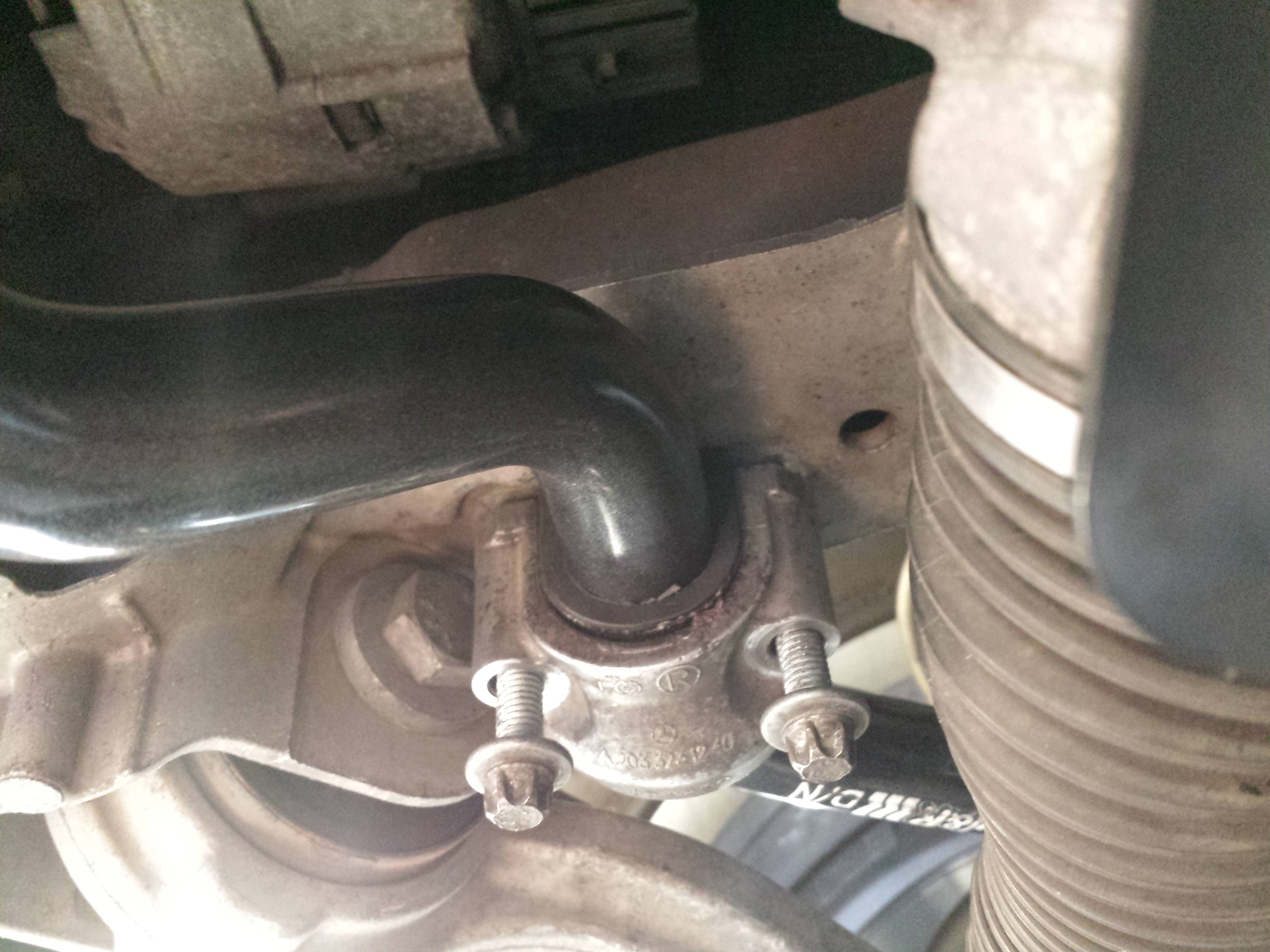

Here are a couple more pics without the swaybar fully mounted. Clearance issues on both sides :/
Here are a couple more pics without the swaybar fully mounted. Clearance issues on both sides :/
Trending Topics
MBWorld Fanatic!
Joined: Sep 2010
Posts: 1,545
Likes: 6
From: Washington DC
1999 E320 4matic Wagon, 2005 C55 AMG - sold, 1998 VW Jetta TDI - sold, 2006 C230 Sport - Totaled :(
I guess now I kind of see what you're saying...did you double check to maybe see if you're putting the sway bar in upside down? I know sometimes we get caught up doing this stuff we forget to check the simple things like that, I know I've definitely done it before. Flip it over and try fitting it and see if maybe you overlooked that.
