Dealer Showed Me Setup Of Front Springs
And the springs have a pad on top and bottom (look at #9),??
Mine only has one pad and its on top.

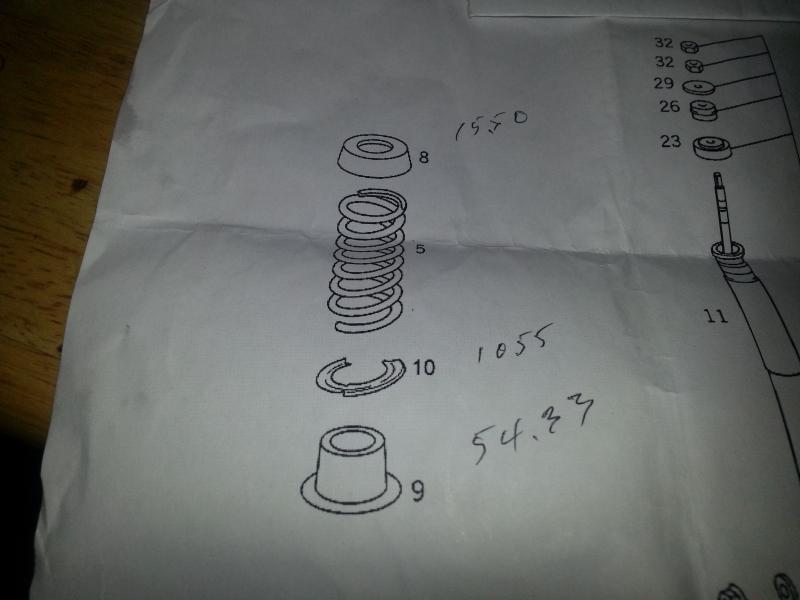

The diagram also showed another part my setup does NOT have (look at #10). is this diagram accurate? How's your setup?
Mine only has one pad and its on top.
The diagram also showed another part my setup does NOT have (look at #10). is this diagram accurate? How's your setup?
