Dynavin Navigation for W209
MBWorld Fanatic!
Joined: Oct 2012
Posts: 1,401
Likes: 312
CLK55 W209, CL63 W216
you could get converter and leave bose speakers there but will also need to run extra set of speaker wires from trunk to the doors (bose stupid setup). But amp has to go. As you running the extra set of speaker wires to the doors and have to take the panels off, you might as well replace the junk bose speakers while you are there. Bose is very low quality to begin with and not standard (2ohm, special amp)
MBWorld Fanatic!
Joined: Oct 2012
Posts: 1,401
Likes: 312
CLK55 W209, CL63 W216
MBWorld Fanatic!
Joined: May 2009
Posts: 1,031
Likes: 8
From: Chicago (Palos Park)
2023 CLA 250, 2021 GLC43, 2003 CLK320
MBWorld Fanatic!
Joined: May 2009
Posts: 1,031
Likes: 8
From: Chicago (Palos Park)
2023 CLA 250, 2021 GLC43, 2003 CLK320
MBWorld Fanatic!
Joined: May 2009
Posts: 1,031
Likes: 8
From: Chicago (Palos Park)
2023 CLA 250, 2021 GLC43, 2003 CLK320
Also do not forget you will have to run extra set of wires to each door so you will need to remove the door panels unless you tap in to the cables in the door seals. In that case no need to remove the door panels which now I remember I did.
There is a pair of cables (+ and -) from the front speaker and another pair from the tweeter in the doors. It is then joined together at the door seals in to a single pair which goes to the amp in the trunk. You will want to add a second pair there. This way you have one pair for the speaker and one for the tweeter. These two pairs per side will go to your crossovers. Then from the crossover will be single pair going to the amp. There is also a 3rd pair for the rear speaker in the doors (this can be reused).
There is a pair of cables (+ and -) from the front speaker and another pair from the tweeter in the doors. It is then joined together at the door seals in to a single pair which goes to the amp in the trunk. You will want to add a second pair there. This way you have one pair for the speaker and one for the tweeter. These two pairs per side will go to your crossovers. Then from the crossover will be single pair going to the amp. There is also a 3rd pair for the rear speaker in the doors (this can be reused).
MBWorld Fanatic!
Joined: May 2009
Posts: 1,031
Likes: 8
From: Chicago (Palos Park)
2023 CLA 250, 2021 GLC43, 2003 CLK320
This is the amp I used 5 channels, 2 per side and 1 for sub.
http://www.alpine-usa.com/product/view/pdx-5
http://www.alpine-usa.com/product/view/pdx-5
MBWorld Fanatic!
Joined: May 2009
Posts: 1,031
Likes: 8
From: Chicago (Palos Park)
2023 CLA 250, 2021 GLC43, 2003 CLK320
The speakers I used, they sound very good in this car

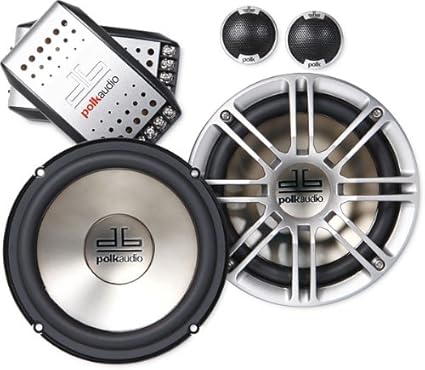

Fronts + tweeters
Polk Audio DB6501 6.5-Inch

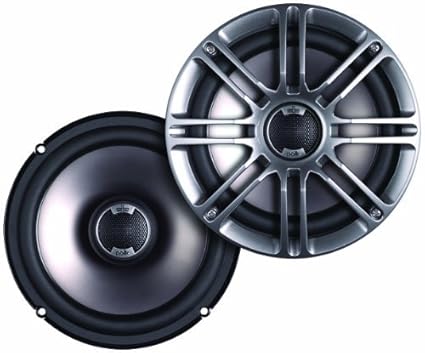

Rears
Polk Audio DB651 6.5-Inch

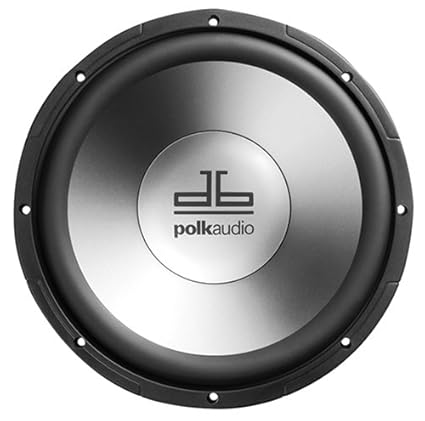

Subwoofer
Polk Audio db1040 10-Inch
Fronts + tweeters
Polk Audio DB6501 6.5-Inch
Rears
Polk Audio DB651 6.5-Inch
Subwoofer
Polk Audio db1040 10-Inch
MBWorld Fanatic!
Joined: May 2009
Posts: 1,031
Likes: 8
From: Chicago (Palos Park)
2023 CLA 250, 2021 GLC43, 2003 CLK320
The speakers mostly fit fine in the existing mounts. I did have to wrap the tweeters in couple layers of electrical tape on the outside edge so they fit snug in to the mounts. Then front or rear mounts had to have small modifications done to them to be able to mount the speakers. The plastic covers that came with the speakers were not used
When the door panels were put back up you could not tell that there was any change to the speakers. You can see the silver cones just a little in light through the doors cloth coverings.
When the door panels were put back up you could not tell that there was any change to the speakers. You can see the silver cones just a little in light through the doors cloth coverings.
