E220 Vibration, wobbling, brake discs and question
Hello,
After I bought my 1996 E220 Diesel car, the first thing I noticed was the vibration issue when I was braking and I found out that the left front brake disc was not in good condition. So, I changed both side brake discs, pads and the rotor (where the ABS ring is located) holding them (because some screws were stuck and broken inside, so I had to!).
After driving for a while the vibration issue is slowly coming back (I can feel it during braking). Now I have the following symptoms in my car:
1. The car is very noticeably wobbling/shaking below the speed of 40-50km/h.
2. Although the vibration during braking was gone right after renewing the discs etc (see picture), a month passed and I can feel that the vibration during braking is coming back (same side, front left tire).
3. I believe the car had an accident from left front side before with the previous owner.

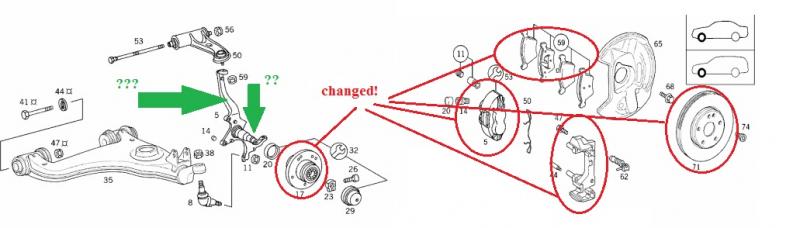

My question is: Can it be that the middle "thing" holding everything or the arm holding this "thing" (yellow arrow, see picture) can be no more in good condition or even no more parallel to the ground (is it even possible?)??
Or is it something fixable with a front axle/arm adjustments?
Since the braking vibration is coming back and getting stronger almost every day, something that is also holding the brake discs and caliper etc should be not in order right??
Is there a way to see if this middle "thing" (stick) is parallel to the ground or is connected well to its arm?? (see picture, yellow arrows)
Sorry folks, that I am writing so long and in detail but I am in a desperate situation, because here in Estonia, although we have the highest number of all new Baltic car sales and almost unlimited number of repair shops, almost no one looks to know what they are doing. (Regarding to my experience, no one is specialized, they just try to do something).
So, mostly I am the one repairing my own car. But in this case, I am confused about, how to pin point the right problem.. And it is also annoying to have wobbling/shaking feeling in most of the in city driving experience..
Thanks for any kind of help in advance!
