Cam Sensors and Magnets, and O-Rings (Oh My)
#1
Out Of Control!!
Thread Starter
Cam Sensors and Magnets, and O-Rings (Oh My)
It seems our engines have three components to the VVT system for each cam.
I am getting a P0022, but am about to undertake a manifold replacement for a P2006, so I am wondering what all I should be doing.
It seems that the Camshaft Adjuster Magnet (Magnetic Sensor) - Mercedes 2720510177 is the part that fails most.
Has anyone ever had to replace the others?
I have heard mention of replacing O-rings, and it seems that only the Engine Camshaft Position Sensor - Mercedes 2729050043 Bosch 0232103114 has a o-ring?
I am getting a P0022, but am about to undertake a manifold replacement for a P2006, so I am wondering what all I should be doing.

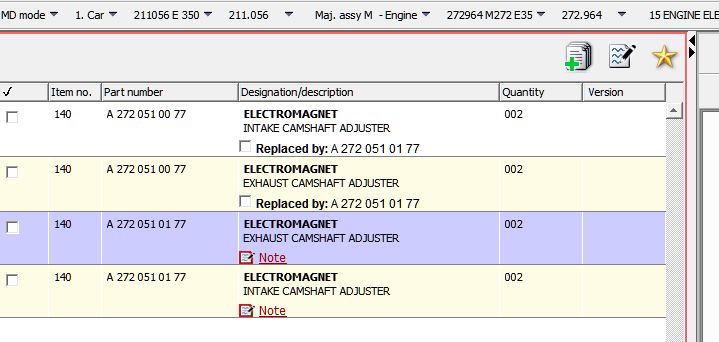

Camshaft Adjuster Magnet (Magnetic Sensor) - Mercedes 2720510177
Engine Camshaft Position Sensor - Mercedes 2729050043 Bosch 0232103114
Depending on intake or exhaust
Engine Variable Timing Adjuster Intake - Mercedes 2720500478
or
Engine Variable Timing Adjuster Exhaust - Mercedes 2720500578
I am getting a P0022, but am about to undertake a manifold replacement for a P2006, so I am wondering what all I should be doing.Engine Camshaft Position Sensor - Mercedes 2729050043 Bosch 0232103114
Depending on intake or exhaust
Engine Variable Timing Adjuster Intake - Mercedes 2720500478
or
Engine Variable Timing Adjuster Exhaust - Mercedes 2720500578
It seems that the Camshaft Adjuster Magnet (Magnetic Sensor) - Mercedes 2720510177 is the part that fails most.
Has anyone ever had to replace the others?
I have heard mention of replacing O-rings, and it seems that only the Engine Camshaft Position Sensor - Mercedes 2729050043 Bosch 0232103114 has a o-ring?
#2
Out Of Control!!
Join Date: Jul 2003
Location: North Scottsdale, AZ
Posts: 15,903
Received 4,415 Likes
on
3,145 Posts
'71 Pinto
If you pulled codes with OBDII, MB DAS may pull additional sub codes giving better detail. P0022 I suggest replacing all 4 magnets (part 2720510177) at this time.
#3
Out Of Control!!
Thread Starter
At the cost, I figure doing all 4, but was wondering about the other cam sensors? Do they fail often? Do they usually show a different code?
If they are good, do you recommend pulling and replacing O-rings? (Guess I should look for oil seepage)
#4
Out Of Control!!
Join Date: Jul 2003
Location: North Scottsdale, AZ
Posts: 15,903
Received 4,415 Likes
on
3,145 Posts
'71 Pinto
P0022 continuous camshaft adjustment (LEFT), incorrect position of the intake camshaft
P2006: http://www.mercedesmedic.com/mercede...le-lever-flap/
Yes I understand code relates to one magnet, reason I suggested to replace all 4 is dependent on current part # installed image in my post shows part # was revised and given cost best to have all current.
P2006: http://www.mercedesmedic.com/mercede...le-lever-flap/
Yes I understand code relates to one magnet, reason I suggested to replace all 4 is dependent on current part # installed image in my post shows part # was revised and given cost best to have all current.
Last edited by konigstiger; 03-22-2017 at 04:20 PM.
#5
Out Of Control!!
Thread Starter
P0022 continuous camshaft adjustment (LEFT), incorrect position of the intake camshaft
P2006: http://www.mercedesmedic.com/mercede...le-lever-flap/
Yes I understand code relates to one magnet, reason I suggested to replace all 4 is dependent on current part # installed image in my post shows part # was revised and given cost best to have all current.
P2006: http://www.mercedesmedic.com/mercede...le-lever-flap/
Yes I understand code relates to one magnet, reason I suggested to replace all 4 is dependent on current part # installed image in my post shows part # was revised and given cost best to have all current.
Again, I know they are cheap, so no worries, just wonder if I have a different problem this time?
#6
Out Of Control!!
Join Date: Jul 2003
Location: North Scottsdale, AZ
Posts: 15,903
Received 4,415 Likes
on
3,145 Posts
'71 Pinto
If dealer, in fact, replaced all 4 solenoids (magnets) in 2013 they should be current – check invoice. If not up to engine # 30 759427 will have older part, engines produced after this should already be equipped with improved part.
#7
Out Of Control!!
Thread Starter
Which bank is Bank-2? (I can find the Intake)
Also, some say to do the knock sensors while it is apart. How many are there?
Trending Topics
#8
MBWorld Fanatic!
Is the cam solenoid wiring harness recall installed?
Stiger is on it, replace all four of them bad boys.
If in fact you are replacing Manifold wouldn't be a bad idea to replace knock sensors since you are there but it's not a necessity. Think there are 4 of them, don't quote me though, never have I replaced them. I've replaced 1 for rodent damage and luckily it was the one closet to the firewall!
Stiger is on it, replace all four of them bad boys.
If in fact you are replacing Manifold wouldn't be a bad idea to replace knock sensors since you are there but it's not a necessity. Think there are 4 of them, don't quote me though, never have I replaced them. I've replaced 1 for rodent damage and luckily it was the one closet to the firewall!
#9
MBWorld Fanatic!
Bank 2 is drivers bank.
Mercedes engines are simple, bank 1 is passenger. 12345678. 1 is closest to right exhaust cam magnet 5 starts bank 2 and is next to ex cam magnet as well.
Mercedes engines are simple, bank 1 is passenger. 12345678. 1 is closest to right exhaust cam magnet 5 starts bank 2 and is next to ex cam magnet as well.
#10
Out Of Control!!
Thread Starter
OK, doing more research. Thinking to only do the one that failed unless I see other issues like seeping oil.
Of course the one I need to do is behind the oil cooler! Ugg!
Of course the one I need to do is behind the oil cooler! Ugg!
#11
MBWorld Fanatic!
well if you have mani off i would suggest you clean the heck out of the cylinder head where all the carbon builds up. You could clean your t/b too since it will be off. Yeah, i would only do the one if money is of substance but then again, at the cost of the sensor should you save yourself the trouble? your judgment call hahaha.
it always works that way when you are doing it yourself!
#12
Out Of Control!!
Thread Starter
well if you have mani off i would suggest you clean the heck out of the cylinder head where all the carbon builds up. You could clean your t/b too since it will be off. Yeah, i would only do the one if money is of substance but then again, at the cost of the sensor should you save yourself the trouble? your judgment call hahaha.
it always works that way when you are doing it yourself!
it always works that way when you are doing it yourself!
The only one that would be a tad easier would be the drivers exhaust. And even that one would require that I pull the power steering pump reservoir, that is not needed for the drivers side intake (The bad one.)
I am going to take a good hard look to see where oil may be seeping from, so I may pull some of the cam sensors to replace the o-rings.
I am guessing I should replace the MAF lower and upper gaskets.
I would like to keep the keep the costs reasonable, since this is not a "forever" car. It is a daily driver that has served well for 140K miles and only needs to make another 60K/4 years to hit our goal.
I will be cleaning the visible portion of the intakes in the head.
I also intend on cleaning the throttle body.
I am trying to decide what to do with the injectors.
I will, at the least soak the tips in injector cleaner, and replace both seals.
I was wondering if dropping the whole injectors into a cup on cleaner is a good or bad idea since I don't know how well the electrical connector would like the cleaner.
#13
MBWorld Fanatic!
It looks like neither pulling the manifold or changing one makes changing the others significantly easier.
The only one that would be a tad easier would be the drivers exhaust. And even that one would require that I pull the power steering pump reservoir, that is not needed for the drivers side intake (The bad one.)
I am going to take a good hard look to see where oil may be seeping from, so I may pull some of the cam sensors to replace the o-rings.
I am guessing I should replace the MAF lower and upper gaskets.
I would like to keep the keep the costs reasonable, since this is not a "forever" car. It is a daily driver that has served well for 140K miles and only needs to make another 60K/4 years to hit our goal.
I will be cleaning the visible portion of the intakes in the head.
I also intend on cleaning the throttle body.
I am trying to decide what to do with the injectors.
I will, at the least soak the tips in injector cleaner, and replace both seals.
I was wondering if dropping the whole injectors into a cup on cleaner is a good or bad idea since I don't know how well the electrical connector would like the cleaner.
The only one that would be a tad easier would be the drivers exhaust. And even that one would require that I pull the power steering pump reservoir, that is not needed for the drivers side intake (The bad one.)
I am going to take a good hard look to see where oil may be seeping from, so I may pull some of the cam sensors to replace the o-rings.
I am guessing I should replace the MAF lower and upper gaskets.
I would like to keep the keep the costs reasonable, since this is not a "forever" car. It is a daily driver that has served well for 140K miles and only needs to make another 60K/4 years to hit our goal.
I will be cleaning the visible portion of the intakes in the head.
I also intend on cleaning the throttle body.
I am trying to decide what to do with the injectors.
I will, at the least soak the tips in injector cleaner, and replace both seals.
I was wondering if dropping the whole injectors into a cup on cleaner is a good or bad idea since I don't know how well the electrical connector would like the cleaner.
The injectors are fine. Personally I only change the green o-rings. To me the risk of replacing all the injctor seals is too high, at that point get new ones imo. They can be a real pita sometimes. Not like resealing high pressure Direct Injection injectors, but still at times a pita.
I would do a fuel induction service and replace plugs instead of fooling with injectors. That's a can of worms honestly. But this is personal opinion.
#14
MBWorld Fanatic!
if oils leaking from front of engine you got cam magnets, cam sensors. oil filter housing, p/s pump.
how old is your oil cap? is it worn?
how old is your oil cap? is it worn?
#15
Out Of Control!!
Thread Starter
I know there is some from the back, so I am doing the vent and three plugs.
The front has some signs of seepage with a layer of dust/road grime.
I figure I will pull the covers and give it a good looking over before I order the parts for the intake and cam magnet replacement.
The injectors have to be pulled for the intake replacement. Seems if I am careful I might get the injectors out of the manifold without having them come off the fuel rails.
I am assuming that I will screw up and if one or more come off the rails, I am guessing that new O-rings are a whole lot easier to seal than 10 year old 140K mile O-rings.
So if I have to pull the injectors, what is the preferred procedure?
I did not think about a new cap, but I did have a bad one on my GL320, so it makes sense and they are not too pricy.
Do these things actually have a PCV, or are you talking about the vent/oil trap vent on the back of the right head?
The work is being prompted by;
1) the intake replacement, (P2006)
2) the Left Intake Magnet replacement (P0022)
3) A little oil burning small, (I assume the vent)
The rest of the work is clean up so I can ignore it for 2 to 4 more years.
The front has some signs of seepage with a layer of dust/road grime.
I figure I will pull the covers and give it a good looking over before I order the parts for the intake and cam magnet replacement.
The injectors have to be pulled for the intake replacement. Seems if I am careful I might get the injectors out of the manifold without having them come off the fuel rails.
I am assuming that I will screw up and if one or more come off the rails, I am guessing that new O-rings are a whole lot easier to seal than 10 year old 140K mile O-rings.
So if I have to pull the injectors, what is the preferred procedure?
I did not think about a new cap, but I did have a bad one on my GL320, so it makes sense and they are not too pricy.
Do these things actually have a PCV, or are you talking about the vent/oil trap vent on the back of the right head?
The work is being prompted by;
1) the intake replacement, (P2006)
2) the Left Intake Magnet replacement (P0022)
3) A little oil burning small, (I assume the vent)
The rest of the work is clean up so I can ignore it for 2 to 4 more years.
#16
MBWorld Fanatic!
I know there is some from the back, so I am doing the vent and three plugs.
The front has some signs of seepage with a layer of dust/road grime.
I figure I will pull the covers and give it a good looking over before I order the parts for the intake and cam magnet replacement.
The injectors have to be pulled for the intake replacement. Seems if I am careful I might get the injectors out of the manifold without having them come off the fuel rails.
I am assuming that I will screw up and if one or more come off the rails, I am guessing that new O-rings are a whole lot easier to seal than 10 year old 140K mile O-rings.
So if I have to pull the injectors, what is the preferred procedure?
I did not think about a new cap, but I did have a bad one on my GL320, so it makes sense and they are not too pricy.
Do these things actually have a PCV, or are you talking about the vent/oil trap vent on the back of the right head?
The work is being prompted by;
1) the intake replacement, (P2006)
2) the Left Intake Magnet replacement (P0022)
3) A little oil burning small, (I assume the vent)
The rest of the work is clean up so I can ignore it for 2 to 4 more years.
The front has some signs of seepage with a layer of dust/road grime.
I figure I will pull the covers and give it a good looking over before I order the parts for the intake and cam magnet replacement.
The injectors have to be pulled for the intake replacement. Seems if I am careful I might get the injectors out of the manifold without having them come off the fuel rails.
I am assuming that I will screw up and if one or more come off the rails, I am guessing that new O-rings are a whole lot easier to seal than 10 year old 140K mile O-rings.
So if I have to pull the injectors, what is the preferred procedure?
I did not think about a new cap, but I did have a bad one on my GL320, so it makes sense and they are not too pricy.
Do these things actually have a PCV, or are you talking about the vent/oil trap vent on the back of the right head?
The work is being prompted by;
1) the intake replacement, (P2006)
2) the Left Intake Magnet replacement (P0022)
3) A little oil burning small, (I assume the vent)
The rest of the work is clean up so I can ignore it for 2 to 4 more years.
remove the 4 e-10's that hold fuel rail to manifold. obviously disconnect injectors. Use a pry bar starting at cylinder 1 area and gently wiggle/pry up on fuel rail. then work your way around the rest of the corners and once its dislodged from manifold i just lay it over the brake booster still connected to fuel line. it'll be out of the way and you can still replace o-rings on injectors. re-installing is the same except i lube the o-rings, not necessary just creature of habit unless prohibited not too, and a few taps with a rubber hammer and it's in like flynn.
yes, centrifuge cover is pcv essentially. Same idea different concept. Good luck!!!!
If you are replacing whole manifold and do not obtain air tools or something strong enough to tap untapped holes, you will need to hand tighten or tap holes on mani. Brackets for "ME", fuel rail i think, t/b, and wiring harness t-30's..... all the holes are untapped.
#17
Out Of Control!!
Thread Starter
I guess if I don't undo the clips as one of the YoueTube video shows, I should be ok?
I lube most o-rings with a light film on "Superlube" as it prevents the binding that keeps O-rings from seating properly or twisting on the way in.
I am looking at a "remanufactured" manifold that should have all home pre-tapped, and will use thread locker.
If I use new, I have plenty of air, but will probably pre-thread with a proper tap.
#18
MBWorld Fanatic!
Sound like if I am careful I can keep the injectors in the rail.
I guess if I don't undo the clips as one of the YoueTube video shows, I should be ok?
I lube most o-rings with a light film on "Superlube" as it prevents the binding that keeps O-rings from seating properly or twisting on the way in.
I am looking at a "remanufactured" manifold that should have all home pre-tapped, and will use thread locker.
If I use new, I have plenty of air, but will probably pre-thread with a proper tap.
I guess if I don't undo the clips as one of the YoueTube video shows, I should be ok?
I lube most o-rings with a light film on "Superlube" as it prevents the binding that keeps O-rings from seating properly or twisting on the way in.
I am looking at a "remanufactured" manifold that should have all home pre-tapped, and will use thread locker.
If I use new, I have plenty of air, but will probably pre-thread with a proper tap.
once you disconnect injector connectors and harness is moved, just pry up like photo and you'll be good. Start there and work ya way around.
battery powered pneumatic impact driver is all ya really need tbh.... some don't bend the rules though and actually tap, to each their own....
#19
Out Of Control!!
Thread Starter
once you disconnect injector connectors and harness is moved, just pry up like photo and you'll be good. Start there and work ya way around.
battery powered pneumatic impact driver is all ya really need tbh.... some don't bend the rules though and actually tap, to each their own....
battery powered pneumatic impact driver is all ya really need tbh.... some don't bend the rules though and actually tap, to each their own....
Unless it comes with new self-taping bolts, the old ones would get reused, and hence why I would at least start new threads. (But in all probability I will be using a reman manifold, so the holes will be threaded, and the bolts wil get a touch of blue loc-tite.
#20
MBWorld Fanatic!
So those little clips should hold the injectors to the rail and let you pull them from the manifold? I hope murphy is not with me that day.
Unless it comes with new self-taping bolts, the old ones would get reused, and hence why I would at least start new threads. (But in all probability I will be using a reman manifold, so the holes will be threaded, and the bolts wil get a touch of blue loc-tite.
Unless it comes with new self-taping bolts, the old ones would get reused, and hence why I would at least start new threads. (But in all probability I will be using a reman manifold, so the holes will be threaded, and the bolts wil get a touch of blue loc-tite.
#21
Out Of Control!!
Thread Starter
This evening I am going to start the inspection, then get all the parts in to do the work in a couple of weeks.
Travel fro work has been crazy, and I can't risk having to fly out on a Monday, if the car did not get done.
Still looking for a comment on Rebuild Master Tech.
http://www.ebay.com/itm/222162449329
http://www.rebuildmastertech.com/
Travel fro work has been crazy, and I can't risk having to fly out on a Monday, if the car did not get done.
Still looking for a comment on Rebuild Master Tech.
http://www.ebay.com/itm/222162449329
http://www.rebuildmastertech.com/
#23
Out Of Control!!
Thread Starter
#24
MBWorld Fanatic!
But if something effs up it's at a dealer and you get a rental and a 12month unlimited mileage warranty. so it's bitter sweet. some aren't diy, unlike your case. Save them pennies!!!!
#25
Out Of Control!!
Thread Starter
Winner, Winner, Chicken Dinner!
Seems that MBUSA has a very poor inventory system.
I ordered a "Camshaft Cam Position Sensor 2720510177" from their eBay store.
They shipped me a factory sealed case of 12 units.
Seems that MBUSA has a very poor inventory system.
I ordered a "Camshaft Cam Position Sensor 2720510177" from their eBay store.
They shipped me a factory sealed case of 12 units.
The following users liked this post:
cmriv (05-11-2017)
