2011 E550 Wiring Schematic Request

I have a parasitic electrical drain and i'm going to check it out with a multimeter. When i find it i will need a power distribution schematic. Does any body know where i can get one? WDDHF7CB4BA419799

Jul 25, 2019 | 06:00 PM

springbenz

Thread Starter

Newbie

Joined: Feb 2019

Posts: 13

Likes: 0

2011 E550 Sedan

But i need a schematic to tell what component is affected if multiple components are on one circuit.

Jul 25, 2019 | 07:23 PM

konigstiger

Out Of Control!!

Joined: Jul 2003

Posts: 15,901

Likes: 4,629

From: North Scottsdale, AZ

'71 Pinto

I assume you want fuse assignments.

Attached Files

Fuse and relay box, as-built configuration.pdf (1.52 MB, 437 views)

F SAM.pdf (51.1 KB, 384 views)

F SAM relays.pdf (26.9 KB, 285 views)

R SAM.pdf (53.8 KB, 288 views)

R SAM relays.pdf (28.0 KB, 217 views)

F prefuse.pdf (31.9 KB, 259 views)

R prefuse 273.pdf (17.8 KB, 240 views)

WDD2120721A419799.pdf (116.4 KB, 379 views)

Last edited by konigstiger; Jul 25, 2019 at 07:57 PM.

Jul 26, 2019 | 08:12 AM

springbenz

Thread Starter

Newbie

Joined: Feb 2019

Posts: 13

Likes: 0

2011 E550 Sedan

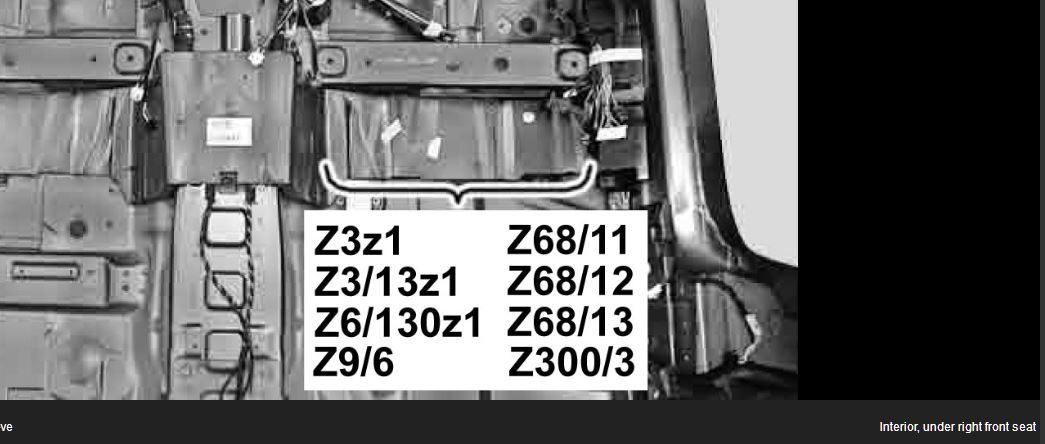

Thanks for the info konigstiger. I was kinda hoping for something like this..

Jul 26, 2019 | 08:13 AM

springbenz

Thread Starter

Newbie

Joined: Feb 2019

Posts: 13

Likes: 0

2011 E550 Sedan

Or at least a legit website to purchase from without getting ripped off or waste my money on something i dont need.

Jul 26, 2019 | 08:26 AM

springbenz

Thread Starter

Newbie

Joined: Feb 2019

Posts: 13

Likes: 0

2011 E550 Sedan

I never noticed before, but since i've started checking my electrical system, i found that the backseat 12V wasnt working. 115 works fine. Got in the trunk, replaced the fuse, immediately blew? Any suggestions?

Jul 26, 2019 | 01:24 PM

konigstiger

Out Of Control!!

Joined: Jul 2003

Posts: 15,901

Likes: 4,629

From: North Scottsdale, AZ

'71 Pinto

Rear Sam (trunk) f76 15A
12V (x58/18) replacement part # 0008203651 if needed

Free wiring diagrams: http://www.bbbind.com/tsb-and-wiring...ense-agreement
MB STAR $60 for 24 hours (Star Wiring): https://www.startekinfo.com/StarTek/

Attached Files

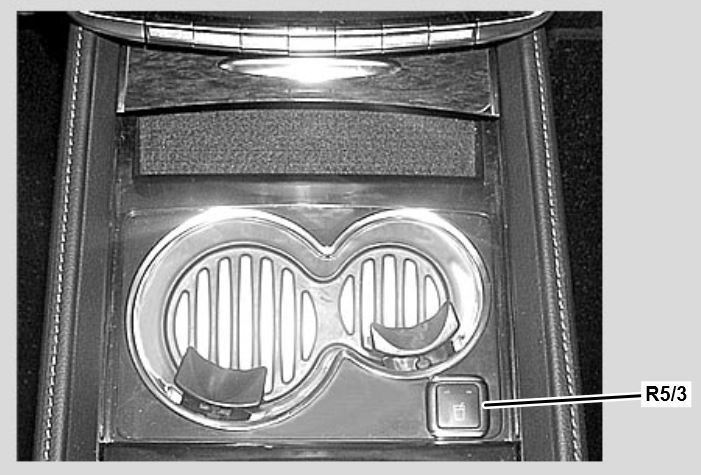

12V socket of rear center console.pdf (152.4 KB, 151 views)

2011 E550 Wiring Schematic Request

2011 E550 Wiring Schematic Request
