No Sound from speakers
Newbie
Joined: Jul 2021
Posts: 5
Likes: 2
mercedes e class w212
Out Of Control!!
Joined: Apr 2019
Posts: 11,926
Likes: 6,776
From: Silicon Valley
W212 MY'14 M276-3.5NA @75kMi
System diagram in #3
take a look at Konigstiger's reference post #3 all the way up for component listing. Audio is not a simple system.
Perhaps a tuner... definitely a module to get double checked for solderless pins and GND!
Perhaps a tuner... definitely a module to get double checked for solderless pins and GND!
Out Of Control!!
Joined: Apr 2019
Posts: 11,926
Likes: 6,776
From: Silicon Valley
W212 MY'14 M276-3.5NA @75kMi
naming shapes
Thank you Konigstiger this is all really helpful.
Can we please have the naming of these numbered units? It's hard to distinguish module based on shapes alone (A sleeping #200 being the ultimate media silencer for COMAND)
Can we please have the naming of these numbered units? It's hard to distinguish module based on shapes alone (A sleeping #200 being the ultimate media silencer for COMAND)
Out Of Control!!
Joined: Jul 2003
Posts: 15,901
Likes: 4,630
From: North Scottsdale, AZ
'71 Pinto
Modules are VIN dependent meaning to say relevant market & equipment installed as you can see in the diagram I provided this particular vehicle only has two modules 200 & 120 (transmission CU) the rest are grayed out (not installed).
MBWorld Fanatic!
Joined: Dec 2020
Posts: 2,412
Likes: 1,482
From: 122W, 37N
2016 E350 4Matic wagon, 2019 Ford Expedition, 2019 Chevy Bolt EV

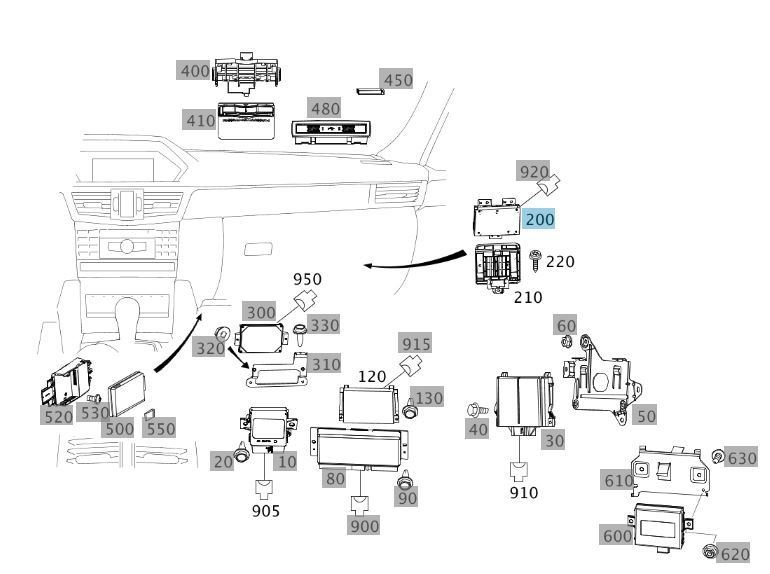

as an example,. here's all POSSIBLE control units on the passenger side, on a 'generic' post-facelift E350 4Matic wagon (212.288)
my fairly well equipped US model E350 4matic facelift wagon only has 480 (the USB ports in the center storage module), and module 80 (control unit for self leveling (rear airmatic))
my fairly well equipped US model E350 4matic facelift wagon only has 480 (the USB ports in the center storage module), and module 80 (control unit for self leveling (rear airmatic))
