Hey, I like KEY's Mercedes-Benz logo on the knob as well very classy

Apr 10, 2022 | 05:12 PM

#27

DFWdude

MBWorld Fanatic!

Joined: Apr 2006

Posts: 4,694

Likes: 1,829

From: Dallas-Ft.Worth,TX

2016 E350 Sport

Quote:

Originally Posted by BenzV12

Hey, I like KEY's Mercedes-Benz logo on the knob as well very classy

I don't want to hijack this thread, so I will address it in a separate one.

Apr 10, 2022 | 08:08 PM

#28

RWagz

Thread Starter

Member

Joined: Mar 2022

Posts: 134

Likes: 90

From: Washington DC Metro Area

2022 X213 E 450 Wagon

Quote:

Originally Posted by Senecat

Very cool! I would print everything I can see if I only knew how to draw! I don't even know where to start with CAD. I didn't have much luck with FreeCad or OpenScad. I'm just not a self-starter in this arena I guess. Shame, because I love designing stuff and have had several things drawn up by other people for projects I've had in the past.

I have used openscad only with others' creations where I can tweak the parameters to make what I want. That's a really powerful program for making parametric threaded objects.

Tinkercad is really easy to pick up. They have a tutorial. It is all I use for original designs. This design started as a cylinder where I started subtracting things with wedge/triangle shapes

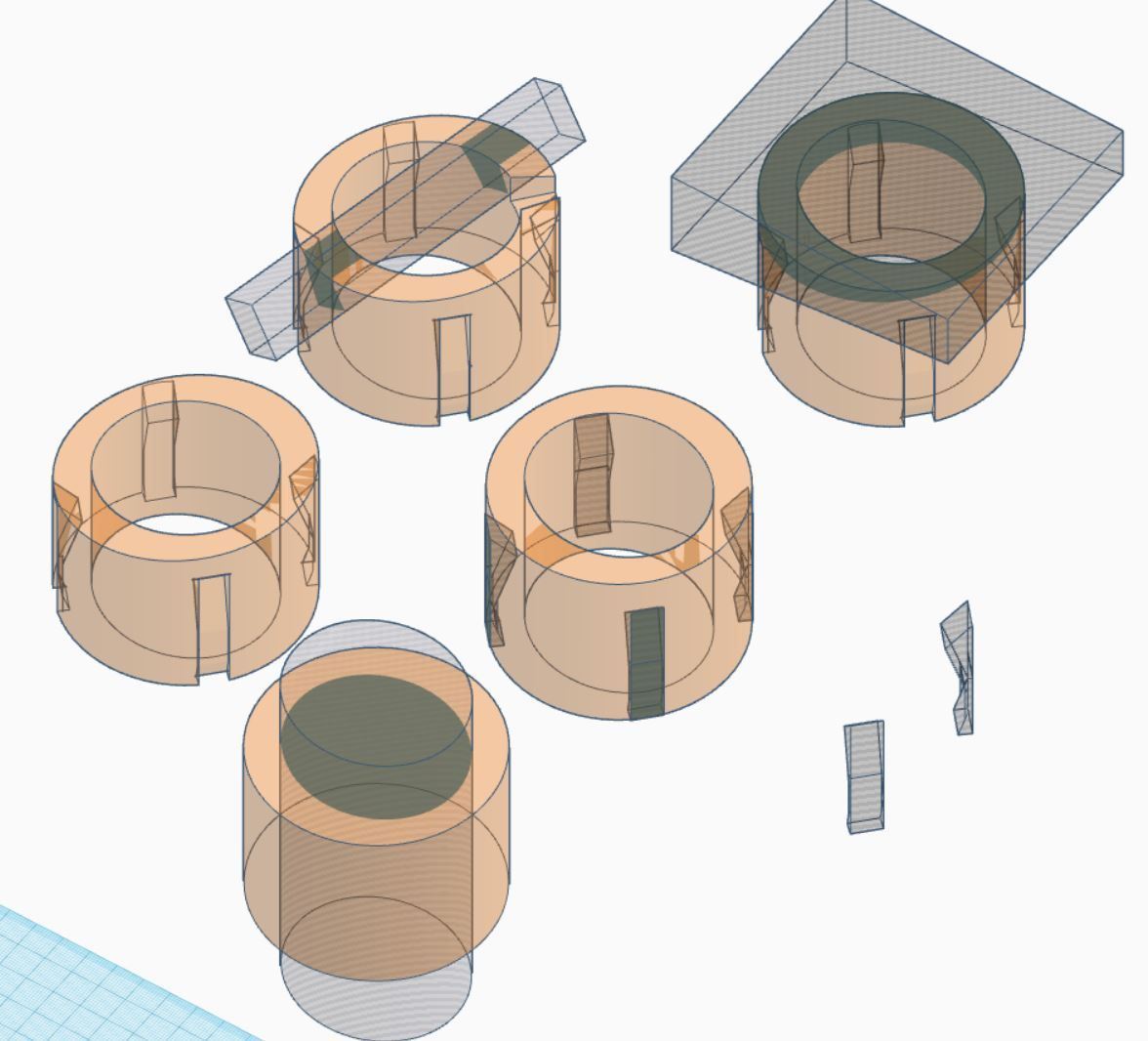

This shows how I did it: (obviously very simplified)

Create a cylinder, add an oval cylinder "hole", then "group" them to make a hollowed out cylinder
Stack a bunch of "hole" objects to make the cutout for the cupholder "finger", place them and "group" them to make the cutouts in the sides of the cylinder
Add a wedge "hole" on top to make the sloped top surface that matches the edge of the cupholder, group it again
Finally add the cutout for the phone - a rectangular "hole" - this is where I adjusted the cutout to get the right angle in all three axes. This took the most time. I had to print it a few times to get it right. You can use a thick layer height and low infill (looks like ***) to prototype it quickly.

Apr 10, 2022 | 08:10 PM

#29

RWagz

Thread Starter

Member

Joined: Mar 2022

Posts: 134

Likes: 90

From: Washington DC Metro Area

2022 X213 E 450 Wagon

Quote:

Originally Posted by DFWdude

I don't want to hijack this thread, so I will address it in a separate one.

Please DM me about that cup holder hanging off the side!

Apr 10, 2022 | 08:45 PM

#30

DFWdude

MBWorld Fanatic!

Joined: Apr 2006

Posts: 4,694

Likes: 1,829

From: Dallas-Ft.Worth,TX

2016 E350 Sport

Quote:

Originally Posted by RWagz

Please DM me about that cup holder hanging off the side!

Read through this W213 thread for all the info.... https://mbworld.org/forums/e-class-w...upholders.html

Apr 12, 2022 | 08:43 AM

#31

badbenz94

Member

Joined: Aug 2002

Posts: 243

Likes: 108

From: Illinois

2013 E350 4Matic P2 Pano

@RWagz I got it yesterday!! I don't have two phones to take a pic of it(maybe I can...), but its perfect! Thank you so much!!

Chris

Apr 13, 2022 | 04:56 PM

#32

exTDI

Junior Member

Joined: Jan 2017

Posts: 21

Likes: 3

From: Northern Virginia

2014 E350 Sport 4Matic

It's a very clever design! The only thing I would suggest is making the angled grooves 1/4 - 3/8" deeper to hold the iPhone vertically a bit more securely.

Apr 13, 2022 | 05:33 PM

#33

DFWdude

MBWorld Fanatic!

Joined: Apr 2006

Posts: 4,694

Likes: 1,829

From: Dallas-Ft.Worth,TX

2016 E350 Sport

Quote:

Originally Posted by exTDI

It's a very clever design! The only thing I would suggest is making the angled grooves 1/4 - 3/8" deeper to hold the iPhone vertically a bit more securely.

Having experimented with my holder, I am not convinced this is needed at all.
