GLE Class (V167) Produced 2020 to present

How to install Augmented Reality Camera in GLE V167 and GLS X167 U19 21U

Thread Tools

Search this Thread

Rate Thread

Old Mar 30, 2025 | 07:21 AM
  #1
EleBest's Avatar
Thread Starter
SPONSOR
5 Year Member
Liked
Loved
Community Favorite

Joined: Sep 2018
Posts: 765
Likes: 184
From: Singapore
E200 2010, G63 2018, E53s 2019, EQS53 Touring 2021, S500 2022, A200 2023
How to install Augmented Reality Camera in GLE V167 and GLS X167 U19 21U

How to install Augmented Reality Camera in PreFL GLE and GLS:

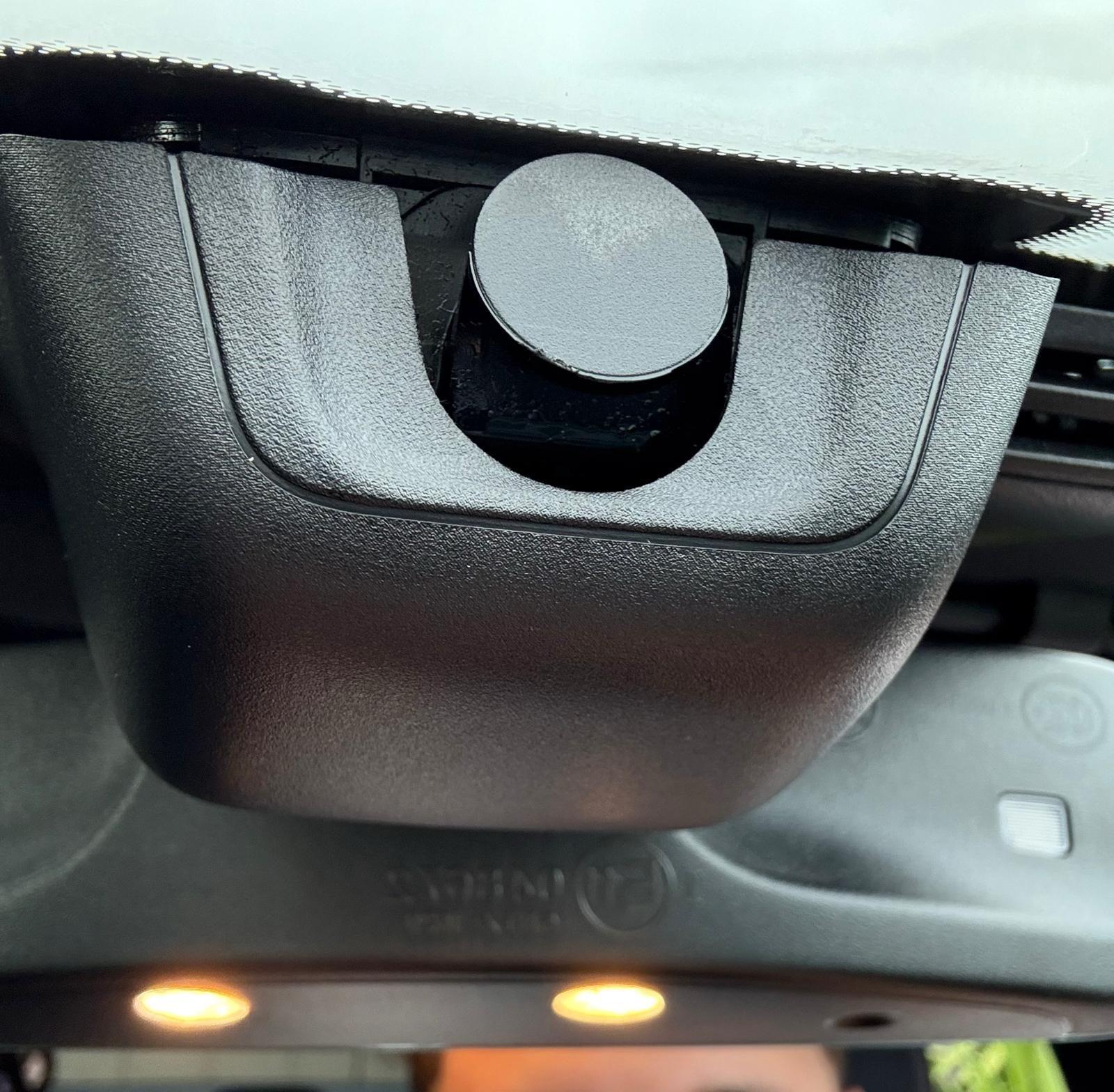

If your windscreen looks like this:



Congratulations! This AR Camera is for you!

Next checking: your MBUX is Mid or High.

If High, just buy camera and cable
If Mid, buy head unit High and camera and cable

Wiring Diagram:


Remove 1, by prying open at A, and Remove 2 by pushing / pulling in the direction a.

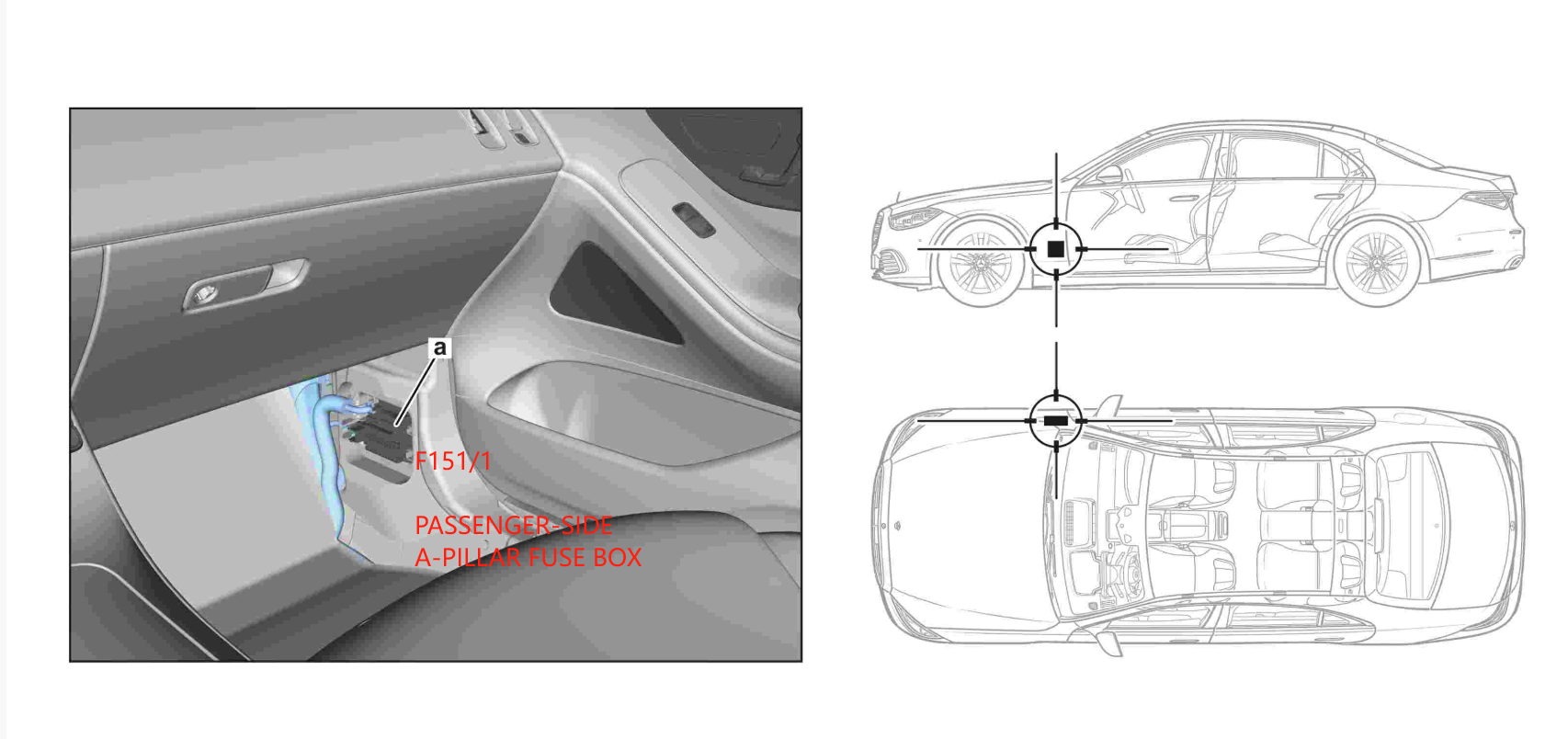

Fuse Box at Front Right Side footwell (Same for LHD and RHD)


Open Fuse Box and turn back side, locate MF2, plug in at First one(or any one in MF2 will work)


plug in CAN bus connector to the HMI CAN Box (Purple CAN) with purple/white and Purple CAN wires.

Connect Video cable from HU/AR connector to AR Camera.





AR Camera Retrofit kit
or
Cable alone
or
Remote coding service
all available

https://wa.me/6597335000

cheers!

Last edited by EleBest; Mar 30, 2025 at 07:33 AM.
Reply
Old Mar 30, 2025 | 12:18 PM
  #2
W205C43PFL's Avatar
MBWorld God!

Joined: Dec 2019
Posts: 32,222
Likes: 6,278
Originally Posted by EleBest
How to install Augmented Reality Camera in PreFL GLE and GLS:

If your windscreen looks like this:

https://cimg5.ibsrv.net/gimg/www.mbw...68605aa62.jpeg

Congratulations! This AR Camera is for you!

Next checking: your MBUX is Mid or High.

If High, just buy camera and cable
If Mid, buy head unit High and camera and cable

Wiring Diagram:

https://cimg7.ibsrv.net/gimg/www.mbw...cf3e3c070c.png
Remove 1, by prying open at A, and Remove 2 by pushing / pulling in the direction a.
https://cimg8.ibsrv.net/gimg/www.mbw...76613e8fd0.png
Fuse Box at Front Right Side footwell (Same for LHD and RHD)

https://cimg9.ibsrv.net/gimg/www.mbw...af015cd9c2.png
Open Fuse Box and turn back side, locate MF2, plug in at First one(or any one in MF2 will work)

https://cimg3.ibsrv.net/gimg/www.mbw...676c7668f0.png
plug in CAN bus connector to the HMI CAN Box (Purple CAN) with purple/white and Purple CAN wires.
https://cimg0.ibsrv.net/gimg/www.mbw...5bba15f604.png

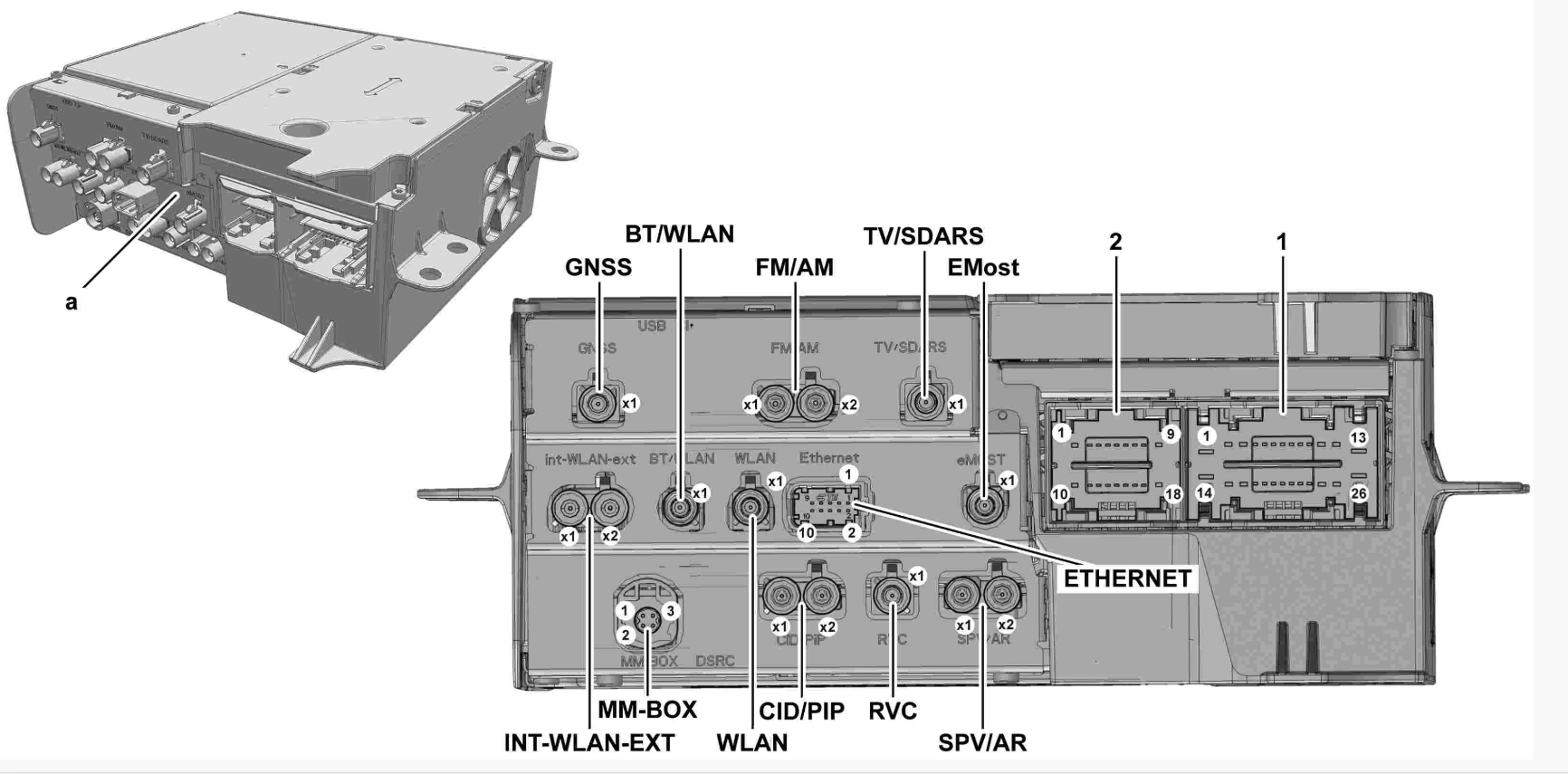

Connect Video cable from HU/AR connector to AR Camera.
https://cimg1.ibsrv.net/gimg/www.mbw...e8cde4732f.png


https://cimg4.ibsrv.net/gimg/www.mbw...341d2eb9be.png

AR Camera Retrofit kit
or
Cable alone
or
Remote coding service
all available

https://wa.me/6597335000

cheers!
Great tutorial!
Reply
Old Mar 30, 2025 | 12:24 PM
  #3
mikapen's Avatar
MBWorld Fanatic!
15 Year Member
Shutterbug
Community Influencer
Community Favorite

Joined: Oct 2009
Posts: 6,987
Likes: 2,184
From: Colorado
'21 AMG53 wDPP & ARC, 19 GLC300 - Former-03 C240,2 ML BlueTecs,20 GLE450 E-ABC,15 Cayenne D,17 Macan
Originally Posted by W205C43PFL
Great tutorial!
Yes it is.
Although I have AR installed, I prefer the standard version because, for me, the AR takes my eyes off the road too long.
Passengers love it, though.
Reply
Old Mar 30, 2025 | 01:01 PM
  #4
W205C43PFL's Avatar
MBWorld God!

Joined: Dec 2019
Posts: 32,222
Likes: 6,278
Originally Posted by mikapen
Yes it is.
Although I have AR installed, I prefer the standard version because, for me, the AR takes my eyes off the road too long.
Passengers love it, though.
Wish we can retrofit the S-Class head up display in so we can have the AR in front of us instead.
Reply
Old Mar 31, 2025 | 05:46 PM
  #5
Ryanville's Avatar
Junior Member

Joined: May 2024
Posts: 37
Likes: 7
2024 GLE 450
Originally Posted by W205C43PFL
Wish we can retrofit the S-Class head up display in so we can have the AR in front of us instead.
Yes! After seeing the HUD in the S class I feel like the GLE HUD is soo basic sigh
Reply
Old Mar 31, 2025 | 05:50 PM
  #6
W205C43PFL's Avatar
MBWorld God!

Joined: Dec 2019
Posts: 32,222
Likes: 6,278
Originally Posted by Ryanville
Yes! After seeing the HUD in the S class I feel like the GLE HUD is soo basic sigh
For sure I am spoiled.
Reply
Old Apr 1, 2025 | 10:18 AM
  #7
mikapen's Avatar
MBWorld Fanatic!
15 Year Member
Shutterbug
Community Influencer
Community Favorite

Joined: Oct 2009
Posts: 6,987
Likes: 2,184
From: Colorado
'21 AMG53 wDPP & ARC, 19 GLC300 - Former-03 C240,2 ML BlueTecs,20 GLE450 E-ABC,15 Cayenne D,17 Macan
Originally Posted by W205C43PFL
Wish we can retrofit the S-Class head up display in so we can have the AR in front of us instead.
Does it show an actual video on the windscreen?
Or just the diagram?
Reply
Old Apr 1, 2025 | 12:09 PM
  #8
W205C43PFL's Avatar
MBWorld God!

Joined: Dec 2019
Posts: 32,222
Likes: 6,278
Originally Posted by mikapen
Does it show an actual video on the windscreen?
Or just the diagram?
Something like this:
https://images.thewest.com.au/public...2R0J9H.2-2.jpg
https://s1.cdn.autoevolution.com/ima...e-146657_1.jpg
Reply
MB World Stories

The Best of Mercedes & AMG

story-0

6 Mercedes Models That Did NOT Age Well (But Are Somehow Still Cool)

 Verdad Gallardo
story-1

Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun

 Verdad Gallardo
story-2

Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren

 Verdad Gallardo
story-3

8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine

 Verdad Gallardo
story-4

Flawlessly Restored Mercedes 190E Evo II Heads to Auction

 Verdad Gallardo
story-5

Electric Mercedes C-Class Unveiled: 11 Things You Need to Know

 Verdad Gallardo
story-6

Mercedes EQS Gets A Major Update: Everything You Need to Know

 Verdad Gallardo
story-7

5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve

 Verdad Gallardo
story-8

Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping

 Verdad Gallardo
story-9

10 Most Reliable Mercedes-Benz Models You Can Buy Used

 Verdad Gallardo
Old Apr 1, 2025 | 12:24 PM
  #9
W205C43PFL's Avatar
MBWorld God!

Joined: Dec 2019
Posts: 32,222
Likes: 6,278
Will be nice if they can use digital light to project the AR stuff : )
Reply
Old Apr 1, 2025 | 01:12 PM
  #10
mikapen's Avatar
MBWorld Fanatic!
15 Year Member
Shutterbug
Community Influencer
Community Favorite

Joined: Oct 2009
Posts: 6,987
Likes: 2,184
From: Colorado
'21 AMG53 wDPP & ARC, 19 GLC300 - Former-03 C240,2 ML BlueTecs,20 GLE450 E-ABC,15 Cayenne D,17 Macan
Thank you.
Looks mesmerizing.
Reply
Old Apr 1, 2025 | 01:14 PM
  #11
W205C43PFL's Avatar
MBWorld God!

Joined: Dec 2019
Posts: 32,222
Likes: 6,278
Originally Posted by mikapen
Thank you.
Looks mesmerizing.
Reply
Old Apr 1, 2025 | 10:34 PM
  #12
EleBest's Avatar
Thread Starter
SPONSOR
5 Year Member
Liked
Loved
Community Favorite

Joined: Sep 2018
Posts: 765
Likes: 184
From: Singapore
E200 2010, G63 2018, E53s 2019, EQS53 Touring 2021, S500 2022, A200 2023
Originally Posted by mikapen
Does it show an actual video on the windscreen?
Or just the diagram?
for your info:

Reply
Old Apr 2, 2025 | 07:53 AM
  #13
W205C43PFL's Avatar
MBWorld God!

Joined: Dec 2019
Posts: 32,222
Likes: 6,278
Good video
Reply
Old Apr 3, 2025 | 09:30 PM
  #14
Stuart Morley's Avatar
Member
Liked
Loved

Joined: Sep 2020
Posts: 84
Likes: 15
From: Southampton, UK
W167
It's better in the 2025 GLE
Reply
Old Apr 3, 2025 | 09:44 PM
  #15
W205C43PFL's Avatar
MBWorld God!

Joined: Dec 2019
Posts: 32,222
Likes: 6,278
Originally Posted by Stuart Morley
It's better in the 2025 GLE
I see.
Reply
