Cam adjuster alignment
I made a more detailed post on timing and reassembling my M276.9 earlier today but I have a more specific question so I'm making a new thread.
At 53 deg after TDC ignition, all four reluctor wheels line up perfectly in their respective CPS holes

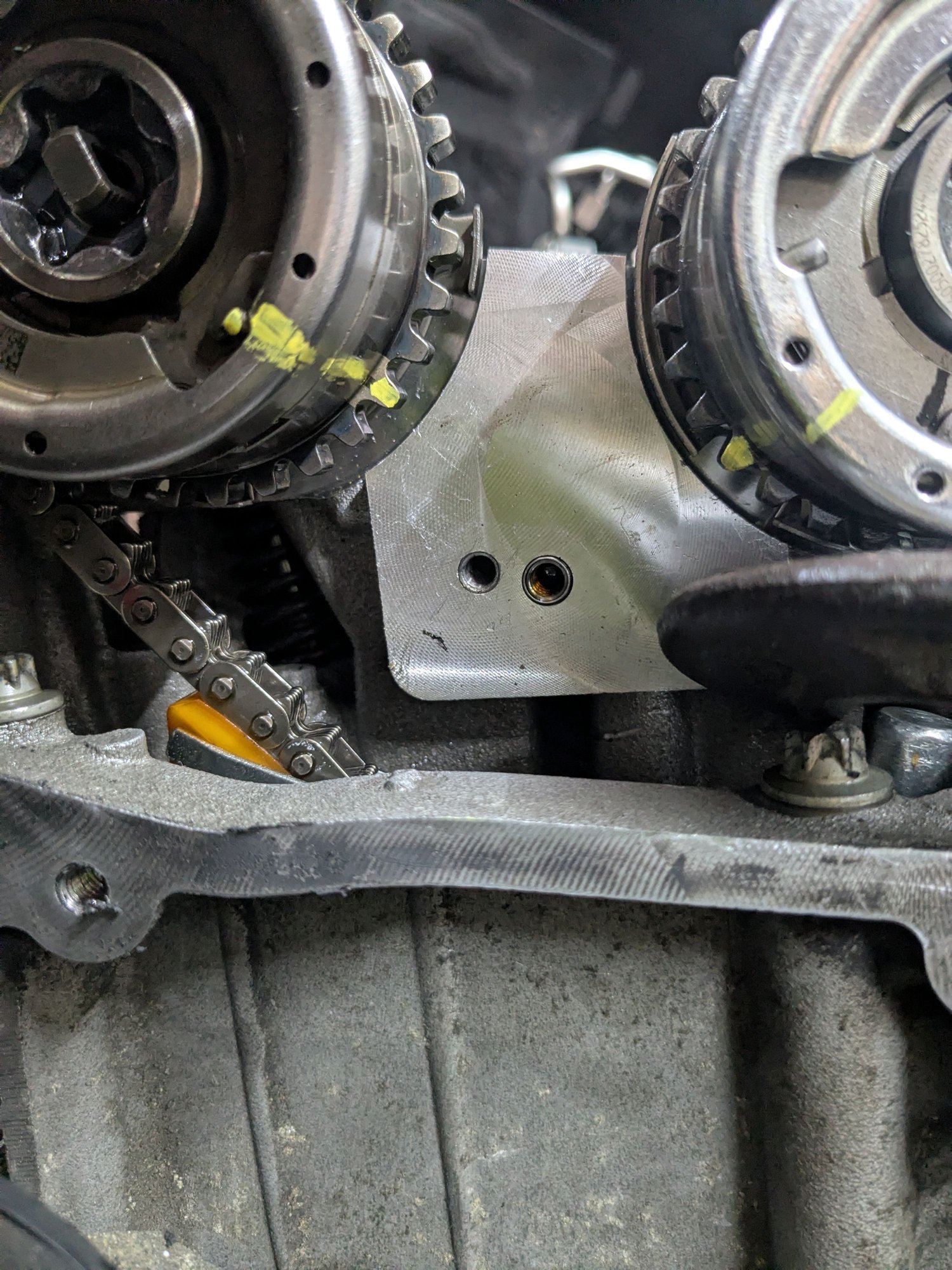

On Bank 1, at 40 deg after TDC overlap, the laser mark (highlighted in yellow in the pic) on the INTAKE cam adjuster is exactly one tooth below the left hand bolt hole for the chain tensioner. The laser mark for the EXHAUST cam adjuster is exactly one tooth above it.
The WIS picture I have is vague. It's not a straight ahead picture so precisely where the laser marks should point is not clear.
I'm certain the reluctor wheel on the INTAKE cam is in the correct position since I compared it to a known good cam, so the INTAKE laser mark should be in the correct position.
Since the EXHAUST cam does not have laser marks on the reluctor wheel or the cam hub, I can't be sure the reluctor wheel hasn't moved or that the laser mark on the EXHAUST cam adjuster is pointing in the correct position.
Is it?
Advice greatly appreciated.
Thanks...Mariner1
