Wiring diagram W205 front parking sensors
Thread Starter
Newbie
Joined: Feb 2026
Posts: 2
Likes: 0
From: Gosport
C250d AMG Line Premium+
Wiring diagram W205 front parking sensors
Hi All
Would anyone have a wiring diagram of the front parking sensors, or know which numbers the live and ground are? I watched a video stating it's 9 live and 8 ground, but if this is the case mine has zero power, so just want confirmation,
Any help appreciated 👍
Would anyone have a wiring diagram of the front parking sensors, or know which numbers the live and ground are? I watched a video stating it's 9 live and 8 ground, but if this is the case mine has zero power, so just want confirmation,
Any help appreciated 👍
Out Of Control!!
Joined: Apr 2019
Posts: 11,924
Likes: 6,776
From: Silicon Valley
W212 MY'14 M276-3.5NA @75kMi
You can quickly buy live access to the No1 professional repair network at www identifix dot com for exact PRO fixes specifics to your VIN at DIY cost.
Not affiliated whatsoever... I simply find this a great offering for DIY'ers.
MBWorld Fanatic!
Joined: Aug 2023
Posts: 3,690
Likes: 1,111
From: MA Coast
W204 2010 C300 4matic Sport M272

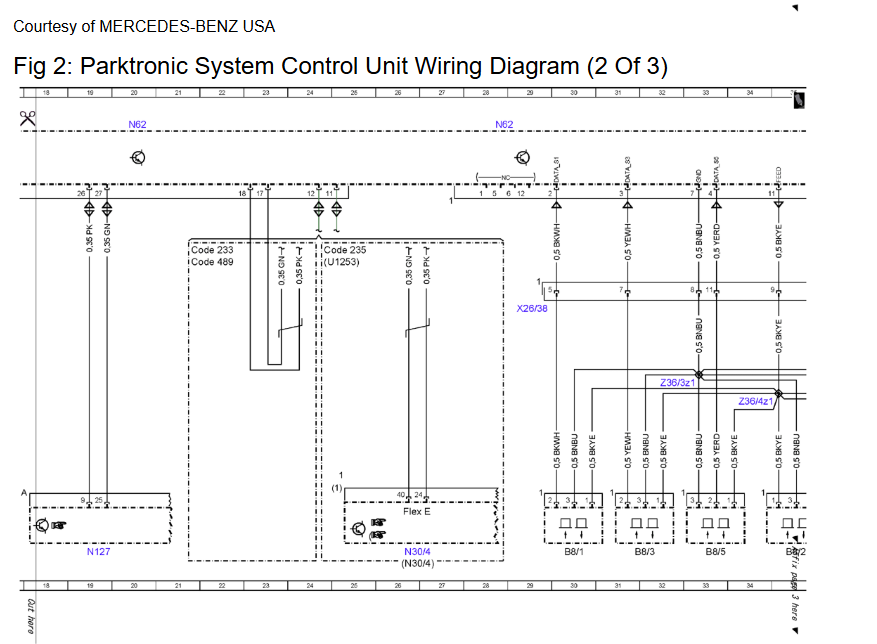

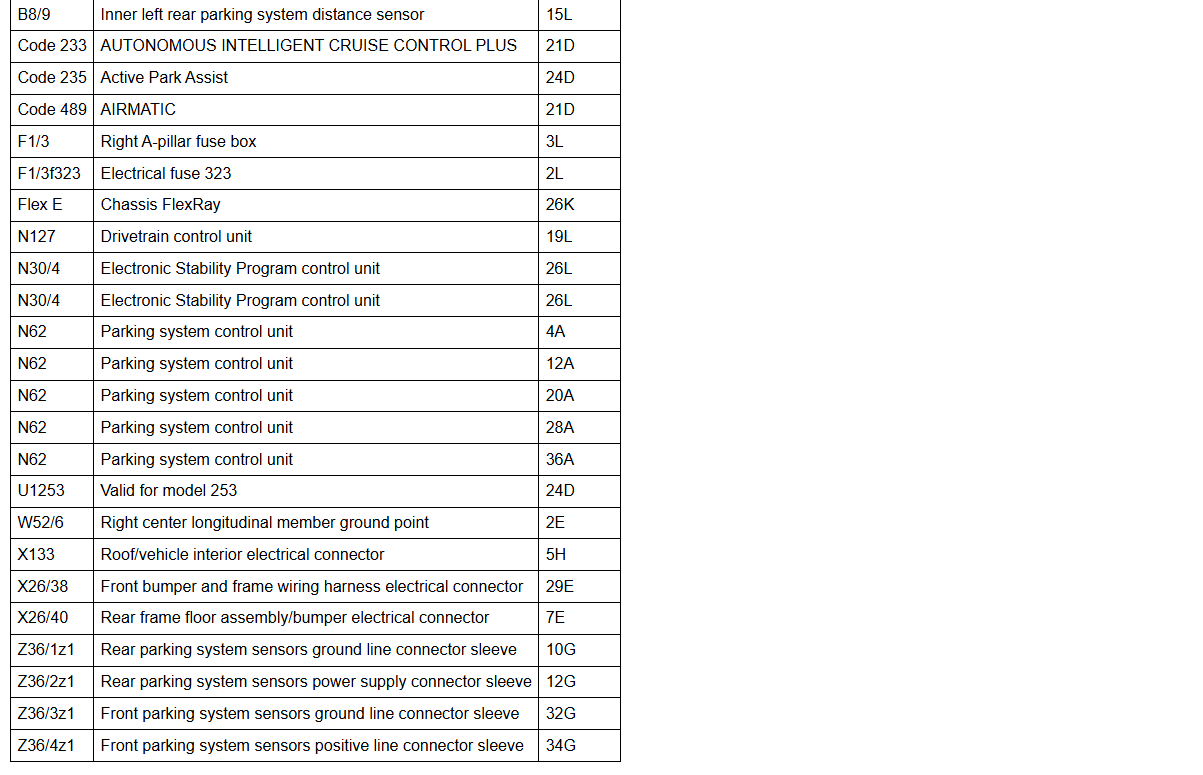

Heres a link to where I was looking at them: https://lemon-manuals.la/Mercedes%20...ng%20Diagrams/
I picked a 2016 C300. Use the tabs at the top of the page to view other things.
I picked a 2016 C300. Use the tabs at the top of the page to view other things.
