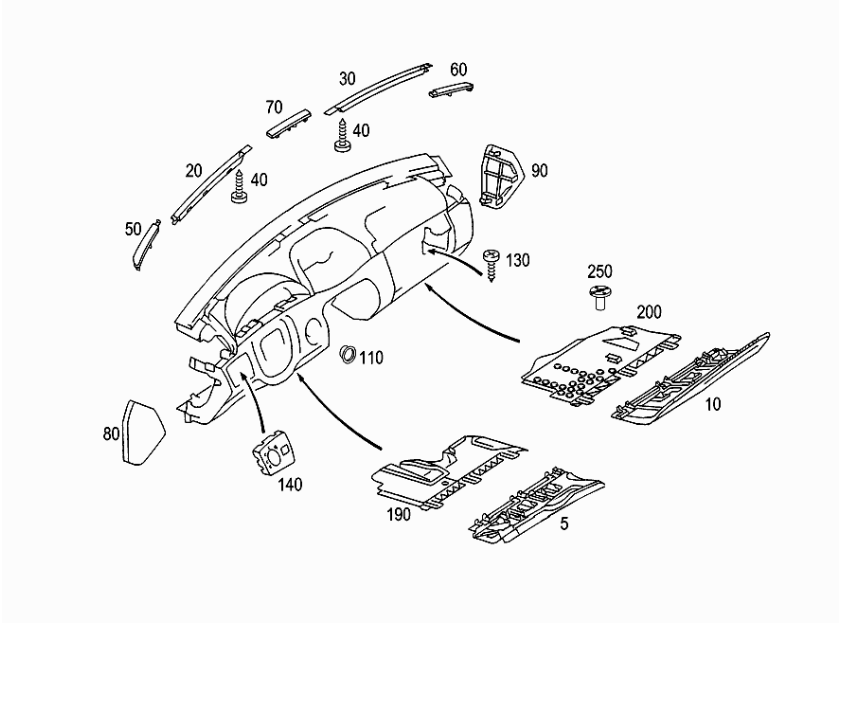

Instrument Cluster Removal
#101
Instrument cluster rebuild
I removed mine and sent it to these folks and for $152 including shipping they rebuilt the unit--about 3 days service plus shipping time. They did a great job.
BBA Remanufacturing Inc
300 Myles Standish Blvd
Taunton, MA 02780
Tel: (866) 573 - 2740
Fax: (508) 822-4491
www.bba-reman.com
BBA Remanufacturing Inc
300 Myles Standish Blvd
Taunton, MA 02780
Tel: (866) 573 - 2740
Fax: (508) 822-4491
www.bba-reman.com
#102
Member
I removed mine and sent it to these folks and for $152 including shipping they rebuilt the unit--about 3 days service plus shipping time. They did a great job.
BBA Remanufacturing Inc
300 Myles Standish Blvd
Taunton, MA 02780
Tel: (866) 573 - 2740
Fax: (508) 822-4491
www.bba-reman.com
BBA Remanufacturing Inc
300 Myles Standish Blvd
Taunton, MA 02780
Tel: (866) 573 - 2740
Fax: (508) 822-4491
www.bba-reman.com
#103
I recently acquired a 2001 W220, and it's past the 10 year warranty. The instrument panel lighting is going out, and I'd like to have it repaired. What are my chances?
The dealer checked my VIN and said there's no recall for it. I even handed him the Recall Campaign Bulletin #2006080004, which lists specific instrument cluster part numbers, and he didn't want to look at it. I've already verified that my instrument cluster has a matching part number. He claims that the 10 year warranty superseded the unlimited recall. Can that be true?
The dealer checked my VIN and said there's no recall for it. I even handed him the Recall Campaign Bulletin #2006080004, which lists specific instrument cluster part numbers, and he didn't want to look at it. I've already verified that my instrument cluster has a matching part number. He claims that the 10 year warranty superseded the unlimited recall. Can that be true?
#104

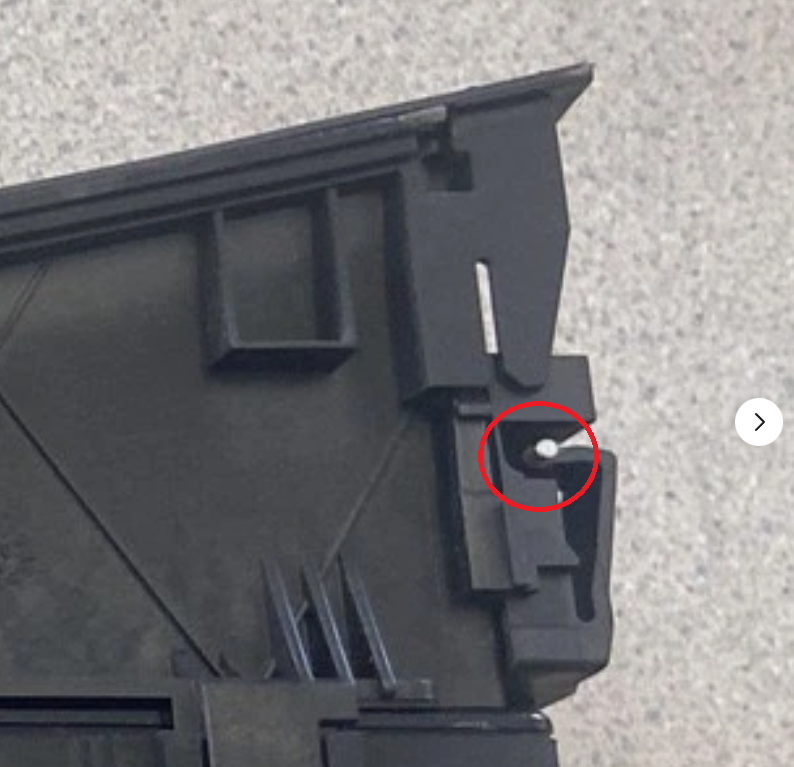

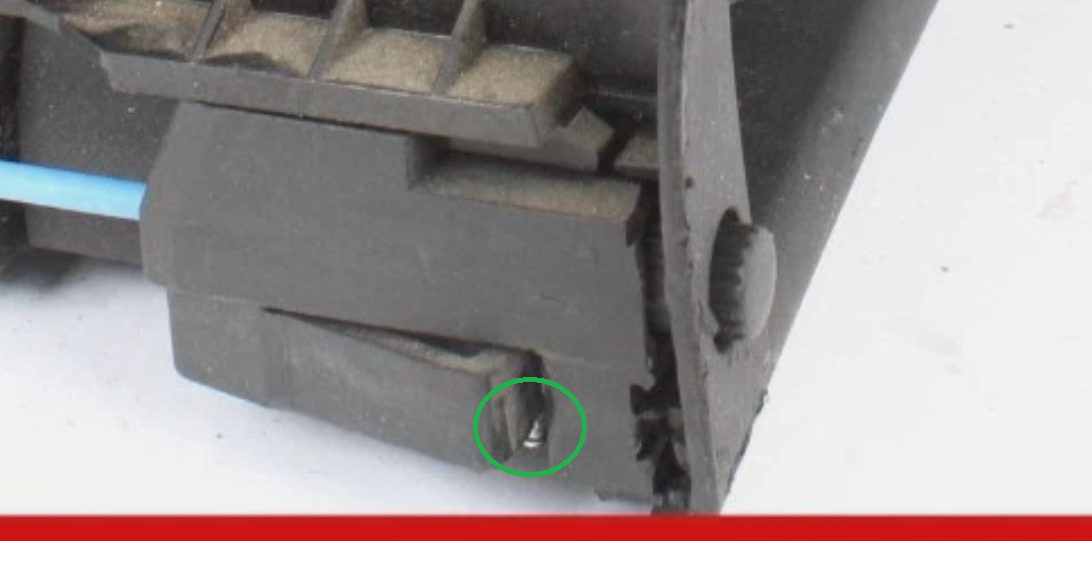

I made a little tool from a metal putty knife to pull the instrument cluster out. It has one plug on the back and you can send it to BBA in Massachusetts. $155 or so fixed mine. Found them on EBAY. The two little slots just give you a place to pull on the cluster and it just pops out.See my previous post for BBA contact info
#105
MBWorld Fanatic!
Join Date: Dec 2004
Location: Tampa, FL
Posts: 3,063
Likes: 0
Received 22 Likes
on
14 Posts
2005 S500 4-Matic, 1978 450SL
I recently acquired a 2001 W220, and it's past the 10 year warranty. The instrument panel lighting is going out, and I'd like to have it repaired. What are my chances?
The dealer checked my VIN and said there's no recall for it. I even handed him the Recall Campaign Bulletin #2006080004, which lists specific instrument cluster part numbers, and he didn't want to look at it. I've already verified that my instrument cluster has a matching part number. He claims that the 10 year warranty superseded the unlimited recall. Can that be true?
The dealer checked my VIN and said there's no recall for it. I even handed him the Recall Campaign Bulletin #2006080004, which lists specific instrument cluster part numbers, and he didn't want to look at it. I've already verified that my instrument cluster has a matching part number. He claims that the 10 year warranty superseded the unlimited recall. Can that be true?
Be that as it may, the recall wasn't issued only by part numbers for the cluster; it was also limited by certain VINS and model years. The recall applied to your model year; if your VIN is in the range of those specified, and you have the affected part number, then the recall should apply. If, in your case, the VIN wasn't in the recall, then only to extended warranty would apply.
I would take it further up the Mercedes management chain; start with a regional rep.
Last edited by Skylaw; 05-10-2013 at 09:02 AM.
#106
Member
Join Date: Jun 2011
Posts: 163
Received 0 Likes
on
0 Posts
2003 C32, 2002 S55, 1999 SL500, 2004 S430
Any one know if this is the updated part number for the one you listed IPD50N06S2-14?
First the legal stuff:
Use the following information at your own risk.
Now the info:
It turns out that this $1200. instrument cluster can be repaired for about $15. Just like I thought, it is a power switching transistor (N Channel MOSFET). The part number is BUZ102S made by Infineon.

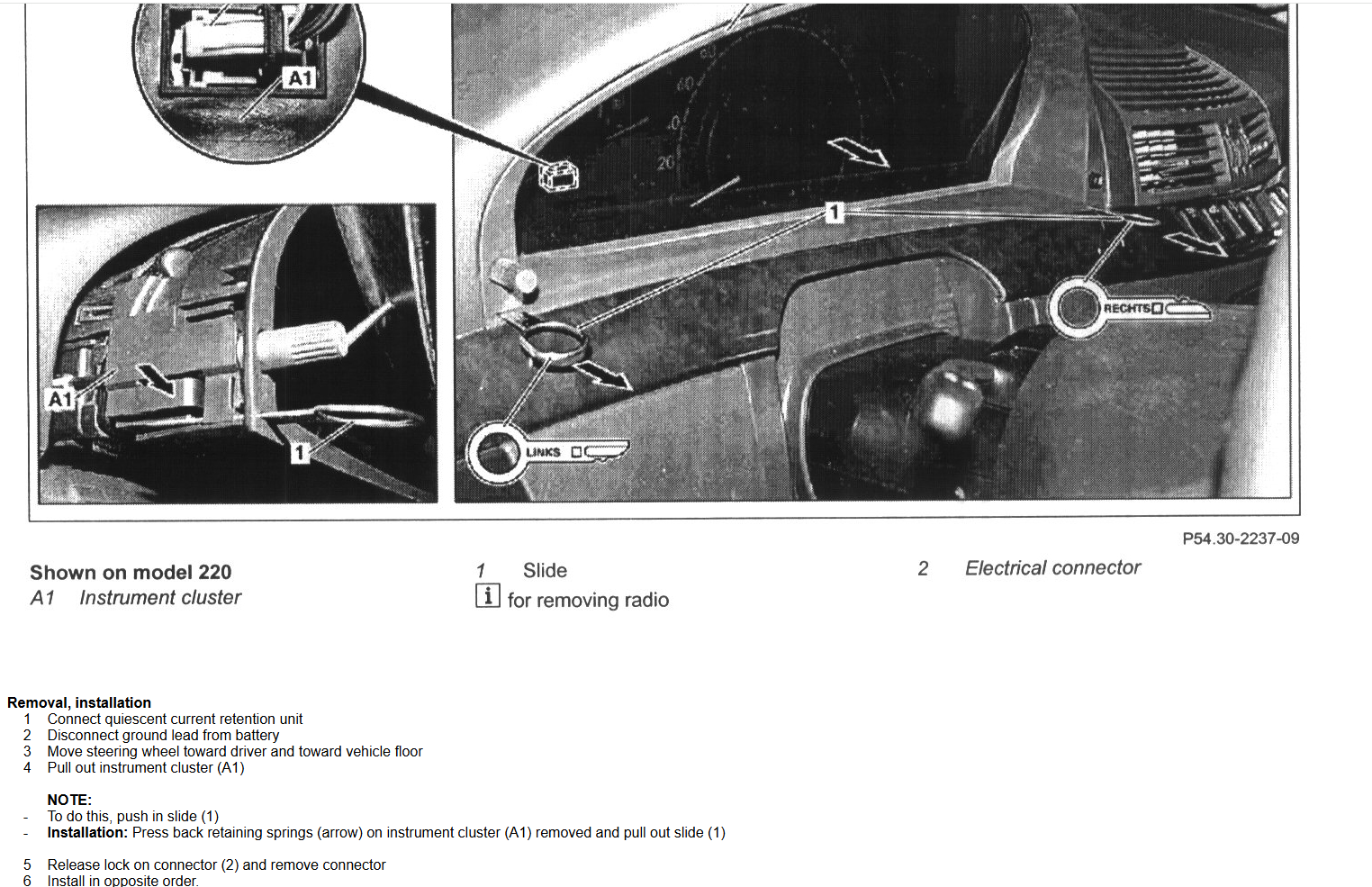

You'll need to remove the cluster with the tools mentioned above and unplug it. If your cluster is like mine, you'll notice a part that is loose right away. It is the BUZ102S that has fallen off the small power distribution board on the rear of the cluster. There are two large slots on each side of the rear of the cluster. Beneath them are two connectors. Unplug those connectors, then use a small flat head screwdriver to remove the back casing of the cluster. Use a T12 driver to remove the circuit board from the casing. Now you have the board completely removed and and ready to repair.
Important Tech Note
There are three BUZ102S ICs on the board. They all supply power to the instrument cluster and work in parallel. It is important to replace all of them at once. Here's why: When the first IC falls off the board the other two try to compensate by supplying more current. The additional work load causes the transistors to saturate. During this saturation phase, instrument cluster lights flicker on and off. Eventually one of the transistors fails or short circuits. When that happens, the 5A circuit fuse blows. This circuit fuse protects not only the instrument cluster back-lights, but also the guages, the parktronic, the remote truck opener, and the command back lighting. Because you cannot visually tell which transistor has failed, you must replace all three of them at once.
Use a desoldering braid and a 40W soldering iron to remove the ICs. Then carefully solder each new IC to finish the repair. Reassemble the instrument cluster and install. Before testing, locate the 5A protection fuse mentioned above. There should be a fuse diagram sheet with the tool kit located in the trunk of the vehicle. Replace the 5A fuse and test. You should now have cluster lights, guages, parktronic, trunk opener and about $1185. still in your wallet.
Use the following information at your own risk.
Now the info:
It turns out that this $1200. instrument cluster can be repaired for about $15. Just like I thought, it is a power switching transistor (N Channel MOSFET). The part number is BUZ102S made by Infineon.
You'll need to remove the cluster with the tools mentioned above and unplug it. If your cluster is like mine, you'll notice a part that is loose right away. It is the BUZ102S that has fallen off the small power distribution board on the rear of the cluster. There are two large slots on each side of the rear of the cluster. Beneath them are two connectors. Unplug those connectors, then use a small flat head screwdriver to remove the back casing of the cluster. Use a T12 driver to remove the circuit board from the casing. Now you have the board completely removed and and ready to repair.
Important Tech Note
There are three BUZ102S ICs on the board. They all supply power to the instrument cluster and work in parallel. It is important to replace all of them at once. Here's why: When the first IC falls off the board the other two try to compensate by supplying more current. The additional work load causes the transistors to saturate. During this saturation phase, instrument cluster lights flicker on and off. Eventually one of the transistors fails or short circuits. When that happens, the 5A circuit fuse blows. This circuit fuse protects not only the instrument cluster back-lights, but also the guages, the parktronic, the remote truck opener, and the command back lighting. Because you cannot visually tell which transistor has failed, you must replace all three of them at once.
Use a desoldering braid and a 40W soldering iron to remove the ICs. Then carefully solder each new IC to finish the repair. Reassemble the instrument cluster and install. Before testing, locate the 5A protection fuse mentioned above. There should be a fuse diagram sheet with the tool kit located in the trunk of the vehicle. Replace the 5A fuse and test. You should now have cluster lights, guages, parktronic, trunk opener and about $1185. still in your wallet.
#108
Member
Join Date: Nov 2012
Location: New England
Posts: 220
Likes: 0
Received 2 Likes
on
2 Posts
2006 S430 4Matic
Hi all, I have an 06 S430 and have had my cluster replaced under the 10 year warranty. The dealer did it for me in about 45 minutes. I don't understand why your "dealer" has to send it out.
For those of you who are having problems with the gas guage don't blame your cluster first. You could have a sending unit going bad. It happened to me on a previous car. Check the cheap stuff first.
For those DIYers who want to work on their own cluster be careful because if you have never worked with electronic components in the past you could create more damage then you fix. Electro Static Discharge can destroy other components and you will never know it. Its worth sending out to a qualified repair tech so you know it is done right and tested. Dealers don't repair, they just replace.
For those of you who are having problems with the gas guage don't blame your cluster first. You could have a sending unit going bad. It happened to me on a previous car. Check the cheap stuff first.
For those DIYers who want to work on their own cluster be careful because if you have never worked with electronic components in the past you could create more damage then you fix. Electro Static Discharge can destroy other components and you will never know it. Its worth sending out to a qualified repair tech so you know it is done right and tested. Dealers don't repair, they just replace.
#109
Heya, first post.
I also had the Instrument cluster go out today... called the local dealer and they said it was past the 10yr warranty. Super disappointed that MB dealers are so friggin greedy on this one as it is a Absolute Necessity to have the panel working. (if the repair doesn't work I'll check up the food chain at MB and also file at NHTSA the complaint)
Going to order the BUZ102S and attempt a repair first.
I'm great at soldering, so I'll give it a whirl.
Ran across this guide when looking to get the component...
http://www.diagkey.com/media/catalog...%20cluster.pdf
Thought it might help someone in my shoes...
also might add some small heatsinks on the Transistors to help dissipate the heat some.
I also had the Instrument cluster go out today... called the local dealer and they said it was past the 10yr warranty. Super disappointed that MB dealers are so friggin greedy on this one as it is a Absolute Necessity to have the panel working. (if the repair doesn't work I'll check up the food chain at MB and also file at NHTSA the complaint)
Going to order the BUZ102S and attempt a repair first.
I'm great at soldering, so I'll give it a whirl.
Ran across this guide when looking to get the component...
http://www.diagkey.com/media/catalog...%20cluster.pdf
Thought it might help someone in my shoes...
also might add some small heatsinks on the Transistors to help dissipate the heat some.
Last edited by Ecclesiastical; 03-05-2015 at 04:57 PM. Reason: added pic
#110

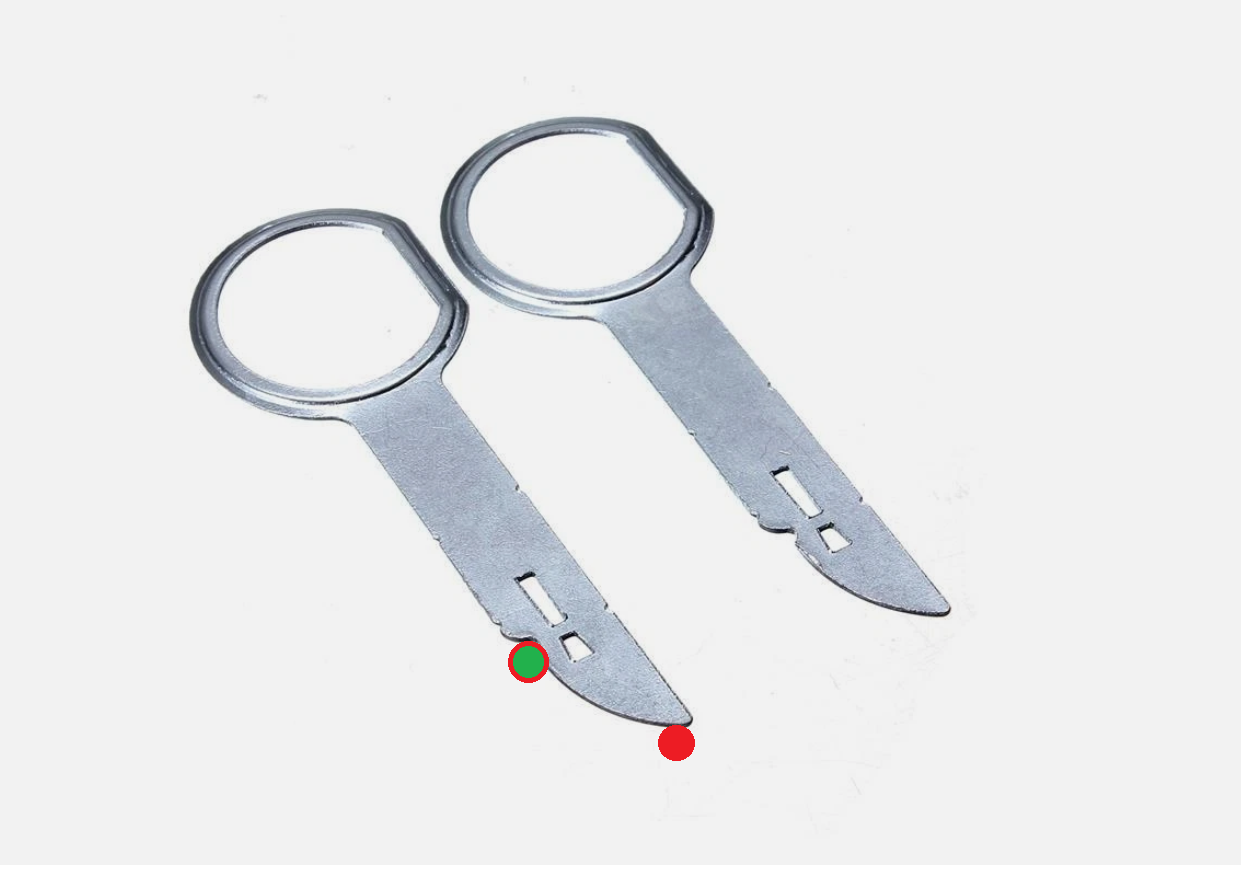

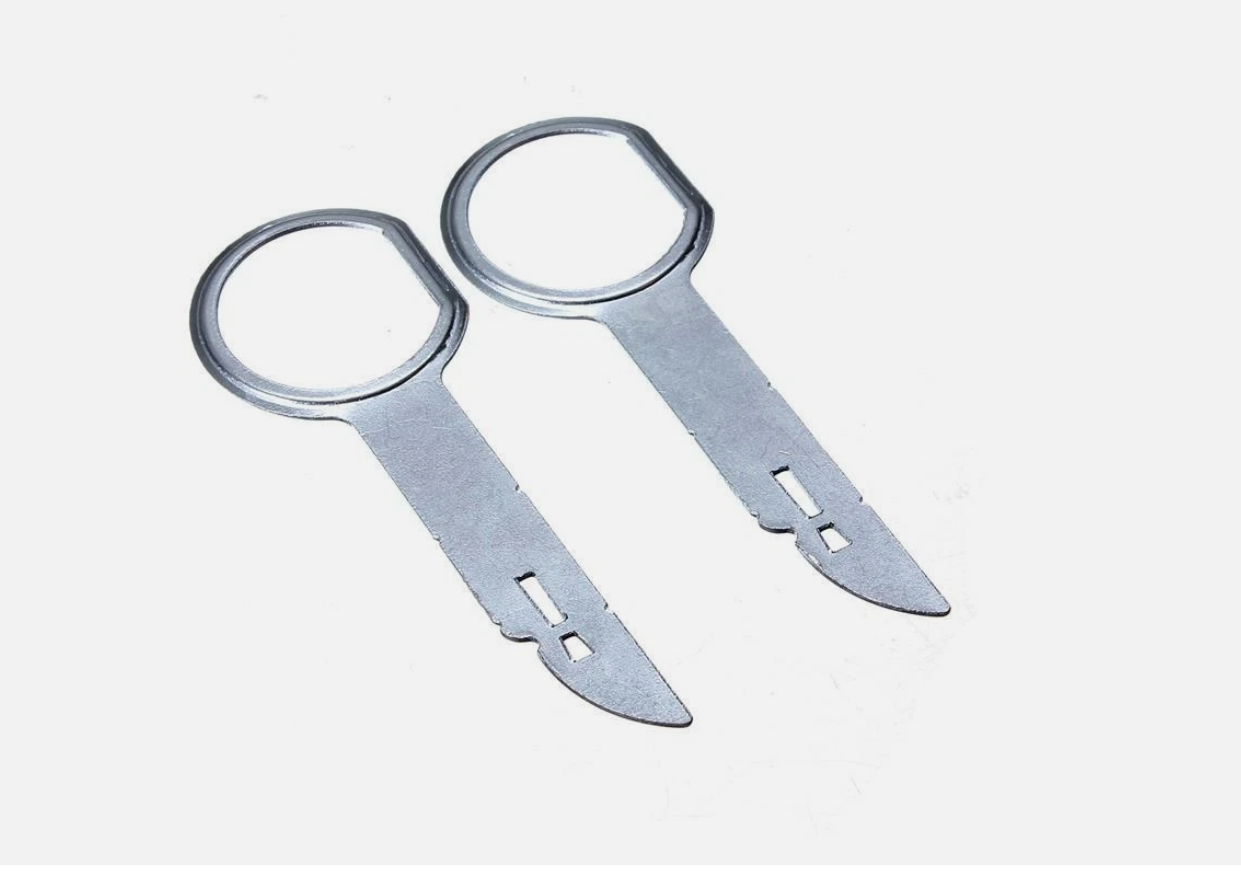

Btw, I just picked up a set of these for about 14$ which includes the Panel removal keys!
Searched Ebay for : 12 pcs Nylon removal tool w220
http://www.ebay.com/sch/i.html?_odkw...Text=&_sacat=0
Searched Ebay for : 12 pcs Nylon removal tool w220
http://www.ebay.com/sch/i.html?_odkw...Text=&_sacat=0
#111
Hey Ecclesiastical, did you have any luck repairing your instrument cluster?
On my pcb, there were no BUZ102S transistors that were burned or loose upon inspection. They seemed intact and on the back of the pcb the resistors were all intact showing no signs of overheating.
I think my issue is the transformer VOGT.
i ordered my transformer part and looking forward to repair mine next week.
I am hoping the issue is just the transformer.
On my pcb, there were no BUZ102S transistors that were burned or loose upon inspection. They seemed intact and on the back of the pcb the resistors were all intact showing no signs of overheating.
I think my issue is the transformer VOGT.
i ordered my transformer part and looking forward to repair mine next week.
I am hoping the issue is just the transformer.
