Someone here must know - camera wiring??!!
I have been searching and searching to find out how my reverse camera (MB OEM) fits into my 2007 CL500 (W216) cars wiring.

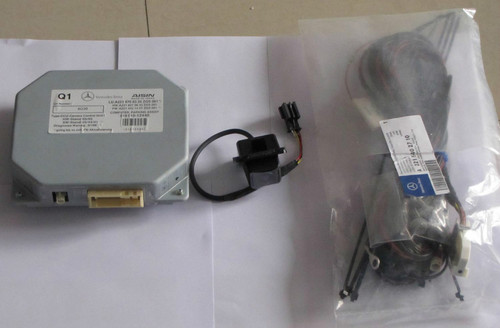

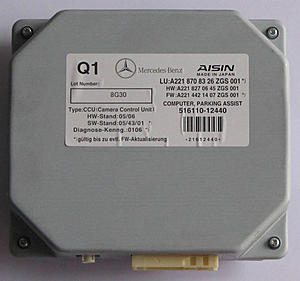

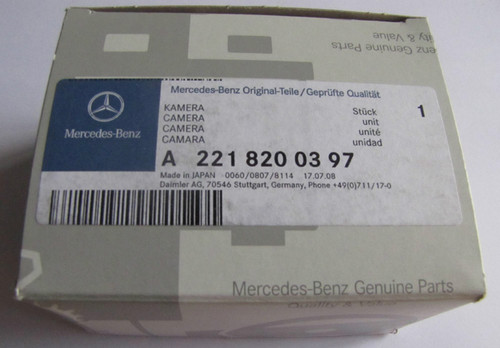

There are three OEM BM parts - a camera (A2218200397)- which plugs into a module (A2218708326) that sits in the trunk and then a wiring loom (a2215102710)
There are power and earth cables for the unit(s) in the trunk - I know this as they are not very long at all) and then there is a plug (two wires) plus two wires with pins on the end (see attached)...
Where do these pins and plug plug into - the wiring seems long enough for them to reach the back of the command unit...but I just dont know how to connect them in. One of the pinned wires has 3158 and is gold with clear insulation, the other has no markings but has a silver colour wire inside a clear insulation
I know I'm going to have to pay for re-coding - my car does have 230 - Parking Assistance on it - but I need to keep costs as low as possible - please help!!!!
thanks
Alex
There are three OEM BM parts - a camera (A2218200397)- which plugs into a module (A2218708326) that sits in the trunk and then a wiring loom (a2215102710)
There are power and earth cables for the unit(s) in the trunk - I know this as they are not very long at all) and then there is a plug (two wires) plus two wires with pins on the end (see attached)...
Where do these pins and plug plug into - the wiring seems long enough for them to reach the back of the command unit...but I just dont know how to connect them in. One of the pinned wires has 3158 and is gold with clear insulation, the other has no markings but has a silver colour wire inside a clear insulation
I know I'm going to have to pay for re-coding - my car does have 230 - Parking Assistance on it - but I need to keep costs as low as possible - please help!!!!
thanks
Alex
Last edited by alexbartman; Aug 3, 2012 at 11:05 AM. Reason: add photo
MBWorld Fanatic!
Joined: Dec 2006
Posts: 6,497
Likes: 335
From: Europe
223.168 & 213.012 & 906.633 & 214.005
I cannot see your attachment.
The transparent wire goes to contact cavity 7 on the 20 pin COMAND connector. The screening line goes to cavity 17.
Then you have the interior CAN wires and one to the voltage distributor X30/32.
PM me your email address and I'll send you the illustrated instructions.
The transparent wire goes to contact cavity 7 on the 20 pin COMAND connector. The screening line goes to cavity 17.
Then you have the interior CAN wires and one to the voltage distributor X30/32.
PM me your email address and I'll send you the illustrated instructions.
MBWorld Fanatic!
Joined: Dec 2006
Posts: 6,497
Likes: 335
From: Europe
223.168 & 213.012 & 906.633 & 214.005
Trending Topics
Newbie
Joined: Apr 2020
Posts: 1
Likes: 0
2008 s550
2008 w221
awesome info, I’m trying to add a oem camera on my w221 year 2008. I have the OEM camera with the wiring to the trunk area and I see the modules online but any idea where I can purchase the wiring to the head unit? Thanks
MB World Stories
The Best of Mercedes & AMG
Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun
Verdad Gallardo
Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren
Verdad Gallardo
8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine
Verdad Gallardo
Flawlessly Restored Mercedes 190E Evo II Heads to Auction
Verdad Gallardo
Electric Mercedes C-Class Unveiled: 11 Things You Need to Know
Verdad Gallardo
Mercedes EQS Gets A Major Update: Everything You Need to Know
Verdad Gallardo
5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve
Verdad Gallardo
Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping
Verdad Gallardo
10 Most Reliable Mercedes-Benz Models You Can Buy Used
Verdad Gallardo
MBWorld Fanatic!
Joined: Aug 2014
Posts: 5,317
Likes: 1,673
S500
the part number is above your post 2215402710 it will be expensive and hard to come by being a special order no merc dealer will be interested in following up
its only missing a bit of shielded cable ( if you did everything else already) you can run it up the inside of the centre console
don't ever listen to people on the internet...
FYI if you have the early aluminium camera and the early iPod kit the night assist element of the camera stops working, if you get the ultra rare later ipod kit with a different loom it works again but takes a split second longer to pop up on selecting reverse
its only missing a bit of shielded cable ( if you did everything else already) you can run it up the inside of the centre console
don't ever listen to people on the internet...
FYI if you have the early aluminium camera and the early iPod kit the night assist element of the camera stops working, if you get the ultra rare later ipod kit with a different loom it works again but takes a split second longer to pop up on selecting reverse
Last edited by BOTUS; Apr 14, 2020 at 12:53 PM.
