Intermediate Shaft
Thread Starter
Junior Member
Joined: Nov 2014
Posts: 43
Likes: 5
2000 E320, 2011 S550
Intermediate Shaft

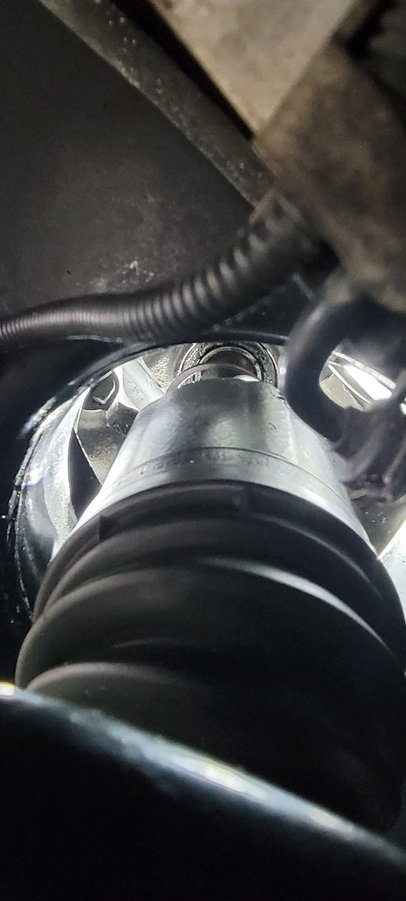

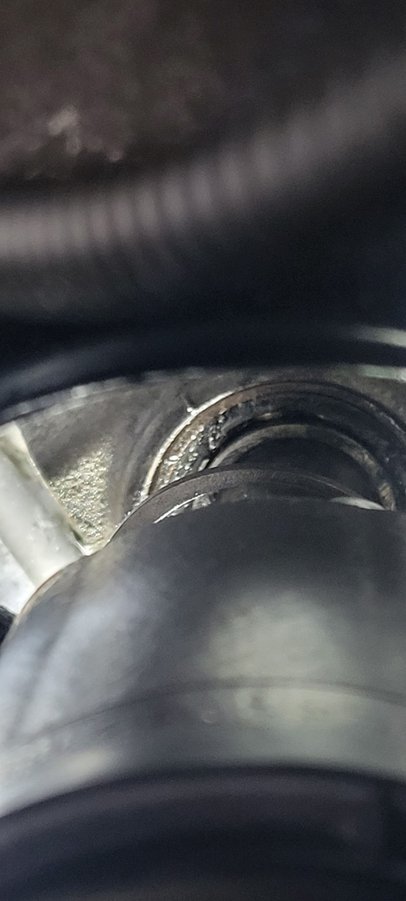

I need some advice! I'm changing my CV joint, however, being that I live in the rust belt, the joint is not coming off so easily. I've read where many have said if the cv joint is rusted to remove the intermediate shaft first. Just so happens, when I removed the clamp that holds the intermediate joint in place, the intermediate shaft will not come dislodge.
I've blasted the intermediate shaft with penetrating oil and have hit it with a pry bar and hammer and it still will not dislodge. My question to anyone that has completed this job is can heat be applied? Will the heat damage the oil pan?
I
I've blasted the intermediate shaft with penetrating oil and have hit it with a pry bar and hammer and it still will not dislodge. My question to anyone that has completed this job is can heat be applied? Will the heat damage the oil pan?
I
MBWorld Fanatic!
Joined: Aug 2021
Posts: 1,542
Likes: 772
1983 Nissan Shltbox
Smack it with a sledge. It'll budge. Dead serious. It's just seized. Full disclosure; I have not performed this job on this car. I have, however, performed it on plenty of others over the last 20 years.
Thread Starter
Junior Member
Joined: Nov 2014
Posts: 43
Likes: 5
2000 E320, 2011 S550
Thank you for the response. Are saying to strike the flower portion of the CV joint with the sledge hammer? I tried using the pry bar in conjunction with a 5lb sledge hammer. I'm wondering if the problem is I'm not getting enough leverage, considering I'm working off of jack stands.
Thread Starter
Junior Member
Joined: Nov 2014
Posts: 43
Likes: 5
2000 E320, 2011 S550
I tried and it did not move. I even placed a chain with a slode hammer to it and it did not budge. I'm almost positive that the bearing is the culprit. There's little to no room to maneuver, especially since im working off of jack stands.
Trending Topics
MB World Stories
The Best of Mercedes & AMG
6 Mercedes Models That Did NOT Age Well (But Are Somehow Still Cool)
Verdad Gallardo
Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun
Verdad Gallardo
Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren
Verdad Gallardo
8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine
Verdad Gallardo
Flawlessly Restored Mercedes 190E Evo II Heads to Auction
Verdad Gallardo
Electric Mercedes C-Class Unveiled: 11 Things You Need to Know
Verdad Gallardo
Mercedes EQS Gets A Major Update: Everything You Need to Know
Verdad Gallardo
5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve
Verdad Gallardo
Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping
Verdad Gallardo
MBWorld Fanatic!
Joined: Aug 2021
Posts: 1,542
Likes: 772
1983 Nissan Shltbox
So it sounds like you have it removed from the hub, and now the shaft is stuck in the transfer case? If this is correct, I'm not aware of any special procedure to remove the shaft from the transfer case. Similar to my front wheel drive Nissan Maxima, the CV axles just slide in and out of the transmission, in your case, the transfer case. It should just pop out. I'd just yank on that sucker until it busts loose, I wouldn't care about the old shaft as it's trash.
Am I on the same page here or am I way off?
Am I on the same page here or am I way off?
Thread Starter
Junior Member
Joined: Nov 2014
Posts: 43
Likes: 5
2000 E320, 2011 S550
So it sounds like you have it removed from the hub, and now the shaft is stuck in the transfer case? If this is correct, I'm not aware of any special procedure to remove the shaft from the transfer case. Similar to my front wheel drive Nissan Maxima, the CV axles just slide in and out of the transmission, in your case, the transfer case. It should just pop out. I'd just yank on that sucker until it busts loose, I wouldn't care about the old shaft as it's trash.
Am I on the same page here or am I way off?
Am I on the same page here or am I way off?
Room underneath the vehicle is very limited. I've pulled on the axle with a slide hammer and still cannot budge this thing. The bearing on the intermediate shaft is definitley the catalyst. I'm not sure if heat can be applied to help the process.
Thread Starter
Junior Member
Joined: Nov 2014
Posts: 43
Likes: 5
2000 E320, 2011 S550
Snap rings and clips. I didn't watch the whole thing. I would get the WIS document.
https://www.youtube.com/watch?v=itaej-0M_Zg
https://www.youtube.com/watch?v=itaej-0M_Zg
I have the WIS document. It refers to a special tool that costs and arm and a leg. Also, the WIS doc never takes into account the good ole rust belt.
I just reviewed the video. It appears that these folks dropped the rack and pinon just to remove the axle; definitely not in the WIS guide. Still, I can understand why they did it.
Last edited by Bugsy123; Nov 24, 2024 at 05:04 PM.
Thread Starter
Junior Member
Joined: Nov 2014
Posts: 43
Likes: 5
2000 E320, 2011 S550
Thread Starter
Junior Member
Joined: Nov 2014
Posts: 43
Likes: 5
2000 E320, 2011 S550
Junior Member
Joined: Sep 2022
Posts: 67
Likes: 31
2011 S550 4matic
I just had my intermediate shaft bearing fail, the bearing was broken in pieces, I removed the entire knuckle to provide some working space. As for removing the shaft, you first need to pull the snap ring, thats what your issue may be. The bearing is held in by a snap ring in the oil pan. After you need to clean the entire face of the oil pan where the bearing needs to slide out of with a dremel with a tiny wire wheel, this will clean the junk off of the surface to allow the bearing to slide out. Spray with wd40, you can heat with a low temp torch (like a plumbers) BUT just enough to smoke the wd40 a bit, DO NOT HEAT Much, its just to allow wd40 to get inbetween the bearing and the oil pan. Work it back and forth, it will come out. Mine had the bearing broken and I spent 2 hours cleaning it and moving it back and forth until it came out. I am getting new cv joint boots tomorrow to repack joints, I only hope the bearing failure didn't damage the differential
Thread Starter
Junior Member
Joined: Nov 2014
Posts: 43
Likes: 5
2000 E320, 2011 S550
I just had my intermediate shaft bearing fail, the bearing was broken in pieces, I removed the entire knuckle to provide some working space. As for removing the shaft, you first need to pull the snap ring, thats what your issue may be. The bearing is held in by a snap ring in the oil pan. After you need to clean the entire face of the oil pan where the bearing needs to slide out of with a dremel with a tiny wire wheel, this will clean the junk off of the surface to allow the bearing to slide out. Spray with wd40, you can heat with a low temp torch (like a plumbers) BUT just enough to smoke the wd40 a bit, DO NOT HEAT Much, its just to allow wd40 to get inbetween the bearing and the oil pan. Work it back and forth, it will come out. Mine had the bearing broken and I spent 2 hours cleaning it and moving it back and forth until it came out. I am getting new cv joint boots tomorrow to repack joints, I only hope the bearing failure didn't damage the differential
The weather is starting to warm up so I may try using the screw driver route. I've sprayed so much penetrating oil that the sucker should fall out, but it's not happening. Still, I'm hoping to have good news when I go back to completing the repair.
Junior Member
Joined: Sep 2022
Posts: 67
Likes: 31
2011 S550 4matic
So just to clarify, I assume you have already separated the cv joint axle from intermediate shaft? You just hit it on the backside of the inner cv joint, it will pop off. Afterwards I think you put on some gloves and just work it
Thread Starter
Junior Member
Joined: Nov 2014
Posts: 43
Likes: 5
2000 E320, 2011 S550
I initially tried to remove the CV Joint but it wouldn't budge. This is what lead me down the intermediate shaft route.
Junior Member
Joined: Sep 2022
Posts: 67
Likes: 31
2011 S550 4matic
Actually no! The CV Joint axle is also frozen to the shaft. When this happens, you're suppose to remove the intermediate shaft, then remove the CV joint. Rust is playing a huge factor.
I initially tried to remove the CV Joint but it wouldn't budge. This is what lead me down the intermediate shaft route.
I initially tried to remove the CV Joint but it wouldn't budge. This is what lead me down the intermediate shaft route.
https://www.harborfreight.com/automo...set-56505.html
Thread Starter
Junior Member
Joined: Nov 2014
Posts: 43
Likes: 5
2000 E320, 2011 S550
Actually, that my be a good thing, with the cv axle shaft on the intermediate shaft you have something to tap on. If you have sprayed wd40 on it try working it back and forth. I would remove the ring on the inner cv joint so you can leave just the inside end on, hit that on back side in then out, it WILL eventually move. There's only so much adhesion that could have taken place, the oil pan is aluminum and the bearing is metal, they CANNOT weld together. If you end up with the inner cv joint coming off the intermediate shaft, as a last resort I would drill through the cv joint collar into the intermediate shaft and tap in a roll pin, now it won't come off and you have something to pull on. I would buy a slide hammer with a lip and tap evenly all the way around until it works free
https://www.harborfreight.com/automo...set-56505.html
https://www.harborfreight.com/automo...set-56505.html
A slide hammer was placed on the cv joint with a chain, however, the cv joint nor the intermediate shaft would break loose. It's still pretty cold my way. Once Spring hits, I'll be back at it again.
Junior Member
Joined: Sep 2022
Posts: 67
Likes: 31
2011 S550 4matic
Wow, that sounds pretty bad. So here's a trick, some people know it, some don't so if you already know about this....
. When I used to have to remove front end parts on my trucks we would heat with on oxy acetylene or map torch. When somewhat hot spray wd40 or liquid blaster, the metal pulls in the oil, gets into everything. Then, heat again, liquid will burn for a few seconds, keep heating, spray again. Repeat the process several times each time try to give a few wacks with the slide hammer
. When I used to have to remove front end parts on my trucks we would heat with on oxy acetylene or map torch. When somewhat hot spray wd40 or liquid blaster, the metal pulls in the oil, gets into everything. Then, heat again, liquid will burn for a few seconds, keep heating, spray again. Repeat the process several times each time try to give a few wacks with the slide hammer
