Fitting SL63 rear bumper to SL55
I have been lucky enough to purchase a brand new genuine SL63 rear bumper that I am going to fit to my SL55.
Anyone got any hints and tips on doing this as am going to do it myself. Bumper in for paint now and will have it back next week.
I know I need to modiy the existing parking sensors to fit (remove the outside ring), but anything else I need to be aware of?
The few people who have done it on the forums say it's very easy, but I am wary of people that say things like that... experience has taught me to be so LOL!
Anyone got any hints and tips on doing this as am going to do it myself. Bumper in for paint now and will have it back next week.
I know I need to modiy the existing parking sensors to fit (remove the outside ring), but anything else I need to be aware of?
The few people who have done it on the forums say it's very easy, but I am wary of people that say things like that... experience has taught me to be so LOL!
MBWorld Fanatic!
Joined: Aug 2008
Posts: 2,498
Likes: 222
Porsche guy who drives SL63 w/ perf pkg AND perf suspension
you will have to buy the new internal brackets and braces to fit the new bumper, you will find the origionals dont fit in the new bumper. you can cut and fit a couple of the pieces to fit the new one. the hardest part is taking all the trunk carpets and tail lites out to get to the screws
Super Member
Joined: Feb 2007
Posts: 871
Likes: 0
From: SoCal
W124 E500 (RIP), W211 E350 (Sold), R230 SL55 (Current)
you will have to buy the new internal brackets and braces to fit the new bumper, you will find the origionals dont fit in the new bumper. you can cut and fit a couple of the pieces to fit the new one. the hardest part is taking all the trunk carpets and tail lites out to get to the screws
Thread Starter
Junior Member
Joined: Aug 2013
Posts: 32
Likes: 1
AMG SL55
you will have to buy the new internal brackets and braces to fit the new bumper, you will find the origionals dont fit in the new bumper. you can cut and fit a couple of the pieces to fit the new one. the hardest part is taking all the trunk carpets and tail lites out to get to the screws
I have had the rear bumper off the car in the past so I know about the carpets etc. It was a right pain, but at least I know how to do it now.
Thread Starter
Junior Member
Joined: Aug 2013
Posts: 32
Likes: 1
AMG SL55
Also do I need to take the the parking/back-up sensor mounts off the bumper to modfy them to fit the old sensors? Or can I modify them in situ. If I do need to take them off what is the best way as they seem to be bonded to it.
Senior Member
Joined: Oct 2011
Posts: 459
Likes: 0
SL55 AMG EC Stage 5 Beast / ESS S/C E92 M3

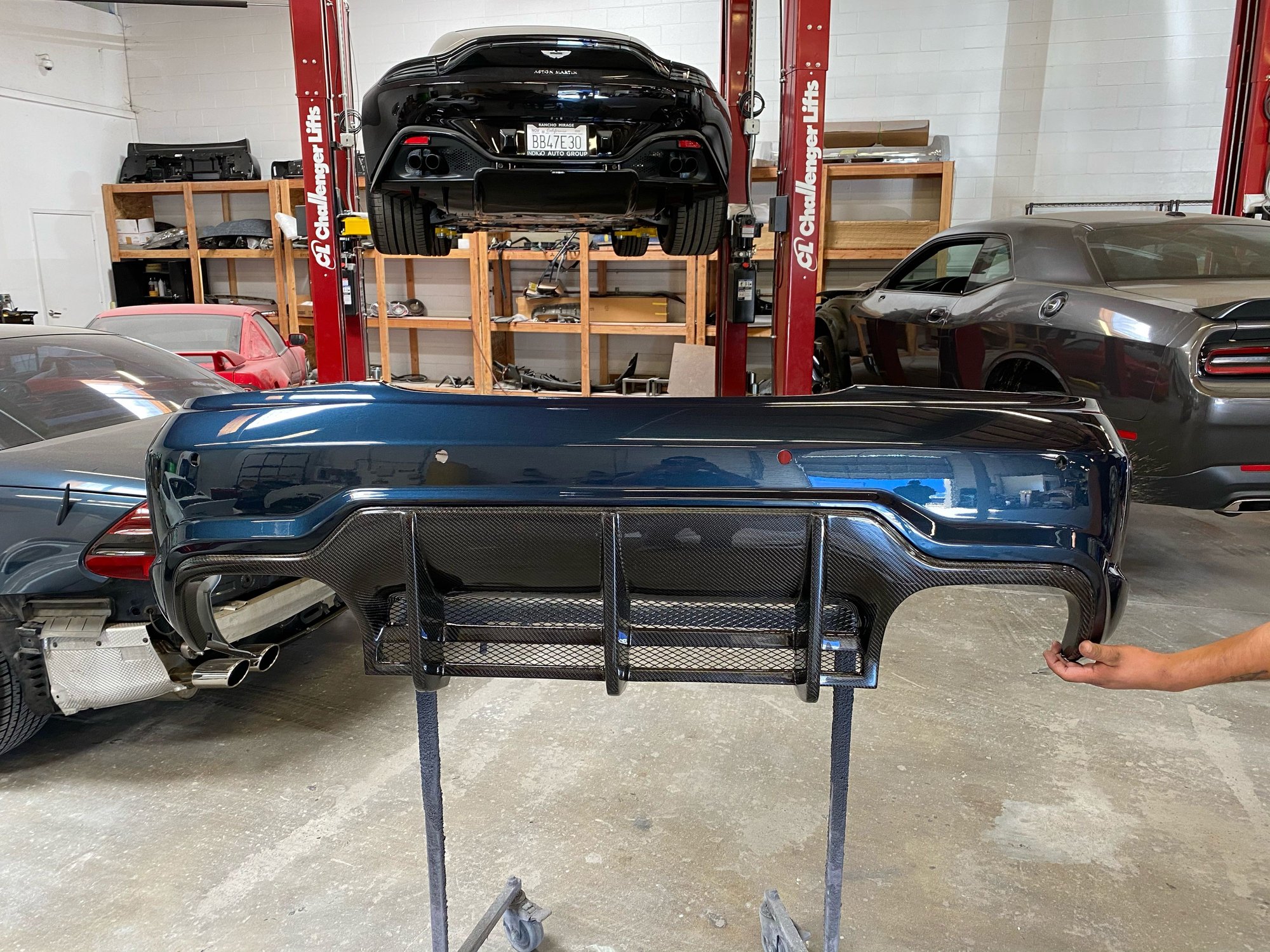

I just did this & added the RevoZport RBS diffuser as well
Sounds like you know about the carpets... although those are rather easy once you figure out the lil tricks on taking them off & I don't even go that far I just used a long extension & universal on my ratchet and only removed the two clips then just held the carpet back slightly. You really only need to buy the center inside frame because the side internal frames were a direct swap & I reused them from my original bumper. as far as the splash guards, I completely removed the one under the trunk because the diffuser came with a nice new CF plate that I installed in it's place
so I can't really say if that needs to be replaced BUT you will need new back wheel well bits because your old ones will work but they aren't as wide as the new bumper so they don't completely cover it on the inside
Sounds like you know about the carpets... although those are rather easy once you figure out the lil tricks on taking them off & I don't even go that far I just used a long extension & universal on my ratchet and only removed the two clips then just held the carpet back slightly. You really only need to buy the center inside frame because the side internal frames were a direct swap & I reused them from my original bumper. as far as the splash guards, I completely removed the one under the trunk because the diffuser came with a nice new CF plate that I installed in it's place so I can't really say if that needs to be replaced BUT you will need new back wheel well bits because your old ones will work but they aren't as wide as the new bumper so they don't completely cover it on the inside
Thread Starter
Junior Member
Joined: Aug 2013
Posts: 32
Likes: 1
AMG SL55
I just did this & added the RevoZport RBS diffuser as well Sounds like you know about the carpets... although those are rather easy once you figure out the lil tricks on taking them off & I don't even go that far I just used a long extension & universal on my ratchet and only removed the two clips then just held the carpet back slightly. You really only need to buy the center inside frame because the side internal frames were a direct swap & I reused them from my original bumper. as far as the splash guards, I completely removed the one under the trunk because the diffuser came with a nice new CF plate that I installed in it's place so I can't really say if that needs to be replaced BUT you will need new back wheel well bits because your old ones will work but they aren't as wide as the new bumper so they don't completely cover it on the inside
Sounds like you know about the carpets... although those are rather easy once you figure out the lil tricks on taking them off & I don't even go that far I just used a long extension & universal on my ratchet and only removed the two clips then just held the carpet back slightly. You really only need to buy the center inside frame because the side internal frames were a direct swap & I reused them from my original bumper. as far as the splash guards, I completely removed the one under the trunk because the diffuser came with a nice new CF plate that I installed in it's place so I can't really say if that needs to be replaced BUT you will need new back wheel well bits because your old ones will work but they aren't as wide as the new bumper so they don't completely cover it on the inside Trending Topics
MB World Stories
The Best of Mercedes & AMG
Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun
Verdad Gallardo
Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren
Verdad Gallardo
8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine
Verdad Gallardo
Flawlessly Restored Mercedes 190E Evo II Heads to Auction
Verdad Gallardo
Electric Mercedes C-Class Unveiled: 11 Things You Need to Know
Verdad Gallardo
Mercedes EQS Gets A Major Update: Everything You Need to Know
Verdad Gallardo
5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve
Verdad Gallardo
Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping
Verdad Gallardo
10 Most Reliable Mercedes-Benz Models You Can Buy Used
Verdad Gallardo
MBWorld Fanatic!
Joined: Aug 2008
Posts: 2,498
Likes: 222
Porsche guy who drives SL63 w/ perf pkg AND perf suspension
you can cut the tray to make it fit. and you have to take the black brackets off the bumper to cut them up then glue the whole thing back to the bumper. you have to find a plastic epoxy to do all the gluing
I think they have a 2 stage epoxy at hardware stores or lowes or HD
I think they have a 2 stage epoxy at hardware stores or lowes or HD
Thread Starter
Junior Member
Joined: Aug 2013
Posts: 32
Likes: 1
AMG SL55
you can cut the tray to make it fit. and you have to take the black brackets off the bumper to cut them up then glue the whole thing back to the bumper. you have to find a plastic epoxy to do all the gluing
I think they have a 2 stage epoxy at hardware stores or lowes or HD
I think they have a 2 stage epoxy at hardware stores or lowes or HD
The undertray. Instead of cutting it can I fit an SL63 one?
Thanks all of you for your help, I am in the UK and when I asked this on the UK forum all I got was tumbleweed rolling through my thread
Thread Starter
Junior Member
Joined: Aug 2013
Posts: 32
Likes: 1
AMG SL55
Looking at this link:
Rear floor
It seems to say the undertray is the same for the SL55 as for the SL63. That can't be right can it?
REAR END FLOOR
Models:
SL 500 03-06, SL 55 AMG 03-06, SL 55 AMG 07-08, SL 600 04-06, SL 600 07-11, SL 63 AMG 09-12, SL 65 AMG 05-11
It lists 2 covers:
2306190338 COVER.
Required: 001
BELOW SPARE WHEEL WELL
[20060308 - 20060308]: "AMG SIGNATURE SERIES/BLACK SERIES" SPECIAL MODEL
2306190738 COVER.
Required: 001
BELOW SPARE WHEEL WELL
[20060308 - 20060308]: NOT FOR "AMG SIGNATURE SERIES/BLACK SERIES" SPECIAL MODEL
Is the SL63 an AMG signature series?
The MB dealers here can't help me at the moment as I don't have an SL63 chassis number.... sigh!
Rear floor
It seems to say the undertray is the same for the SL55 as for the SL63. That can't be right can it?
REAR END FLOOR
Models:
SL 500 03-06, SL 55 AMG 03-06, SL 55 AMG 07-08, SL 600 04-06, SL 600 07-11, SL 63 AMG 09-12, SL 65 AMG 05-11
It lists 2 covers:
2306190338 COVER.
Required: 001
BELOW SPARE WHEEL WELL
[20060308 - 20060308]: "AMG SIGNATURE SERIES/BLACK SERIES" SPECIAL MODEL
2306190738 COVER.
Required: 001
BELOW SPARE WHEEL WELL
[20060308 - 20060308]: NOT FOR "AMG SIGNATURE SERIES/BLACK SERIES" SPECIAL MODEL
Is the SL63 an AMG signature series?
The MB dealers here can't help me at the moment as I don't have an SL63 chassis number.... sigh!
Thread Starter
Junior Member
Joined: Aug 2013
Posts: 32
Likes: 1
AMG SL55
OK made a lot of progress with this but now stuck assmebling the new bumper. Have all the reinforcers etc. with it. The main one clips on so that's no problems, but struggling with the other parts. I can see how they fit but have no idea how to secure them.
With the bumper came a bag of bits contaning the following:
4 threaded bolts with what look like rivets on the other end
6 large u clips (the ones you clip over and screw through)
2 smaller u clips (the ones you clip over and screw through)
12 tiny u clips (no bolt holes with these)
2 plastic posts that have a push through and lock expanding end
No bolts or screws though.
Any ideas on how to proceed?
With the bumper came a bag of bits contaning the following:
4 threaded bolts with what look like rivets on the other end
6 large u clips (the ones you clip over and screw through)
2 smaller u clips (the ones you clip over and screw through)
12 tiny u clips (no bolt holes with these)
2 plastic posts that have a push through and lock expanding end
No bolts or screws though.
Any ideas on how to proceed?
MBWorld Fanatic!
Joined: Aug 2008
Posts: 2,498
Likes: 222
Porsche guy who drives SL63 w/ perf pkg AND perf suspension
you should look at the old one before you take it apart, compare what you have to do to put another one back togather. Basic mechanical work. There isnt any instructions for alot of things. Now your the mechanic so you have to rely on your own ability.
Thread Starter
Junior Member
Joined: Aug 2013
Posts: 32
Likes: 1
AMG SL55
Looked at the old one and it is indeed plastic riveted so that is the way to go.
Also have two small extra brackets that I don't know where they go so may post a pic of those later and see if anyone who has done this recognises them. Everything else is obvious as to the location.... these aren't.... yet
Senior Member
Joined: Aug 2014
Posts: 283
Likes: 40
From: SoCal - OC
2004 CL55, 2003 SL55, 2017 S63 Cabrio and 2009 G55
I just did this & added the RevoZport RBS diffuser as well Sounds like you know about the carpets... although those are rather easy once you figure out the lil tricks on taking them off & I don't even go that far I just used a long extension & universal on my ratchet and only removed the two clips then just held the carpet back slightly. You really only need to buy the center inside frame because the side internal frames were a direct swap & I reused them from my original bumper. as far as the splash guards, I completely removed the one under the trunk because the diffuser came with a nice new CF plate that I installed in it's place so I can't really say if that needs to be replaced BUT you will need new back wheel well bits because your old ones will work but they aren't as wide as the new bumper so they don't completely cover it on the inside
Sounds like you know about the carpets... although those are rather easy once you figure out the lil tricks on taking them off & I don't even go that far I just used a long extension & universal on my ratchet and only removed the two clips then just held the carpet back slightly. You really only need to buy the center inside frame because the side internal frames were a direct swap & I reused them from my original bumper. as far as the splash guards, I completely removed the one under the trunk because the diffuser came with a nice new CF plate that I installed in it's place so I can't really say if that needs to be replaced BUT you will need new back wheel well bits because your old ones will work but they aren't as wide as the new bumper so they don't completely cover it on the inside to confirm parts needed and mods required:
- SL63 center bracket
- remove outer ring from parking sensors
- SL63 rear wheel well splash guards
thats it?!
thanks Mick
Senior Member
Joined: Aug 2014
Posts: 283
Likes: 40
From: SoCal - OC
2004 CL55, 2003 SL55, 2017 S63 Cabrio and 2009 G55
Yeah made some progress.... seems I need some plastic rivets as I finally found an exploded diagram for the SL63 rear bumper.
Looked at the old one and it is indeed plastic riveted so that is the way to go.
Also have two small extra brackets that I don't know where they go so may post a pic of those later and see if anyone who has done this recognises them. Everything else is obvious as to the location.... these aren't.... yet
Looked at the old one and it is indeed plastic riveted so that is the way to go.
Also have two small extra brackets that I don't know where they go so may post a pic of those later and see if anyone who has done this recognises them. Everything else is obvious as to the location.... these aren't.... yet
did you forgive out the differences and where everything went? If so do you have pictures and any other findings from doing the installation?
thanks
Mick
