Meth/Water injection nozzle location vs Sensor
Hi all
I have been playing around with water injection for a while. Went up to a DO10 nozzle pre SC with little to no IAT benfits.
I am going to be removing the SC soon to install 2 x nozzles after the IC before the IAT sensor. (one on each side)
However, I have read a couple of times that this location will damage the MAP sensor. Is this the case?
Would like to be 100% sure before I drill
Has anybody thought about re-locating the IAT sensor and running the nozzles in the surge tanks. It would be difficult to find a new location that gets an accurate reading.
I have been playing around with water injection for a while. Went up to a DO10 nozzle pre SC with little to no IAT benfits.
I am going to be removing the SC soon to install 2 x nozzles after the IC before the IAT sensor. (one on each side)
However, I have read a couple of times that this location will damage the MAP sensor. Is this the case?
Would like to be 100% sure before I drill
Has anybody thought about re-locating the IAT sensor and running the nozzles in the surge tanks. It would be difficult to find a new location that gets an accurate reading.
MBWorld Fanatic!
Joined: Jun 2014
Posts: 1,036
Likes: 169
From: Portland, Oregon
2019 Jeep Trackhawk, 2002 CLK55, 2014 911 Carrera
I am going through the same process right now too. I think I'm going to put a nozzle in the little square pad on the bottom of the intercooler, right after the core. That way it will be shooting straight up and in the middle of the airstream.
I've been trying to figure out why nobody else has done this but I haven't gotten an answer yet, so I guess I'll try it and see how it goes.
I've been trying to figure out why nobody else has done this but I haven't gotten an answer yet, so I guess I'll try it and see how it goes.
Thread Starter
Super Member
Joined: Mar 2010
Posts: 643
Likes: 72
From: London UK
2013 W204 C63 AMG, 2008 W221 S65 AMG
I am going through the same process right now too. I think I'm going to put a nozzle in the little square pad on the bottom of the intercooler, right after the core. That way it will be shooting straight up and in the middle of the airstream.
I've been trying to figure out why nobody else has done this but I haven't gotten an answer yet, so I guess I'll try it and see how it goes.
I've been trying to figure out why nobody else has done this but I haven't gotten an answer yet, so I guess I'll try it and see how it goes.
I think I am going to put 2 do5 nozzles on either side, after the map but before the iat sensor. Having the spray just before the iat sensor will not affect the temperature accuracy That much, as temperate sensors aren't affected by "wind chill".
The only issue would be if the water/meth mix is hot or cold, but it will always be cooler than the charge air temperature anyway I think.
MBWorld Fanatic!
Joined: Jun 2014
Posts: 1,036
Likes: 169
From: Portland, Oregon
2019 Jeep Trackhawk, 2002 CLK55, 2014 911 Carrera
Super Member
Joined: Dec 2012
Posts: 503
Likes: 3
From: Houston, TX
W211 E55
If I remember from when I did mine there is enough room down there but the only hold back that kept me from doing that was how hard it would be to change nozzle while tweaking the system.
Thread Starter
Super Member
Joined: Mar 2010
Posts: 643
Likes: 72
From: London UK
2013 W204 C63 AMG, 2008 W221 S65 AMG

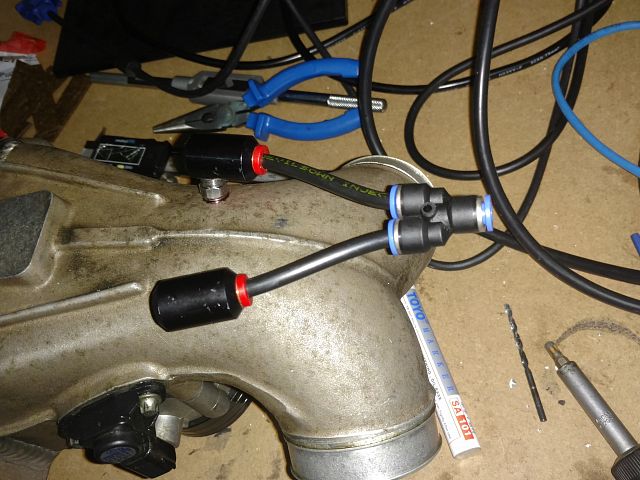

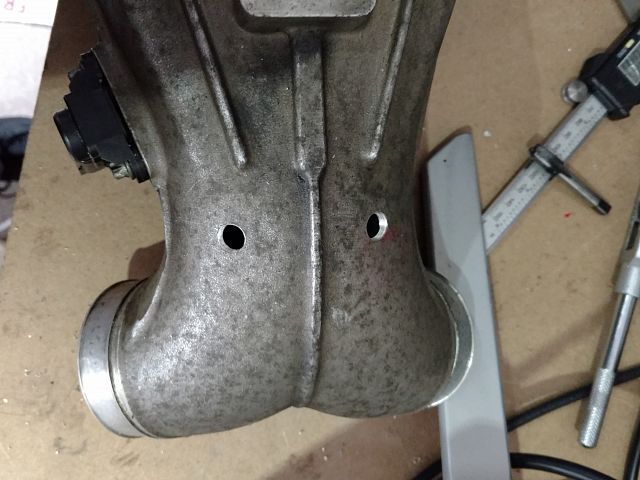

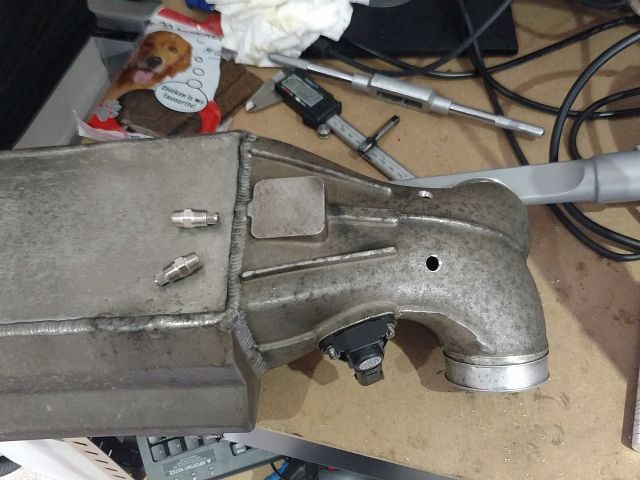

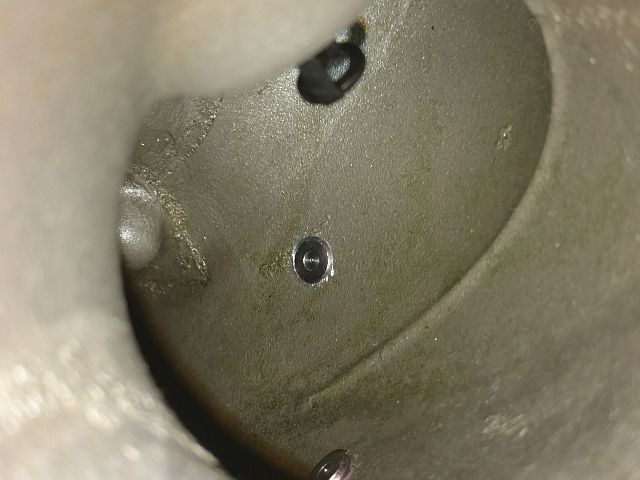

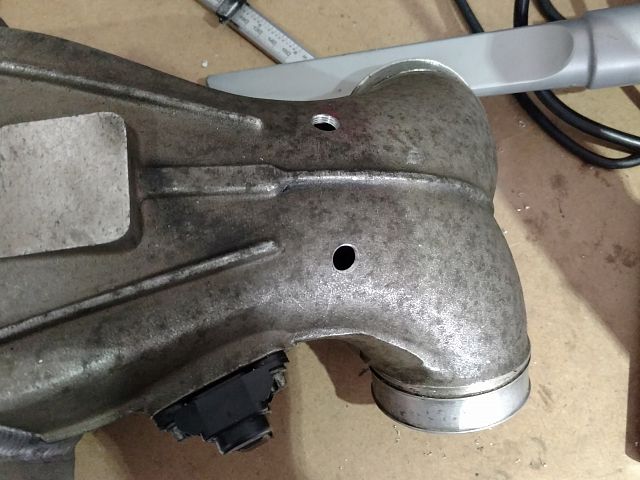

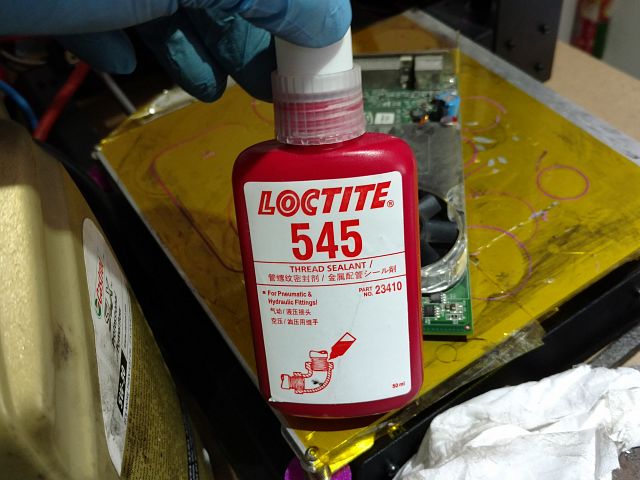

Just in case anybody else is looking for the info, I have just finished my install. I ended up putting it slightly past the small pad at the bottom, one on each side.
After the MAP sensor but before the IAT sensor. Its a bit close to the IAT sensor but I didn't want to kill MAP sensors (which I have heard can happen). Its pretty tight once the supercharger is installed, but its ok.
I have 2 DO7 nozzles used at 50% duty cycle. No bogging down etc. Really good IAT's. Will have better numbers after some drag racing at the end of the month.
After the MAP sensor but before the IAT sensor. Its a bit close to the IAT sensor but I didn't want to kill MAP sensors (which I have heard can happen). Its pretty tight once the supercharger is installed, but its ok.
I have 2 DO7 nozzles used at 50% duty cycle. No bogging down etc. Really good IAT's. Will have better numbers after some drag racing at the end of the month.
Trending Topics
MB World Stories
The Best of Mercedes & AMG
Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun
Verdad Gallardo
Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren
Verdad Gallardo
8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine
Verdad Gallardo
Flawlessly Restored Mercedes 190E Evo II Heads to Auction
Verdad Gallardo
Electric Mercedes C-Class Unveiled: 11 Things You Need to Know
Verdad Gallardo
Mercedes EQS Gets A Major Update: Everything You Need to Know
Verdad Gallardo
5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve
Verdad Gallardo
Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping
Verdad Gallardo
10 Most Reliable Mercedes-Benz Models You Can Buy Used
Verdad Gallardo
Thread Starter
Super Member
Joined: Mar 2010
Posts: 643
Likes: 72
From: London UK
2013 W204 C63 AMG, 2008 W221 S65 AMG
MBWorld Fanatic!
Joined: Jul 2012
Posts: 4,509
Likes: 1,513
From: Orbiting the planet
This place is a joke.
Beware the Devilsown braided hose. The steel inserts (inside) where the crimps are became rusted on my setup,not only clogging the nozzle screens but almost causing a near disaster as the rusted particles caused my solenoid to stick open,sucking in water and meth at idle. If their customer service wasn't so ****ty I would have contacted them, but I'm not in the mood to re-plumb my whole system.
MBWorld Fanatic!
Joined: Jun 2009
Posts: 1,693
Likes: 9
From: Houston, TX
2006 E55, 2012 Jeep SRT, 2008 G37s 6MT (The Mrs.), 2005 Explorer
Beware the Devilsown braided hose. The steel inserts (inside) where the crimps are became rusted on my setup,not only clogging the nozzle screens but almost causing a near disaster as the rusted particles caused my solenoid to stick open,sucking in water and meth at idle. If their customer service wasn't so ****ty I would have contacted them, but I'm not in the mood to re-plumb my whole system.
Last edited by SterlingE55; Apr 25, 2016 at 10:49 PM.
Super Member
Joined: Mar 2009
Posts: 937
Likes: 15
From: Alpharetta Georgia
2006 E55, 2006 saab 93 aero, 2010 glk 4m
Nicely done.
What kind of temp drop have you seen so far and what level boost are you at?
Just in case anybody else is looking for the info, I have just finished my install. I ended up putting it slightly past the small pad at the bottom, one on each side.
After the MAP sensor but before the IAT sensor. Its a bit close to the IAT sensor but I didn't want to kill MAP sensors (which I have heard can happen). Its pretty tight once the supercharger is installed, but its ok.
I have 2 DO7 nozzles used at 50% duty cycle. No bogging down etc. Really good IAT's. Will have better numbers after some drag racing at the end of the month.
After the MAP sensor but before the IAT sensor. Its a bit close to the IAT sensor but I didn't want to kill MAP sensors (which I have heard can happen). Its pretty tight once the supercharger is installed, but its ok.
I have 2 DO7 nozzles used at 50% duty cycle. No bogging down etc. Really good IAT's. Will have better numbers after some drag racing at the end of the month.
Thread Starter
Super Member
Joined: Mar 2010
Posts: 643
Likes: 72
From: London UK
2013 W204 C63 AMG, 2008 W221 S65 AMG
Beware the Devilsown braided hose. The steel inserts (inside) where the crimps are became rusted on my setup,not only clogging the nozzle screens but almost causing a near disaster as the rusted particles caused my solenoid to stick open,sucking in water and meth at idle. If their customer service wasn't so ****ty I would have contacted them, but I'm not in the mood to re-plumb my whole system.
Thread Starter
Super Member
Joined: Mar 2010
Posts: 643
Likes: 72
From: London UK
2013 W204 C63 AMG, 2008 W221 S65 AMG
I will get some more info once I can do some proper runs, as it was late and I did'nt want to drive far.
AT 15psi ish, with 180/stock upper.
Last edited by alexanderfoti; Apr 26, 2016 at 03:54 AM.
MBWorld Fanatic!
Joined: Nov 2007
Posts: 3,681
Likes: 39
From: San Diego
E55
Hi all
I have been playing around with water injection for a while. Went up to a DO10 nozzle pre SC with little to no IAT benfits.
I am going to be removing the SC soon to install 2 x nozzles after the IC before the IAT sensor. (one on each side)
However, I have read a couple of times that this location will damage the MAP sensor. Is this the case?
Would like to be 100% sure before I drill
Has anybody thought about re-locating the IAT sensor and running the nozzles in the surge tanks. It would be difficult to find a new location that gets an accurate reading.
I have been playing around with water injection for a while. Went up to a DO10 nozzle pre SC with little to no IAT benfits.
I am going to be removing the SC soon to install 2 x nozzles after the IC before the IAT sensor. (one on each side)
However, I have read a couple of times that this location will damage the MAP sensor. Is this the case?
Would like to be 100% sure before I drill
Has anybody thought about re-locating the IAT sensor and running the nozzles in the surge tanks. It would be difficult to find a new location that gets an accurate reading.
Why would it be difficult? Just unplug the original sensor and buy a new one extend 2 wires and put the IAT sensor on the surge tanks like EREBUS.
Thread Starter
Super Member
Joined: Mar 2010
Posts: 643
Likes: 72
From: London UK
2013 W204 C63 AMG, 2008 W221 S65 AMG
This looks like a ball ache to retain into one surge tank, is there a threaded sensor with the same specs.
MBWorld Fanatic!
Joined: Nov 2007
Posts: 3,681
Likes: 39
From: San Diego
E55
Not sure of the specs. If you find the right drill bit size for that plug it should work. If not, someone on here will know if the IAT sensor can be interchanged with another type that threads in.
Thread Starter
Super Member
Joined: Mar 2010
Posts: 643
Likes: 72
From: London UK
2013 W204 C63 AMG, 2008 W221 S65 AMG
Drilling the hole is the easy bit, finding the boss or an electrically compatible threaded sensor is harder.
EdIT: Found this from greasemonkey if others are searching https://mbworld.org/forums/w211-amg/...ml#post6071469
Last edited by alexanderfoti; May 3, 2016 at 03:24 AM.
MBWorld Fanatic!
Joined: Jan 2011
Posts: 1,239
Likes: 17
From: West
E55 AMG
Could use some nomex hose sleeving as well. Good for like 600F+. I noticed a single .7mm nozzle drops my IAT's sub ambient and I've had to dial back the IDC ratio to roughly -15% for optimal gains... Good luck mate and have fun!
Thread Starter
Super Member
Joined: Mar 2010
Posts: 643
Likes: 72
From: London UK
2013 W204 C63 AMG, 2008 W221 S65 AMG
Managed to get access all the hosing up to the nozzles with the SC in place, and covered it in Aluminium & Silicone Coated Glass Braided Sleeving up until the pump
Super Member
Joined: Jan 2007
Posts: 979
Likes: 38
From: South Africa
2018 E63s AMG (Current) 2011 CL63 AMG (Sold) 2005 CLS55 AMG (Sold) 2004 C32 AMG (Sold)
Hi Alex, ok so found your thread finally regarding the location of your nozzles. I guess you are still running it the way you have shown in your pics above. I have a few questions for you if you don't mind, as I will be moving my nozzle to your location as well adding a second nozzle, as I only have 1 currently pre - TB as you have read.
In your pics above is the sensor to the left of your nozzles the MAP I take it? If so then where is the IAT sensor? Or did you already remove it from this pic, trying to see if I need to relocate the sensor or not.
Also have you got anymore info regarding how your system is functioning and your results that you getting? Have you had the system on and off for dyno results etc? Thanks mate. I'm sure I will have a few more questions, as we tackling this job on Monday. Oh yes when you refitted the intercooler to the SC, I believe there is no gasket therethere, did you use silicone or some kind of gasket maker there?
In your pics above is the sensor to the left of your nozzles the MAP I take it? If so then where is the IAT sensor? Or did you already remove it from this pic, trying to see if I need to relocate the sensor or not.
Also have you got anymore info regarding how your system is functioning and your results that you getting? Have you had the system on and off for dyno results etc? Thanks mate. I'm sure I will have a few more questions, as we tackling this job on Monday. Oh yes when you refitted the intercooler to the SC, I believe there is no gasket therethere, did you use silicone or some kind of gasket maker there?
Thread Starter
Super Member
Joined: Mar 2010
Posts: 643
Likes: 72
From: London UK
2013 W204 C63 AMG, 2008 W221 S65 AMG
Hi Alex, ok so found your thread finally regarding the location of your nozzles. I guess you are still running it the way you have shown in your pics above. I have a few questions for you if you don't mind, as I will be moving my nozzle to your location as well adding a second nozzle, as I only have 1 currently pre - TB as you have read.
In your pics above is the sensor to the left of your nozzles the MAP I take it? If so then where is the IAT sensor? Or did you already remove it from this pic, trying to see if I need to relocate the sensor or not.
Also have you got anymore info regarding how your system is functioning and your results that you getting? Have you had the system on and off for dyno results etc? Thanks mate. I'm sure I will have a few more questions, as we tackling this job on Monday. Oh yes when you refitted the intercooler to the SC, I believe there is no gasket therethere, did you use silicone or some kind of gasket maker there?
In your pics above is the sensor to the left of your nozzles the MAP I take it? If so then where is the IAT sensor? Or did you already remove it from this pic, trying to see if I need to relocate the sensor or not.
Also have you got anymore info regarding how your system is functioning and your results that you getting? Have you had the system on and off for dyno results etc? Thanks mate. I'm sure I will have a few more questions, as we tackling this job on Monday. Oh yes when you refitted the intercooler to the SC, I believe there is no gasket therethere, did you use silicone or some kind of gasket maker there?
Yes that sensor to the left of the nozzles is the MAP. I relocated the IAT to the center of the bend before it goes up (the right in the picture). I used a NPT boss and drilled it out to the diameter of the IAT sensor and used a cir-clip for the plastic.tabs to latch onto.
No before and after dyno results, was primarily looking to keep IAT's low and it did that, I monitored them all the time.
The engine died with broken ring lands about 10,000 miles after this, but was unrelated to the meth injection.
There is no need to remove the Intercooler from the SC when doing this.
MBWorld Fanatic!
Joined: Jun 2014
Posts: 1,036
Likes: 169
From: Portland, Oregon
2019 Jeep Trackhawk, 2002 CLK55, 2014 911 Carrera
Thread Starter
Super Member
Joined: Mar 2010
Posts: 643
Likes: 72
From: London UK
2013 W204 C63 AMG, 2008 W221 S65 AMG
Stock ring gaps are very tight. Pretty sure damaged occurred before I bought the car, as it always burned more oil than I would have liked.
Was running a 200mm(or was it 180?) pulley, so 14.5 psi ish, not over boosted either really. Just bad luck.
Possibly detonation that was not picked up by knock sensors.
Last edited by alexanderfoti; Sep 21, 2017 at 12:58 PM.
Super Member
Joined: Jun 2017
Posts: 899
Likes: 140
2005 E55
You cant really overspray, car will bog down and quench the spark before cylinder damage occurs.
Stock ring gaps are very tight. Pretty sure damaged occurred before I bought the car, as it always burned more oil than I would have liked.
Was running a 200mm(or was it 180?) pulley, so 14.5 psi ish, not over boosted either really. Just bad luck.
Possibly detonation that was not picked up by knock sensors.
Stock ring gaps are very tight. Pretty sure damaged occurred before I bought the car, as it always burned more oil than I would have liked.
Was running a 200mm(or was it 180?) pulley, so 14.5 psi ish, not over boosted either really. Just bad luck.
Possibly detonation that was not picked up by knock sensors.
