Fuel Pressure Damper DIY - W211 E55 AMG

Hey all,

Figured I'd share and post this quick DIY for anyone who may have to replace this little sucker on their 03-06 E55. I started smelling fuel under the hood, it was faint but it was definitely there. Usually went away after few minutes of driving but any fuel smell = no good in book. Upon further inspection, all the injectors were clean and dry which led me to smelling around the rest of the fuel rail. The smell was coming from the throttle body area. Finally, i felt dampness on the bottom of the fuel pressure damper and decided to replace it as the o-ring was probably dry and letting fuel seep by.

I purchased the new FPD (P/N 1120780092) from the local dealer, along with a new retention clip for about $70. I would recommend a new clip as the original was noticeably more spread open due to its age.

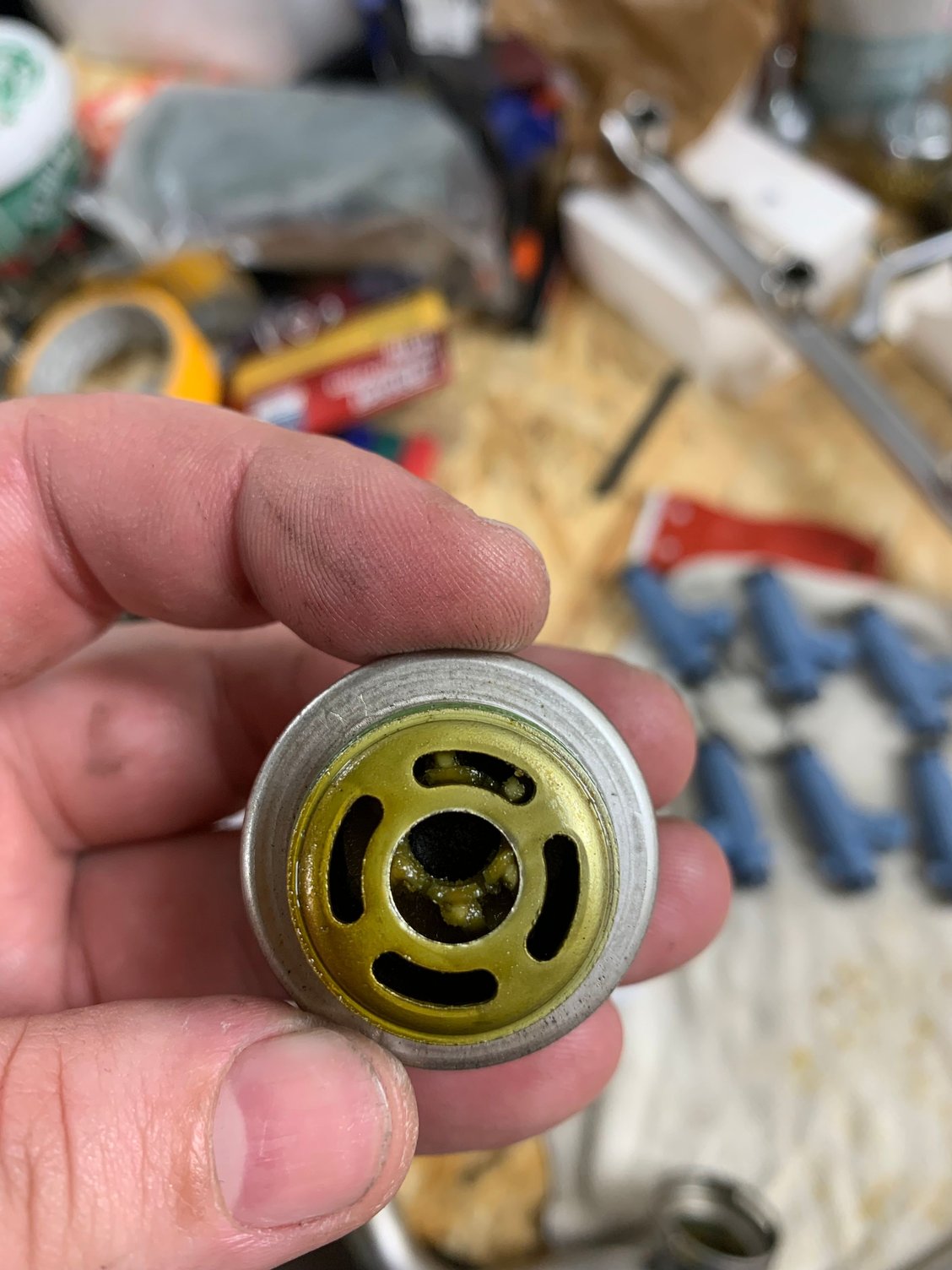

Here is the install (few pics attached below):

1. Lift the hood to service position (full 90* angle)

2. Remove airboxes and the Y intake

3. Remove 4 torx bits holding the throttle body in place. T30 if my memory serves me correctly.

4. Remove the lower PCV hose bracket from the TB and set it aside (dont drop it like I did) and pull the PCV hose out of the TB.

5. Set the TB aside. *This is a good time to clean your TB by the way!

6. Set a few rags under the TB and under the FPD as you will have some fuel spilling. I did mine after the car sat overnight so it was a bit less fuel. If you are starting with a hot car, make sure to de-pressurize the rail by relieving pressure at the fuel rail schrader valve on the front of the passenger side valve cover.

7. Finally ready to attack the FPD. Using a large flat-head screw driver, pull the clip out (towards the firewall). It should come out fairly easily.

8. With pliers, slowly remove the FPD out of the rail. Wiggle left to right ever so slightly, you dont want to damage the rail. Mine came out with very little effort.

9. Have the new FPD near. Put a dab of oil on the o-ring, and slip the new FPD in. Using a lever, ensure the new FPD goes all the way into the fuel rail. I used a large flat-head and leveraged against the blower.

10. Install the new clip.

Then reinstall all items in reverse order. Remove rags. Once all done, i ran some water around that area to make sure all the fuel is washed away.

I hope this will help someone! Cheers.
