Alignment Specs
I was doing a little bit of digging around and could not find a thread where people were comparing Alignment Specs. I am going in for an alignment next week and I was wondering if any one could share their specs?
I am used to fully adjustable suspension so I am unsure of what I can squeeze out of the car. I do track this beast from time to time so I would like to get more camber out of it and just a touch of toe in, in the front.
I am used to fully adjustable suspension so I am unsure of what I can squeeze out of the car. I do track this beast from time to time so I would like to get more camber out of it and just a touch of toe in, in the front.
Last edited by AutobahnE63; Jul 21, 2016 at 09:26 AM.
MBWorld Fanatic!
Joined: Jan 2014
Posts: 3,969
Likes: 1,317
From: Republic of Texas
'99 and '05 E55 AMG
Stock (2003-2009 W211, code 489)
Front:
Camber: -1.4 +/-0.3 degrees
Caster: Not specified but usually is 10 to 11 degrees
Toe: 0.03 to 0.13 degrees (FWIW, I run 1/2 to 3/4 mm toe in on mine w/ 18" wheels)
Rear:
Camber: -1.7 degrees +/-0.5 degrees
Toe: 0.05 to 0.29 degrees (FWIW, I run 1 to 1.5 mm toe in w/ 18" wheels)
Now for the caveats:
-front camber is only adjustable by "eccentric bolts" that will give you +/- 0.3 degrees of camber change (and it also changes your caster if you only install one of the bolts on a side). Edit: front camber is adjustable if you install KMac adjustable bushings.
-rear camber is not adjustable; you can raise/lower your car using DAS Xentry, install KMac bushings, or UPD camber arms.
-front toe is easy to adjust; be sure to tie the steering wheel to the door handle and the gear shift leaver so it does not rotate while adjusting the end links.
-rear toe is a b***ch with the stock adjusters; I used to spend an hour crawling under and back out just trying to get the toe where I wanted it. I then installed a set of the UPD toe arms sold by Shardul. Using these, I can set the rear toe on both rear wheels of my car faster than I can set up and tear down the strings I use to set measurements. And I only had to go under the car to loosen and then tighten the lock nuts. Worth. Every. Penny.
All above refers to stock. And I discovered when my car started chewing through tires that my suspension was shot; new thrust and control arms with ball joints up front, new control arms and bushings in the rear.
Best of luck to you.
Front:
Camber: -1.4 +/-0.3 degrees
Caster: Not specified but usually is 10 to 11 degrees
Toe: 0.03 to 0.13 degrees (FWIW, I run 1/2 to 3/4 mm toe in on mine w/ 18" wheels)
Rear:
Camber: -1.7 degrees +/-0.5 degrees
Toe: 0.05 to 0.29 degrees (FWIW, I run 1 to 1.5 mm toe in w/ 18" wheels)
Now for the caveats:
-front camber is only adjustable by "eccentric bolts" that will give you +/- 0.3 degrees of camber change (and it also changes your caster if you only install one of the bolts on a side). Edit: front camber is adjustable if you install KMac adjustable bushings.
-rear camber is not adjustable; you can raise/lower your car using DAS Xentry, install KMac bushings, or UPD camber arms.
-front toe is easy to adjust; be sure to tie the steering wheel to the door handle and the gear shift leaver so it does not rotate while adjusting the end links.
-rear toe is a b***ch with the stock adjusters; I used to spend an hour crawling under and back out just trying to get the toe where I wanted it. I then installed a set of the UPD toe arms sold by Shardul. Using these, I can set the rear toe on both rear wheels of my car faster than I can set up and tear down the strings I use to set measurements. And I only had to go under the car to loosen and then tighten the lock nuts. Worth. Every. Penny.
All above refers to stock. And I discovered when my car started chewing through tires that my suspension was shot; new thrust and control arms with ball joints up front, new control arms and bushings in the rear.
Best of luck to you.
Last edited by bbirdwell; Jul 21, 2016 at 03:30 PM.
MBWorld Fanatic!
Joined: Jun 2013
Posts: 1,517
Likes: 95
From: NZ
2004 E55 AMG, 2006 CLS63, 2004 ML55, 2014 E350 sport
If you search you will find a thread titled something like Handeling (its miss spelt).
There some really good info in there. More so mods you can do like the upper ball joint and crash bolts to pull these things closer to where they should be.
IMO mercedes was on drugs when they engineered the geometry in this car. Im yet to see one that has camber anywhere near where it should be (nearly always to much) and castor is always far to much at 10 to 11+ degrees.
There some really good info in there. More so mods you can do like the upper ball joint and crash bolts to pull these things closer to where they should be.
IMO mercedes was on drugs when they engineered the geometry in this car. Im yet to see one that has camber anywhere near where it should be (nearly always to much) and castor is always far to much at 10 to 11+ degrees.
Member
Joined: Jun 2011
Posts: 144
Likes: 2
From: Orange County, Ca
2007 E350 RWD SP1 (M211.056/E272.964)
Can some tell me what is the wheel alignment spec for my car please.
Here's my VIN WDBUF56X27B066886
Stock (2003-2009 W211, code 954 and 486)
Thanks,
Here's my VIN WDBUF56X27B066886
Stock (2003-2009 W211, code 954 and 486)
Thanks,
MBWorld Fanatic!
Joined: Sep 2007
Posts: 4,566
Likes: 421
05 c55 silver, 98 Imperial Red C43
Member
Joined: Jun 2011
Posts: 144
Likes: 2
From: Orange County, Ca
2007 E350 RWD SP1 (M211.056/E272.964)
Thinking about taking car for the alignment and would like to know the spec.
Trending Topics
MB World Stories
The Best of Mercedes & AMG
6 Mercedes Models That Did NOT Age Well (But Are Somehow Still Cool)
Verdad Gallardo
Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun
Verdad Gallardo
Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren
Verdad Gallardo
8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine
Verdad Gallardo
Flawlessly Restored Mercedes 190E Evo II Heads to Auction
Verdad Gallardo
Electric Mercedes C-Class Unveiled: 11 Things You Need to Know
Verdad Gallardo
Mercedes EQS Gets A Major Update: Everything You Need to Know
Verdad Gallardo
5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve
Verdad Gallardo
Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping
Verdad Gallardo
Member
Joined: Jun 2011
Posts: 144
Likes: 2
From: Orange County, Ca
2007 E350 RWD SP1 (M211.056/E272.964)
Member
Joined: Jun 2011
Posts: 144
Likes: 2
From: Orange County, Ca
2007 E350 RWD SP1 (M211.056/E272.964)
As i mentioned before my Michelin AS/3 + was feathered and extreme noisy even though they are a lot left on the thread.
Is there something on the alignment read out should i be concerned?
Any suggestion and explanation will greatly appreciated. Thanks
Member
Joined: Jun 2011
Posts: 144
Likes: 2
From: Orange County, Ca
2007 E350 RWD SP1 (M211.056/E272.964)
Sorry upload wrong picture.
Picture on Jan 21 was alignment with OE shock and michelin AS/3 + tire.
This is the one with Bilstein HD shocks and Continental tire.
MBWorld Fanatic!
Joined: Jan 2014
Posts: 3,969
Likes: 1,317
From: Republic of Texas
'99 and '05 E55 AMG
Good catch by HeissRod on the model difference!
Your "before" toe measurements show the driver side tire close to the maximum toe in so I would expect it to be feathered by the outside of the tire rolling under as you drive. The passenger-side toe was beyond the maximum toe in and that one should also have the outside edge feathered due to the outer edge rolling under as you drive.
How many miles do you have on your car? It's amazing how many E-class owners need to rebuild the front suspension around 100,000 miles...ball joints are the weakest (but the car is quite heavy) and bushings are right behind.
Your "before" toe measurements show the driver side tire close to the maximum toe in so I would expect it to be feathered by the outside of the tire rolling under as you drive. The passenger-side toe was beyond the maximum toe in and that one should also have the outside edge feathered due to the outer edge rolling under as you drive.
How many miles do you have on your car? It's amazing how many E-class owners need to rebuild the front suspension around 100,000 miles...ball joints are the weakest (but the car is quite heavy) and bushings are right behind.
Member
Joined: Jun 2011
Posts: 144
Likes: 2
From: Orange County, Ca
2007 E350 RWD SP1 (M211.056/E272.964)
Good catch by HeissRod on the model difference!
Your "before" toe measurements show the driver side tire close to the maximum toe in so I would expect it to be feathered by the outside of the tire rolling under as you drive. The passenger-side toe was beyond the maximum toe in and that one should also have the outside edge feathered due to the outer edge rolling under as you drive.
How many miles do you have on your car? It's amazing how many E-class owners need to rebuild the front suspension around 100,000 miles...ball joints are the weakest (but the car is quite heavy) and bushings are right behind.
Your "before" toe measurements show the driver side tire close to the maximum toe in so I would expect it to be feathered by the outside of the tire rolling under as you drive. The passenger-side toe was beyond the maximum toe in and that one should also have the outside edge feathered due to the outer edge rolling under as you drive.
How many miles do you have on your car? It's amazing how many E-class owners need to rebuild the front suspension around 100,000 miles...ball joints are the weakest (but the car is quite heavy) and bushings are right behind.
So if you only mentioned about the toe setting that cause the tire feathered. I think that new alignment looks good correct?
I'm thinking about changing ball joints when i replaced new shocks at 91k miles, but my indy tech inspected ball joints and said it's still good.
What parts should i change to help/prevent this from happening again.
Low ball joints (2113300435) and control arm (2113304311/4411)? anything else?
Member
Joined: Jan 2017
Posts: 96
Likes: 30
2006 E55 AMG
Also, the alignment specs posted earlier appear to be from a non-AMG. Here's the specs for the w211 AMG:
MBWorld Fanatic!
Joined: Jun 2009
Posts: 4,429
Likes: 61
From: Cypress, TX
'06 E55, '15 Jeep SRT8, '94 Mustang GT
Junior Member
Joined: Nov 2013
Posts: 34
Likes: 1
08 E63 AMG
Newbie
Joined: Nov 2023
Posts: 1
Likes: 0
2003 Mercedes E320
Code location
Can some tell me what is the wheel alignment spec for my car please.
Here's my VIN WDBUF56X27B066886
Stock (2003-2009 W211, code 954 and 486)
Thanks,
Here's my VIN WDBUF56X27B066886
Stock (2003-2009 W211, code 954 and 486)
Thanks,
Where do I find the vehicle code at?
Newbie
Joined: Dec 2023
Posts: 11
Likes: 9
From: Montana
07 CLS 63 AMG
2007 CLS 63 AMG W219. Before and After
I was doing a little bit of digging around and could not find a thread where people were comparing Alignment Specs. I am going in for an alignment next week and I was wondering if any one could share their specs?
I am used to fully adjustable suspension so I am unsure of what I can squeeze out of the car. I do track this beast from time to time so I would like to get more camber out of it and just a touch of toe in, in the front.
I am used to fully adjustable suspension so I am unsure of what I can squeeze out of the car. I do track this beast from time to time so I would like to get more camber out of it and just a touch of toe in, in the front.

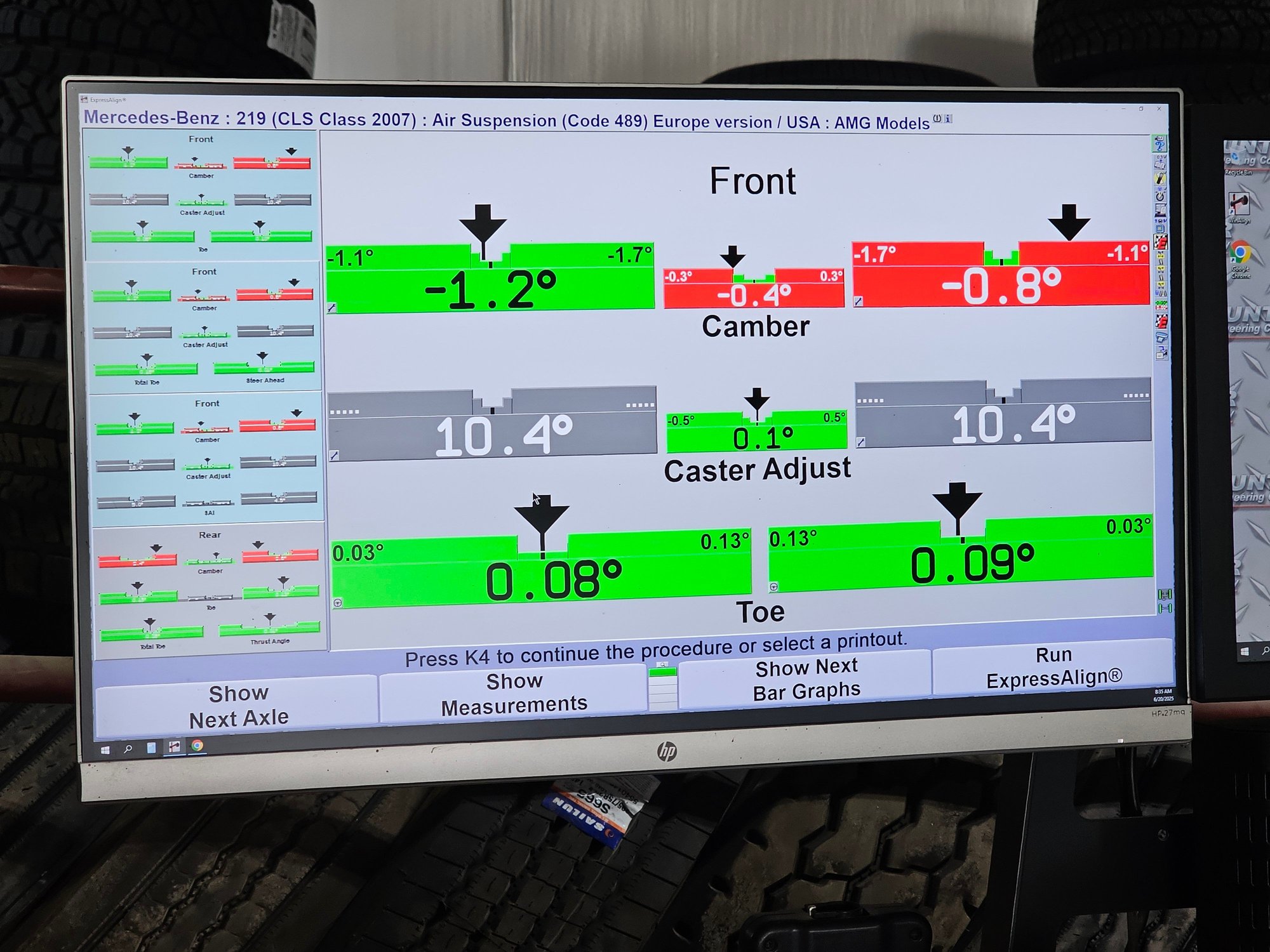

Before

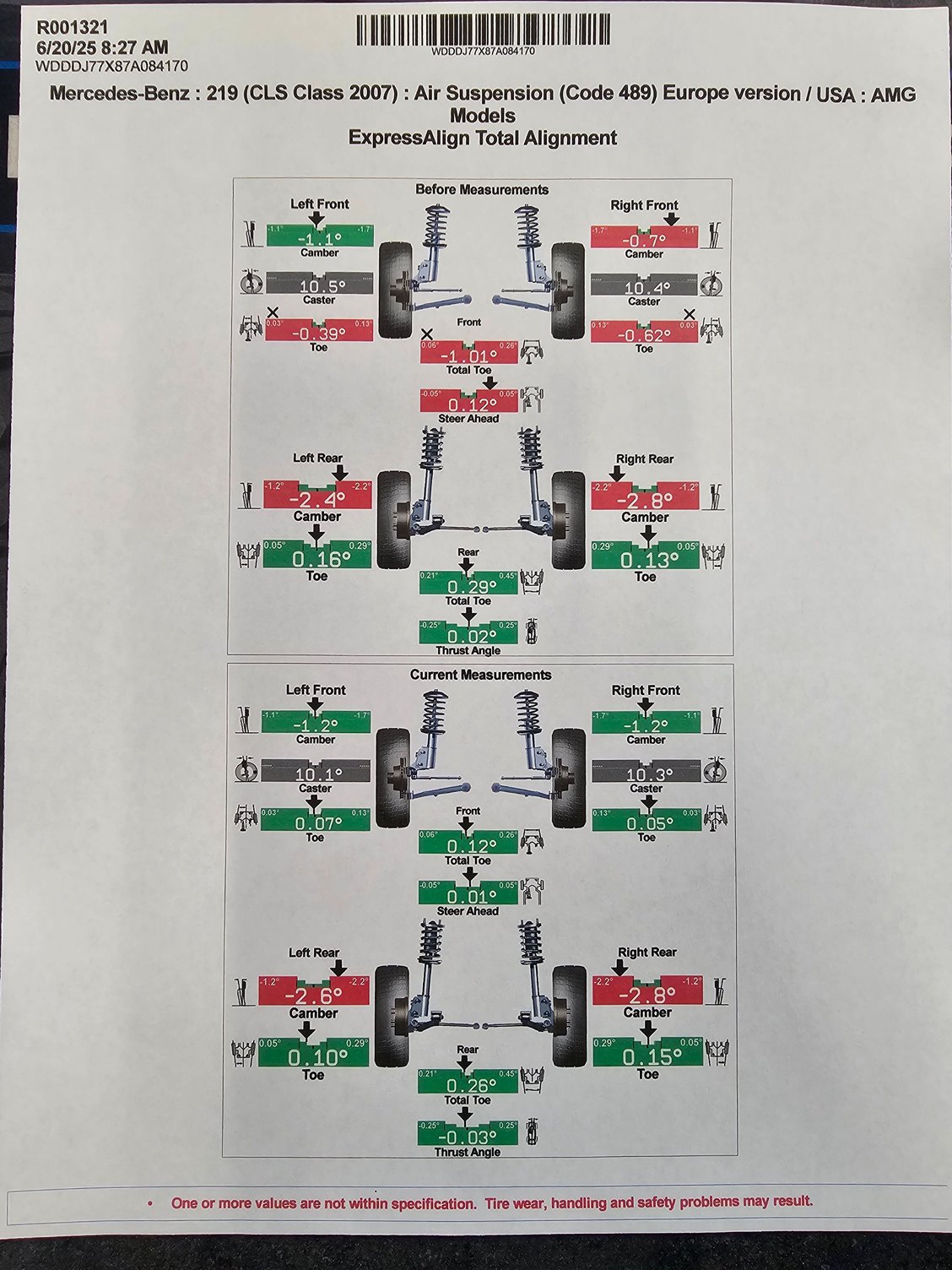

Before and After

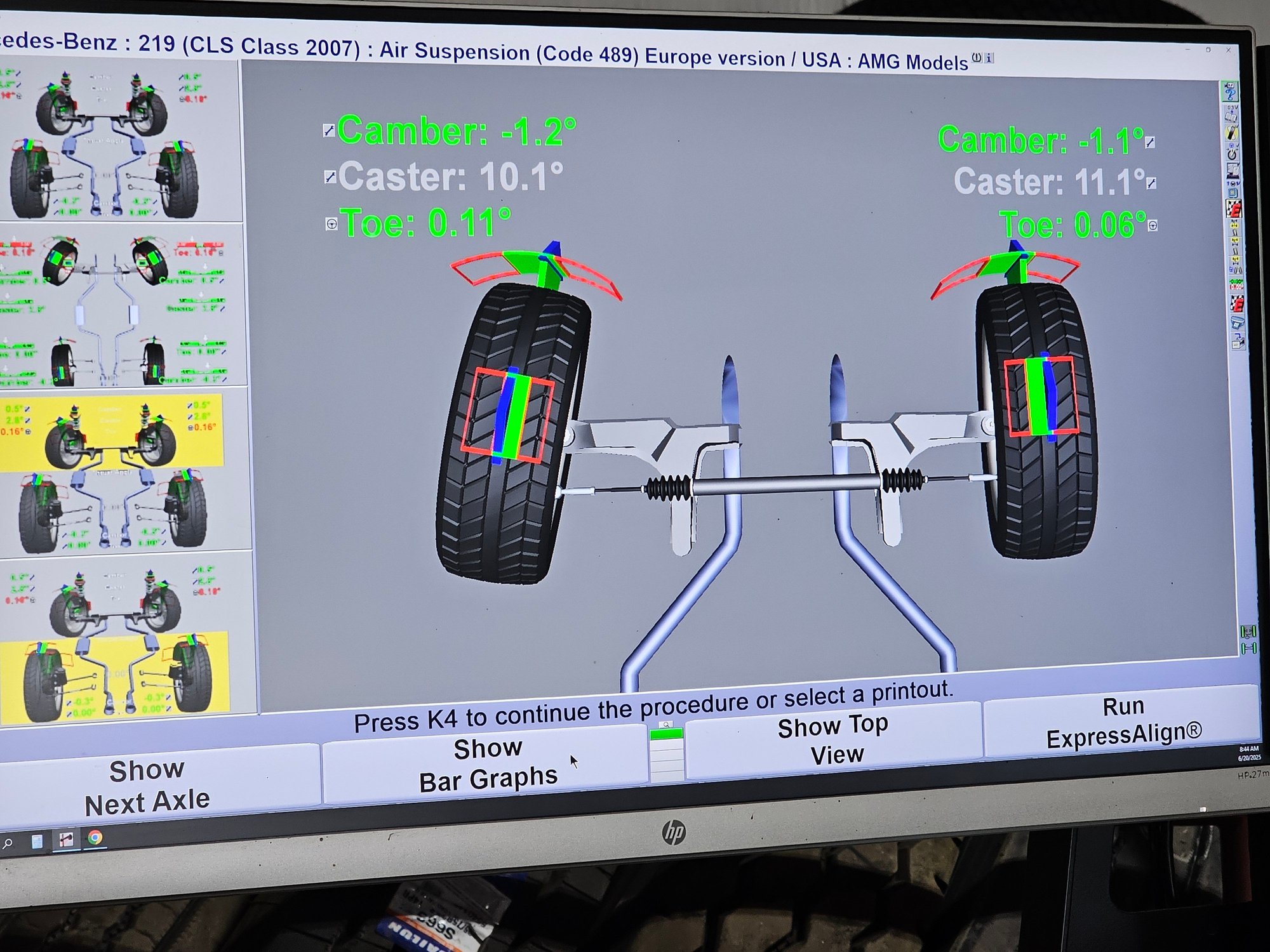

After
