M157 owners beware! Spark Plug Indexing
I did the spark plug change today. Special thanks to @kenneyd for his amazing video
Mercedes really dropped the ball this time on spark plug manufacturing. My spark plug was never been changed before. Out of 8 OEM spark plugs, only 2 are barely at the edge of 45 degree, 4/8 are 90 degree, the rest of 2 are ridiculously 180 degree. Da*n it
( According to Mercedes, the spark plug needs to stay in a 90 degree range, 45 left and 45 right. Outside of that you're risking damaging the piston )
When I put in the new spark plugs, I also marked the position. All 8 are point to left 90 degree at 23nm. This means non of them will be correctly indexed if you play by the book.

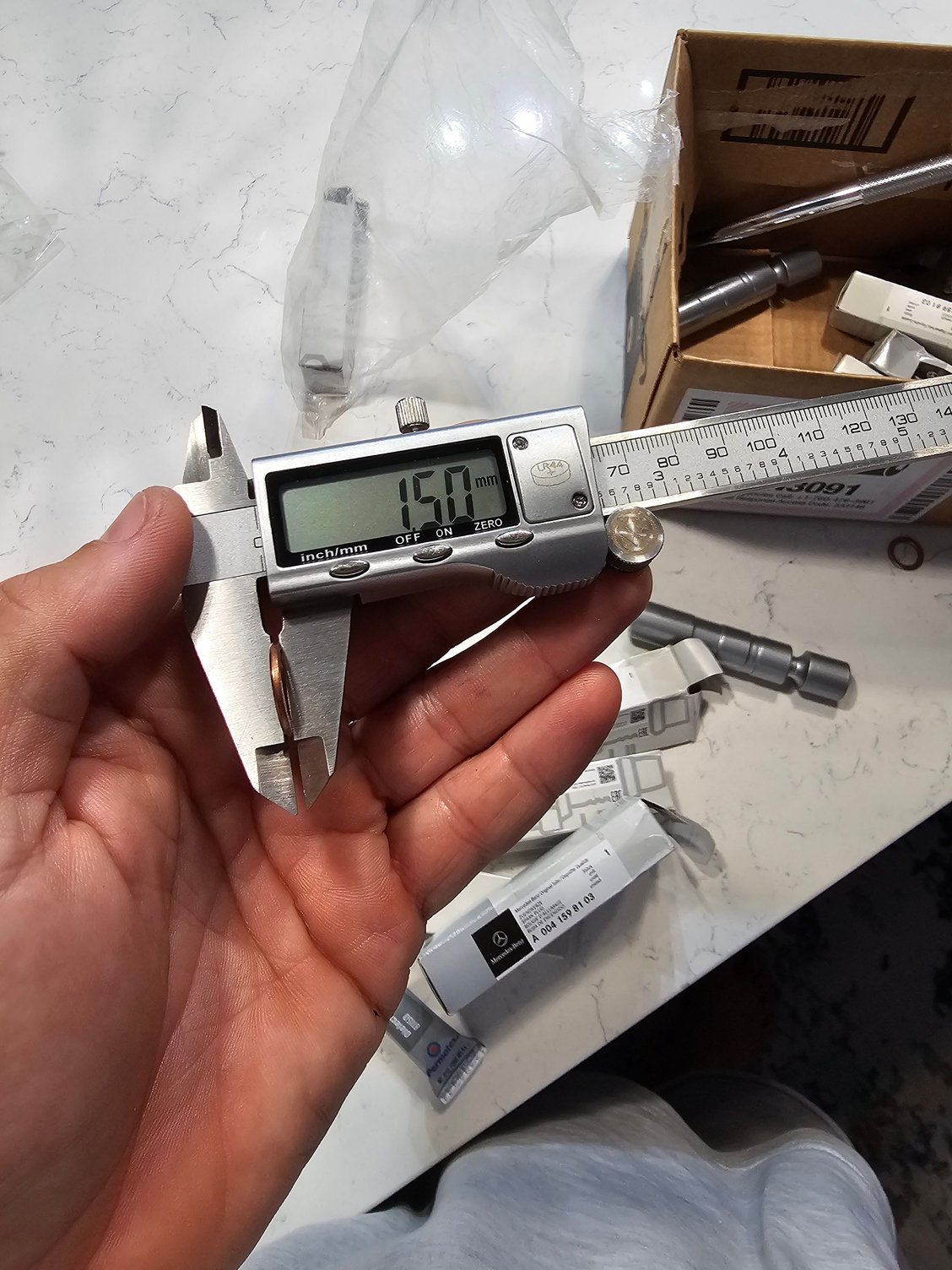

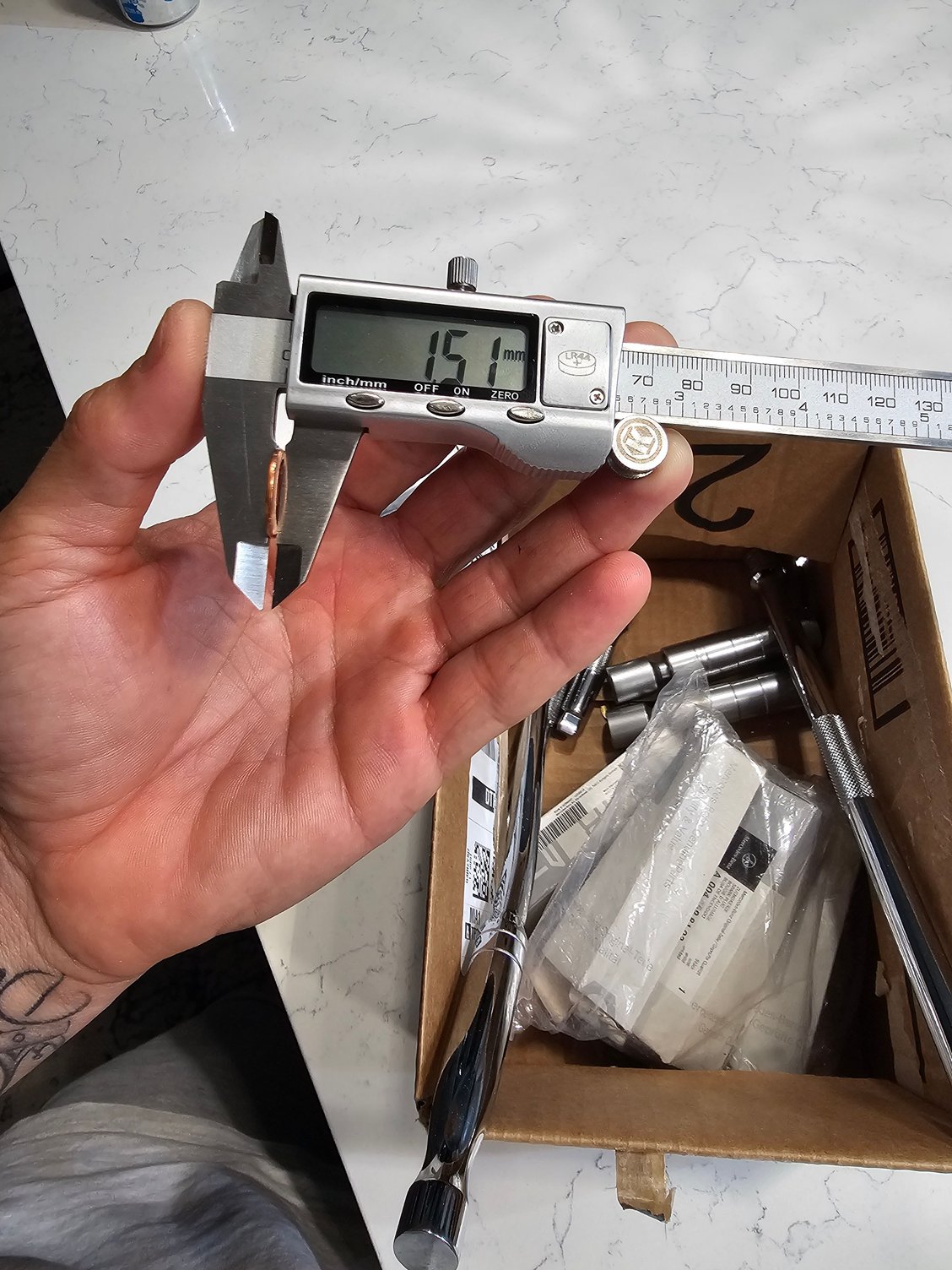

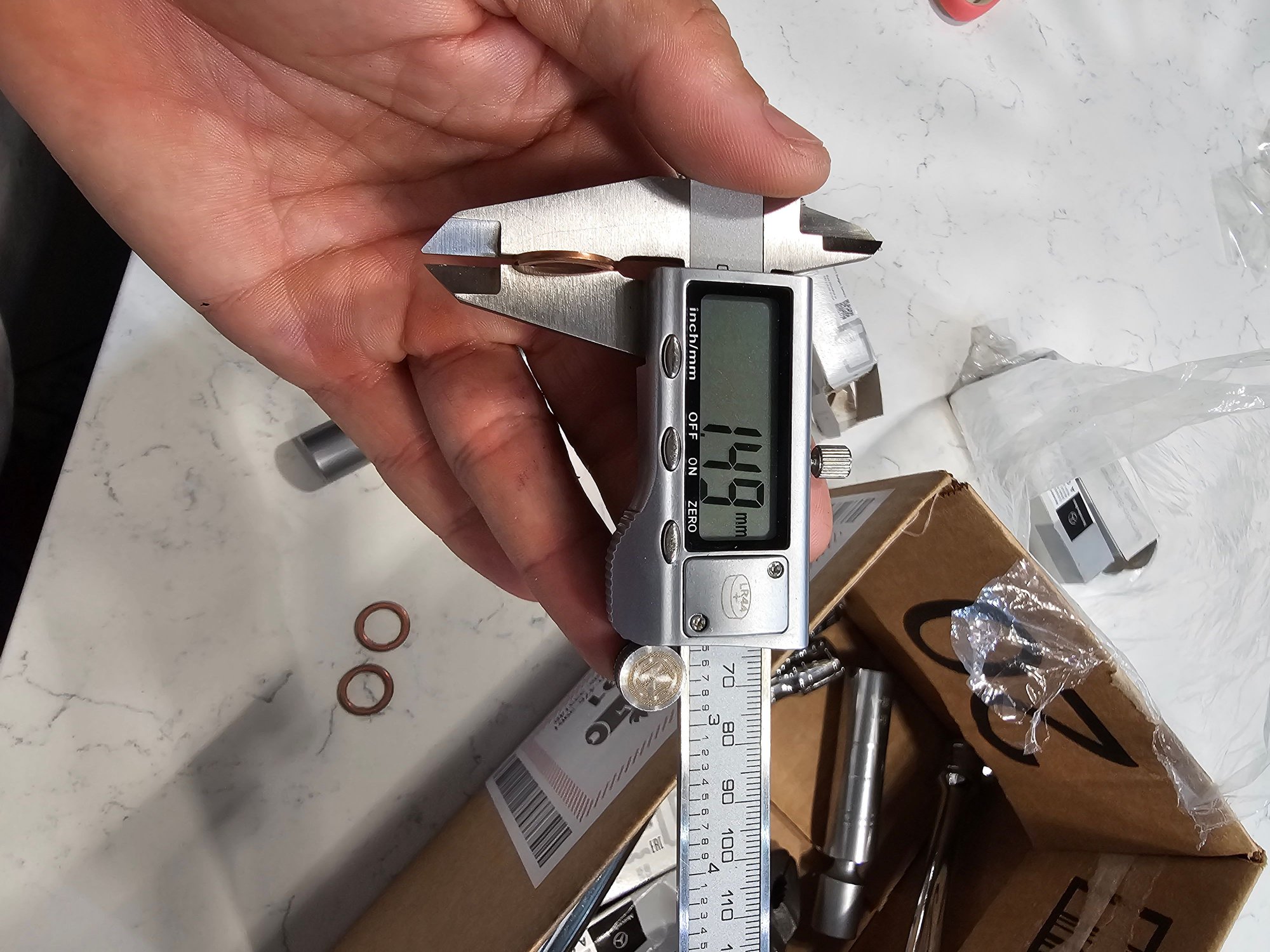

My washers are all 1.5mm thick, I polished them to 1.1~1.2mm and finished the job.
I don't believe the dealer or any other indy will do the polish for you if you don't ask. Highly likely they will just play by the book, throw in the spark plug, torque to 23nm and call it a day.
I don't understand how could Mercedes blow this up. If you state in WIS for 23nm, and warn the users about indexing, then you should manufacture the right washer out of the box. Sanding them down is not the end of the world but I hate doing this kind of snake oil stuff on a 185k msrp car.
Guess I'm really pissed because my car has been driven for 46k with the risk of burning the pistons. And this mistake happened on a hand-built engine in the Affalterbach factory on day 1!
Take away: Do the spark plug yourself and properly index them. If you can't, pay special attention to the dealer or shop, ask them to do the indexing for you by sanding down the washer accordingly.
Mercedes really dropped the ball this time on spark plug manufacturing. My spark plug was never been changed before. Out of 8 OEM spark plugs, only 2 are barely at the edge of 45 degree, 4/8 are 90 degree, the rest of 2 are ridiculously 180 degree. Da*n it
( According to Mercedes, the spark plug needs to stay in a 90 degree range, 45 left and 45 right. Outside of that you're risking damaging the piston )
When I put in the new spark plugs, I also marked the position. All 8 are point to left 90 degree at 23nm. This means non of them will be correctly indexed if you play by the book.
My washers are all 1.5mm thick, I polished them to 1.1~1.2mm and finished the job.
I don't believe the dealer or any other indy will do the polish for you if you don't ask. Highly likely they will just play by the book, throw in the spark plug, torque to 23nm and call it a day.
I don't understand how could Mercedes blow this up. If you state in WIS for 23nm, and warn the users about indexing, then you should manufacture the right washer out of the box. Sanding them down is not the end of the world but I hate doing this kind of snake oil stuff on a 185k msrp car.
Guess I'm really pissed because my car has been driven for 46k with the risk of burning the pistons. And this mistake happened on a hand-built engine in the Affalterbach factory on day 1!
Take away: Do the spark plug yourself and properly index them. If you can't, pay special attention to the dealer or shop, ask them to do the indexing for you by sanding down the washer accordingly.
