Viscous fan clutch?
Hey Guys,
The summer has been hitting hard here in VA lately, the car is sitting around 101-102 in traffic and then cools when the aux fans kick on. I sold my 500e yesterday, and have some extra change to throw at this car. I had the water pump changed 12-15k miles ago, it just dawned on me recently that the viscous clutch is most likely the culprit and I never hear it running. I'm not a believer in the whole theory that these cars should be hitting 100+ like this, i get it that MBs of this era run hot, but this to me is a little too hot. The car seems quite a bit bogged down when it hits these temps, if anything I want to replace it as preventive maintenance. I witnessed my 500 hit a 100c once, that was after sitting in traffic for one hour when the temps were 90+ and it cooled much quicker when I started driving!
This brings me to my question which is whether or not this is a pretty easy job to tackle? I viewed a few clips on YouTube that make it seem somewhat easy, I am a little scared by two things and that is one or two of the tools required and the fact that the bolt just spins with the engine when trying to remove it. I was quoted 1-1.5 hr labor at a local shop which does not seem to be bad, I just like the self satisfaction I get from replacing stuff on my own and of course the money I save. Can someone give me some tips on their experience replacing and a good diy for it please? I also stumbled across an updated fan with more blades (part# 1032000423) and was curious if this helps, I would assume so having more blades. Any help w/ this would be very much appreciated as always!!
1995 C36- 139k
Cheers,
-Rob
The summer has been hitting hard here in VA lately, the car is sitting around 101-102 in traffic and then cools when the aux fans kick on. I sold my 500e yesterday, and have some extra change to throw at this car. I had the water pump changed 12-15k miles ago, it just dawned on me recently that the viscous clutch is most likely the culprit and I never hear it running. I'm not a believer in the whole theory that these cars should be hitting 100+ like this, i get it that MBs of this era run hot, but this to me is a little too hot. The car seems quite a bit bogged down when it hits these temps, if anything I want to replace it as preventive maintenance. I witnessed my 500 hit a 100c once, that was after sitting in traffic for one hour when the temps were 90+ and it cooled much quicker when I started driving!
This brings me to my question which is whether or not this is a pretty easy job to tackle? I viewed a few clips on YouTube that make it seem somewhat easy, I am a little scared by two things and that is one or two of the tools required and the fact that the bolt just spins with the engine when trying to remove it. I was quoted 1-1.5 hr labor at a local shop which does not seem to be bad, I just like the self satisfaction I get from replacing stuff on my own and of course the money I save. Can someone give me some tips on their experience replacing and a good diy for it please? I also stumbled across an updated fan with more blades (part# 1032000423) and was curious if this helps, I would assume so having more blades. Any help w/ this would be very much appreciated as always!!
1995 C36- 139k
Cheers,
-Rob
Last edited by RPB; Jun 16, 2015 at 08:15 PM.
Senior Member
Joined: Sep 2010
Posts: 446
Likes: 2
From: Culver City, California
1999 C43 AMG
have to remove radiator for full access. should not be that difficult and basically drain radiator, remove radiator, remove engine shield, r&i upper tie bar. have fan clutch tool, and counter clutch tool as well. maybe like a 3-4 hours job taking your time. but worth it as you can replaced pulleys or other things you can look at.
Super Member
Joined: Nov 2001
Posts: 789
Likes: 55
From: Henrico, Virginia
2014 ML350 4Matic
I have done it several times on my son's C43. I did not pull the radiator. Just use both tools, and when the fan is loose remove it along with the shroud (as a pair).
That said, I don't think 100 is too high at low speeds. The engine driven fan can only pull so much air at low engine RPM, hence the auxiliary fans. As a test, open the hood, manually raise the engine RPM to 3,000 or so and listen to the fan. It should be pulling pretty hard in the temps were are seeing the last few days.
That said, I don't think 100 is too high at low speeds. The engine driven fan can only pull so much air at low engine RPM, hence the auxiliary fans. As a test, open the hood, manually raise the engine RPM to 3,000 or so and listen to the fan. It should be pulling pretty hard in the temps were are seeing the last few days.
Super Member
Joined: Dec 2011
Posts: 549
Likes: 0
From: Oregon
'97 c36
Done it many times with out the special tool and just a strap wrench. It's not too hard but can get ugly/miserable if the clutch has been previously over tightened.
Just a suggestion, but have you verified the thermostat is working properly? Might want to check that before diving into the clutch fan. It's super easy and quick.
Just a suggestion, but have you verified the thermostat is working properly? Might want to check that before diving into the clutch fan. It's super easy and quick.
Thread Starter
Super Member
Joined: Sep 2007
Posts: 754
Likes: 12
...
I have done it several times on my son's C43. I did not pull the radiator. Just use both tools, and when the fan is loose remove it along with the shroud (as a pair).
That said, I don't think 100 is too high at low speeds. The engine driven fan can only pull so much air at low engine RPM, hence the auxiliary fans. As a test, open the hood, manually raise the engine RPM to 3,000 or so and listen to the fan. It should be pulling pretty hard in the temps were are seeing the last few days.
That said, I don't think 100 is too high at low speeds. The engine driven fan can only pull so much air at low engine RPM, hence the auxiliary fans. As a test, open the hood, manually raise the engine RPM to 3,000 or so and listen to the fan. It should be pulling pretty hard in the temps were are seeing the last few days.
Last edited by RPB; Jun 17, 2015 at 08:38 PM.
Trending Topics
MBWorld Fanatic!
Joined: Aug 2006
Posts: 7,053
Likes: 398
From: A.D., U.A.E
2000 (W202 C200) & 2000 (W202 C55)
I think it should not reach that much..!,,
do you know if your aux. fans works when it reaches 95..?, or are they works when switch-on A/C..??
ZAYED,,
do you know if your aux. fans works when it reaches 95..?, or are they works when switch-on A/C..??
ZAYED,,
MB World Stories
The Best of Mercedes & AMG
Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun
Verdad Gallardo
Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren
Verdad Gallardo
8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine
Verdad Gallardo
Flawlessly Restored Mercedes 190E Evo II Heads to Auction
Verdad Gallardo
Electric Mercedes C-Class Unveiled: 11 Things You Need to Know
Verdad Gallardo
Mercedes EQS Gets A Major Update: Everything You Need to Know
Verdad Gallardo
5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve
Verdad Gallardo
Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping
Verdad Gallardo
10 Most Reliable Mercedes-Benz Models You Can Buy Used
Verdad Gallardo
Thread Starter
Super Member
Joined: Sep 2007
Posts: 754
Likes: 12
...
I will post back after I get everything installed next week.
Thanks!
Last edited by RPB; Jun 17, 2015 at 08:53 PM.
MBWorld Fanatic!
Joined: Aug 2006
Posts: 7,053
Likes: 398
From: A.D., U.A.E
2000 (W202 C200) & 2000 (W202 C55)
Not bad to replacing fan clutch & A/C leak, but maybe your fan clutch is good, need to see about aux. fans operating,
cause they controlled by small module, at the driver side wheel arch,
if their are not enough gas in A/C compressor aux. fans will not operating,,
also if module fail, aux. fans will not work, that will cause overheating issue..!
did you try to diagnose the car..?
ZAYED,,
cause they controlled by small module, at the driver side wheel arch,
if their are not enough gas in A/C compressor aux. fans will not operating,,
also if module fail, aux. fans will not work, that will cause overheating issue..!
did you try to diagnose the car..?
ZAYED,,
Thread Starter
Super Member
Joined: Sep 2007
Posts: 754
Likes: 12
...
Not bad to replacing fan clutch & A/C leak, but maybe your fan clutch is good, need to see about aux. fans operating,
cause they controlled by small module, at the driver side wheel arch,
if their are not enough gas in A/C compressor aux. fans will not operating,,
also if module fail, aux. fans will not work, that will cause overheating issue..!
did you try to diagnose the car..?
ZAYED,,
cause they controlled by small module, at the driver side wheel arch,
if their are not enough gas in A/C compressor aux. fans will not operating,,
also if module fail, aux. fans will not work, that will cause overheating issue..!
did you try to diagnose the car..?
ZAYED,,
What would you recommend I do? Shops in my area are clueless about these cars, I have no problem taking it to the dealership and paying ridiculous prices if it gets fixed right. The car has treated me so well in my 7yrs of ownership, this will now be my primary as I just sold my other MB and need it running well ASAP.
Thanks!!
MBWorld Fanatic!
Joined: Aug 2006
Posts: 7,053
Likes: 398
From: A.D., U.A.E
2000 (W202 C200) & 2000 (W202 C55)
While they operating, means module works fine,
as you said, seems like clutch not pulls are strongly,,
when the car off, try to rotate the fan by your hand, see if it rotate freely, or not..?
ZAYED,,
as you said, seems like clutch not pulls are strongly,,
when the car off, try to rotate the fan by your hand, see if it rotate freely, or not..?
ZAYED,,
Thread Starter
Super Member
Joined: Sep 2007
Posts: 754
Likes: 12
...
I feel like they're running ok. I rotated the fan when the car was off, it did about three to four revolutions before it stopped. There seems to be some resistance which is what made me think it might not be the fan clutch. Would you start by trying out a new fan clutch? A little baffled at this point! I appreciate your quick responses!!!
Last edited by RPB; Jun 17, 2015 at 09:26 PM.
MBWorld Fanatic!
Joined: Aug 2006
Posts: 7,053
Likes: 398
From: A.D., U.A.E
2000 (W202 C200) & 2000 (W202 C55)
Yeah, if it rotate as four times, seems it's starting to fail-out, try to replace it,
and in the same time; diagnose the car to see if ECU saved anything related to the temp. system..!
ZAYED,,
and in the same time; diagnose the car to see if ECU saved anything related to the temp. system..!
ZAYED,,
Thread Starter
Super Member
Joined: Sep 2007
Posts: 754
Likes: 12
...
How would I check out the ECU data? Does this require the MB star diagnostic?
Thanks!
Thread Starter
Super Member
Joined: Sep 2007
Posts: 754
Likes: 12
...
Super Member
Joined: Nov 2001
Posts: 789
Likes: 55
From: Henrico, Virginia
2014 ML350 4Matic

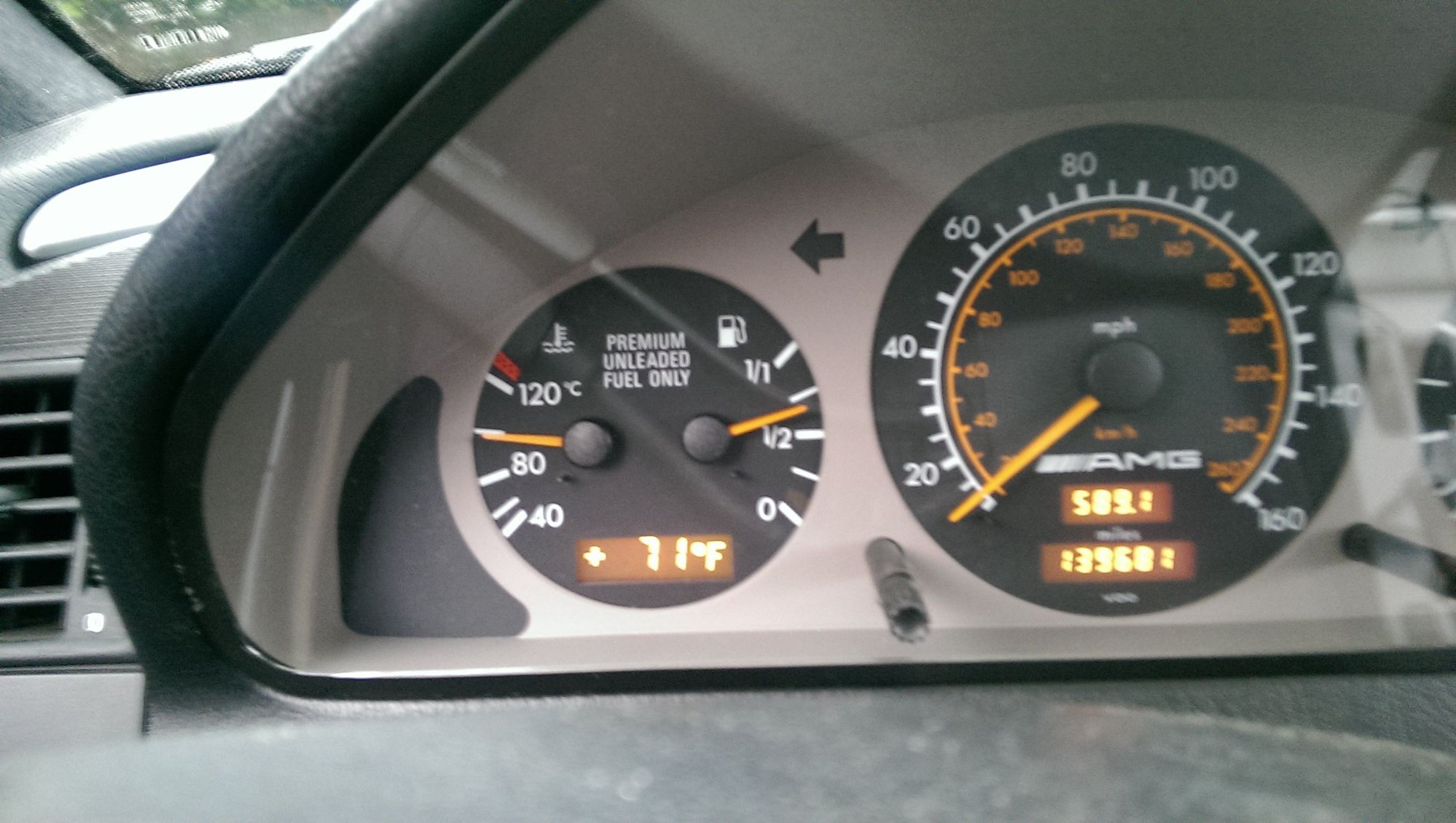

All our cars run in that range sometimes (C280 with M112, E430 and C43) so I am not alarmed. You say you were "barely sitting in traffic", however your speedo shows you are stopped with the engine idling. Also, was the ambient temp really 71 degrees Fahrenheit? That isn't what I would consider warm. Does the temp drop significantly when you have been moving for a few minutes? When idling does the temp hold at that temp or rise further? Is the A/C on (compressor engaged) or have you disabled it?
The fan clutch never "locks up". It is similar to a torque converter. The amount of engagement is controlled by a bi-metal spring that controls the stroke of an internal valve. The valve controls the movement of internal "clutch" fluid. As the temp coming off the radiator rises the bi-metal spring senses it, fluid flows to increase drag inside the unit and the fan speeds up. Usually the fan speed tops out about 4,000 RPM. Keep in mind that the engine driven fan draws significant HP when "engaged" and that is why it is there, i.e. to reduce unnecessary power draw. Adding a nine blade fan will also increase power draw. Once rolling and airflow from vehicle speed increases the fan should freewheel since it is no longer necessary. The point is that if indeed the fan is not pulling correctly, replacing it with a correctly functioning unit may make the power drop seem worse.
Do the test I recommended. It takes 30 seconds. Other causes of warm temps can be the thermostat (as mentioned above), the radiator, debris blocking airflow or a faulty temp sensor.
The fan clutch never "locks up". It is similar to a torque converter. The amount of engagement is controlled by a bi-metal spring that controls the stroke of an internal valve. The valve controls the movement of internal "clutch" fluid. As the temp coming off the radiator rises the bi-metal spring senses it, fluid flows to increase drag inside the unit and the fan speeds up. Usually the fan speed tops out about 4,000 RPM. Keep in mind that the engine driven fan draws significant HP when "engaged" and that is why it is there, i.e. to reduce unnecessary power draw. Adding a nine blade fan will also increase power draw. Once rolling and airflow from vehicle speed increases the fan should freewheel since it is no longer necessary. The point is that if indeed the fan is not pulling correctly, replacing it with a correctly functioning unit may make the power drop seem worse.
Do the test I recommended. It takes 30 seconds. Other causes of warm temps can be the thermostat (as mentioned above), the radiator, debris blocking airflow or a faulty temp sensor.
MBWorld Fanatic!
Joined: Mar 2005
Posts: 2,418
Likes: 194
From: America
1999 C43 AMG, 2005 E55 Wagon
I agree that temp is slightly high for sitting in traffic in 71 degree weather with the AC on.
My 98 has no fan clutch or fan on it right now, as well as no freon in the AC system so the aux fans don't come on either. It never gets that hot.
Your fan shouldn't give you 4 rotations if you spin it with the engine off. I agree it needs replacing, but I doubt that will fix your problems. A functioning fan clutch will bog your engine down at high temps really badly, too, so there's that. Have you tried spinning the fan after the engine his hot like that?
And take vinceC's advice and consider your thermostat. My car with working AC doesn't get this hot and I know I need a new fanclutch too, and it's up past 90 F here now.
Also, I'm pretty sure aux fans should come on in stages, and the first stage occurs well before 95C. Mine come on at around 85 on the first stage, if I recall correctly.
My 98 has no fan clutch or fan on it right now, as well as no freon in the AC system so the aux fans don't come on either. It never gets that hot.
Your fan shouldn't give you 4 rotations if you spin it with the engine off. I agree it needs replacing, but I doubt that will fix your problems. A functioning fan clutch will bog your engine down at high temps really badly, too, so there's that. Have you tried spinning the fan after the engine his hot like that?
And take vinceC's advice and consider your thermostat. My car with working AC doesn't get this hot and I know I need a new fanclutch too, and it's up past 90 F here now.
Also, I'm pretty sure aux fans should come on in stages, and the first stage occurs well before 95C. Mine come on at around 85 on the first stage, if I recall correctly.
Super Member
Joined: Nov 2001
Posts: 789
Likes: 55
From: Henrico, Virginia
2014 ML350 4Matic
Boy do I feel dumb. I completely overlooked that the OP has a C36! I had a C280 with the M104. Temps that high at a stop were the norm for that car, in warm weather, even with new radiator, thermostat, fan clutch, etc., etc. The aux fans would be on, the fan clutch engaged, the works and it still crawled up to 95 or so. 71 degree ambient isn't particularly warm though. I haven't seem 71 here for a couple weeks, even at 0530.
And fan removal instructions are different. IIRC, you just lock the pulley with a 1/4" rod bent about 15 degrees at the end, then use a special shorty socket on the clutch. Sawed off Allen key and short piece of pipe will work too.
And fan removal instructions are different. IIRC, you just lock the pulley with a 1/4" rod bent about 15 degrees at the end, then use a special shorty socket on the clutch. Sawed off Allen key and short piece of pipe will work too.
MBWorld Fanatic!
Joined: Aug 2006
Posts: 7,053
Likes: 398
From: A.D., U.A.E
2000 (W202 C200) & 2000 (W202 C55)
Agree with vinceC,
Here, temp reaches around (118F), with A/C on, in traffic, it not reach 100..!,,
unless if something wrong with "T.stat>fan clutch>>aux. fans>>>aux. fans module", those should to be checked before touching Radiator..
ZAYED,,
Here, temp reaches around (118F), with A/C on, in traffic, it not reach 100..!,,
unless if something wrong with "T.stat>fan clutch>>aux. fans>>>aux. fans module", those should to be checked before touching Radiator..
ZAYED,,
Super Member
Joined: Nov 2001
Posts: 789
Likes: 55
From: Henrico, Virginia
2014 ML350 4Matic
Everyone needs to keep in mind that this is an M104, not an M112/113. There is a big difference; I've owned both. Furthermore, the 71 degree reading doesn't make sense. We've been in a major heat wave here in Virginia, with temps in the high 90's to over 100 degrees. Only the OP can explain.
