This is the original engine oil dipstick for the 2009 S63 AMG M156: https://www.mbpartsus.com/p/Mercedes...560101972.html
Part Number: 1560101972
Supersession(s): 156 010 19 72; 1560101372
A1560101972
Can be purchased here:
Also, part # 1560101772 here: https://www.mbpartsus.com/p/Mercedes...560101772.html
Supersession(s): 156 010 17 72; 1560100972; 1560101272; 1560101472; 1560101672; 156010177205
A1560101772
Looks identical but the site states NOT for that specific 2009 S63 AMG.
FOR AMG_DOCTOR:
Can you measure the one you just got above, 1560101672, from the plastic handle dipstick tube top stop to the dipstick bottom?
That's one way to tell if these AMG M156 oil dipsticks are identical and will correctly measure the oil level.
Also, if you still have the original C63 dipstick, can you measure that one too?
Post #16 above with part # 1560101972, shows that all these M156 dipsticks may be identical.
Added:
Part # 1560101972:
Length 22 and 7/8 inches, dipstick tube top stop to the dipstick bottom.
Plastic indicator on dipstick bottom, length: 1 and 3/4 inches.
Last edited by AMG_S666; May 23, 2022 at 05:50 PM.
Thanks for sharing this as I went ahead and hot a few things from 63 Motorsports in Canada. They have some purty cool stuff there at a better price point compared to others. Got some other goodies too.

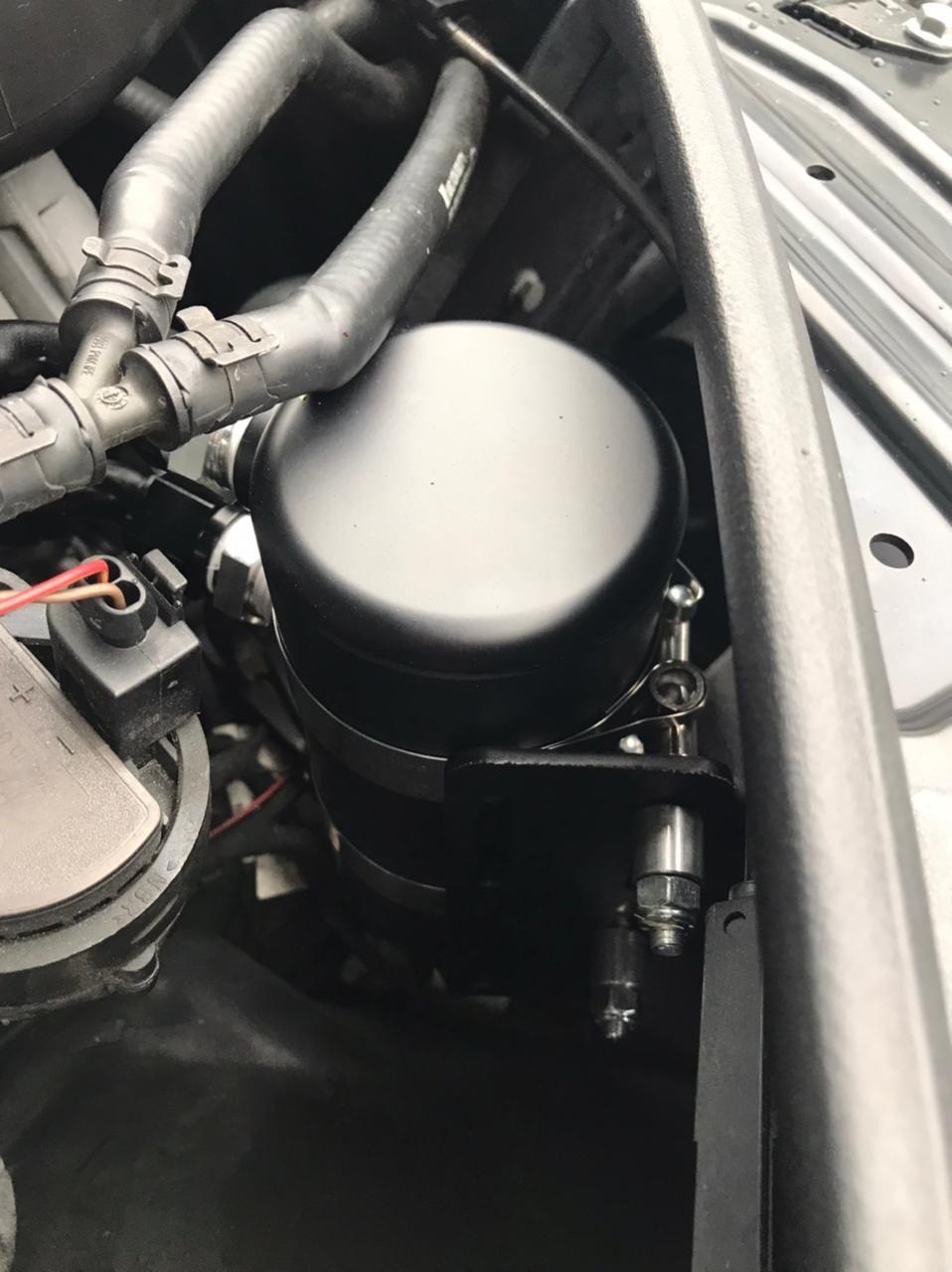

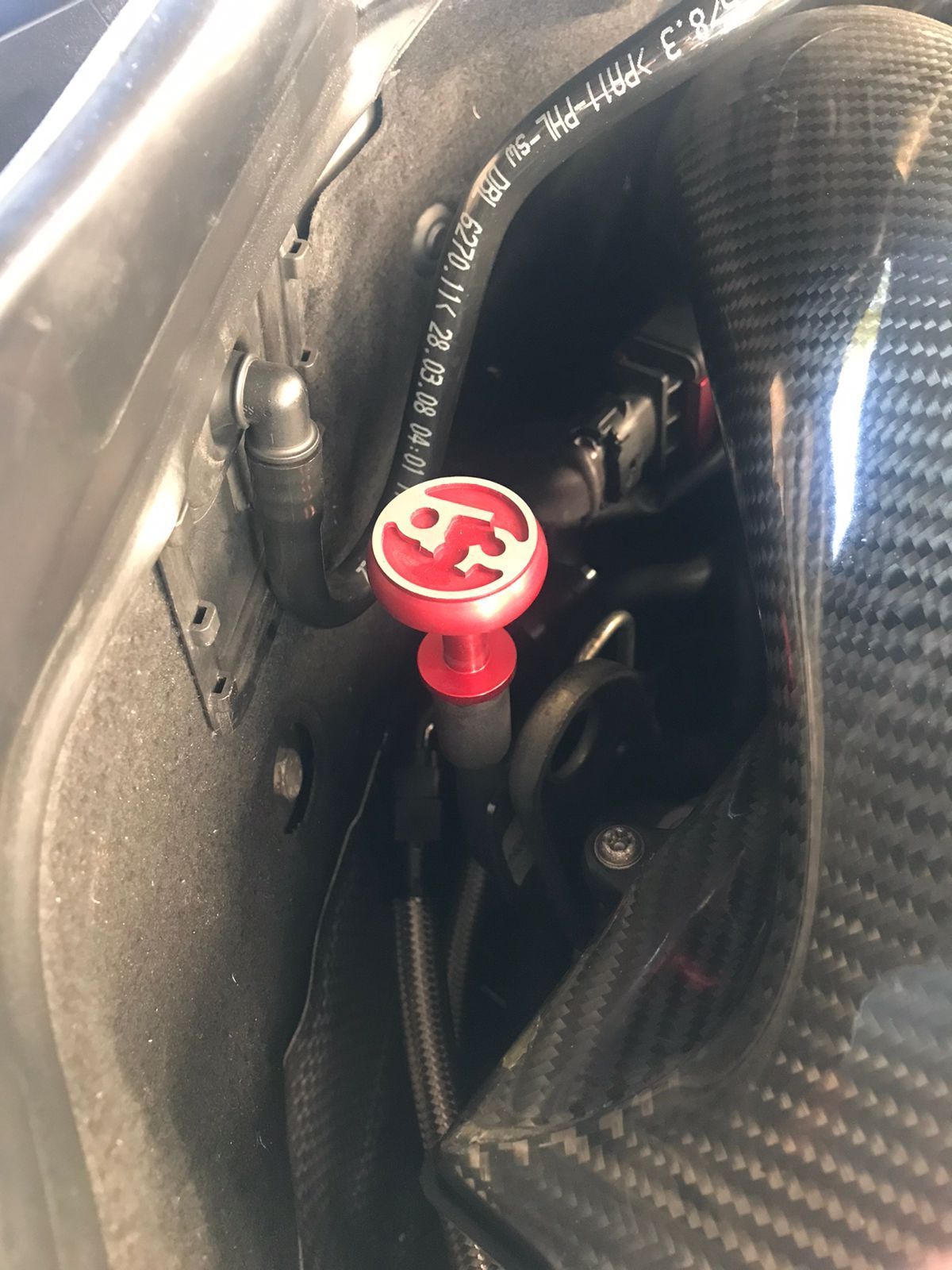

Custom red dipstick Custom red oil filter cover Oil catch can
Originally Posted by blurred
63Motorsports seems like they will be filling that void soon
Any updates on which MB oil dipsticks are still available to order for our cars? It seems that all revisions have been discontinued and the only option is 63motorsports
Any updates on which MB oil dipsticks are still available to order for our cars? It seems that all revisions have been discontinued and the only option is 63motorsports
none of them i believe. Discontinued. I do have one out of a 2012 C63 if you want to buy it send me a PM
W204 C200, BMW E30 M3, 1980Gt Mini, Toyota Corona, KTM 200 EXC.
Looks good hope you find it works well. Thank you for your photo and information, can you please confirm the new dipstick is now back in production and is same as the original one.
Originally Posted by bullitt69

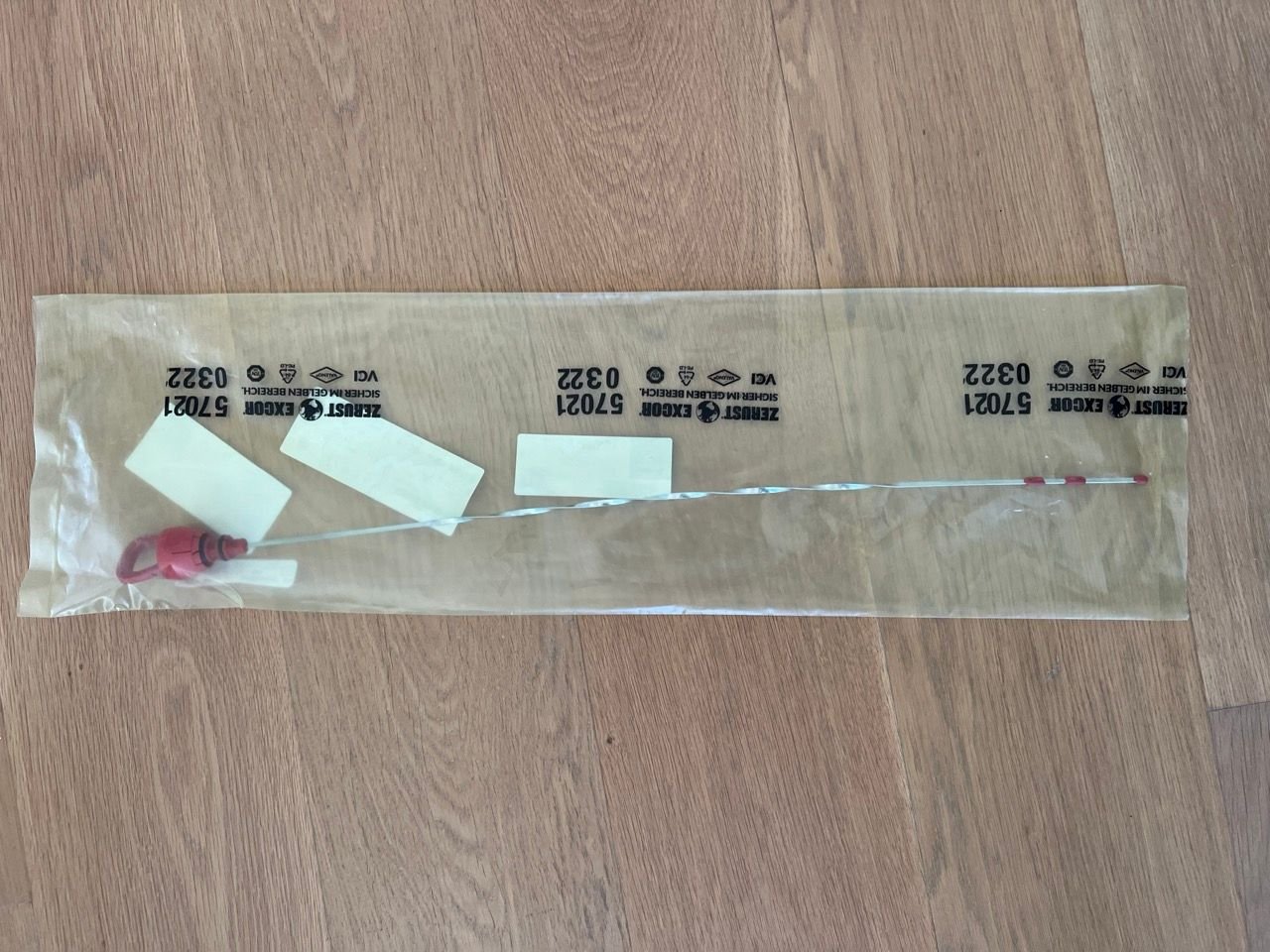

Just to let everyone who is looking for a new genuine replacement dipstick of the latest revision, they are still in stock in Germany.
Hi,
Thank you for your photo and information, can you please confirm the new dipstick is now back in production and is same as the original one.
I can't confirm that it's back in production or these are simply left over quantities of this item in Germany. The company the link to which I've provided above confirmed that there were about 20 left in stock, one of which I purchased.
I recommend you place an order if you need one as the price point is perfect.
Well, the only alternative is the 63motorsports one which doesn't even have a visible Minimum line and costs 120 bucks + shipping. This one even with the high shipping price costs less than ordering directly from a MB dealer, which I checked.
