DIY LCD REPAIR (ODOMETER: CLOCK, TEMP, ETC)
Thread Starter
Senior Member
Joined: Dec 2007
Posts: 386
Likes: 2
From: New York
2010 C300 4MATIC
DIY LCD REPAIR (ODOMETER: CLOCK, TEMP, ETC)
Hey,
I found the on the Benzworld.org forum. It is a do it you self LCD REPAIR ON THE INSTRUMENT CLUSTER OF YOU W208. I haven't done it yet; but I plan to.
I found the on the Benzworld.org forum. It is a do it you self LCD REPAIR ON THE INSTRUMENT CLUSTER OF YOU W208. I haven't done it yet; but I plan to.
Super Member
Joined: Jan 2008
Posts: 623
Likes: 0
From: Virginia Beach,VA
2002 clk430
Will pixel's start going out a little at a time or can the whole thing go out at one time my temp gauge went out at the right angle I can see what it says but its not lit up like the time this was after I took my car apart for paint so I thought I forgot to plug it back in but checked that and its all plugged up. Do you think it needs to be repaired with this solution or is it something else?
Thread Starter
Senior Member
Joined: Dec 2007
Posts: 386
Likes: 2
From: New York
2010 C300 4MATIC
Ok. The PDF that i have provide will reset the entire odometer. As a result, all the pixels are not technically "dead" there is just a faulty connection caused over time due to vibrations i believe. As a result, the connect needs to get reseted.
BE CAREFULL. EXTREMELY CAREFUL WHEN YOU ARE DOING THIS.
BE CAREFULL. EXTREMELY CAREFUL WHEN YOU ARE DOING THIS.
MBWorld Fanatic!
Joined: Feb 2008
Posts: 1,261
Likes: 21
From: SoCaL (LA / OC)
E55 AMG (SOLD), EvoSport CLK (SOLD), 2013 GsxR 750 (SOLD)
yeah, i read up on this DIY project, when it was first posted, and until now, i'm still trying to decide whether i should even try it or not. I'm really really really scared that i might mess up.
If someone ends up doing it. please post up extremely detailed pictures. LoL
If someone ends up doing it. please post up extremely detailed pictures. LoL
MBWorld Fanatic!
Joined: Nov 2001
Posts: 1,258
Likes: 209
From: Boston North Shore
2001 CLK320 Cabrio
Newbie
Joined: Feb 2009
Posts: 3
Likes: 0
From: Preston, UK
CLK 430 (W208)
Ok. The PDF that i have provide will reset the entire odometer. As a result, all the pixels are not technically "dead" there is just a faulty connection caused over time due to vibrations i believe. As a result, the connect needs to get reseted.
BE CAREFULL. EXTREMELY CAREFUL WHEN YOU ARE DOING THIS.
BE CAREFULL. EXTREMELY CAREFUL WHEN YOU ARE DOING THIS.
For obvious reasons, I'd rather not lose everything - I can live with losing my trip distance though.
I just want my gear selector display back
(the temp gauge is completely dark and the clock is broken too)
Trending Topics
MB World Stories
The Best of Mercedes & AMG
Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun
Verdad Gallardo
Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren
Verdad Gallardo
8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine
Verdad Gallardo
Flawlessly Restored Mercedes 190E Evo II Heads to Auction
Verdad Gallardo
Electric Mercedes C-Class Unveiled: 11 Things You Need to Know
Verdad Gallardo
Mercedes EQS Gets A Major Update: Everything You Need to Know
Verdad Gallardo
5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve
Verdad Gallardo
Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping
Verdad Gallardo
10 Most Reliable Mercedes-Benz Models You Can Buy Used
Verdad Gallardo
Newbie
Joined: Feb 2009
Posts: 3
Likes: 0
From: Preston, UK
CLK 430 (W208)
Cheers! I did some reading and discovered that this was the case anyway. except for a couple of people (who it sounds like did it wrong anyway) there seems to have been a lot of success.
I'm going to give this a bash today and I'll take some pics too.
I'm going to give this a bash today and I'll take some pics too.
Newbie
Joined: Feb 2009
Posts: 3
Likes: 0
From: Preston, UK
CLK 430 (W208)
OK.... had a bash!
I first crafted my own instrument removal tools by straightening a wire coat hanger, cutting it into two and then some strategic bending. Way cheaper and just as effective as the genuine Merc tools!
The only mouse mat I could find was one of those new-style super-thin things and I soon discovered that these aren't necessarily the best thing to use (on their own at any rate).
Instead, I found a 'sticky pad' which seemed to work quite well after reversing the peel-off sides so that they didn't slide off.

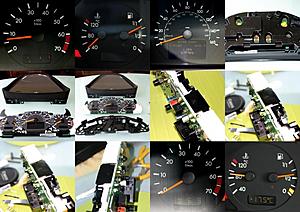

A combination of the thin mouse mat, sticky pad and insulation tape evntually did the trick enough to be satisfactory. After some driving the fix worked loose so I had to make some adjustments but it's now at the point that can be seen in the pictures.
As you can see, my clock is still rubbish (there's one on my Kenwood head unit anyway) but the temperature gauge is now perfect (it was completely missing before) and the gear display is about 85% which is acceptable considering that it may as well have not been there before!
I first crafted my own instrument removal tools by straightening a wire coat hanger, cutting it into two and then some strategic bending. Way cheaper and just as effective as the genuine Merc tools!
The only mouse mat I could find was one of those new-style super-thin things and I soon discovered that these aren't necessarily the best thing to use (on their own at any rate).
Instead, I found a 'sticky pad' which seemed to work quite well after reversing the peel-off sides so that they didn't slide off.
A combination of the thin mouse mat, sticky pad and insulation tape evntually did the trick enough to be satisfactory. After some driving the fix worked loose so I had to make some adjustments but it's now at the point that can be seen in the pictures.
As you can see, my clock is still rubbish (there's one on my Kenwood head unit anyway) but the temperature gauge is now perfect (it was completely missing before) and the gear display is about 85% which is acceptable considering that it may as well have not been there before!
Thread Starter
Senior Member
Joined: Dec 2007
Posts: 386
Likes: 2
From: New York
2010 C300 4MATIC
Thanks,
Steve
Thread Starter
Senior Member
Joined: Dec 2007
Posts: 386
Likes: 2
From: New York
2010 C300 4MATIC
HELP. I just plugged in my odometer and now it reads "Display Defective Visit Workshop." What happened? OMG I wish I never touched it.
Thanks,
Steve
Thanks,
Steve
Last edited by CLK430Benz; May 13, 2009 at 09:57 PM.
Thread Starter
Senior Member
Joined: Dec 2007
Posts: 386
Likes: 2
From: New York
2010 C300 4MATIC
Is there any way I can fix this issue? I have done the following so far: reset battery for extended period of time, check fuses, replug the speedometer several times (with battery disconnected). What else must I do?
Thanks,
Steve
Thanks,
Steve
Thread Starter
Senior Member
Joined: Dec 2007
Posts: 386
Likes: 2
From: New York
2010 C300 4MATIC
Okay. Everything turns on properly. Lights and everything. The only thing is that when I turn it on the needles don't read; meaning that they stay in the original position (down). The clock, temperature and center display work.
Last edited by CLK430Benz; May 14, 2009 at 10:20 AM.
Thread Starter
Senior Member
Joined: Dec 2007
Posts: 386
Likes: 2
From: New York
2010 C300 4MATIC
I decided that I will send the instrument cluster to BBA-Reman. Hopefully they will be able to fix the issue that I am currently having. The price is $250 with lifetime warranty.
Thanks,
Steve
Thanks,
Steve
Super Member
Joined: Apr 2008
Posts: 596
Likes: 0
From: West Los Angeles, CA
CLK55 / E350 Coupe
Thread Starter
Senior Member
Joined: Dec 2007
Posts: 386
Likes: 2
From: New York
2010 C300 4MATIC
Does anyone have any idea with what's wrong with my instrument cluster or even my car? Is this gonna cost a lot? I sent my odometer out today to BBA Reman. will this fix the problem with the message I am getting stating "Display Defective Visit Workshop?"
Thanks,
Steve
Thanks,
Steve
Thread Starter
Senior Member
Joined: Dec 2007
Posts: 386
Likes: 2
From: New York
2010 C300 4MATIC
FIX
Hey,
So I sent my odometer on Friday and received the odometer repaired on Tuesday. I just installed my odometer and it works like BRAND NEW! Everything is crystal clear (i.e. time and temp) and everything works fine thanks to BBA Reman.
So I sent my odometer on Friday and received the odometer repaired on Tuesday. I just installed my odometer and it works like BRAND NEW! Everything is crystal clear (i.e. time and temp) and everything works fine thanks to BBA Reman.
Newbie
Joined: Feb 2006
Posts: 10
Likes: 0
02 CLK320
I had this problem last year. BBA Remanufacturing outside of Boston, did a GREAT job repairing my console. Somewhere in this forum is the instructions on removing the instrument cluster (just search for it) and BBA does the rest. It was absolutely worth the $200 for the repair. It has been working flawlessly ever since. I'm sure there is a DIY fix out there... but is it worth the effort.
