My CLS 550 4matic M278 Performance Build
As @PekkaH mentioned in his thread:
“Soon here will be another M278 build thread. A friend has built his coupe with great passion. A lot of mods and good quality. Will be excellent stuff!”
Here it is.
This is a long-term performance build on a 2013 CLS 550 4MATIC (M278), approached as a complete system rather than a collection of individual parts. The focus is usable, repeatable acceleration and proper load-based calibration, not chasing dyno numbers.
Current Direction & Targets
- Load-based MED17 calibration
- Shaped torque delivery
- Safe torque target: ~950 Nm
- Fuel: 98 RON pump gasoline
- Water–methanol used strictly as a protective cooling measure
Key Hardware Highlights
Engine & Induction
- TurboSystems M157 upgrade turbochargers
- Custom ceramic-coated charge pipes
- Bridge pipe between banks
- Single central 60 mm BOV
- Bridge pipe between banks
- WMI (Snow Performance Stage 2)
- 100% methanol
- Pre-turbo
- Cooling only (not part of fueling or ignition strategy)
- 100% methanol
Intercooling & Thermal Control
- Upgraded primary intercooler heat exchanger
- Additional front-mounted heat exchanger
- Split intercooler cooling system (separate from engine cooling)
- Pierburg CWA100.2 intercooler pump
Fuel System
- Stock M278 LPFP (primary)
- Additional boost-activated Walbro 450
- Stock HPFP and injectors
Exhaust
- True 3.0” system from turbo outlets to rear
- Custom ceramic-coated downpipes
- JRSpec 200 CPSI sport catalytic converters
- AMG rear mufflers
- Electric exhaust cut-outs before the mufflers
Drivetrain
- Final drive changed from 2.47:1 → 2.65:1
- 25% limited-slip differential
Calibration Philosophy
The M278 is load-based, not boost-based. Boost is a result, not a target.- Torque and load models scaled to actual airflow
- Early torque is shaped, not spiked
- Load is extended where fuel system allows
- Calibration remains safe without WMI
- Transmission calibrated for acceleration:
More to come.
charge pipes done and ceramic coated
downpipe flange prototype printed in PLA
316L stainless prints from China
ready to be ceramic coated
final product
stock turbine wheel
stock compressor wheel
a little upgrade on both
fuel pump bracket (I really should make it yellow, so it would retain it's duckling look
)
test print in PAHT-CF
I think it might be ready to be printed in aluminum
Last edited by ervg; Dec 22, 2025 at 06:19 AM.
I’ve added a few comparison images below showing stock M278 turbos, stock M157 turbos and different hybrid options.
The TTE turbo shown is from another build I was somewhat involved in. That car was completed about a year ago and is now getting tuned, so it will be interesting to see how it performs in practice. Both cars will have a similar tune.

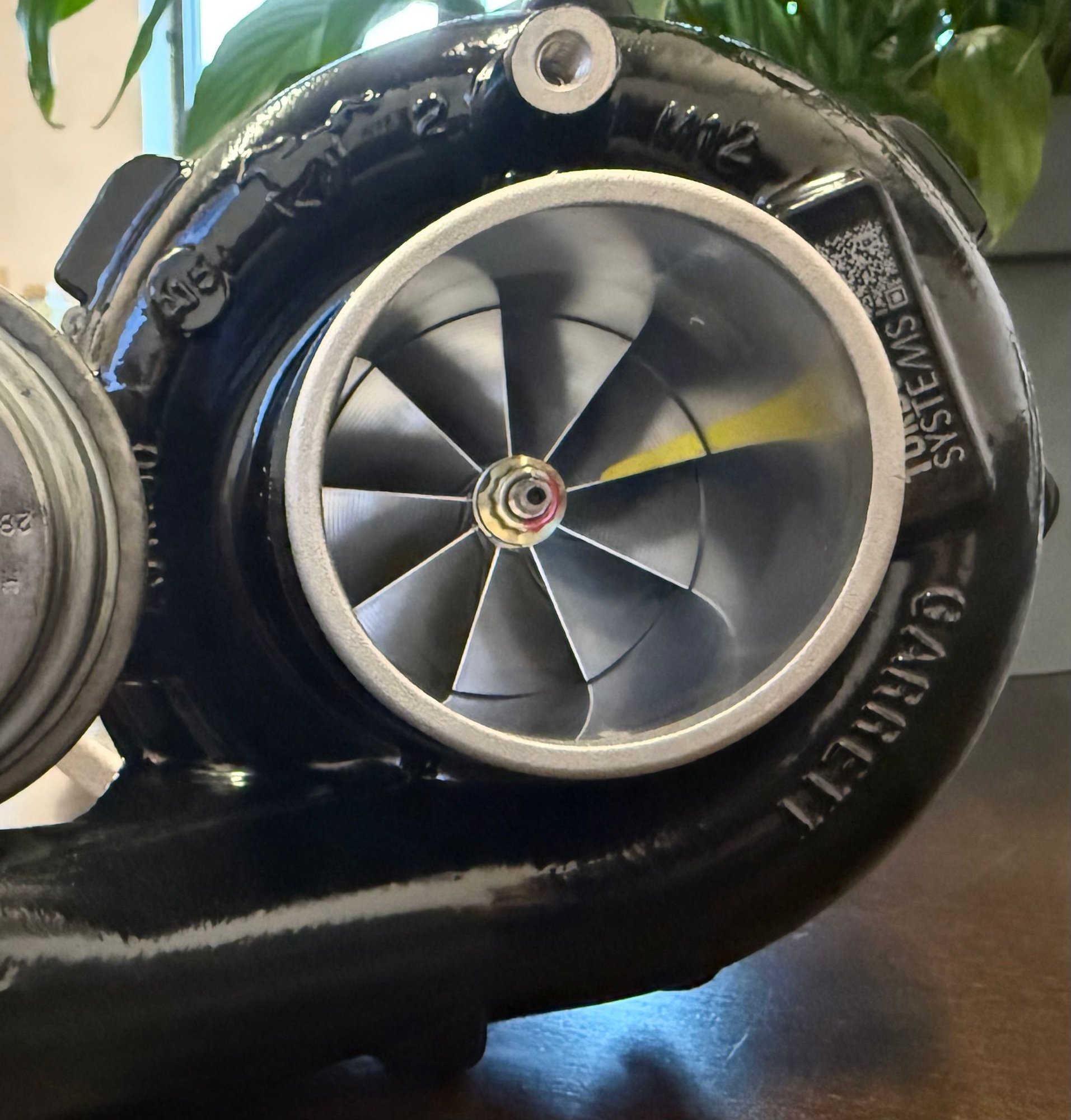

It should be a useful real-world comparison of how different hybrid approaches behave on the M278 platform. Personally, I’m curious to see how the TurboSystems (TTS) units compare against the TTE turbos, especially in terms of response and load holding.
More data to come once tuning progresses.
stock m278
stock m157

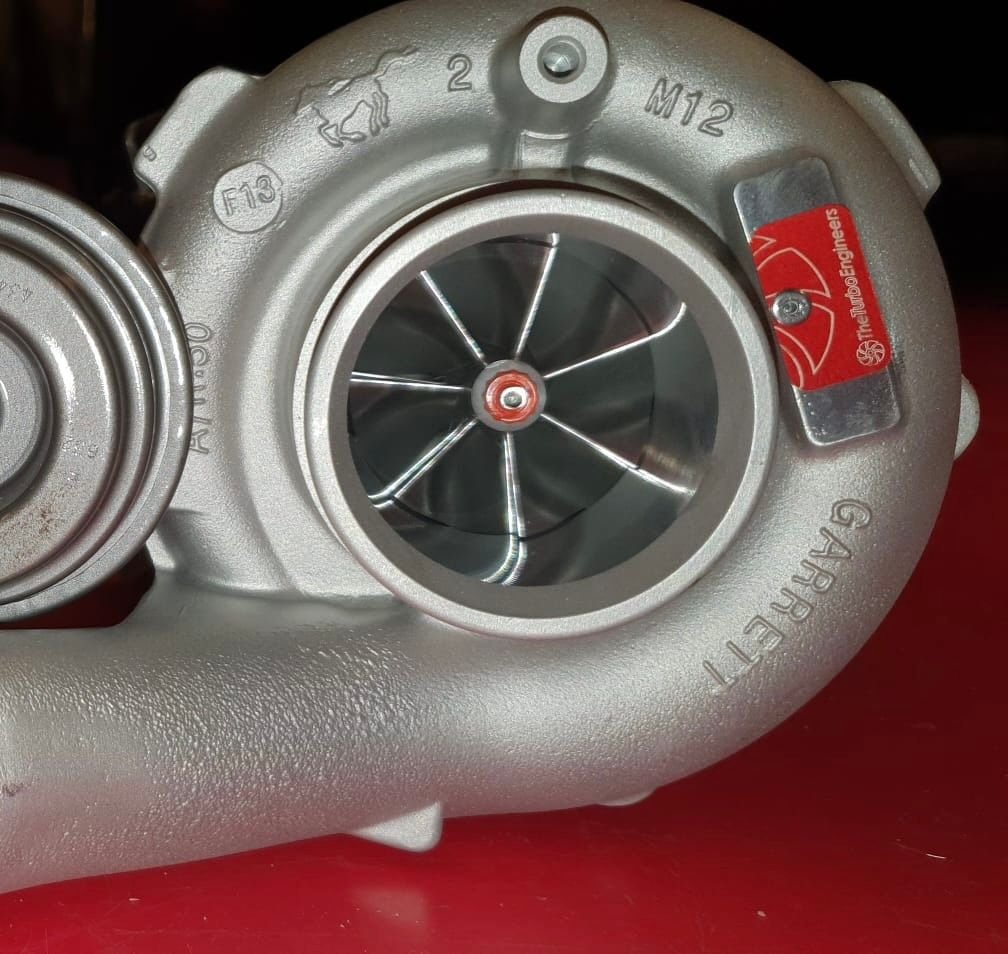

hybrids by the Turbo Engineers
hybrids from Turbosystems
image taken from blackboost.com product page

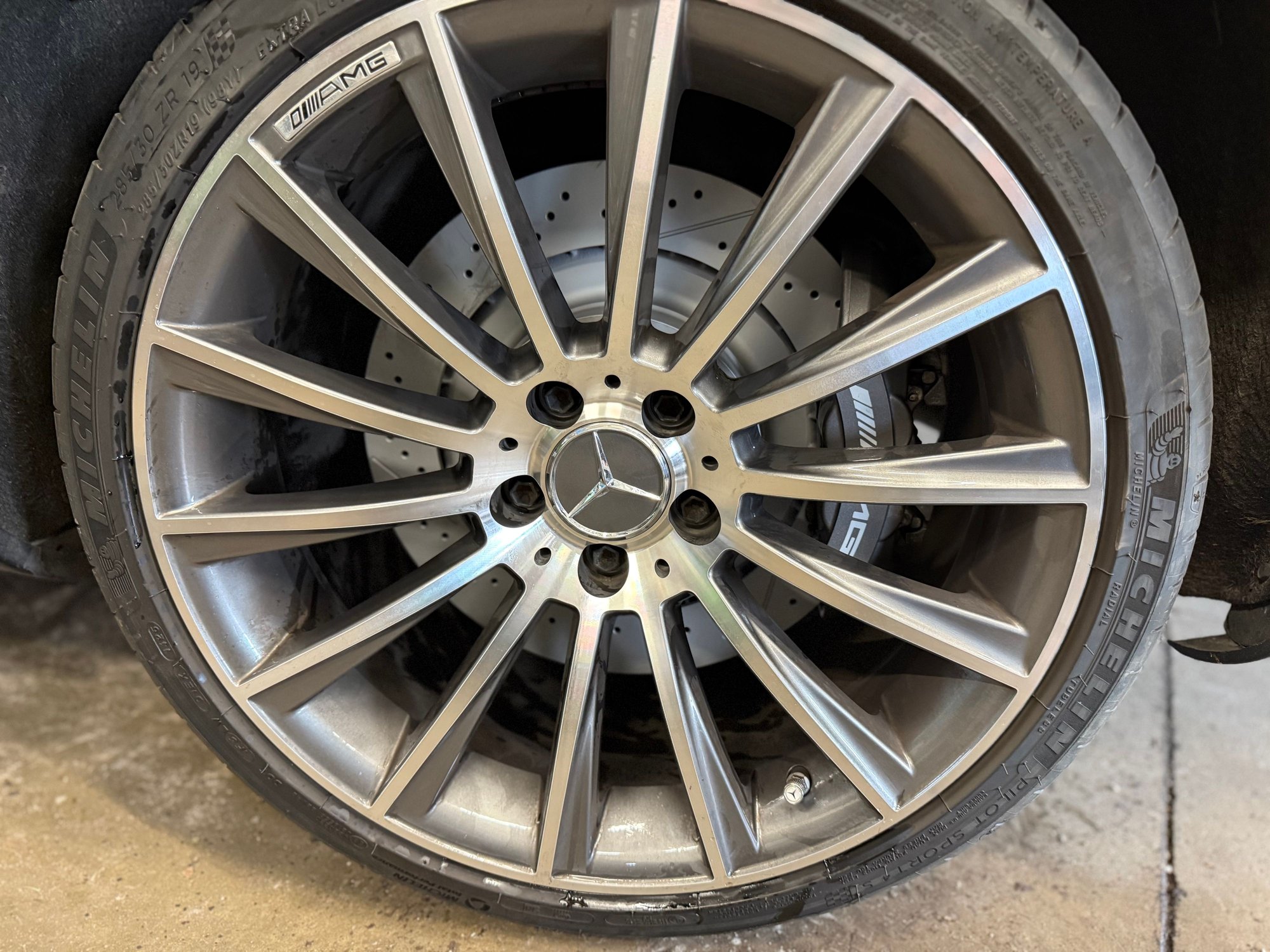

Because the W218 front knuckles differ from the W212, the standard AMG front rotors do not bolt on directly. Instead I repurposed the original CLS 550 front rotors. They are heavier than the AMG discs, but the dimensions work correctly with the knuckle and caliper geometry.
Fitment notes:
- Front clearance to the wheel barrel is extremely tight, but fully functional with no contact.
- The caliper mounting holes in the W218 front knuckles had to be drilled to a slightly larger diameter to accept the AMG caliper bolts.
- No adapters were used; the calipers are mounted directly to the knuckle after drilling.
- Rear setup uses stock AMG rotors.

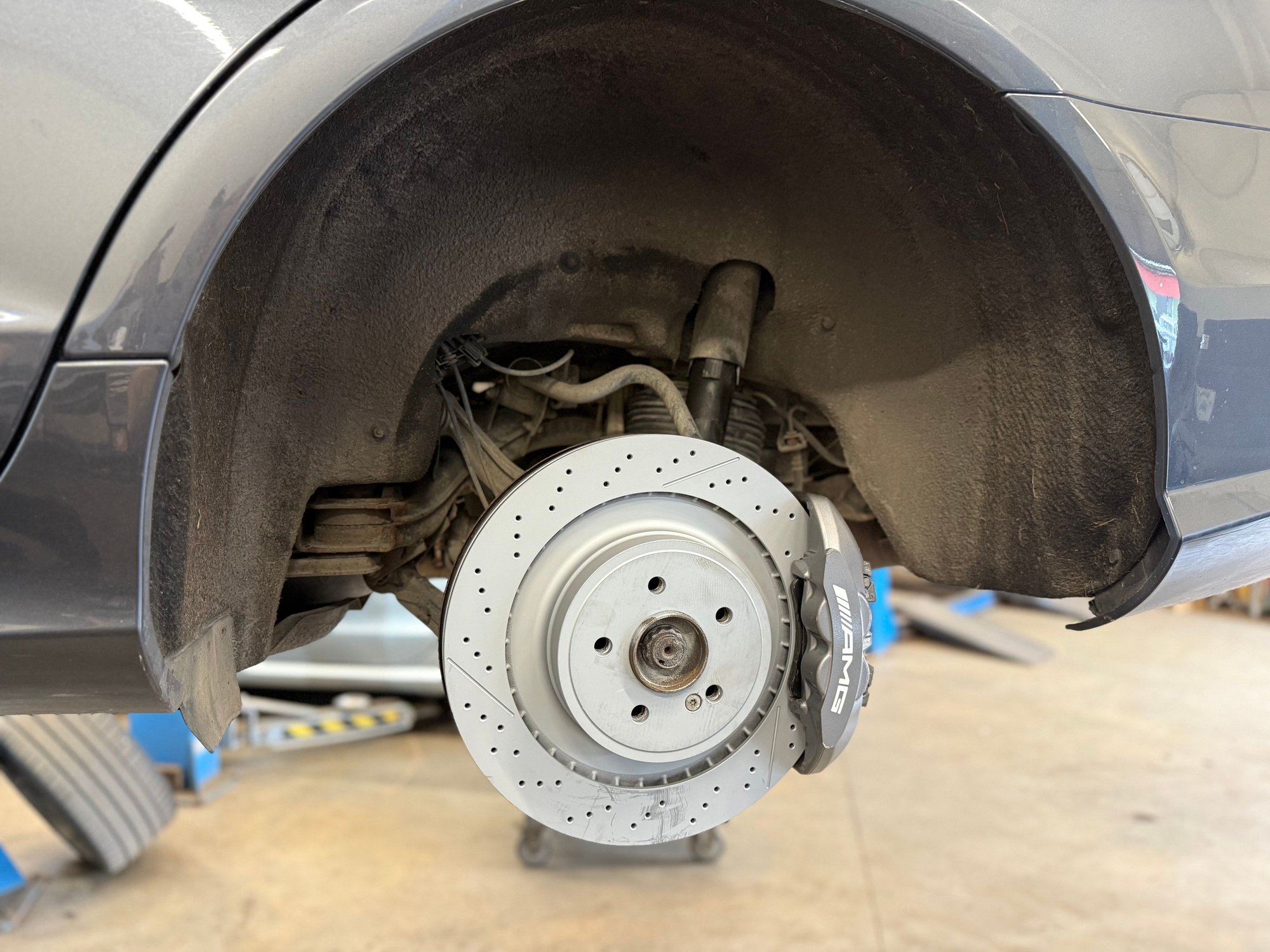

rears installed

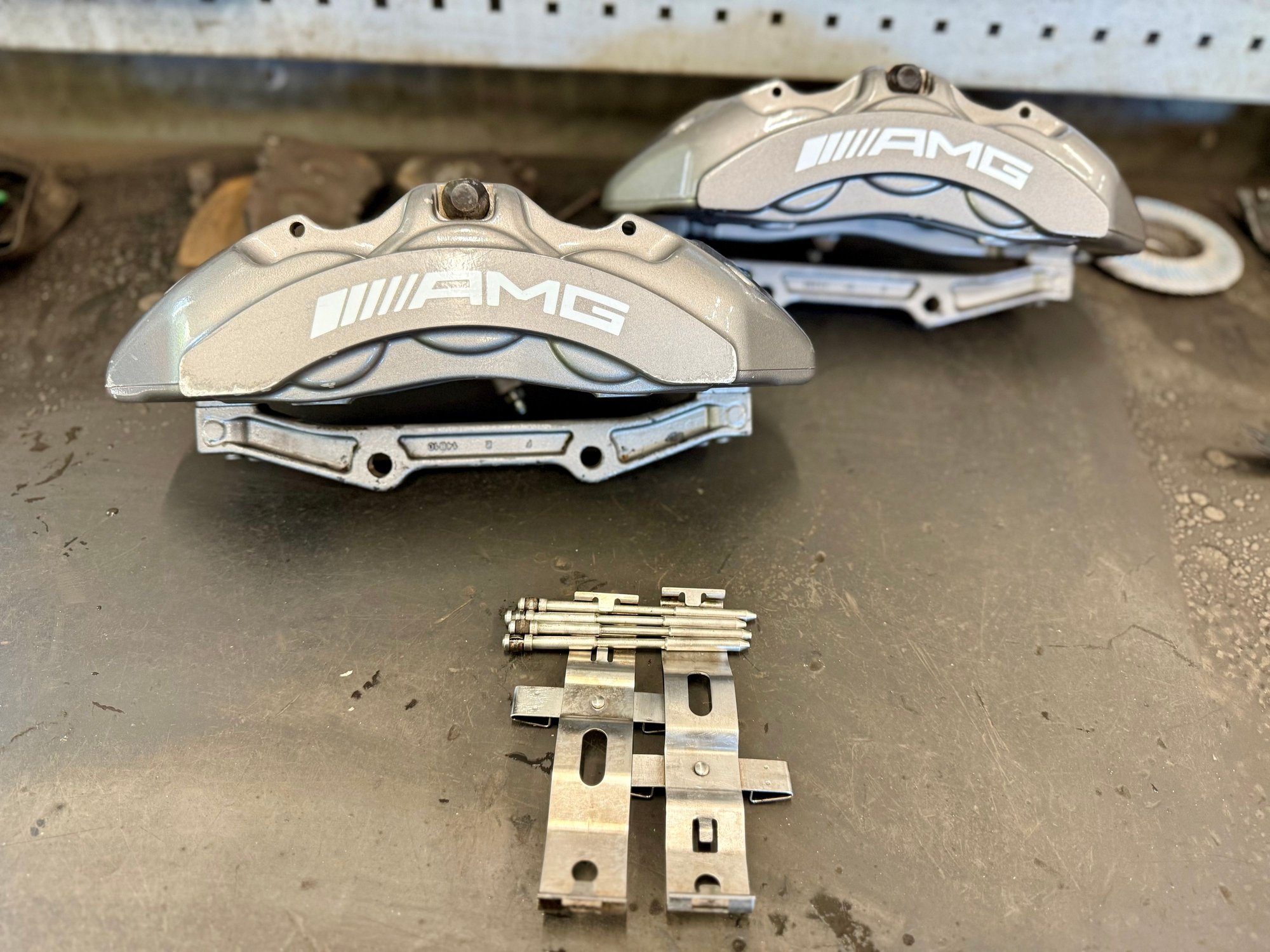

front calipers came pre-scratched, so one less thing for me to worry about.

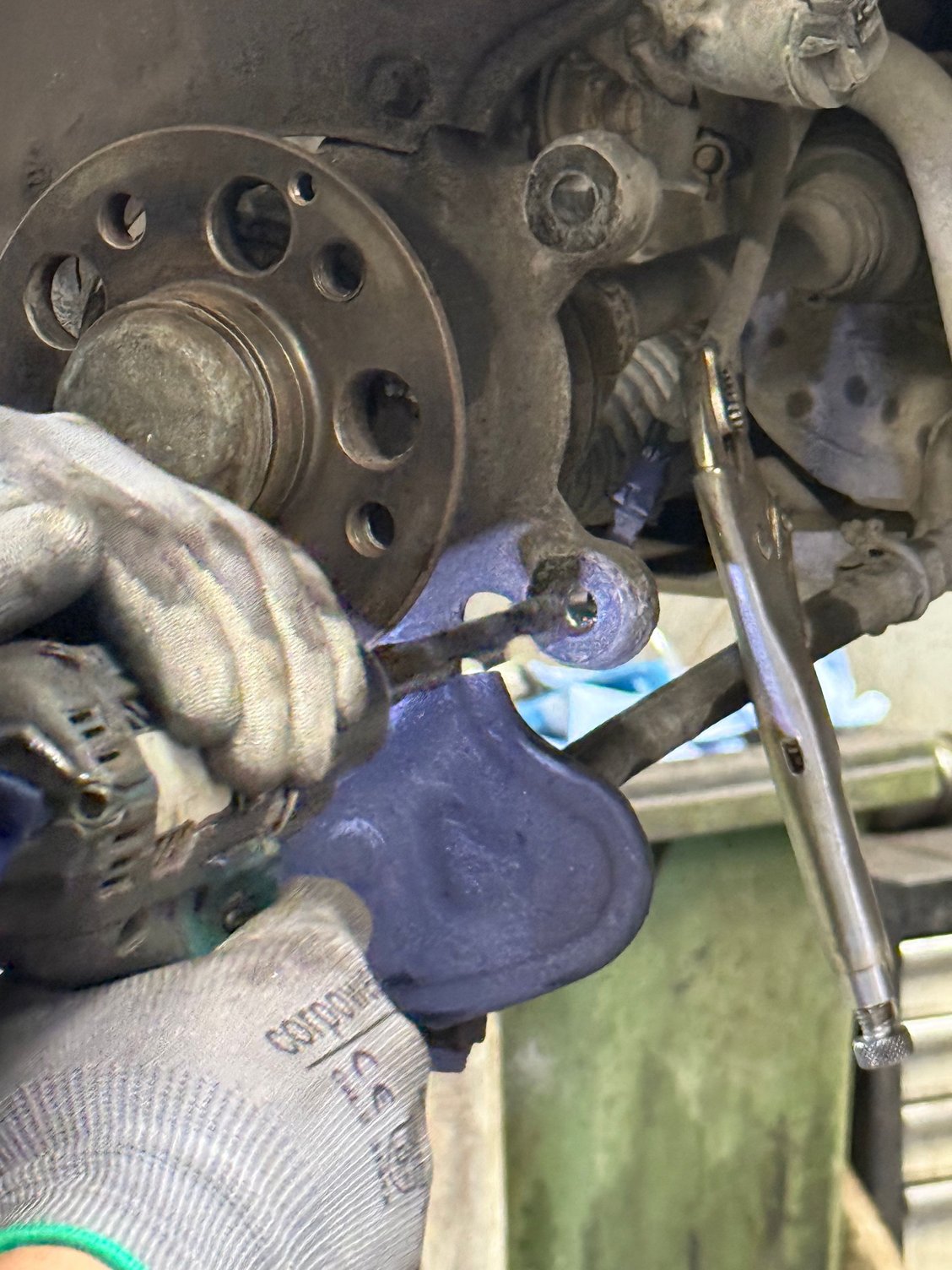

front knuckles being modified

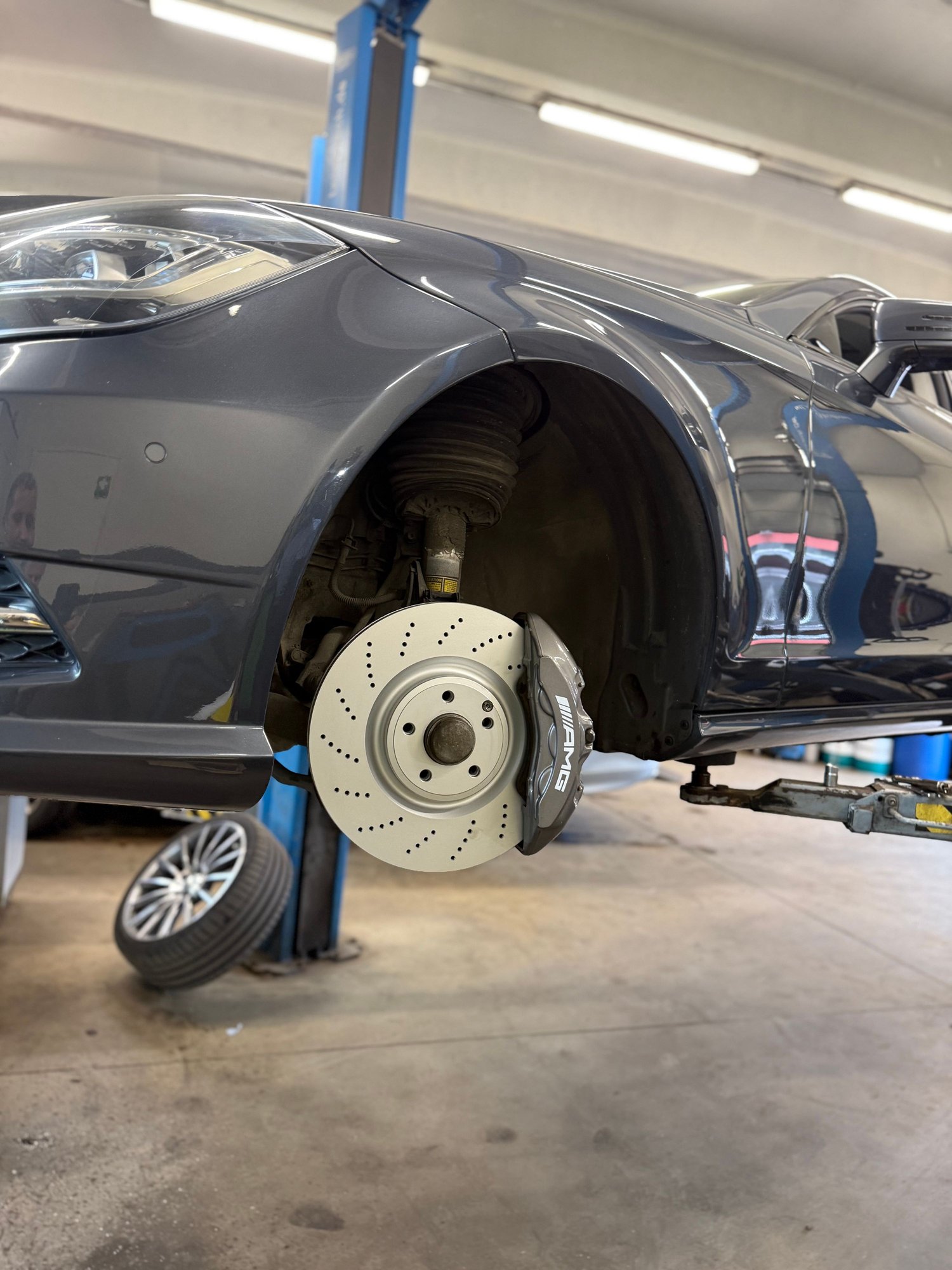

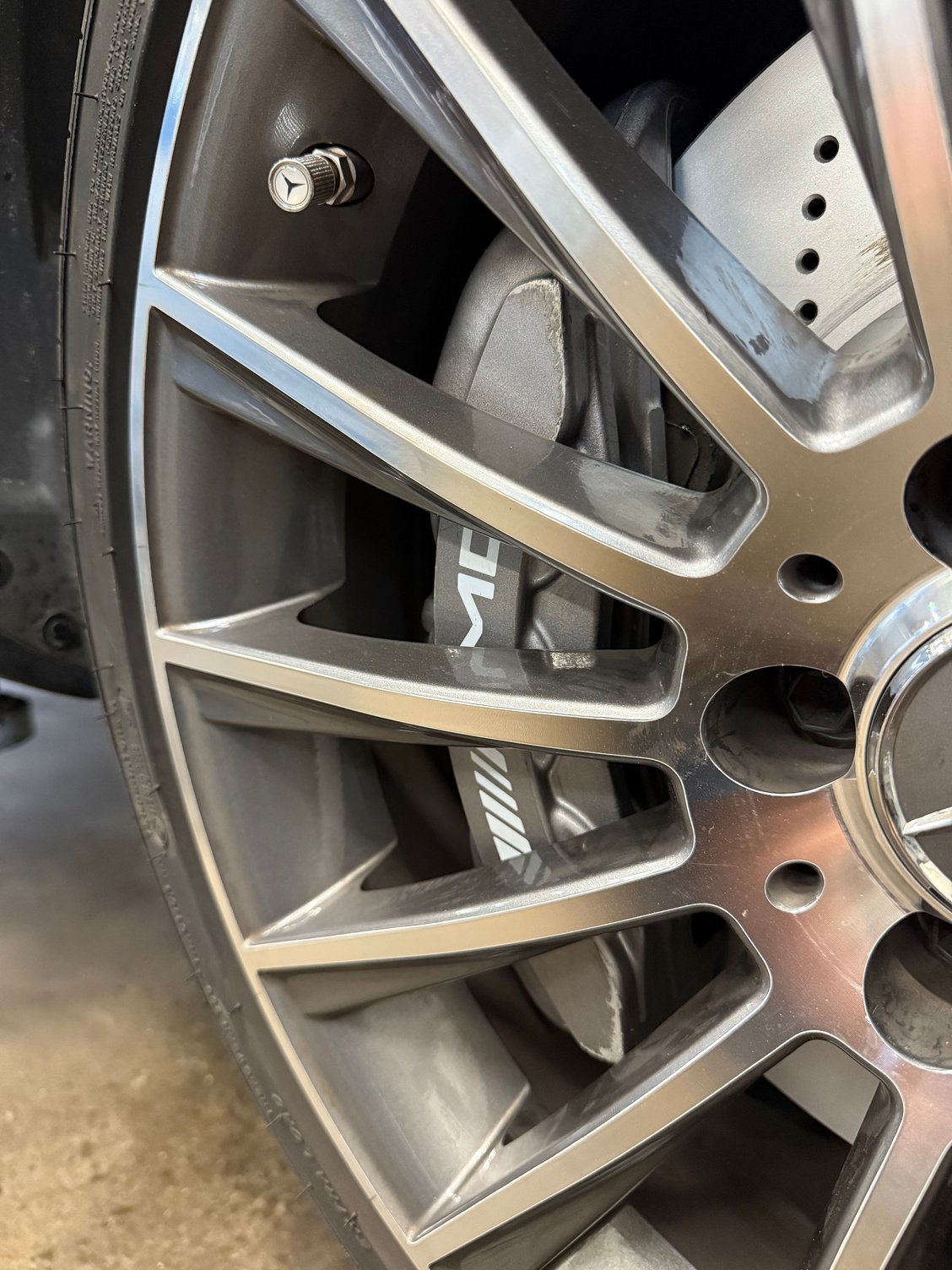

fronts installed, clearance is really tight
Last edited by ervg; Dec 22, 2025 at 07:38 AM.
The heat exchanger itself is an FMIC upgrade unit originally designed for the A45 AMG, but it fits well in this application. Compared to the original CLS unit, it is significantly larger. Unfortunately, I don’t have side-by-side photos of the stock exchanger and the upgrade, but visually the new core looks almost almost twice the size of the original.
To make it fit, the heat exchanger enclosure had to be cut and modified. The images below give a good idea of the scale difference — the new heat exchanger protrudes noticeably compared to the factory unit.
Last edited by ervg; Dec 23, 2025 at 01:14 AM.
Trending Topics
The Best of Mercedes & AMG
In my case the methanol is injected pre-turbo, far upstream, and in relatively small amounts. The goal is evaporative cooling of the intake air before compression, not fueling the engine. From a calibration standpoint, the engine is set up to meet all load, lambda, and knock requirements on gasoline alone.
Yes, methanol is chemically a fuel, but at this injection point and flow rate any contribution to combustion energy is incidental rather than something that can be controlled or relied upon. Even if it were to slightly enrich the mixture beyond what the ECU trims for, that condition is thermally safer than running lean under boost.
The tune is intentionally not dependent on methanol being present, so if the system is disabled or fails, nothing fundamental changes.
I'm sure @Cifdig could step in and correct me if I'm wrong
Last edited by ervg; Dec 27, 2025 at 04:25 AM.

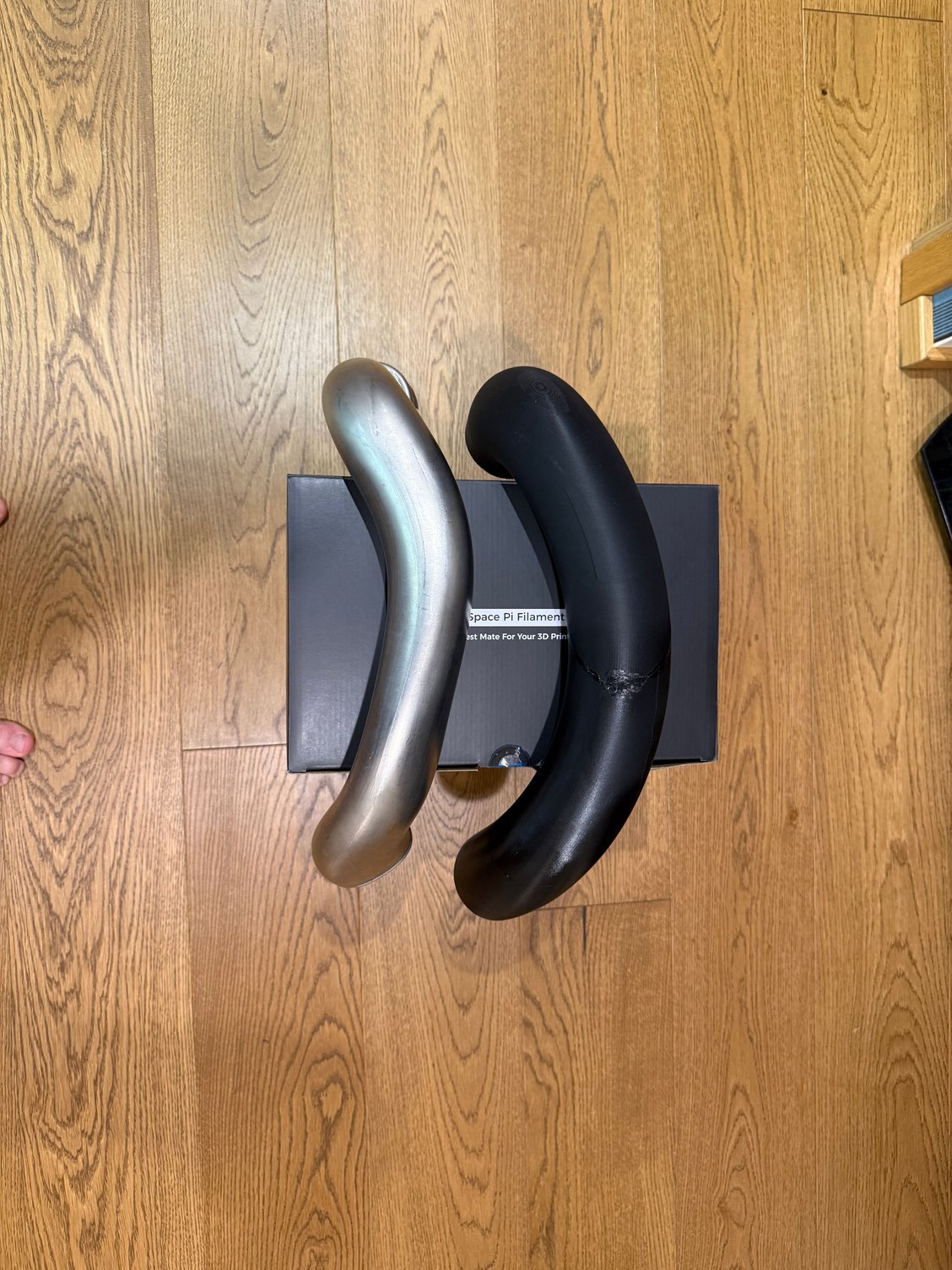

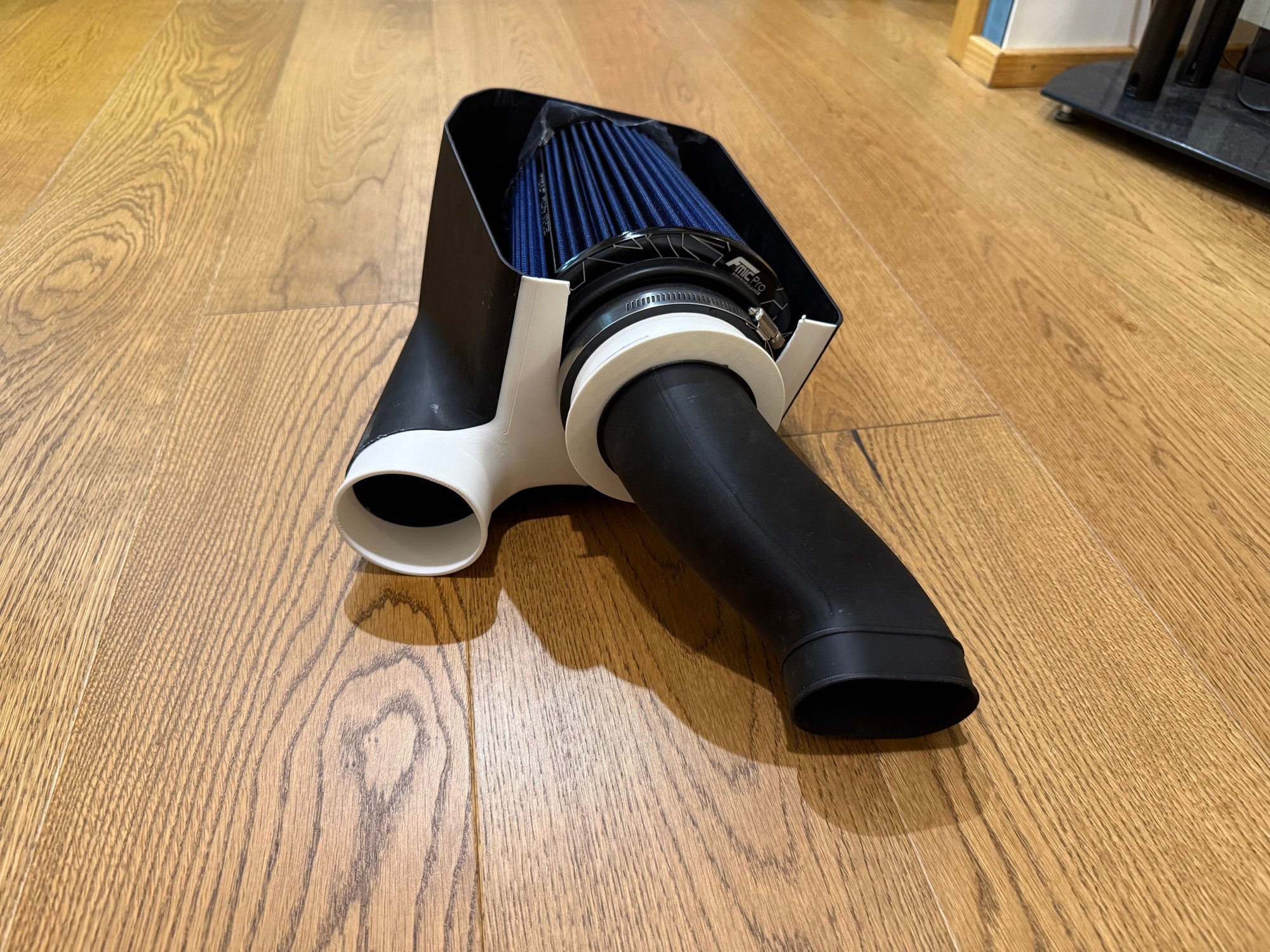

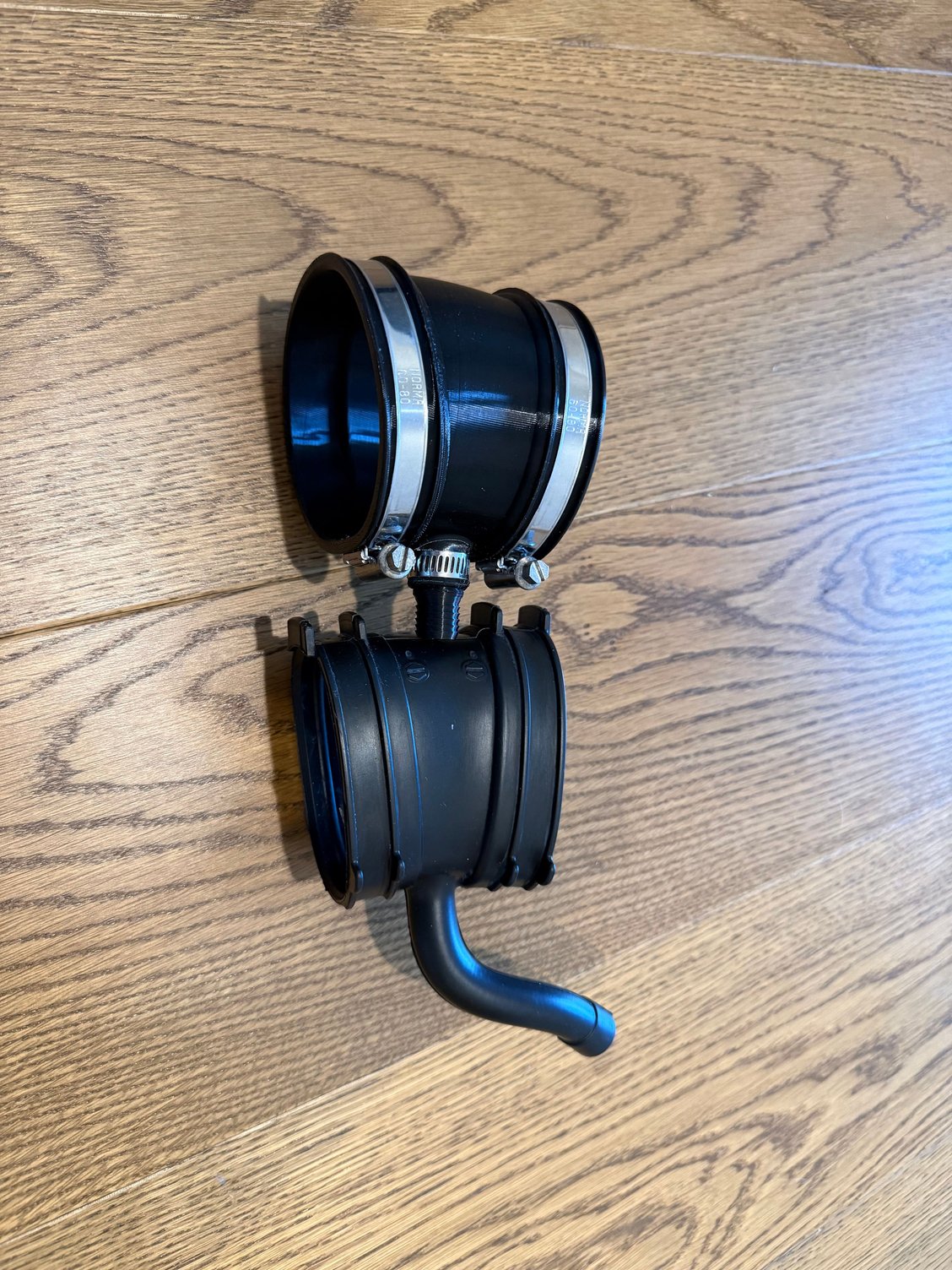

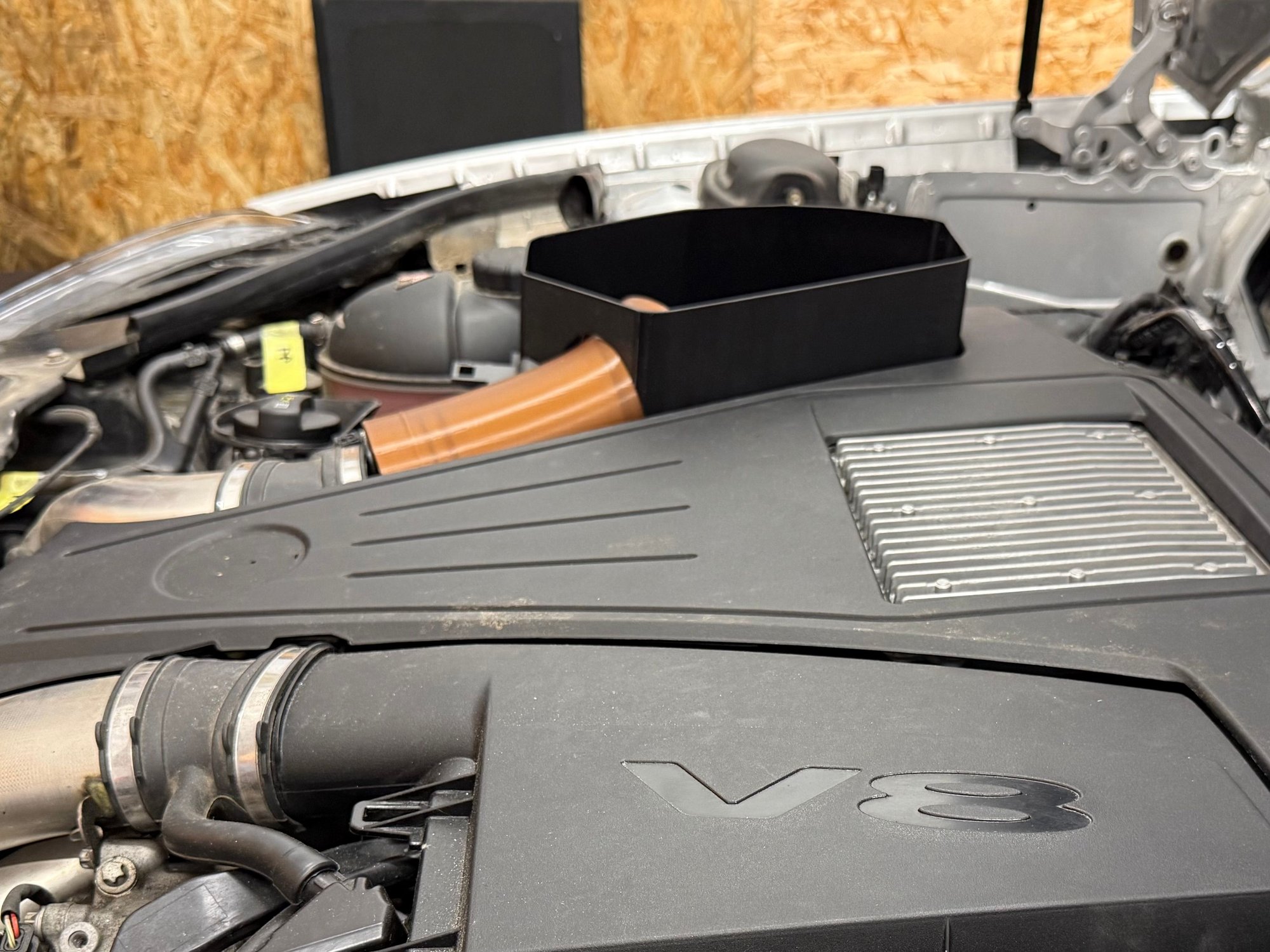

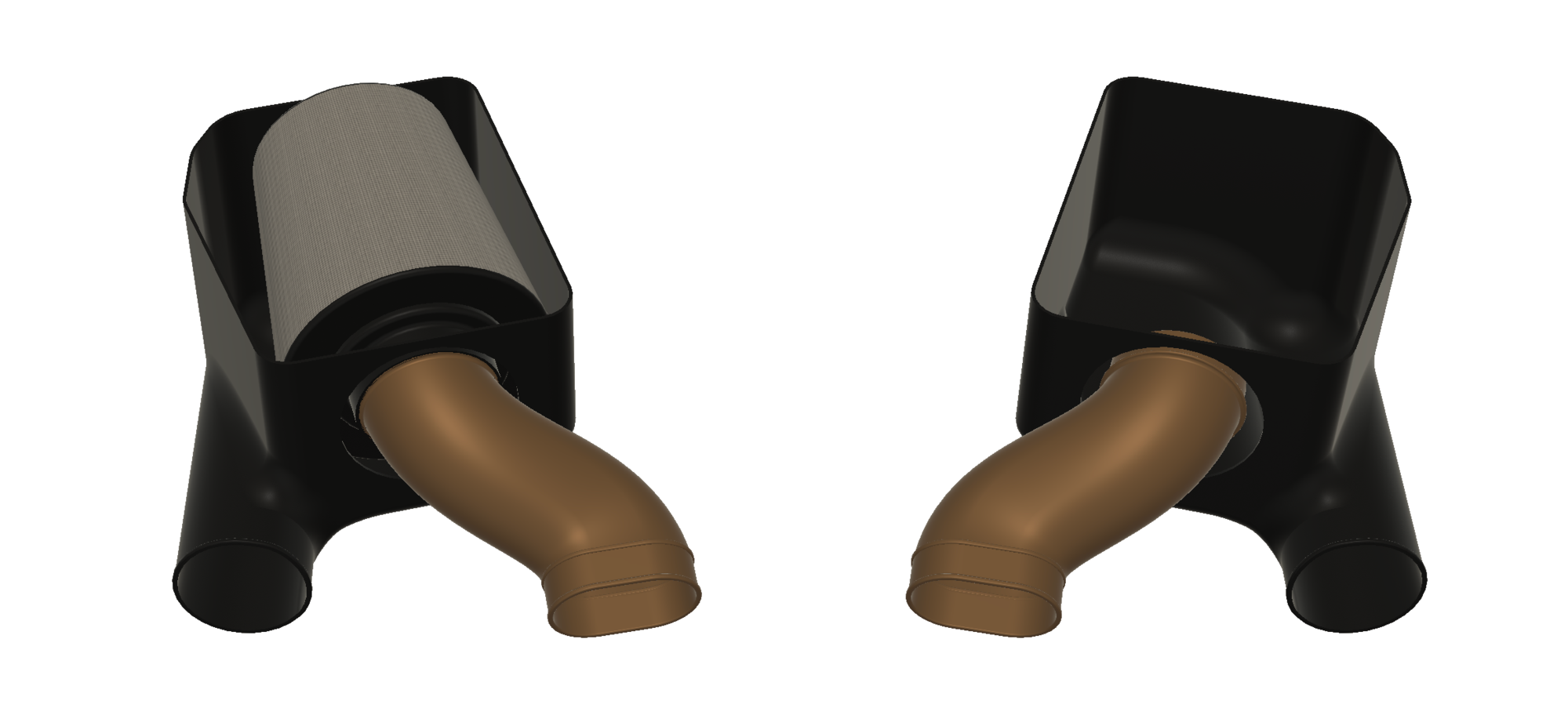

I originally planned to use a 3” outlet air filter, but ended up going with a 4” filter instead. For now I’m using a coupler just to test fitment on a CLS tomorrow. The plan for the turbo inlet pipes is likely 3” for most of the length, then gradually tapering down to match the turbo’s 65 mm inlet. The thinking is that the larger diameter helps airflow especially through tighter-radius bends.
The black pipe is only there to demonstrate the smoothness and general routing — it’s not part of the final design. The front section of the box is white simply because I printed the box in two parts and used some leftover filament I had lying around.
Still very much work in progress, but it’s nice to move from CAD into something physical and see how things actually fit.
They won’t trigger a lean code. I’ve been driving around for quite a while with the filters installed, and even without the enclosures during testing, and there have been no issues or fault codes.

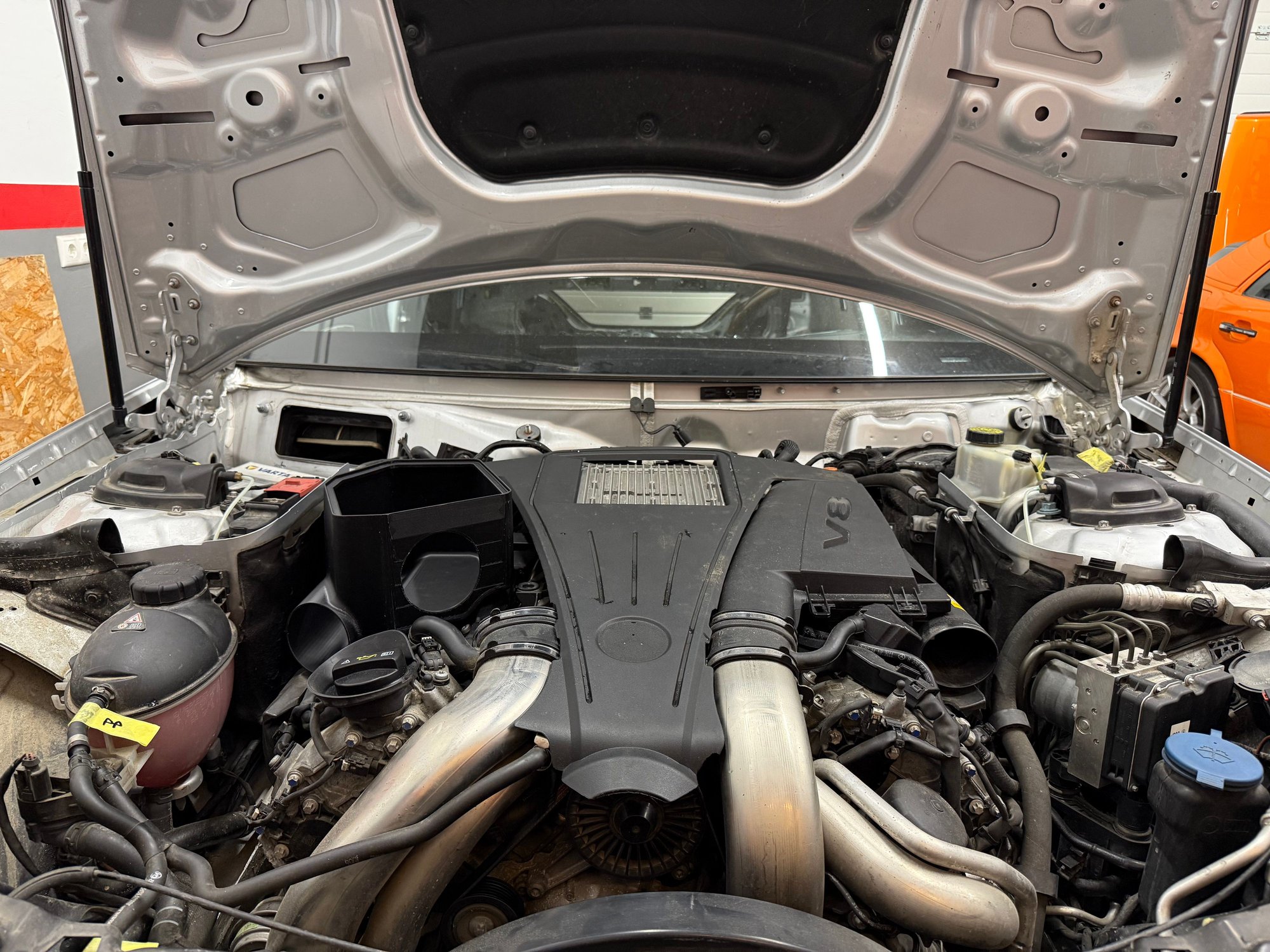

I had to revise the design and go back to 3” inlet filters due to limited vertical space. I’m planning to use a lid on the airboxes instead of relying on the hood, most likely made from plexiglass. That gives a fixed, predictable top geometry, allows visual inspection of the filter condition, and makes it practical to use the same airboxes on W221, W222 and R231 chassis, where I actually plan to run them.
The next iteration is printing as we speak and I should be able to test-fit it sometime next week.
Once the design is finalized, I’ll do dyno runs comparing the stock intake setup to my own airboxes.
And yes — the ~$1800 price tag on the off-the-shelf options is ridiculous.
Last edited by ervg; Jan 15, 2026 at 02:10 PM.
More pictures to come as the design progresses.
It's cool that the car can compute the airflow and not throw a lean code. I saw someone on the other guys process say it would throw which is why I was curious. I would LOVE to hear how these affect the exhaust note.

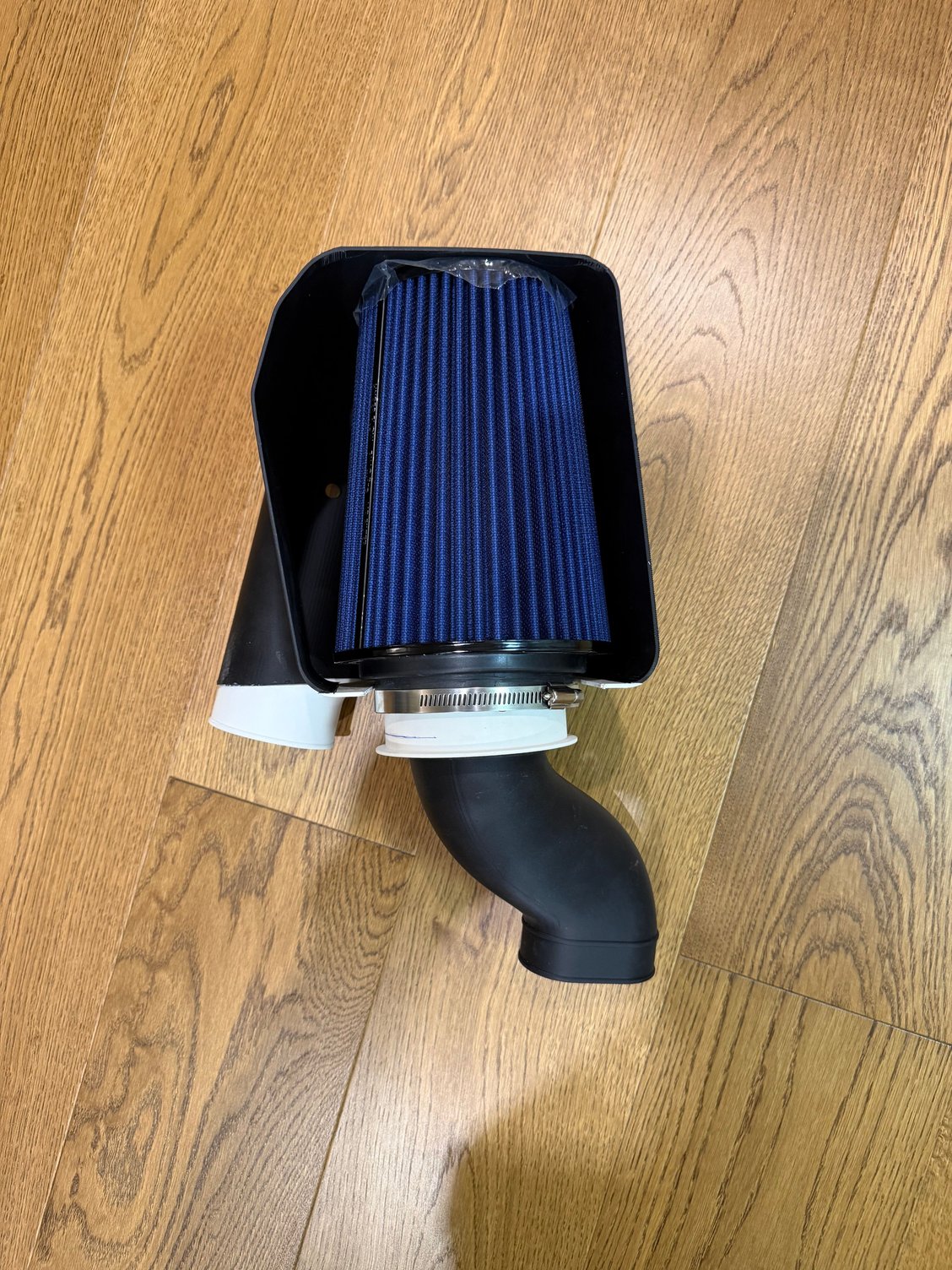

I’ll be test-fitting some new filters later today.
Note: in the photos, the air filter tube is just lying there and isn’t attached to anything.

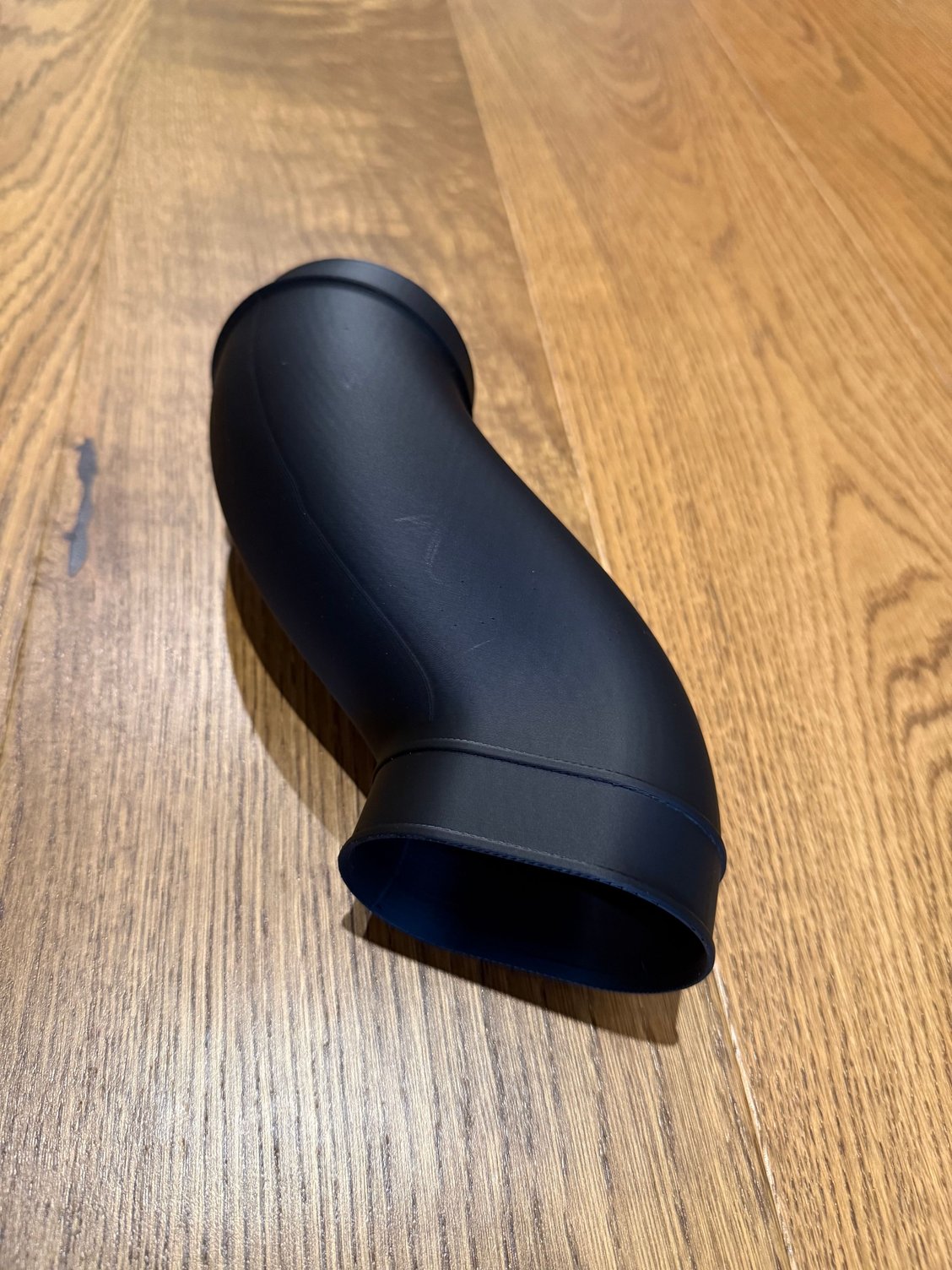

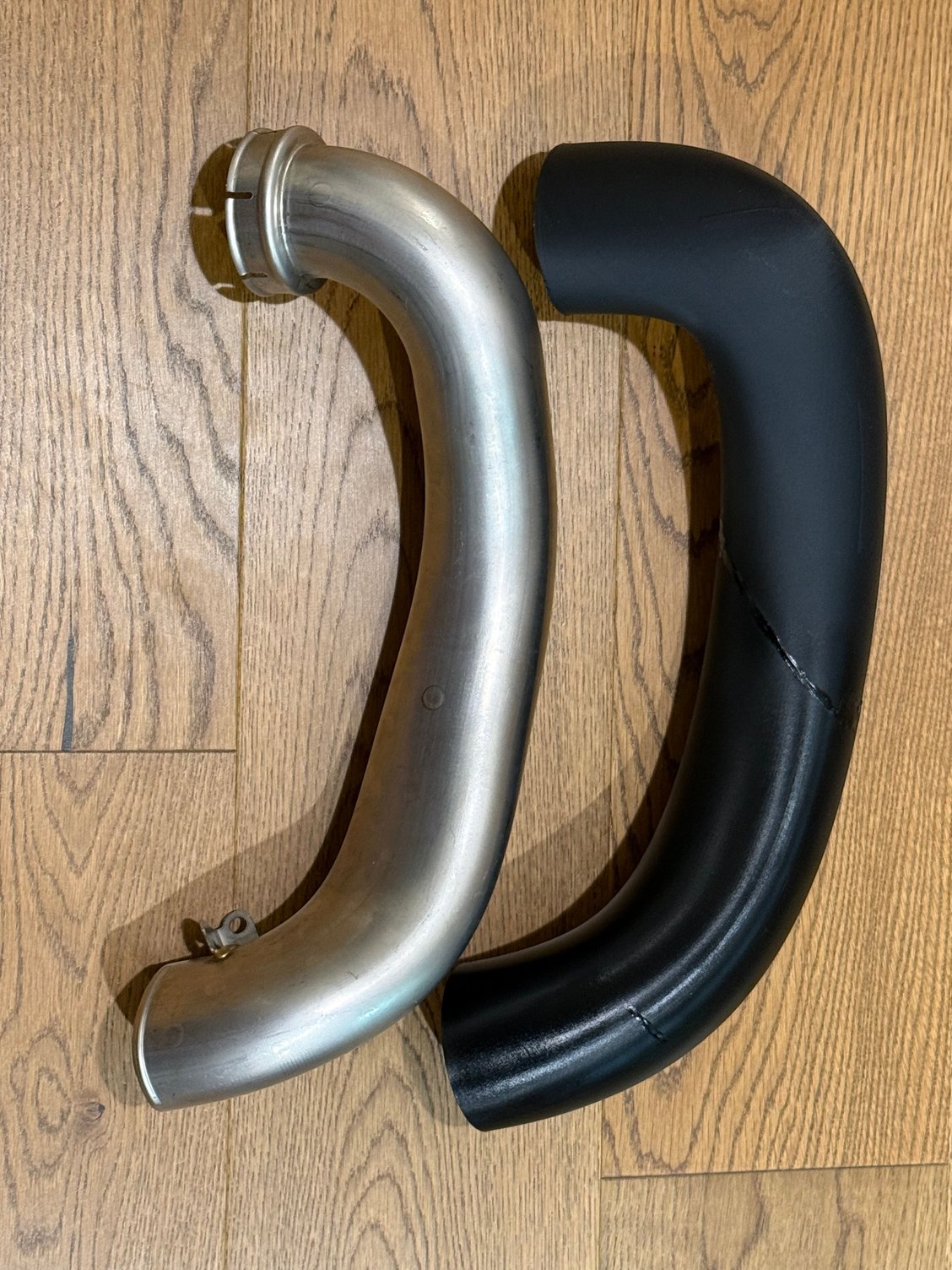

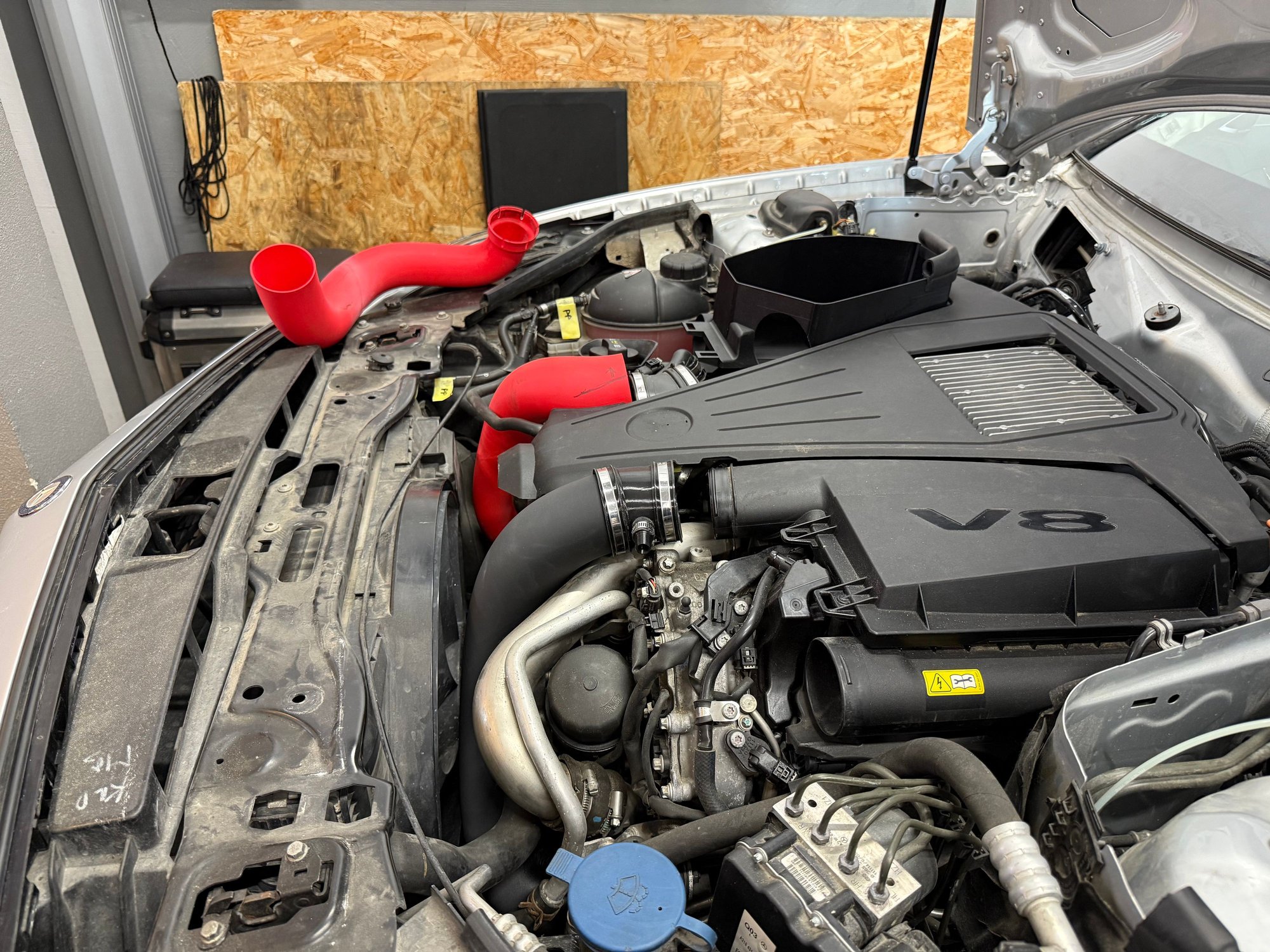

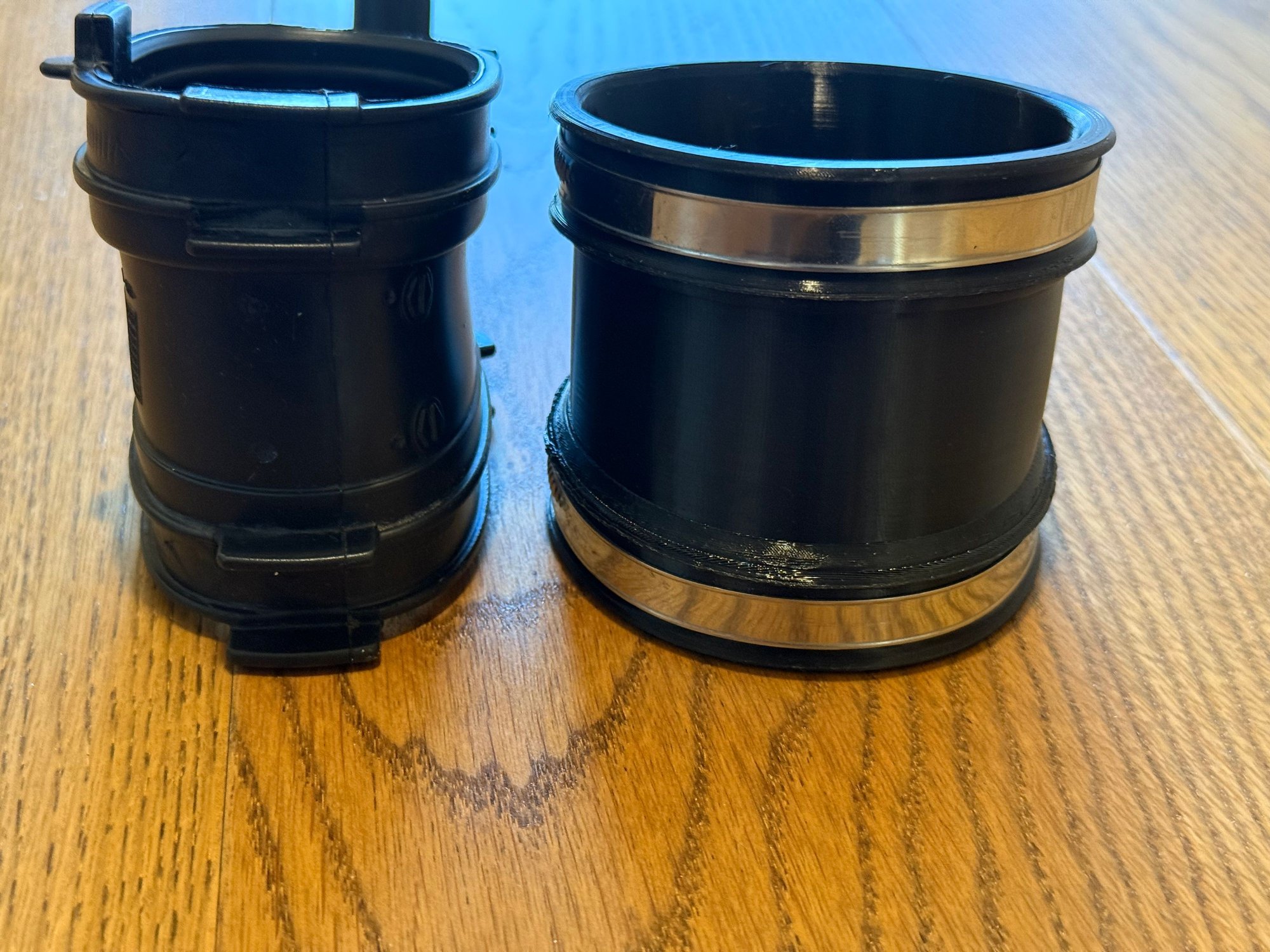

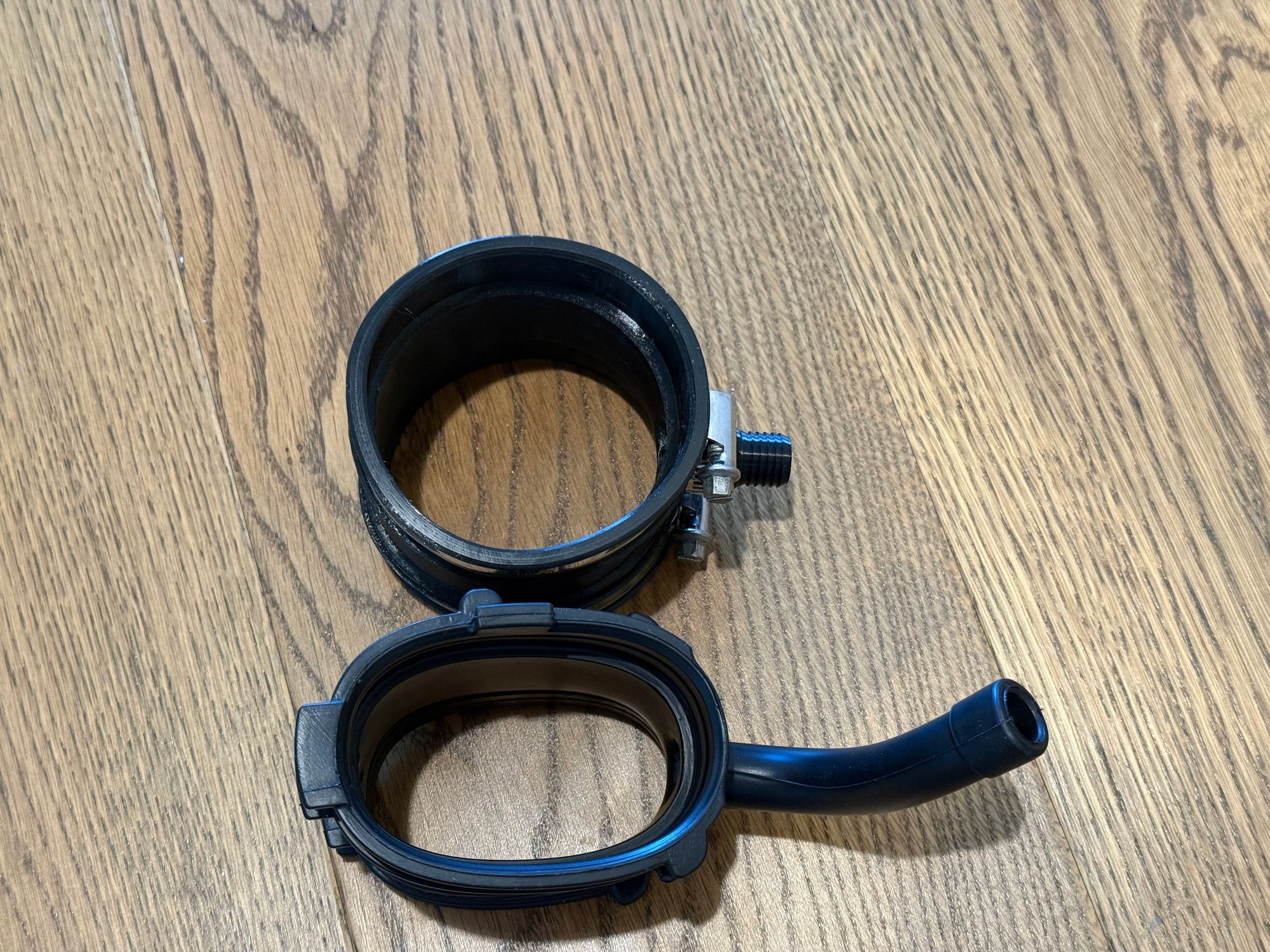

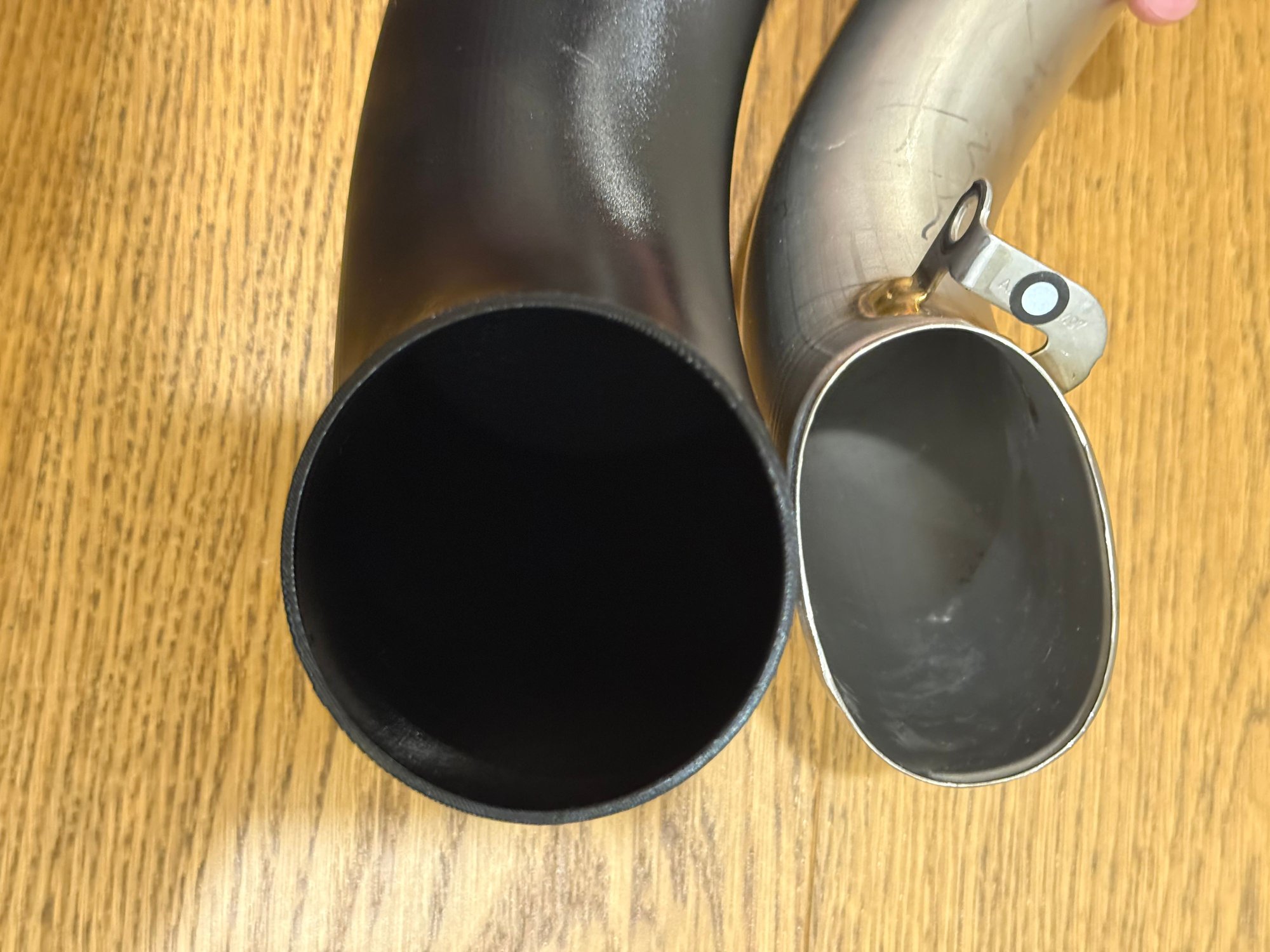

The final version uses smooth, long-radius bends with a gradual transition down to the turbo inlet and OEM-style turbo connectors. That version is currently printing (about 14 hours per pipe).
The goal is simple: maximize usable cross-section, keep the internal surface as smooth as possible, and use the available space under the hood efficiently. Test fitting with the prototype confirmed the routing works, so this print is mainly about dialing in the details.
More updates once the final pipes are test-fitted.

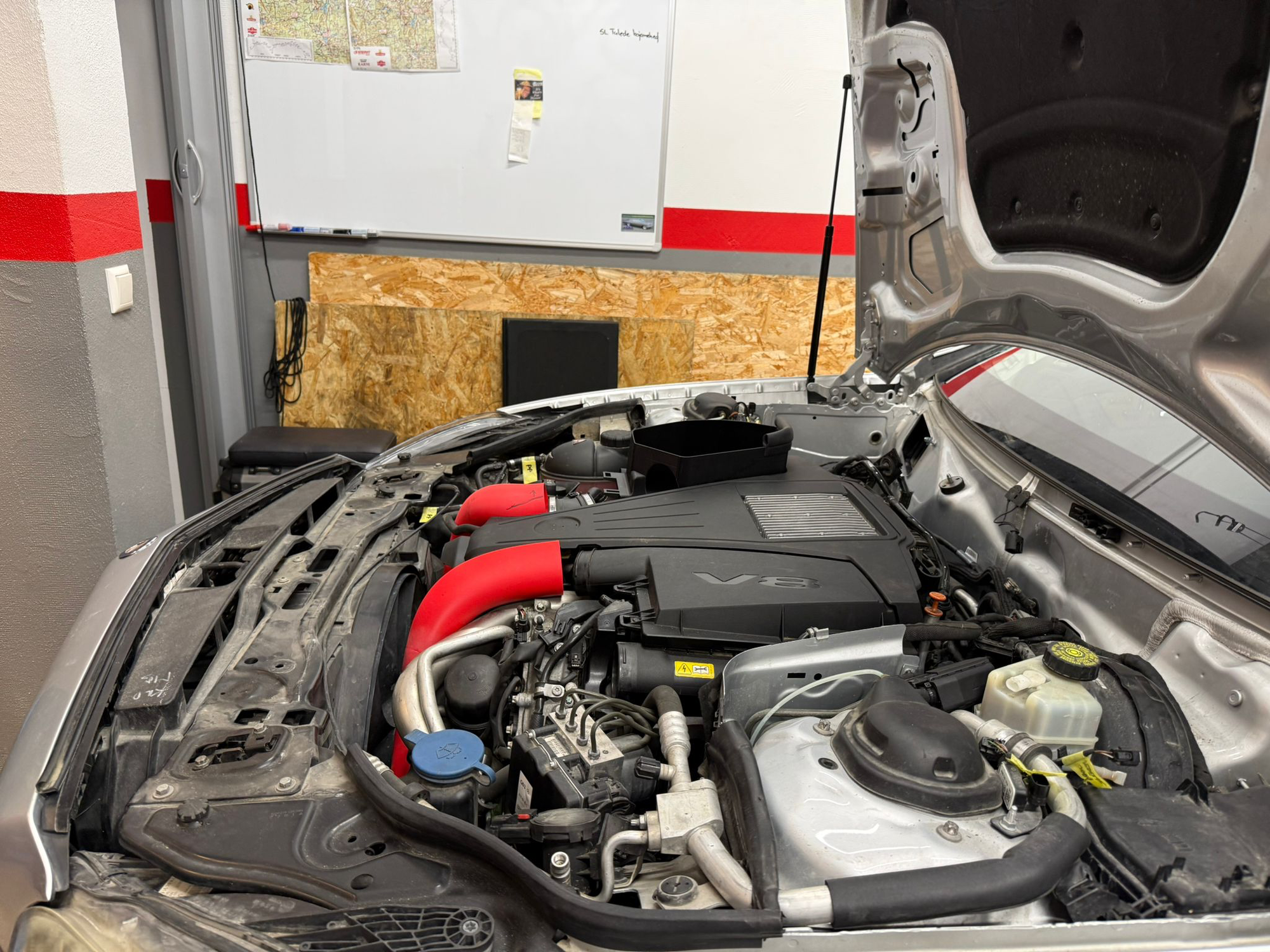

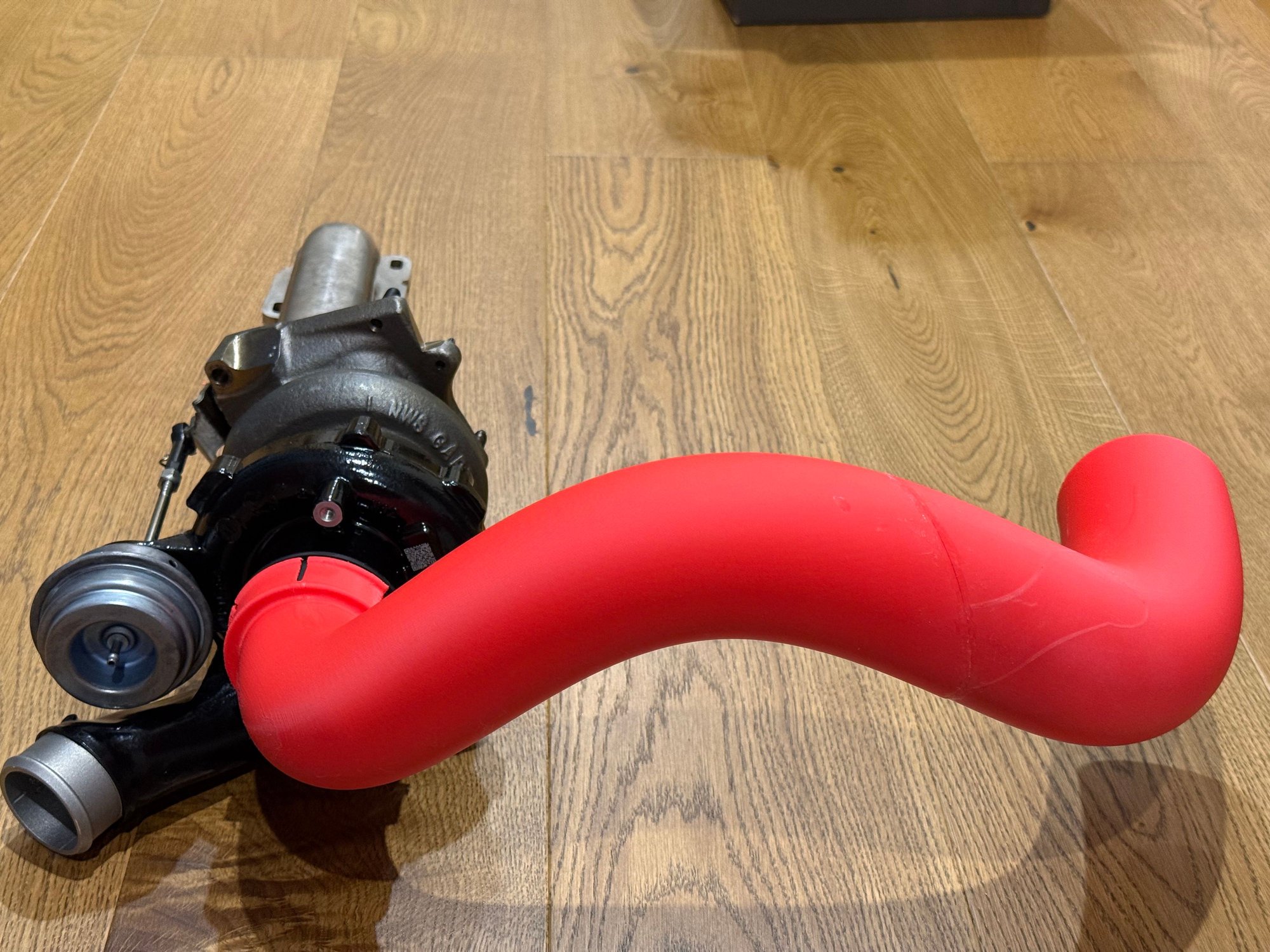

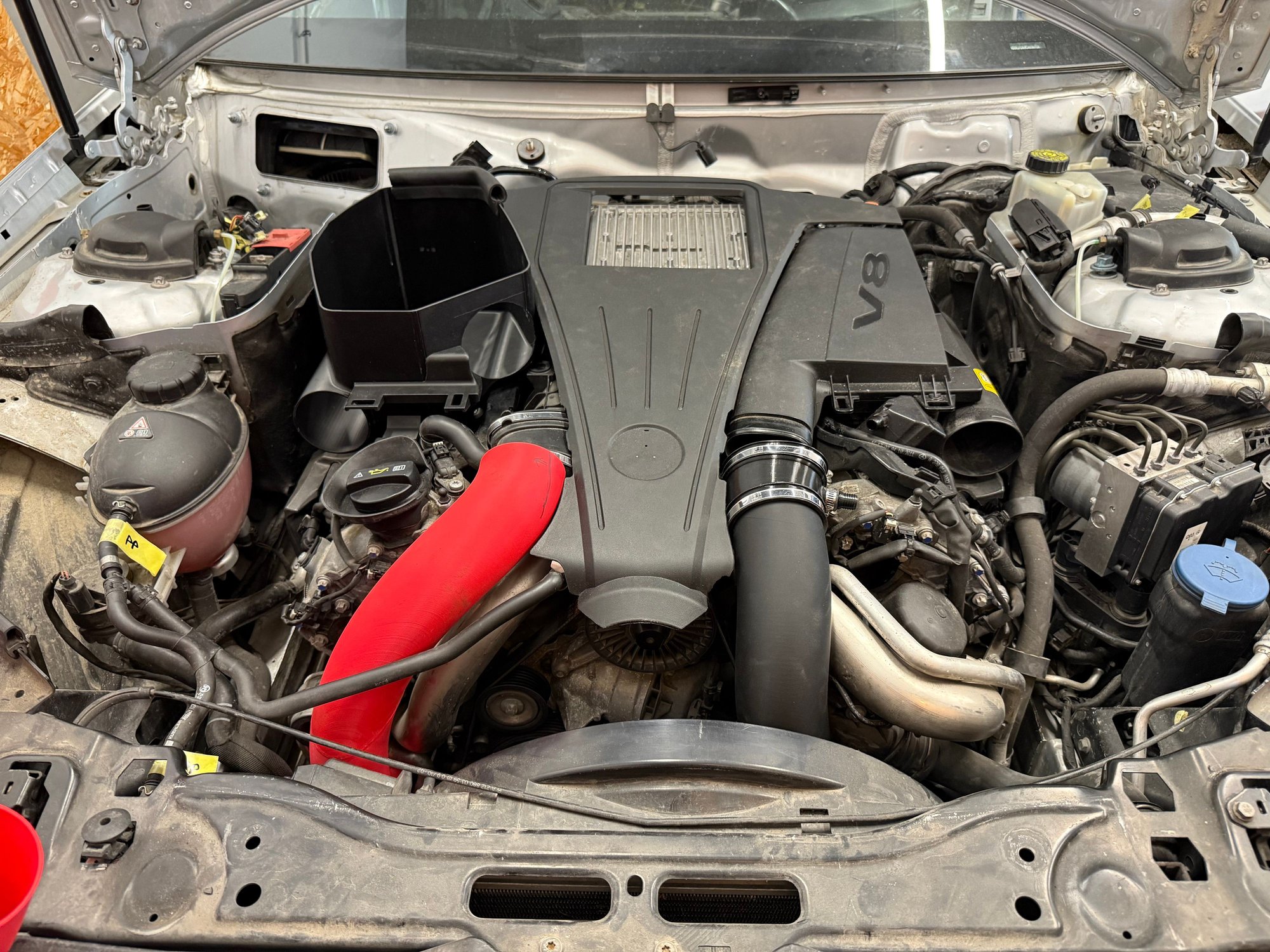

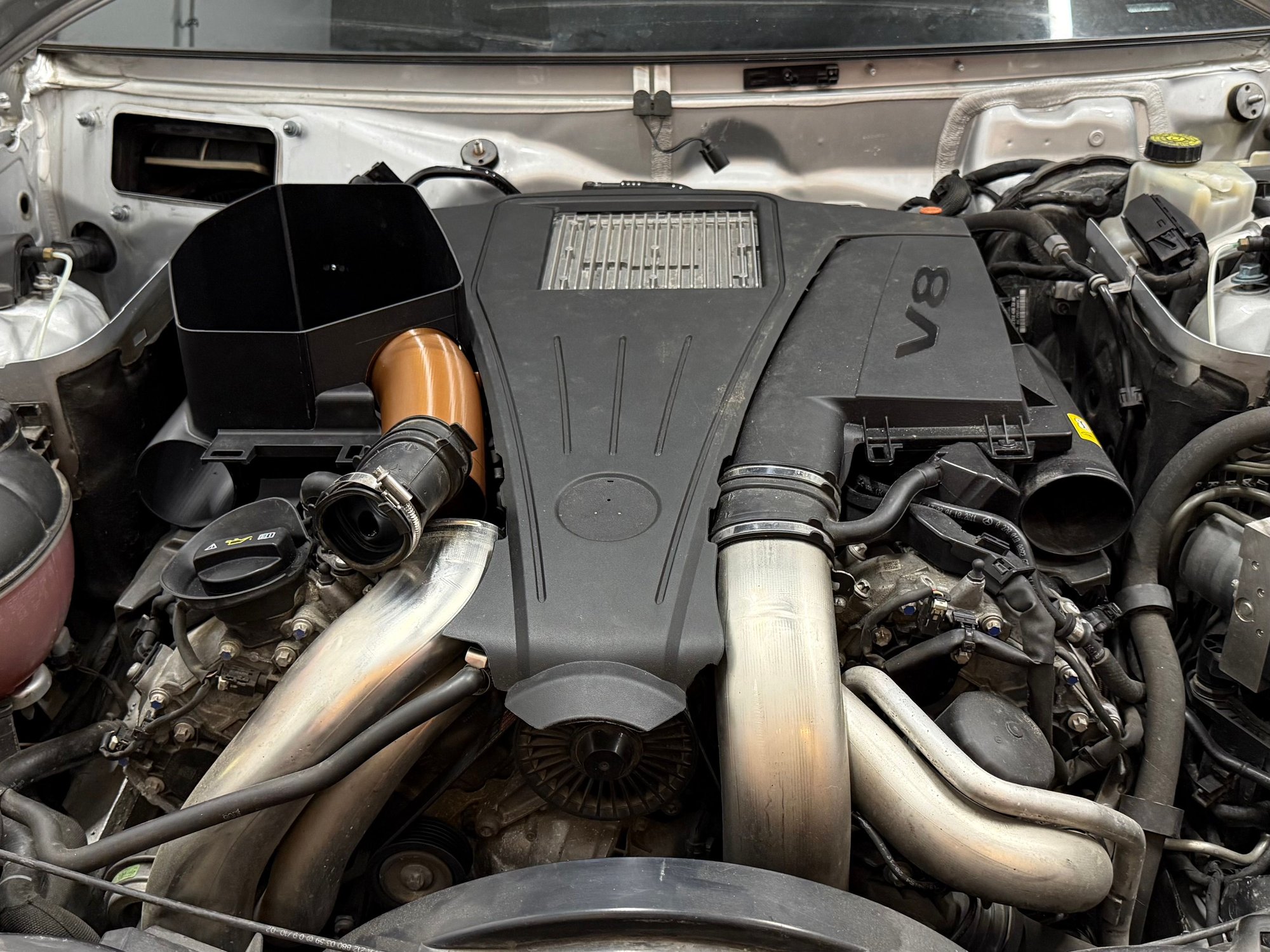

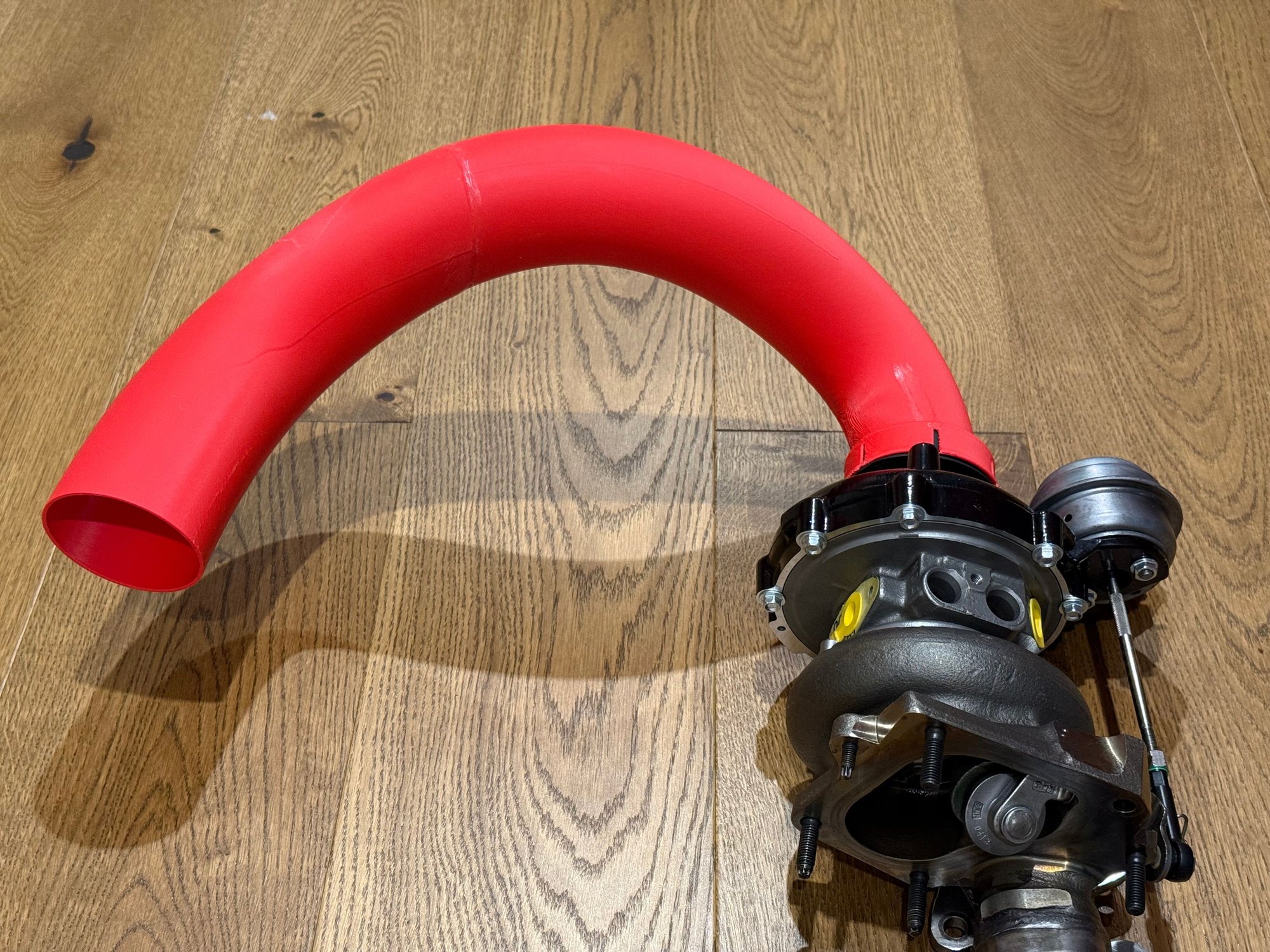

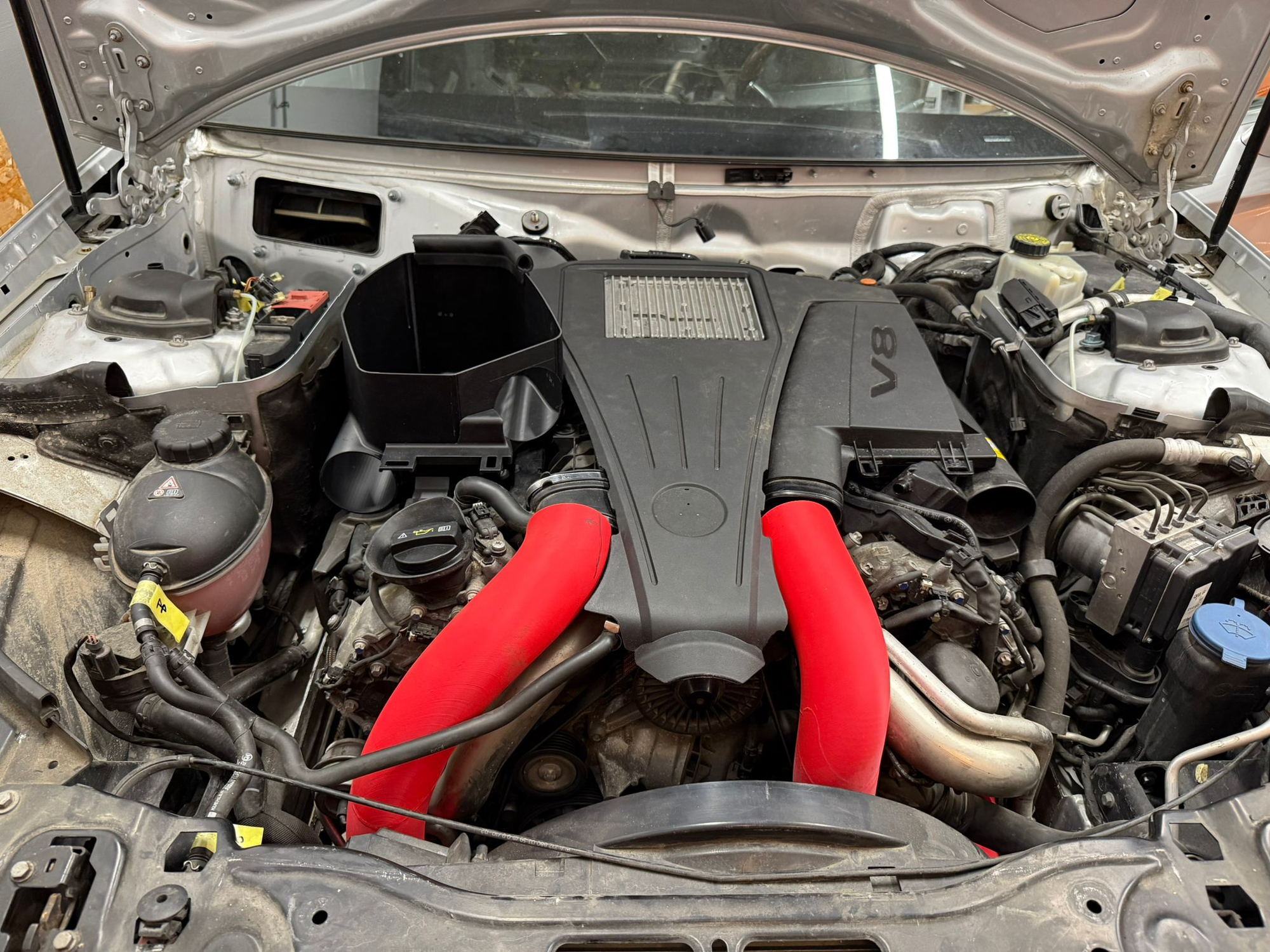

I’ve just finished printing the prototype pipe for the other side, now with the correct turbo inlet interface and a smooth taper toward the compressor.
The pipe is printed in red, which obviously makes it a performance part. Based on solid engineering logic, I therefore expect at least double the horsepower from this pipe alone. This seems realistic, considering the factory pipe currently makes exactly 0 hp while sitting on a shelf all alone.

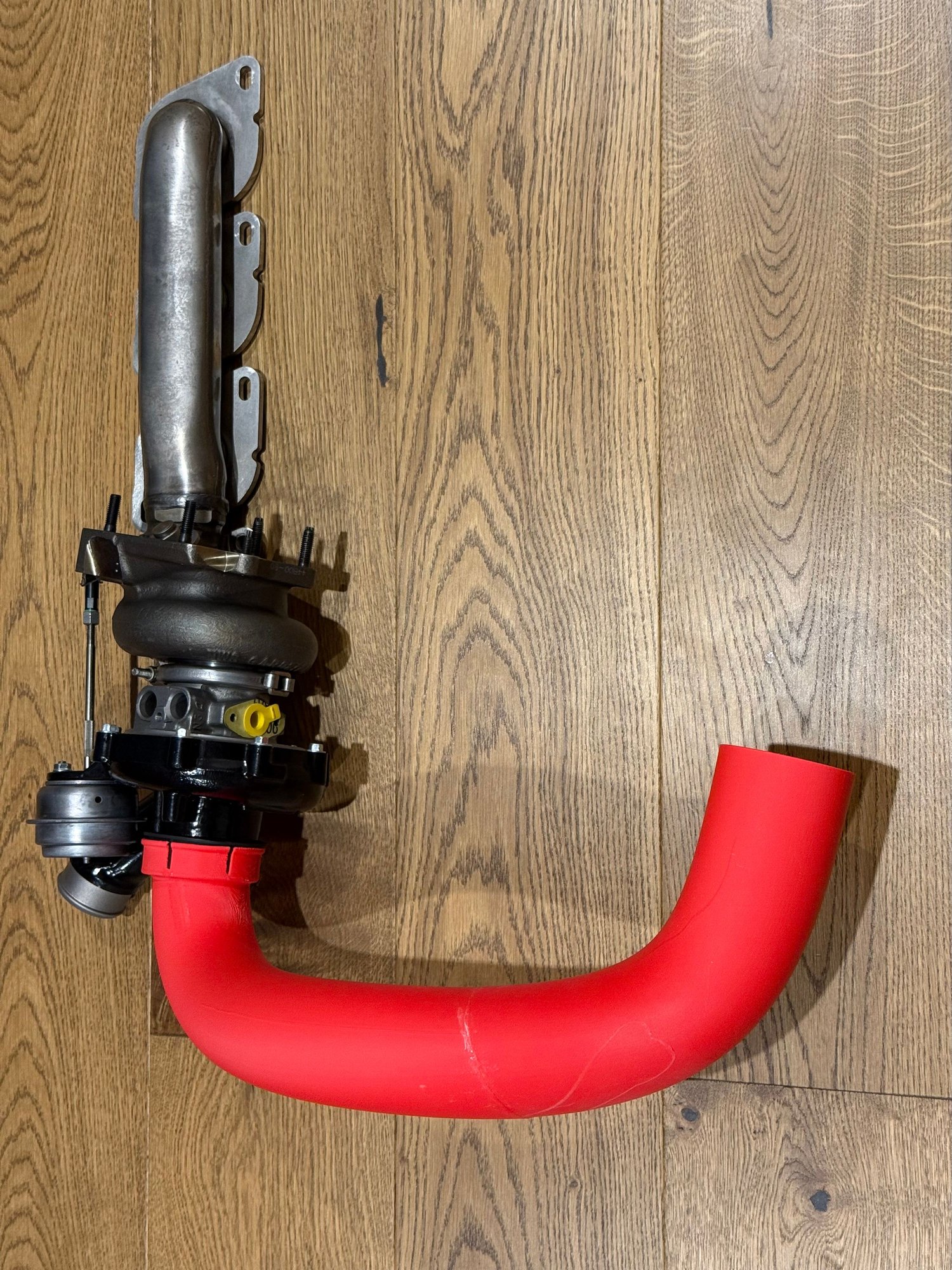

The prototype is shown on the wrong side turbo for photo purposes only.

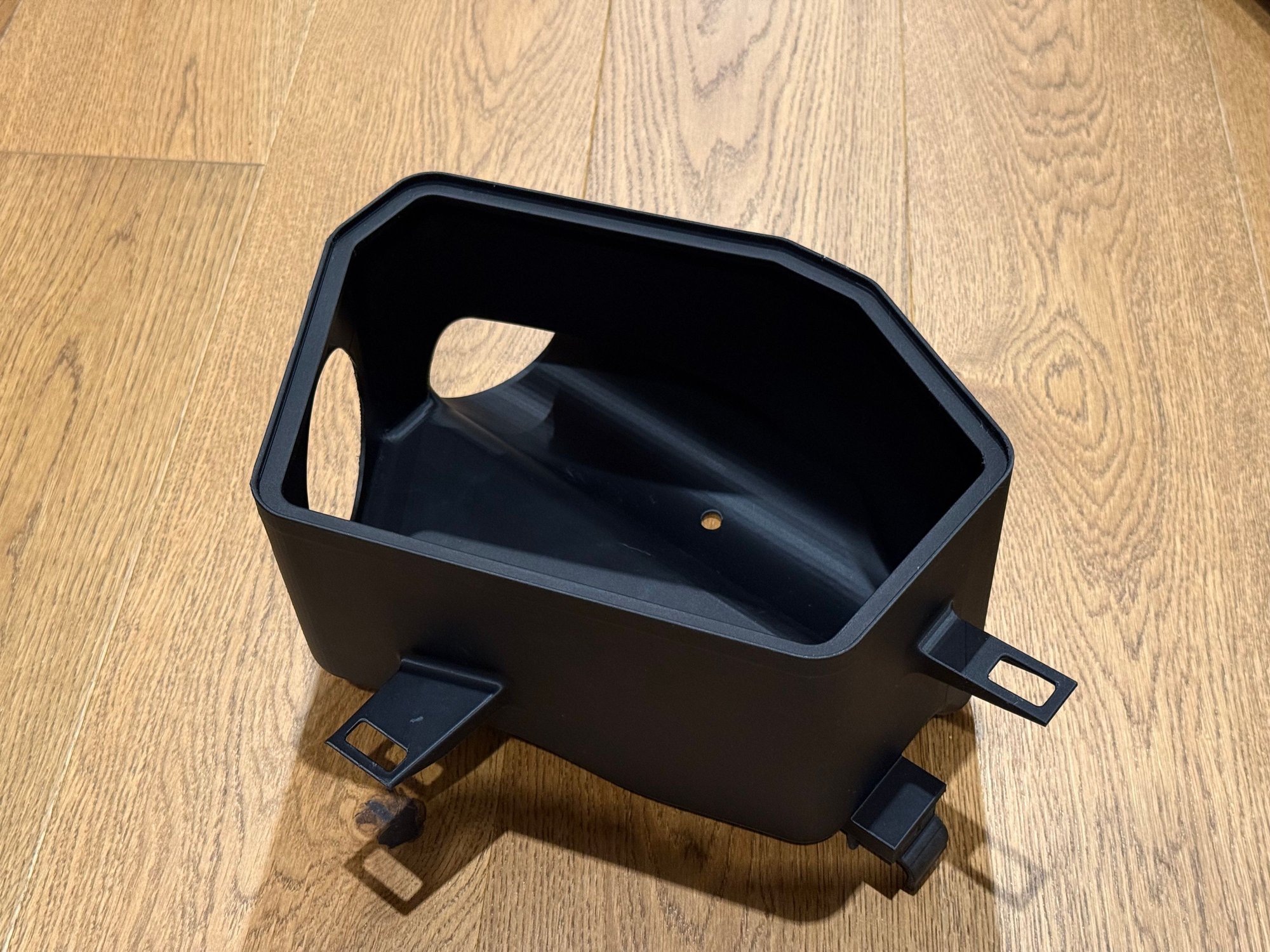

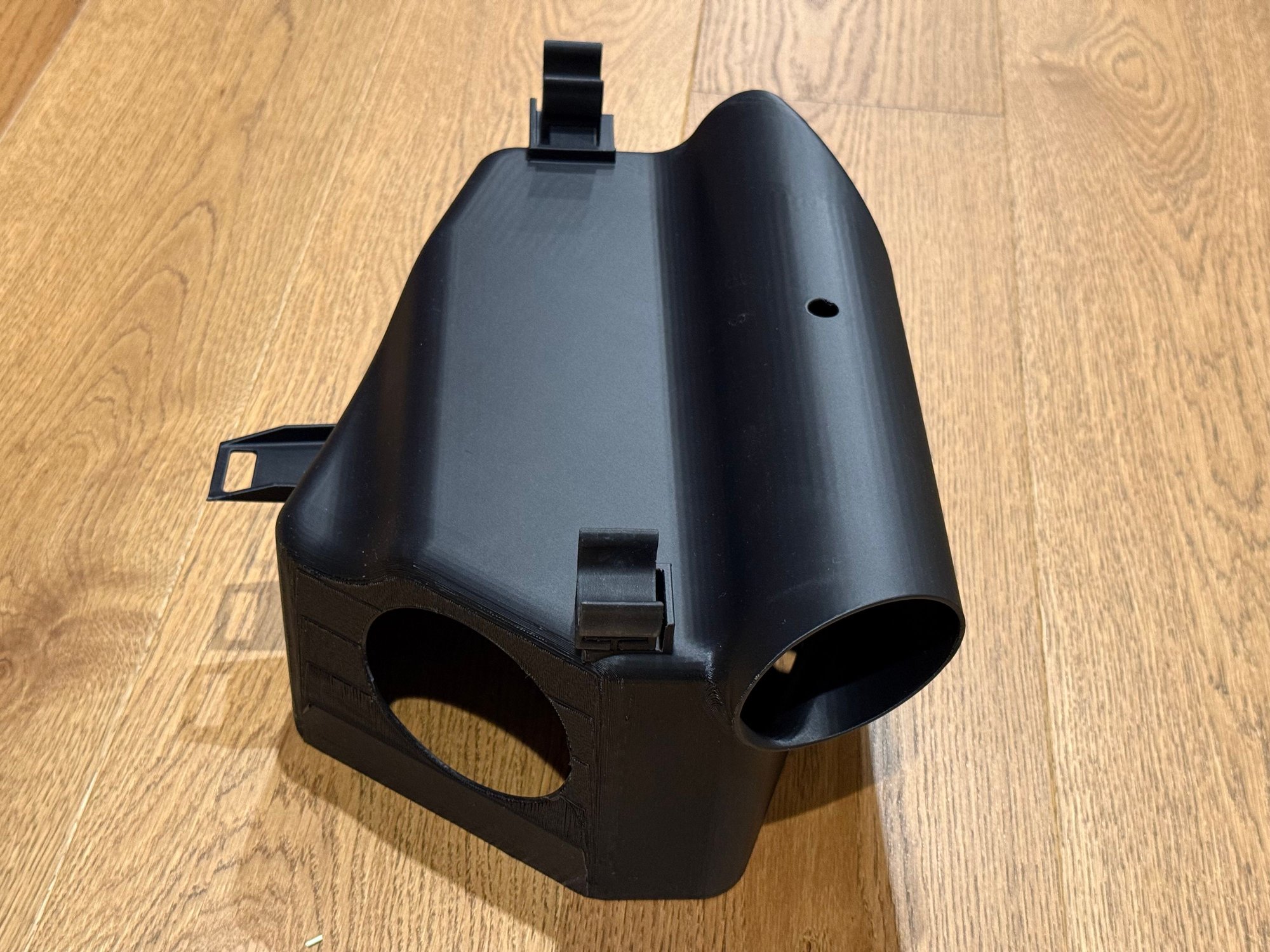

Airbox update: the airbox is pretty much finalized. It needs ~15 mm more height on the firewall side and ~10 mm less on the front side, but it already seals perfectly against the hood liner. Driver’s side box will get one last PLA print for final fitment, then it’s time for the final prints.
