DIY: Lowering an Airmatic W212 with SDS/Xentry

Hey guys,

So I finally got around to connecting my SDS/Xentry setup to my w212.

My car is a 2011 w212 e550 4matic. My Current SDS setup is a C3 Multiplexer, running the 3/2012 version of Xentry on a Dell D830 laptop off the internal hard disk. I actually have the 6/2013, setup for a d630 version as well, but haven't installed it because I haven't had to work on a car new enough where my existing setup hasn't covered it.

So ever since I got the car a couple months ago, I've noticed that the ride height was way high for my tastes, especially for a car with the sport pack and 18" AMG wheels. My 2012 c300w4 sat at least an inch lower from the factory. Since I own an SDS - I figured it was worth seeing if I could lower the car using it. I've done a few other MB's sucessfully.

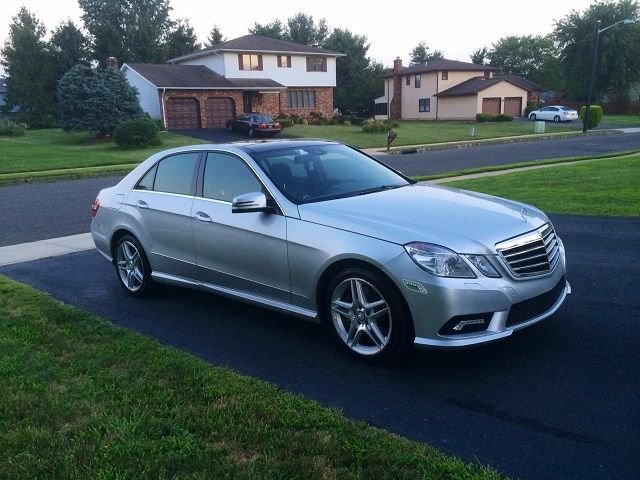

Here are a couple before pics of my car:







They aren't the greatest but the car had a 1.5-2" wheel gap. Way too high for no apparent reason.

Now you can easily lower a car with SDS but there ARE limits. If you want to "slam" a car or put it in the weeds this is prob not the method you want to use. You are better off with adjustable air ride links to fool the computer into thinking the car is sitting too high. You CAN however lower the car 30-40mm with the SDS.

First thing to do before you get started. Hit the raise button on the airmatic and wait for the car to raise. Then turn off the raise function and let the car settle on its suspension. Wait at least 2-3 minutes.

So with that having been said. Lets get started. I'm willing to do this for other people for a small contribution for my time (beer, lunch, whatever). I do own a shop and I am pretty familiar with these vehicles, plus I'm an electrical engineer by trade who has spent his career in IT. That having been said as long as you are patient, pay attention and follow directions, this is all pretty simple. I'm in central NJ.

First thing's first. You NEED to connect the car to an external charger. You need to maintain a steady source of 12v power to the car while you are connected to the SDS. If the voltage drops too low, you risk damaging the electronics in the car, or possibly rendering a module useless. I prefer doing most of my modifications while the car is off, but the ignition is on. The SAME also goes for the laptop. You do not want the software or the pc shutting down mid session because of the laptop running out of battery. Better safe than sorry.

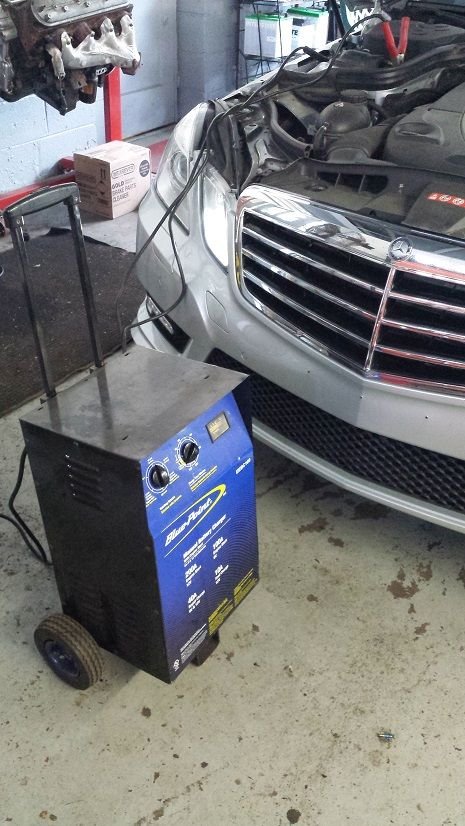

On the v8 cars, there is a charging post under the hood, I connected our shop's charger to that charging post and set it at 10A charging.




Next I booted up the laptop, connected the multiplexer to the obd port and started xentry.

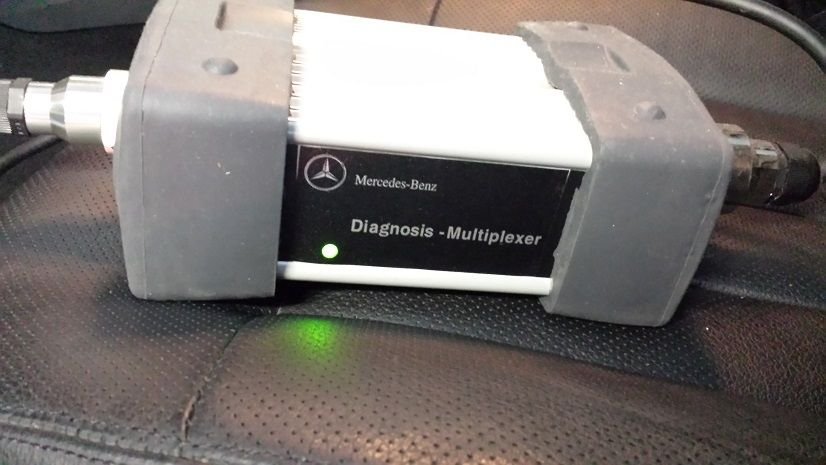

C3 Multiplexer:




I leave the mutiplexer on the driver's seat an run the cable with the serial port out of the open driver's door window.

I used a stool to support the laptop. Here's what my setup looks like. Car on charger, laptop plugged into AC power, multiplexer connected.



Now start Xentry





Let xentry do it's auto tests and determine the vehicle by READING the vin. Don't try to guess, if you guess wrong it will tell you there is a conflict between the vin and the vehicle you chose.

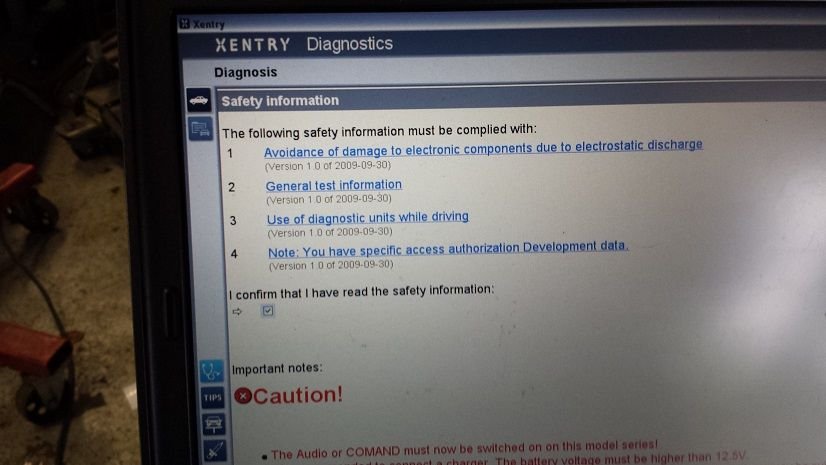

Once the vehicle is detected it will give you a screen full of warnings.




One thing to note here. On a w212 - command must be ON in order to proceed, so hit the button to turn it on. I initially had it off and then turned it off to comply. Hit the continue button on the bottom right of the screen.

Next select the control unit you wish to work on. Easiest way to do is it to type airmatic into the search screen. On a w212 it will say AIRMATIC (N51/3)

Click on it and let it open the control unit page for the airmatic control module. Then click on the adaptations tab.

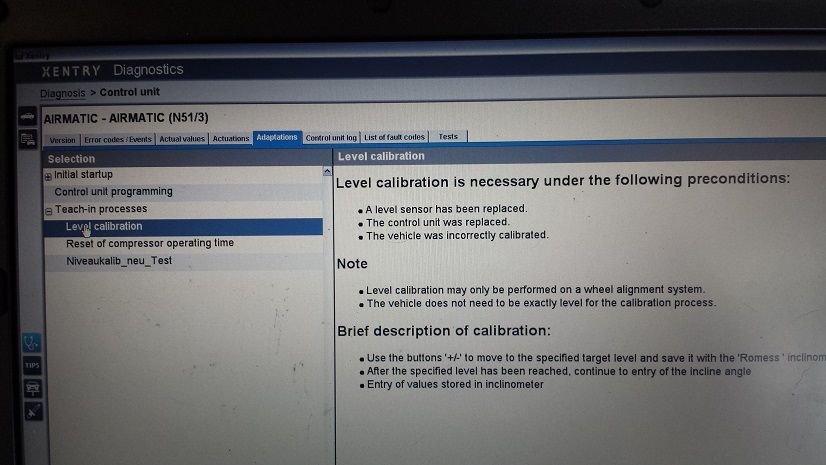

Now hit the plus sign on the left under teach in processes. then click level calibration. Your screen should look as above.

Hit continue on the right, you will get a message that the airmatic unit is already calibrated and do you want to continue and erase the existing calibration.

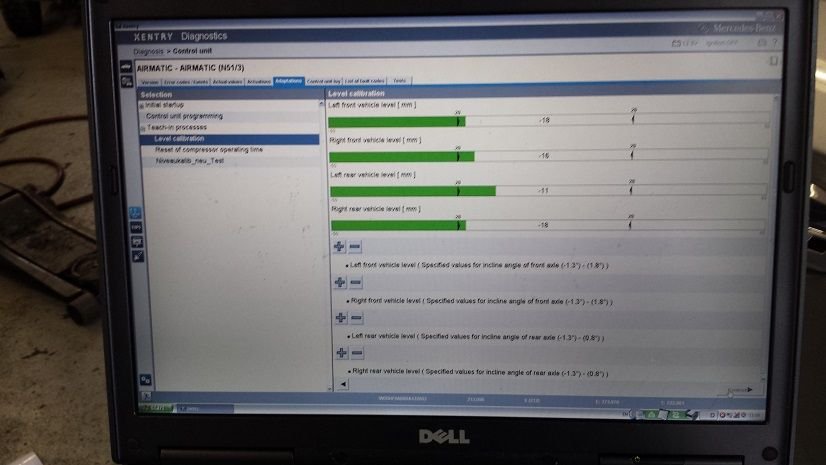

That will get you to this screen:




Your screen will look different, especially at stock height. What you need to do here is use the plus and minus keys to manually set your ride height to your taste. Do not tap the plus and minus keys, stand on them with the mouse and you will see and hear each corner of the car raising / lowering. You need to set this by eye / tape measure to ensure the car sits evenly and to your liking.. The numbers on each level simply represent where the sensor voltage is currently reading, they do NOT indicate a ride height measurement. The only restriction you have is that you have to keep each wheel within the green range. You will notice that changing the front will effect the height of the rear and vice versa. Take your time, and don't be afraid to redo it until it sits the way you want to. I basically set my car at about a 1 1/2 finger gap all around. It took a bit of fiddling to get it right and level. If any sensor goes into the red you HAVE to raise it back into the green level before you can continue. The module will not accept any sensor sitting in the red range, and you will not be able to calibrate the module. The above values are where I stopped and was content with the new ride height of my car. As you can see I still had a bit of lowering left if I wished, but again, my intent was not to slam the car. My car sits a tad bit lower (wheel gap wise) than my w204 c300w4 with the factory sports suspension sits now.

Once you have the levels where you want them, hit continue on the bottom. You will then see a screen asking for the inclination angles for all 4 wheels. This is basically to compensate for the floor's level. MB uses a specific device to measure these angles when the car is on their alignment rack. You can enter any combination of acceptable values (I used -1.3 on all values) assuming the floor was level all around. It was a calculated guess but it seemed to come out fine. The car still has the same basic forward leaning rake as it did but it looks right. Once you enter the inclination angles, select continue to finish and "calibrate" the values. Make sure you get a calibration successful message, otherwise if you get an error, you need to redo it. note: it will save the prior values. If the calibration went ok you will get this screen.




Once you get the level calibration successful message. Disconnect your multiplexer and the battery charger. Then get in the car and start it. Hit the airmatic up button, let the car rise, and then turn off the raise mode, and let the car settle into it's new ride height. Once that is done, take the car for a ride, it will feel a BIT firmer, but nothing crazy. Repeat the raise, wait, lower, wait and the car will settle into it's final ride height.

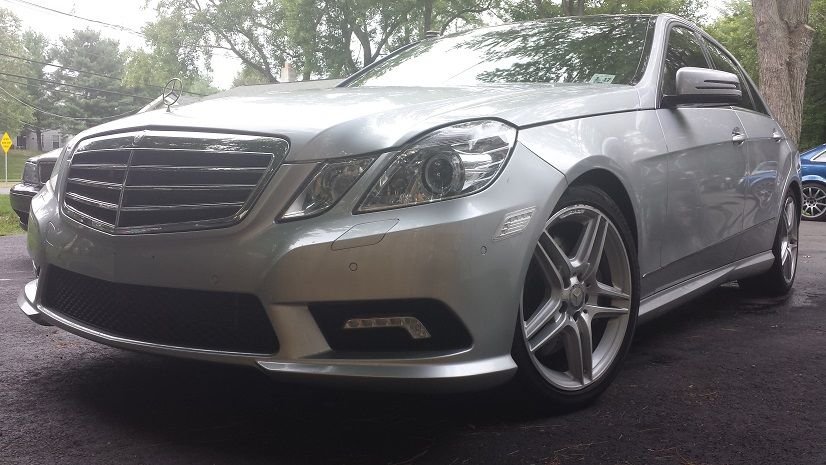

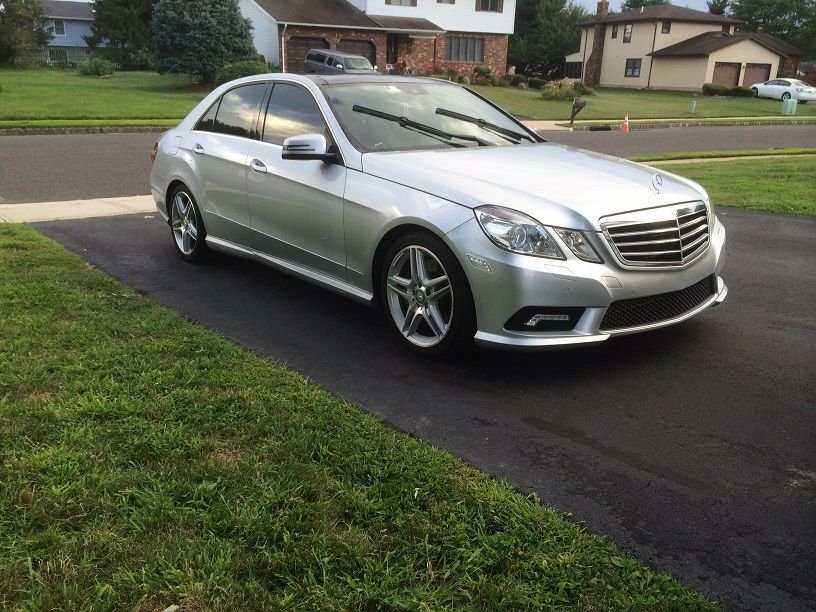

Now here are some pics of the new ride height, which I think is how the car should have came from MB in the first place:












Hope this helps, as I've wasn't able to find the procedure documented anywhere online.

Take care,

George

Last edited by dirtyguido; 08-23-2014 at 10:00 PM.
dirtyguido is offline
The following 2 users liked this post by dirtyguido:
Oda112 (06-06-2018), TeeEl (04-12-2019)
Old 02-04-2015, 02:10 AM
  #2
Senior Member

Join Date: Dec 2010
Posts: 351
Received 4 Likes on 4 Posts
A4
I'm about to go through with this but don't have a battery charger. Will it be safe if I just leave my E550 running while adjusting the airmatic settings?
Chris_tA_4 is offline
Old 02-04-2015, 02:16 AM
  #3
Senior Member

Join Date: Dec 2010
Posts: 351
Received 4 Likes on 4 Posts
A4
Great write up btw, really useful information in here.
Chris_tA_4 is offline
Old 02-04-2015, 04:42 PM
  #4
Member

Join Date: Dec 2014
Location: Toronto, ON
Posts: 102
Likes: 0
Received 0 Likes on 0 Posts
2010 E550 4Matic, P1, P2
New set up looks great, agree the factory hight is way to high for no real apparent reason
Sean1234 is offline
Old 05-28-2015, 03:42 AM
  #5
Newbie

Join Date: May 2015
Posts: 2
Likes: 0
Received 0 Likes on 0 Posts
W212
Hi

Thanks for this DIY.
I have tried to lower a 2015 W212 4matic. Calibration was successful but after a minute the cars goes back to default height. Tried a few times even with Command on but nothing worked.
Any ideas on this?
exples is offline
Old 05-28-2015, 08:31 AM
  #6
Senior Member

more_amg's Avatar

Join Date: Apr 2012
Location: Denver, CO
Posts: 280
Likes: 0
Received 0 Likes on 0 Posts
2019 GLC 63 AMG
you, probably, tried to set it too low. When your setting are outside the limits, ECU will reset height back to stock. I went through this myself. Go back a little in the settings and everything should go .
more_amg is online now
Old 05-28-2015, 08:49 AM
  #7
Newbie

Join Date: May 2015
Posts: 2
Likes: 0
Received 0 Likes on 0 Posts
W212
Originally Posted by more_amg View Post
you, probably, tried to set it too low. When your setting are outside the limits, ECU will reset height back to stock. I went through this myself. Go back a little in the settings and everything should go .
Even if its inside the green rage?
Thats right i set it at the minimum maybe 2-3 mm above red range. Did not tried higher because i wanted it so low
exples is offline
Old 05-29-2015, 09:35 AM
  #8
Super Member

RNBRAD's Avatar

Join Date: Sep 2006
Location: Oklahoma
Posts: 753
Received 5 Likes on 4 Posts
W211 E320 & W212 E550
Wow great thread!! What's the cost of the program and multiplyer? My cars out of warranty so I could easily have MB service tech do the same thing but would love to be able to do this myself without buying a 1000 dollar module. My car sits low already so not sure if it will go much lower.
RNBRAD is offline
Old 05-31-2015, 08:07 PM
  #9
Member

DJ Hellfire's Avatar

Join Date: Apr 2015
Posts: 187
Received 2 Likes on 2 Posts
2013 E350 Sport
Impressive! Just need to top it off with some wheel spacers (or new wheels).
DJ Hellfire is offline
Old 06-02-2015, 04:05 AM
  #10
Member

Mrmendoza's Avatar

Join Date: Apr 2014
Location: Sacramento
Posts: 124
Received 5 Likes on 5 Posts
E350
Excellent write up! Nice pics btw
Mrmendoza is offline
Old 06-03-2015, 09:10 PM
  #11
Senior Member

Join Date: Dec 2010
Posts: 351
Received 4 Likes on 4 Posts
A4
I plan on doing this very soon, just don't have a battery charger. Will this battery charger from NAPA be good enough to maintain battery charge during SDS use??

http://www.napaonline.com/Catalog/CatalogItemDetail.aspx/Battery-Charger-10-2-55-Amp-12-Volt-Automatic-Bench/_/R-NBC85435_0006389653
Chris_tA_4 is offline
Old 06-03-2015, 09:25 PM
  #12
Super Member

Ed99's Avatar

Join Date: May 2014
Location: Vancouver BC
Posts: 743
Received 25 Likes on 23 Posts
E63s AMG
Originally Posted by Chris_tA_4 View Post
I plan on doing this very soon, just don't have a battery charger. Will this battery charger from NAPA be good enough to maintain battery charge during SDS use??

http://www.napaonline.com/Catalog/Ca...435_0006389653
Would this work for adjusting the stiffness?
Ed99 is online now
Old 06-27-2015, 10:15 AM
  #13
MBWorld Fanatic!

Diesel Benz's Avatar

Join Date: Dec 2006
Location: Europe
Posts: 5,247
Received 32 Likes on 31 Posts
222.132 & 221.122 & 213.050 & 906.633
Originally Posted by Chris_tA_4 View Post
I plan on doing this very soon, just don't have a battery charger. Will this battery charger from NAPA be good enough to maintain battery charge during SDS use??

http://www.napaonline.com/Catalog/Ca...435_0006389653
More than enough. 25 A would be fine. You can do it even without any charger if you don't spend a lot of time adjusting the level for each corner and can always run the engine if needed.
Diesel Benz is offline
Old 06-27-2015, 10:16 AM
  #14
MBWorld Fanatic!

Diesel Benz's Avatar

Join Date: Dec 2006
Location: Europe
Posts: 5,247
Received 32 Likes on 31 Posts
222.132 & 221.122 & 213.050 & 906.633
Originally Posted by Ed99 View Post
Would this work for adjusting the stiffness?
No.
Diesel Benz is offline
Old 06-27-2015, 01:13 PM
  #15
Super Member

Ed99's Avatar

Join Date: May 2014
Location: Vancouver BC
Posts: 743
Received 25 Likes on 23 Posts
E63s AMG
Originally Posted by Diesel Benz View Post
No.
Darn and is there any way the stiffness can be adjusted?
Ed99 is online now
Old 12-03-2015, 11:22 PM
  #16
Member

Join Date: Mar 2015
Location: NEW JERSEY
Posts: 206
Likes: 0
Received 6 Likes on 6 Posts
W203 C32 AMG...W221 S63...SOLD...W212 E63 CURRENT
I have a c3 using fell and I can't connect my w212 any help I would appreciate
xheamgbenz is offline
Old 07-13-2018, 11:23 PM
  #17
MBWorld Fanatic!

belarus27's Avatar

Join Date: Jun 2013
Location: Sacramento , CA
Posts: 1,802
Received 154 Likes on 145 Posts
2010 e550 p2
Old one , but helped me today. Thanks
belarus27 is offline
Old 07-14-2018, 09:41 PM
  #18
MBWorld Fanatic!

Join Date: Dec 2015
Location: Charlotte, NC
Posts: 1,022
Received 54 Likes on 52 Posts
2014 E350 4M Diamond Silver
Originally Posted by Ed99 View Post
Darn and is there any way the stiffness can be adjusted?
hello,
what is the location from your signature pic please.
thanks.
raja777m is offline
Old 07-29-2018, 06:33 PM
  #19
MBWorld Fanatic!

belarus27's Avatar

Join Date: Jun 2013
Location: Sacramento , CA
Posts: 1,802
Received 154 Likes on 145 Posts
2010 e550 p2
Yea , im aware of those , i also got lowering links on for like 5 years already.
i had to use SDS/XENTRY because my suspension had a glitch/fault. So it had to be recalibrated through it. Which helped.
Im not ready to spend 5 bills on a lowering module , i know it might be very practical... but i dont adjust it everyday. I set it at one height and it works. So yea.....
thank you for your help
belarus27 is offline
Old 08-22-2018, 01:34 PM
  #20
Banned

Join Date: Jun 2018
Posts: 14
Received 2 Likes on 2 Posts
w222
GOOD
Merss is offline
Old 04-12-2019, 04:00 AM
  #21
Newbie

Join Date: Apr 2019
Posts: 5
Likes: 0
Received 0 Likes on 0 Posts
W213
Hey Guys,

does anybode know how to do this on an W213 with Air Body Control (ABC)?

There is no menu poit "level calibration" just "niveau calibration"...

Hope you can help me.

Thank you
Ghosty91 is offline
