Where does the intermediate shaft spline end go?
Original post did not include this ...

The end closest to the bearing inserts into the left CV inner shaft. But where does the other splined end go? The front diff gear box?








Last edited by mercerized; Jan 2, 2025 at 03:35 PM. Reason: clarification
Reply
0
Old Jan 2, 2025 | 03:36 PM
Share
  #2
ChuangTzu's Avatar
ChuangTzu
Super Member
Photogenic
Liked
Loved
Community Favorite

Joined: Mar 2024
Posts: 618
Likes: 241
From: Chicago
19 GLA45, 86 560SL, former: 14 E550 4Matic, 09 E350 4Matic, 83 240D manual, 78 450SLC, 81 500SLC
Originally Posted by mercerized
where does the other splined end go? The front diff gear box?
Yep, it goes into the front diff "fill port"
Reply
0
Old Jan 2, 2025 | 03:38 PM
Share
  #3
ChuangTzu's Avatar
ChuangTzu
Super Member
Photogenic
Liked
Loved
Community Favorite

Joined: Mar 2024
Posts: 618
Likes: 241
From: Chicago
19 GLA45, 86 560SL, former: 14 E550 4Matic, 09 E350 4Matic, 83 240D manual, 78 450SLC, 81 500SLC
What I want to know is how to change that bearing...
Reply
0
Old Jan 2, 2025 | 03:39 PM
Share
  #4
ChuangTzu's Avatar
ChuangTzu
Super Member
Photogenic
Liked
Loved
Community Favorite

Joined: Mar 2024
Posts: 618
Likes: 241
From: Chicago
19 GLA45, 86 560SL, former: 14 E550 4Matic, 09 E350 4Matic, 83 240D manual, 78 450SLC, 81 500SLC
I haven't watched it yet, but this video probably answers both of our questions:

Reply
0
Old Jan 2, 2025 | 06:10 PM
Share
  #5
mercerized's Avatar
mercerized
Thread Starter
Member
5 Year Member
Liked
Loved
Community Favorite

Joined: May 2018
Posts: 214
Likes: 66
From: SoCal
2020 E450 4matic wagon
thats a good video. But it does not get into the gear box.
Reply
0
Old Jan 2, 2025 | 06:40 PM
Share
  #6
mercerized's Avatar
mercerized
Thread Starter
Member
5 Year Member
Liked
Loved
Community Favorite

Joined: May 2018
Posts: 214
Likes: 66
From: SoCal
2020 E450 4matic wagon
Originally Posted by ChuangTzu
What I want to know is how to change that bearing...
Slide hammer the entire sub assembly.
Reply
0
Old Jan 2, 2025 | 09:00 PM
Share
  #7
ChuangTzu's Avatar
ChuangTzu
Super Member
Photogenic
Liked
Loved
Community Favorite

Joined: Mar 2024
Posts: 618
Likes: 241
From: Chicago
19 GLA45, 86 560SL, former: 14 E550 4Matic, 09 E350 4Matic, 83 240D manual, 78 450SLC, 81 500SLC
Originally Posted by mercerized
thats a good video. But it does not get into the gear box.
How so?
Reply
0

Trending Topics

Old Jan 2, 2025 | 09:01 PM
Share
  #8
ChuangTzu's Avatar
ChuangTzu
Super Member
Photogenic
Liked
Loved
Community Favorite

Joined: Mar 2024
Posts: 618
Likes: 241
From: Chicago
19 GLA45, 86 560SL, former: 14 E550 4Matic, 09 E350 4Matic, 83 240D manual, 78 450SLC, 81 500SLC
Originally Posted by mercerized
Slide hammer the entire sub assembly.
That's always one way...
Reply
0
MB World Stories

The Best of Mercedes & AMG

story-0

6 Mercedes Models That Did NOT Age Well (But Are Somehow Still Cool)

 Verdad Gallardo
story-1

Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun

 Verdad Gallardo
story-2

Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren

 Verdad Gallardo
story-3

8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine

 Verdad Gallardo
story-4

Flawlessly Restored Mercedes 190E Evo II Heads to Auction

 Verdad Gallardo
story-5

Electric Mercedes C-Class Unveiled: 11 Things You Need to Know

 Verdad Gallardo
story-6

Mercedes EQS Gets A Major Update: Everything You Need to Know

 Verdad Gallardo
story-7

5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve

 Verdad Gallardo
story-8

Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping

 Verdad Gallardo
story-9

10 Most Reliable Mercedes-Benz Models You Can Buy Used

 Verdad Gallardo
Old Jan 3, 2025 | 12:12 PM
Share
  #9
TimC300's Avatar
TimC300
MBWorld Fanatic!
Community Builder
Liked
Loved
Community Favorite

Joined: Aug 2023
Posts: 3,689
Likes: 1,110
From: MA Coast
W204 2010 C300 4matic Sport M272
Should slide in the left side of the differential.


Reply
1
Old Jan 3, 2025 | 02:11 PM
Share
  #10
ChuangTzu's Avatar
ChuangTzu
Super Member
Photogenic
Liked
Loved
Community Favorite

Joined: Mar 2024
Posts: 618
Likes: 241
From: Chicago
19 GLA45, 86 560SL, former: 14 E550 4Matic, 09 E350 4Matic, 83 240D manual, 78 450SLC, 81 500SLC
Originally Posted by TimC300
Should slide in the left side of the differential.

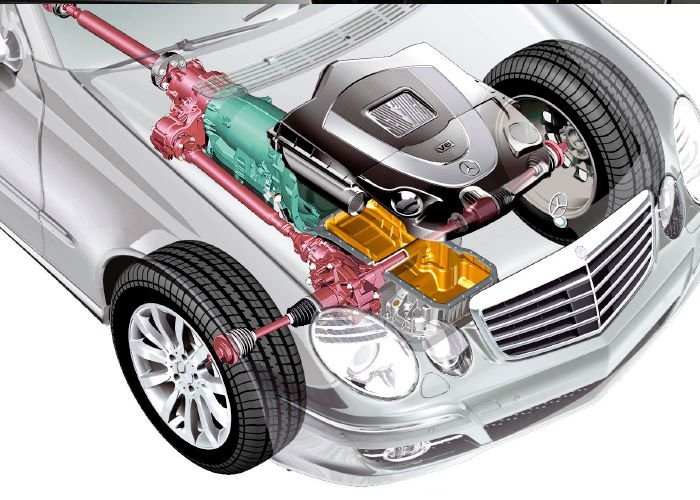

Yeah. This is a W211, but it should look the same:



Reply
0
Old Jan 3, 2025 | 02:25 PM
Share
  #11
mercerized's Avatar
mercerized
Thread Starter
Member
5 Year Member
Liked
Loved
Community Favorite

Joined: May 2018
Posts: 214
Likes: 66
From: SoCal
2020 E450 4matic wagon
Great cartoon. Wanted to know if the gearbox interface kisses the oil pan through hole or if there is a gap?
Reply
0
Old Jan 3, 2025 | 02:33 PM
Share
  #12
Left Coast Geek's Avatar
Left Coast Geek
MBWorld Fanatic!
5 Year Member
Photogenic
Loved
Community Favorite

Joined: Dec 2020
Posts: 2,412
Likes: 1,482
From: 122W, 37N
2016 E350 4Matic wagon, 2019 Ford Expedition, 2019 Chevy Bolt EV
AFAIK, the front diff oil is NOT shared with the engine oil. They did that on the W124 4matic but never since.
Reply
0
Old Jan 3, 2025 | 02:45 PM
Share
  #13
mercerized's Avatar
mercerized
Thread Starter
Member
5 Year Member
Liked
Loved
Community Favorite

Joined: May 2018
Posts: 214
Likes: 66
From: SoCal
2020 E450 4matic wagon
indeed, independent fluids
Reply
0
Old Jan 3, 2025 | 02:47 PM
Share
  #14
mercerized's Avatar
mercerized
Thread Starter
Member
5 Year Member
Liked
Loved
Community Favorite

Joined: May 2018
Posts: 214
Likes: 66
From: SoCal
2020 E450 4matic wagon

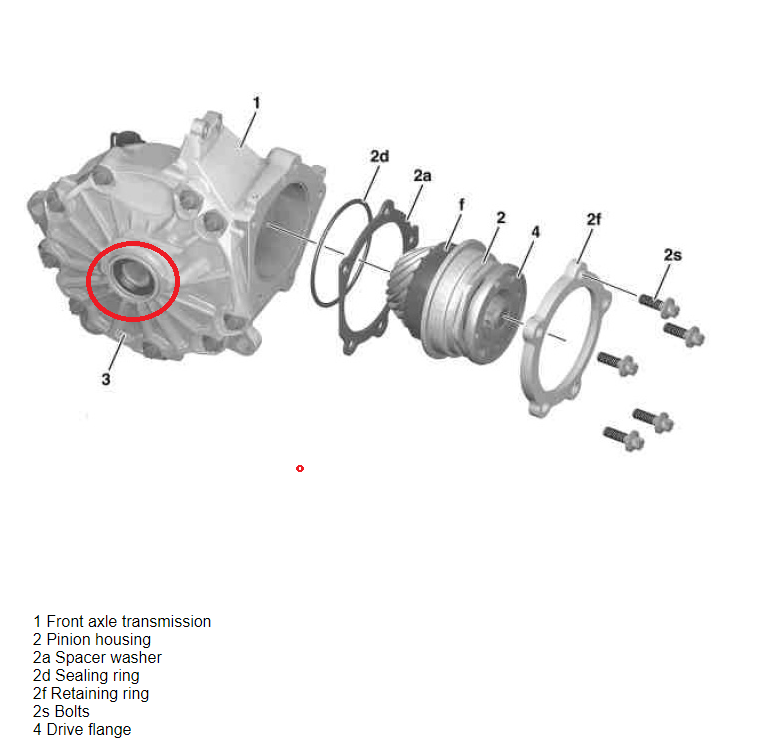

Right side
