Attempt to Fab Quad Inter-coolers
Thread Starter
Junior Member
Joined: Jan 2010
Posts: 25
Likes: 0
From: Houston
CL600
Attempt to Fab Quad Inter-coolers

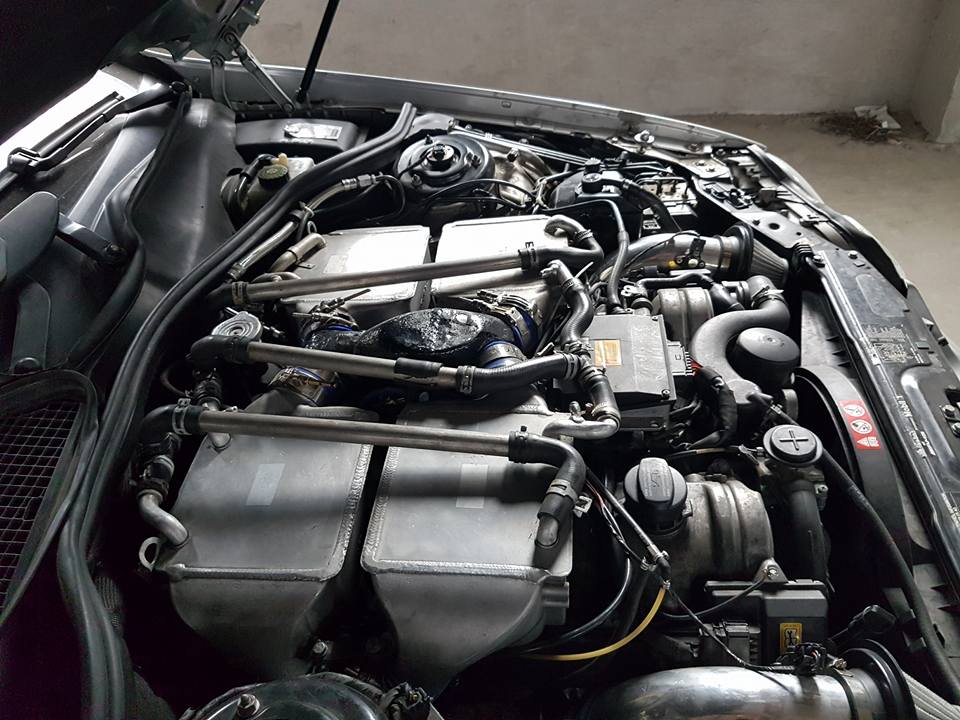

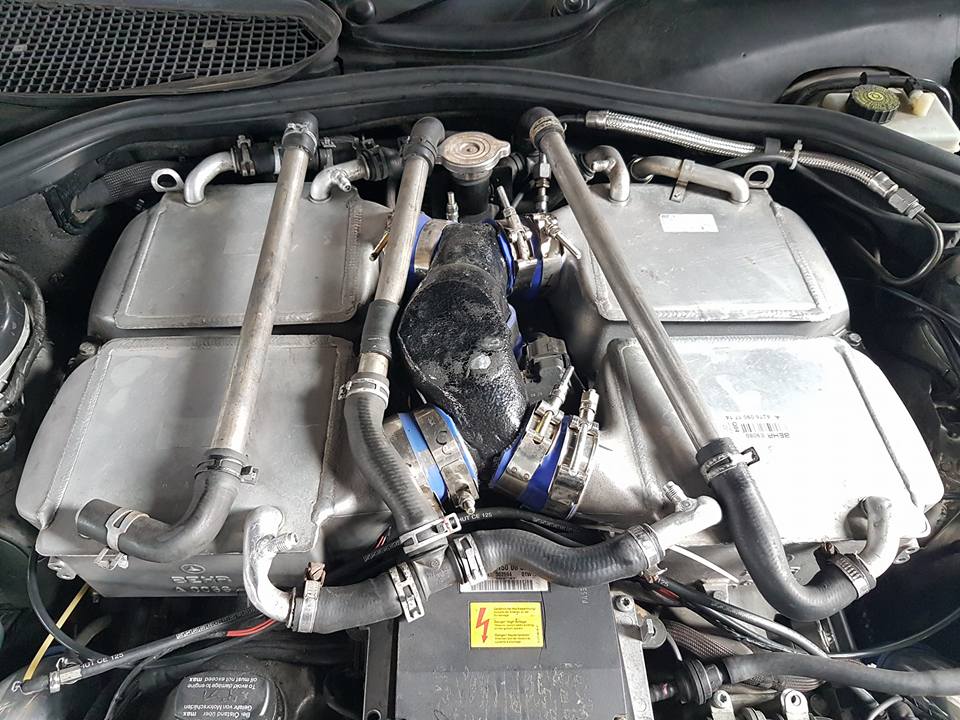

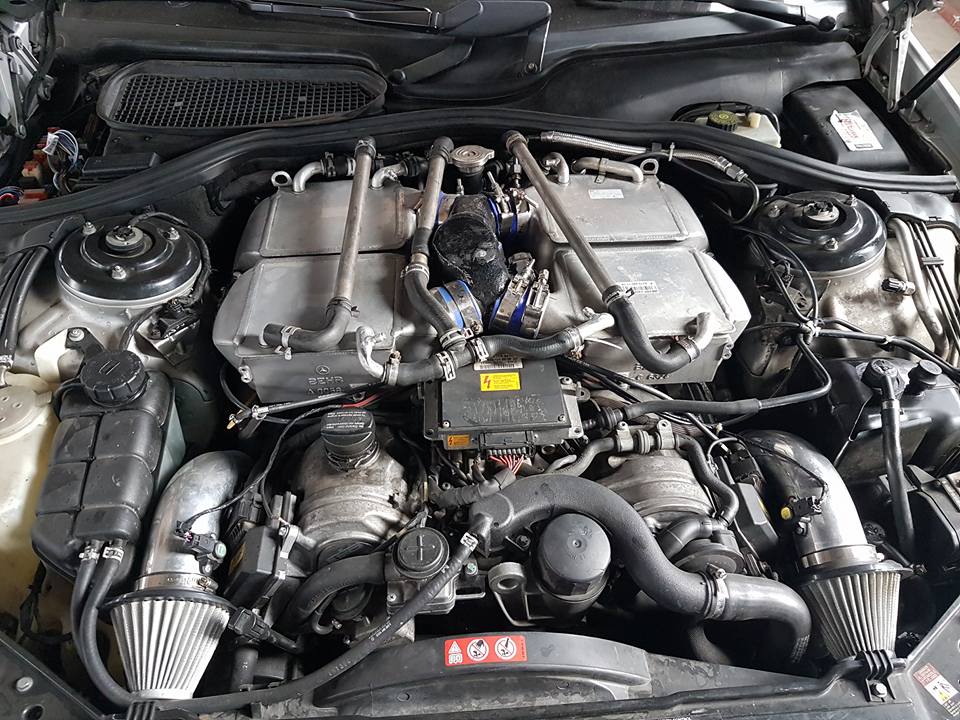

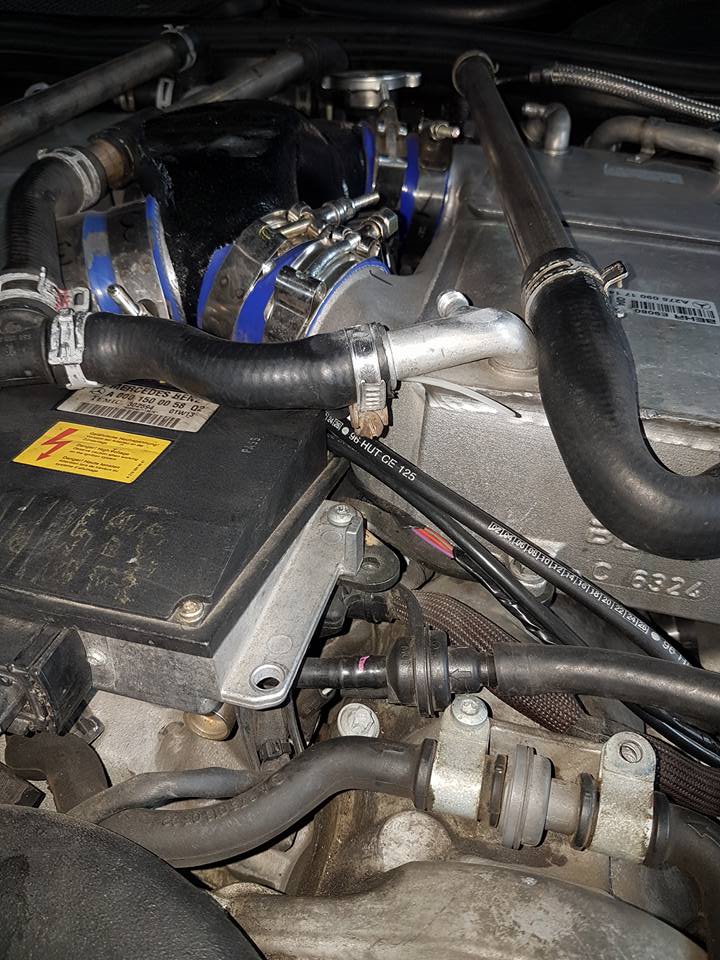

So I took a look at some of the photo's of the quad inter-cooler set up that Brabus did. It looks interesting to tempt to try and create. I know I can acquire the stock IC for $400.00 a piece so It may be cost effective. I would like some opinion though. But, honestly it may take a few months before I even try this. I would still like some feedback on my initial idea.
1. Instead of the crazy piping that is used to connect the IC that Brabus created. I was thinking of just to create a Y pipe off the original IC and extend across the top to the second pair of IC.
2. Mounting the two new IC by extending bars welded to the old IC, instead of whatever Brabus did. ( I may see where it will be hard to work on the engine because of that... open to ideas)
3. Keep the same type of split y-pipe off the turbo's to slow down air as it enters the quad IC ( idea from the cooling topic , sorry can't remember who made the remark off the top of my head)
4. My hardest issue is how to feed it to the engine, brabus seems to just use a arched design, I was thing of just merging 2 y-pipes together by creating a feed that is similar to the original feed into the throttle body but with a extended arch. so eventually a odd shaped X-pipe and a Y-pipe.
5. I have a Johnson 30 pump, it may not be powerful enough so a additional pump could be implemented.
6. after speaking with shardul a lot, a set up of duel IC/HE to cool the quad system.
These are my first thoughts so feedback would be great. and of anymore has more photo's of the Brabus would be even more helpful.
Thanks
1. Instead of the crazy piping that is used to connect the IC that Brabus created. I was thinking of just to create a Y pipe off the original IC and extend across the top to the second pair of IC.
2. Mounting the two new IC by extending bars welded to the old IC, instead of whatever Brabus did. ( I may see where it will be hard to work on the engine because of that... open to ideas)
3. Keep the same type of split y-pipe off the turbo's to slow down air as it enters the quad IC ( idea from the cooling topic , sorry can't remember who made the remark off the top of my head)
4. My hardest issue is how to feed it to the engine, brabus seems to just use a arched design, I was thing of just merging 2 y-pipes together by creating a feed that is similar to the original feed into the throttle body but with a extended arch. so eventually a odd shaped X-pipe and a Y-pipe.
5. I have a Johnson 30 pump, it may not be powerful enough so a additional pump could be implemented.
6. after speaking with shardul a lot, a set up of duel IC/HE to cool the quad system.
These are my first thoughts so feedback would be great. and of anymore has more photo's of the Brabus would be even more helpful.
Thanks
MBWorld Fanatic!
Joined: Nov 2010
Posts: 2,605
Likes: 343
From: Welwyn, Herts, UK
2006 S600
There's a few pictures here, courtesy of Oxygen of course:
https://mbworld.org/forums/m275-v12-...ercooling.html
Nick
https://mbworld.org/forums/m275-v12-...ercooling.html
Nick
MBWorld Fanatic!
Joined: Nov 2010
Posts: 2,605
Likes: 343
From: Welwyn, Herts, UK
2006 S600
Here's the other picture I was really trying to find last night - check out post 3 - there's a picture of the Brabus 800R 6.3 engine on an engine stand:
https://mbworld.org/forums/m275-v12-...ml#post4903637
https://mbworld.org/forums/m275-v12-...ml#post4903637
MBWorld Fanatic!
Joined: Nov 2010
Posts: 2,605
Likes: 343
From: Welwyn, Herts, UK
2006 S600
Trending Topics
MB World Stories
The Best of Mercedes & AMG
Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun
Verdad Gallardo
Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren
Verdad Gallardo
8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine
Verdad Gallardo
Flawlessly Restored Mercedes 190E Evo II Heads to Auction
Verdad Gallardo
Electric Mercedes C-Class Unveiled: 11 Things You Need to Know
Verdad Gallardo
Mercedes EQS Gets A Major Update: Everything You Need to Know
Verdad Gallardo
5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve
Verdad Gallardo
Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping
Verdad Gallardo
10 Most Reliable Mercedes-Benz Models You Can Buy Used
Verdad Gallardo
Thread Starter
Junior Member
Joined: Jan 2010
Posts: 25
Likes: 0
From: Houston
CL600
Sorry guys, I know it's been a while, the car seems to just keep exploding on me with a cracked steering rack and pin, turbo coolant leaks, and other failures so updates...
I sent the work order to a few places in Houston to see if they can fab the hosing needed. So far most have not replied.
Dd however run into the problem of room for both inter-coolers and the scorpion intake.
I have however ordered the euro charged HE and a trunk tank and will have the installed on by the end of the week.
Now the car is running again this project is first priority, until my trans gives out... I'd give it 2 months, and its time for rebuild and more clutch packs...
I sent the work order to a few places in Houston to see if they can fab the hosing needed. So far most have not replied.
Dd however run into the problem of room for both inter-coolers and the scorpion intake.
I have however ordered the euro charged HE and a trunk tank and will have the installed on by the end of the week.
Now the car is running again this project is first priority, until my trans gives out... I'd give it 2 months, and its time for rebuild and more clutch packs...
Thread Starter
Junior Member
Joined: Jan 2010
Posts: 25
Likes: 0
From: Houston
CL600
So far, it seems like its not as efficient as having custom large intercooler built. There would be space wasted if using a quad set up. I'll keep updating as I get more opinion from fab shops.
