Pin Out wiring

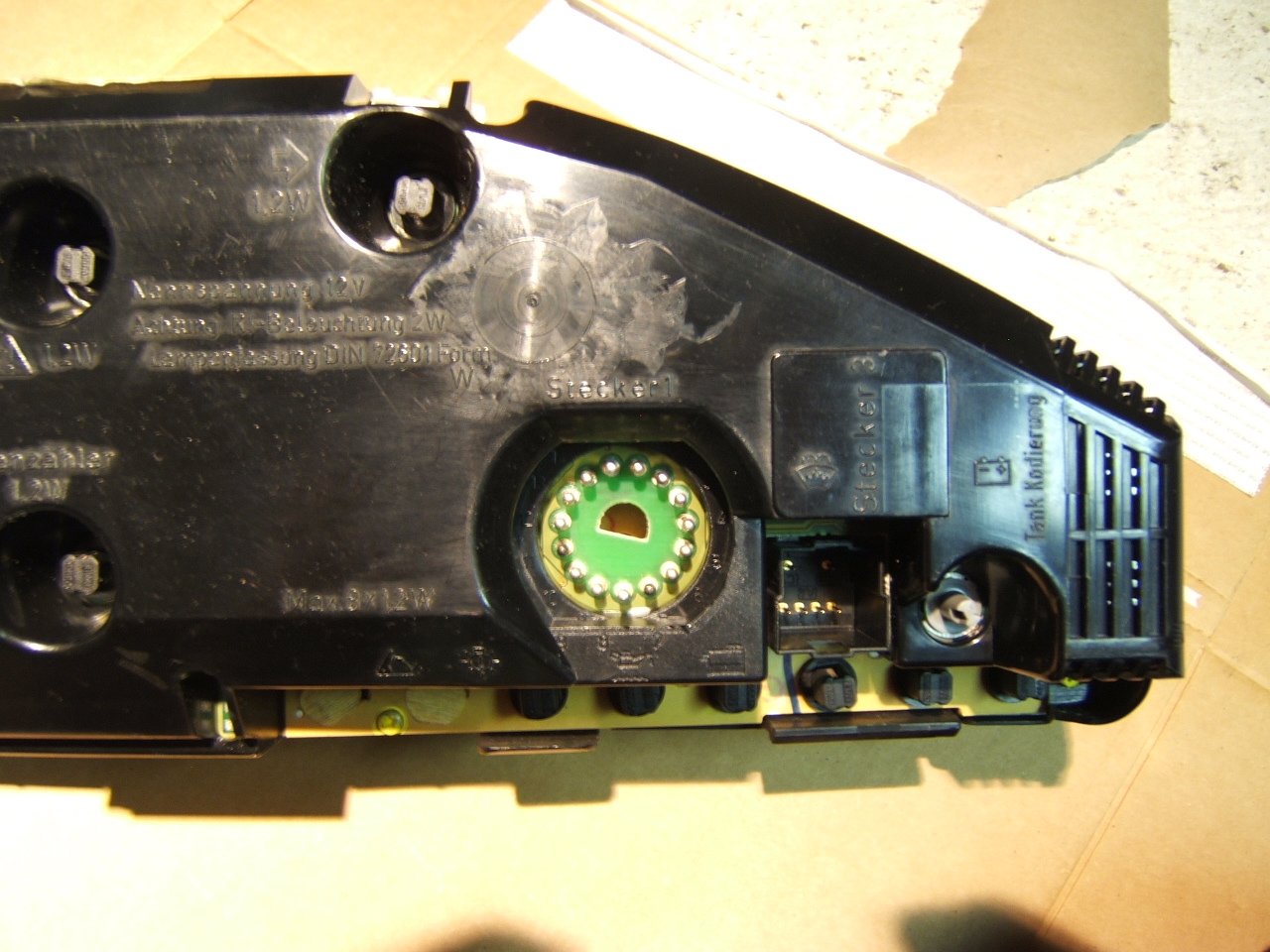

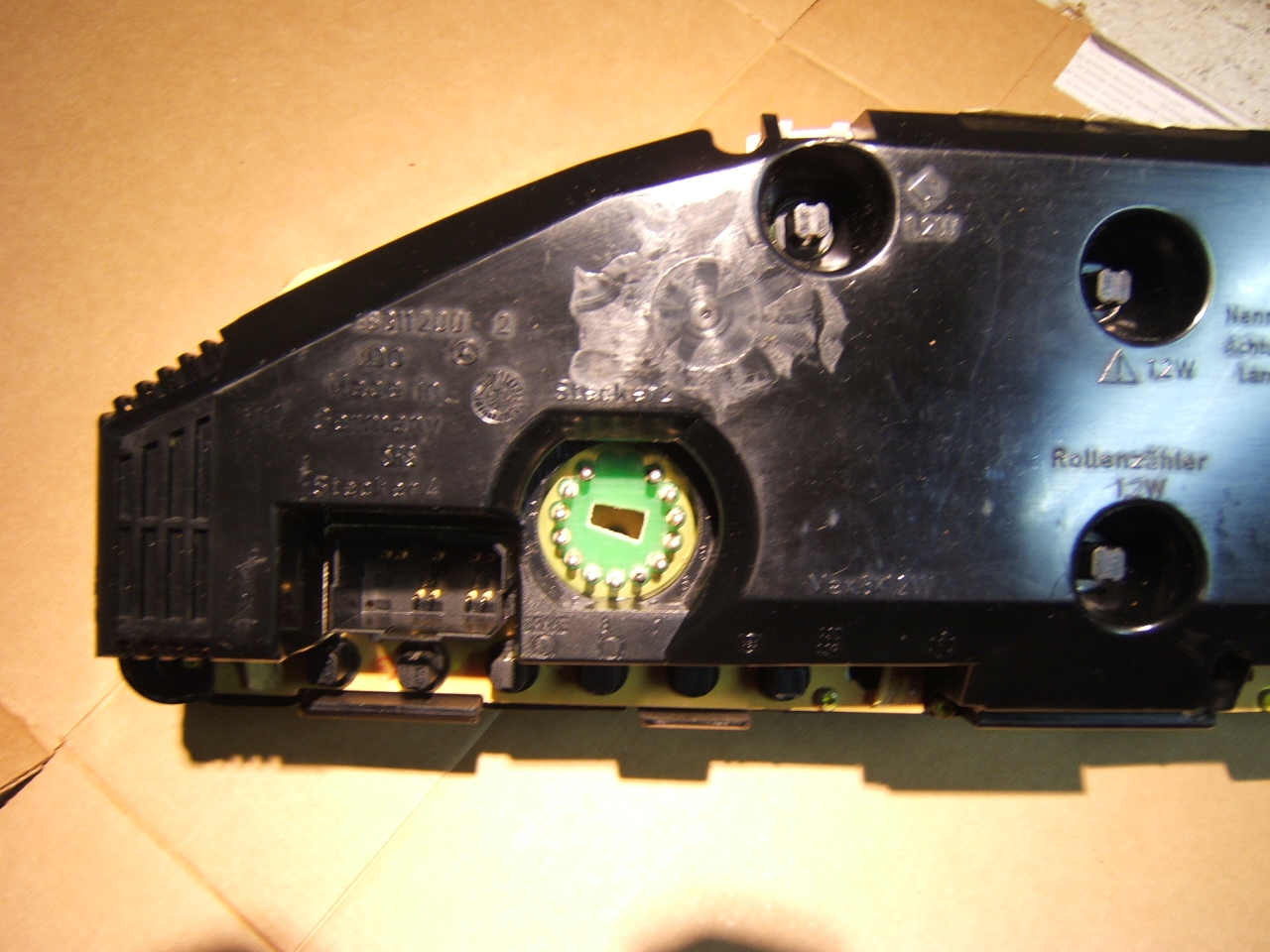

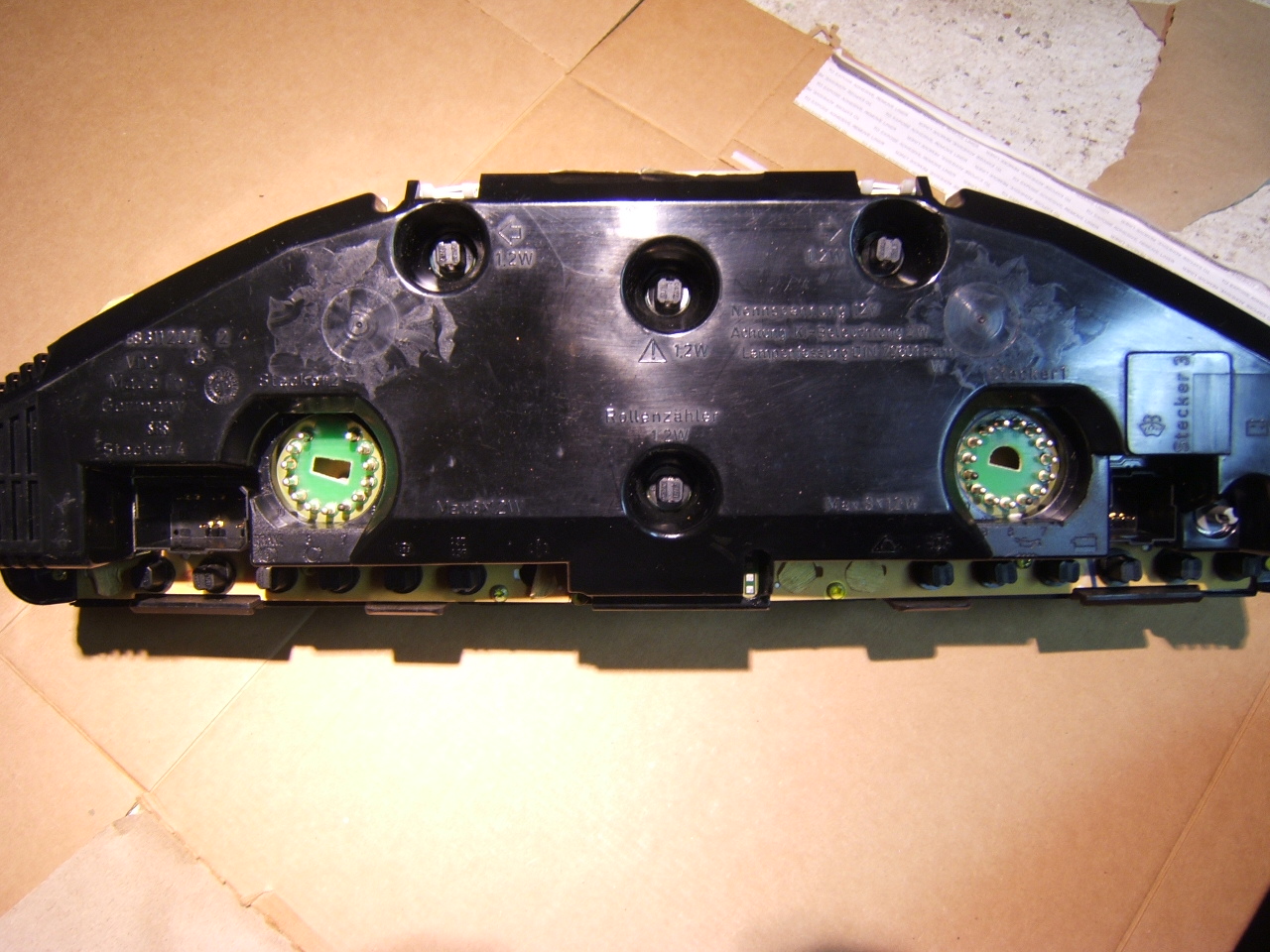

Does anyone now how to feed 12V power to the cluster, on the bench, so it will light up all/most of the lights? Mine is out of a 1993 400SEL and has the round socket connectors like the picture. I have all 4 female plugs that I can feed power through. I just need to know which wires on the plugs to join connect to 12V. Thanks
Thread Starter
Super Member
Joined: Sep 2002
Posts: 619
Likes: 5
Thanks Russell...
OK, so...Plug 1 join pin 5 and pin 1 to battery positive and pin 10 to neg.
Then on plug 2 pin 12 to positve and pin 11 to neg.....right ?
Just want to be sure before I blow it up.
OK, so...Plug 1 join pin 5 and pin 1 to battery positive and pin 10 to neg.
Then on plug 2 pin 12 to positve and pin 11 to neg.....right ?
Just want to be sure before I blow it up.
MBWorld Fanatic!
Joined: Jun 2011
Posts: 1,494
Likes: 131
From: Cape town
not a merc
Correct. What I would do is connect your grounds and your battery supply direct to cluster and all the ignition supplies via a switch. That way you can simulate the ignition switch on the bench..
