LED plate light DYI
OK so I bought these new lights because my old ones keep burning out and the clear housing was cracked from age and from constantly taking them apart to replace bulbs, plus it was dirty and it doesnt come clean with anything. Anyway lets get to it, In order to remove the old ones you must take the trunk apart which takes about 45-hour depending on if you know what your doing. took me a little over 45 mins.

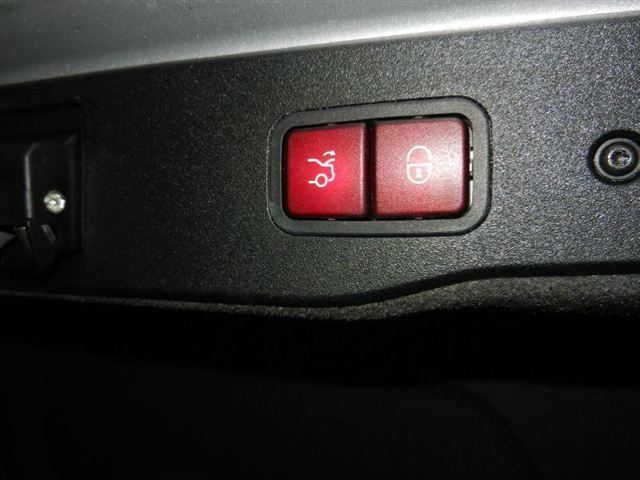

1- Open trunk lid remove the screws around the handle or button (depending if you a auto trunk closer) with a T15 screw driver.
2- Pull the trunk lining down and completely off as it attached with clips, you must also disconnect the emergency button which is released by a simple clip.
3- The are 6 screw that are 10mm that hold the area the plate attaches to the trunk. they are located around the pump by the lock
4- Remove your plate to reveal two more 10mm screws that are on the outside.
5- Use a plastic wedge to pry the part away from the car (one that holds the plate) start at the top as there is 4 clips at the top around the chrome trim area, this should allow the piece to come free.
6- Remove the old lights the squeezing both sides (from the inside around the pump) and pushing them down threw the opening,once out disconnecting the plug that supplies power.
7-Plug new lights in and test.
To finish reassemble in reverse order and enjoy the bright new lights.
1- Open trunk lid remove the screws around the handle or button (depending if you a auto trunk closer) with a T15 screw driver.
2- Pull the trunk lining down and completely off as it attached with clips, you must also disconnect the emergency button which is released by a simple clip.
3- The are 6 screw that are 10mm that hold the area the plate attaches to the trunk. they are located around the pump by the lock
4- Remove your plate to reveal two more 10mm screws that are on the outside.
5- Use a plastic wedge to pry the part away from the car (one that holds the plate) start at the top as there is 4 clips at the top around the chrome trim area, this should allow the piece to come free.
6- Remove the old lights the squeezing both sides (from the inside around the pump) and pushing them down threw the opening,once out disconnecting the plug that supplies power.
7-Plug new lights in and test.
To finish reassemble in reverse order and enjoy the bright new lights.
Last edited by 02S430; 01-11-2012 at 01:43 PM.
#2
MBWorld Fanatic!
Thread Starter
Join Date: May 2006
Location: NYC/FT Lauderdale
Posts: 1,978
Likes: 0
Received 1 Like
on
1 Post
W220 M113K

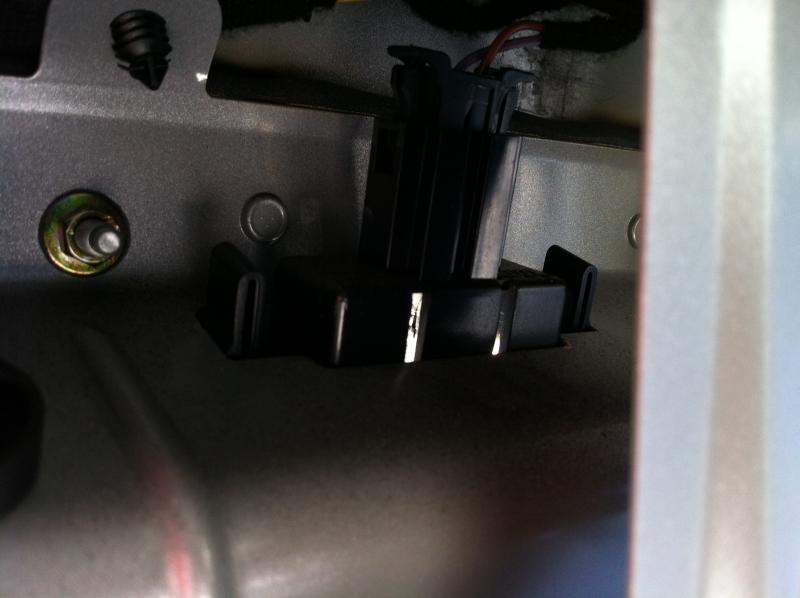

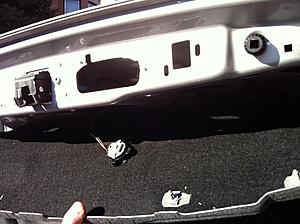

First picture is the back side of the area that holds the plate notice the 6 screw locations (alone the outside border), those are the screws you need to remove, also along the top notice the clips.
Second pic is the screws you need to remove around the plate on the outside

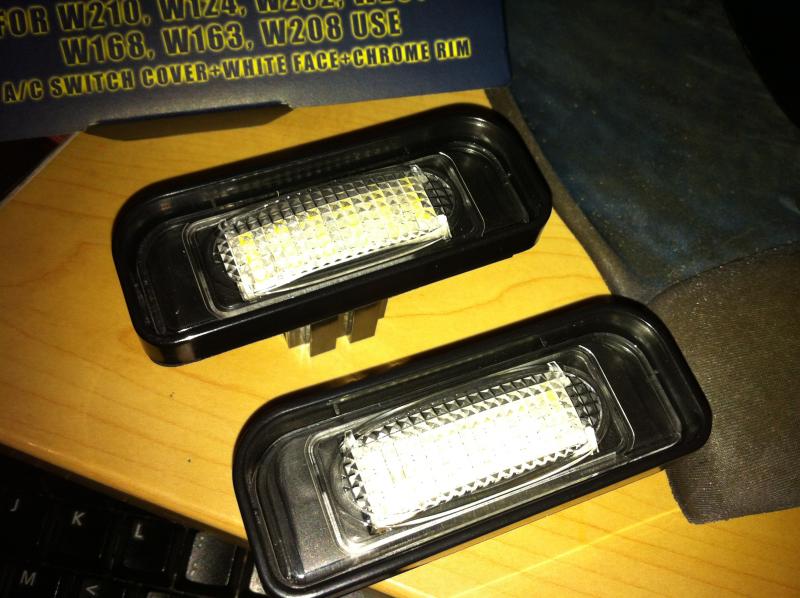

Third pic is the old light vs the new one

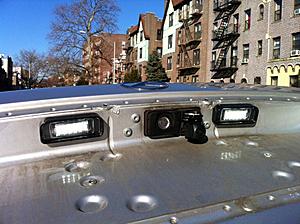

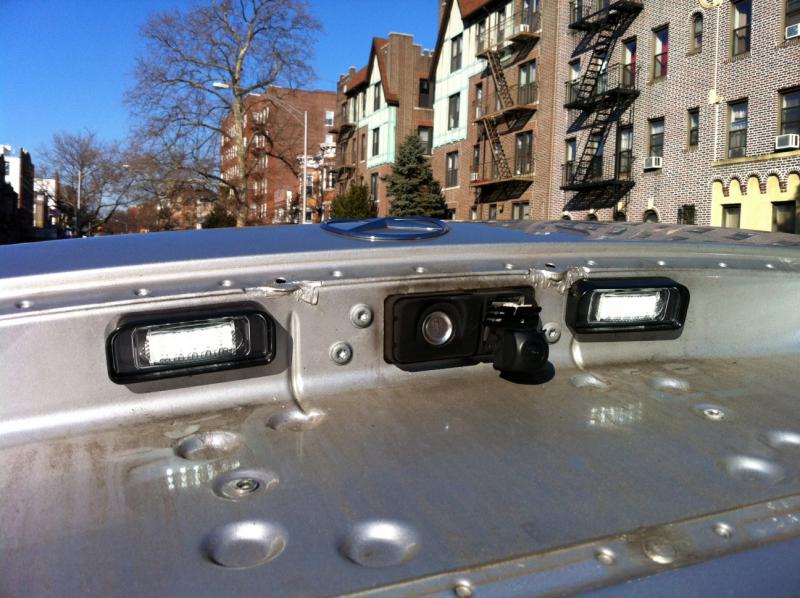

Forth pic is the lights on testing if they work, notice how bright they are in bright light

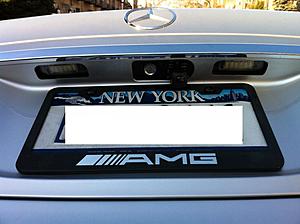

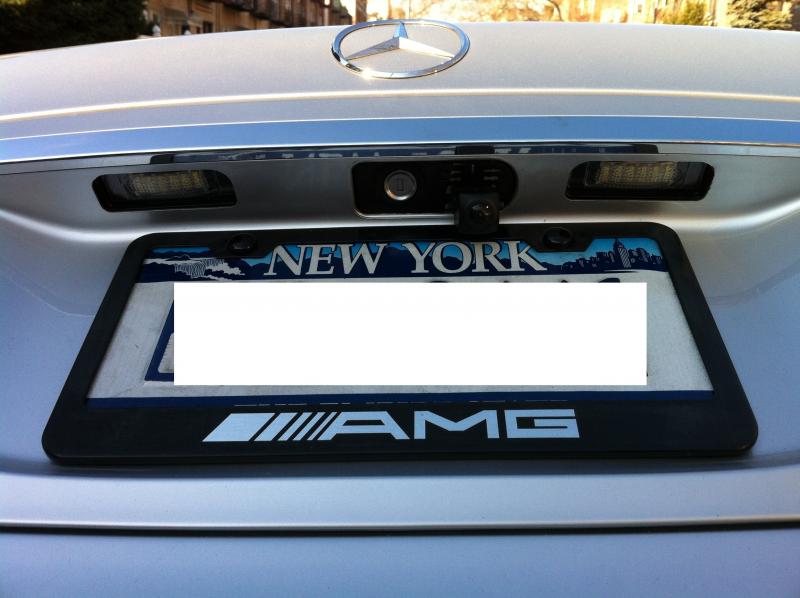

Last is the finished product
