SL/R230: Convertible top and roll bar not working?
Thread Starter
Senior Member
Joined: Feb 2009
Posts: 396
Likes: 21
SL63, GTR
Convertible top and roll bar not working?
I've recently acquired a 2003 SL55 with 30k on it. Upon receiving the car, I found a pinched vacuum line between the passenger seat (loud hissing noise after shutting car off) and a leaking vacuum box in the trunk lid (lid wasn't shutting all the way and was hissing). I fixed both of these items and they now work 100% correct now with zero leaks. I tried putting the top up/down when I got the car and it worked fine. It seemed to quit working after about a week of ownership or whenever I realized the two vacuum leaks.
The central locking system works, both seat lumbar/massage works, and soft close trunk works. Whenever I push the roll bar button or pull on the convertible top latch, I can hear a relay click behind my head in the trunk area but nothing happens (the windows still drop a 1/4" when pulling latch for convertible).
I hooked up Star and there are no codes present/stored. I checked the 20 amp fuse behind the passenger seat and it's good. I checked the flaps on the trunk lid and both are nice and tight. I tried disconnecting the auxiliary battery (newer battery that holds charge well) with no luck. I'm pretty much out of ideas and was hoping someone may have some additional insight before I'm forced into a stealership visit.
The central locking system works, both seat lumbar/massage works, and soft close trunk works. Whenever I push the roll bar button or pull on the convertible top latch, I can hear a relay click behind my head in the trunk area but nothing happens (the windows still drop a 1/4" when pulling latch for convertible).
I hooked up Star and there are no codes present/stored. I checked the 20 amp fuse behind the passenger seat and it's good. I checked the flaps on the trunk lid and both are nice and tight. I tried disconnecting the auxiliary battery (newer battery that holds charge well) with no luck. I'm pretty much out of ideas and was hoping someone may have some additional insight before I'm forced into a stealership visit.
Last edited by B Feelgood; Feb 2, 2017 at 02:11 PM.
Senior Member
Joined: Mar 2010
Posts: 451
Likes: 44
2007 E350; 2018 GLE350
Feelgood: Please tell me a bit more about the pinched vacuum line near the passenger seat. All my vacuum systems seem to work OK, except the lumbar support controls ... both seats. I'm just asking where to begin looking for the failure point in the pneumatic line(s).
Banned
Joined: Jan 2006
Posts: 1,982
Likes: 393
From: Atlanta, unfortunately
'09 S600, (2) R129 300SLs, '03 SL500, '03 SL55
Thread Starter
Senior Member
Joined: Feb 2009
Posts: 396
Likes: 21
SL63, GTR
I could literally hear an audible air hiss coming from the passenger side seat (underneath of where your right thigh would be) after shutting the car off. The lumbar/massage did not work in either seat. There is a grey/white vacuum line that comes up from underneath the carpet and is attached to the side of the seat. There is a rubber sleeve that covers the electrical wires and vacuum line in a bundle. My vacuum line somehow got pinched and was basically cut in half. I removed the passenger seat (5 bolts), cut the rubber sleeve, put a plastic vacuum splice in between the two broken lines, and put shrink wrap over it. In the picture below, I circled where mine was basically cut in half.
Thread Starter
Senior Member
Joined: Feb 2009
Posts: 396
Likes: 21
SL63, GTR

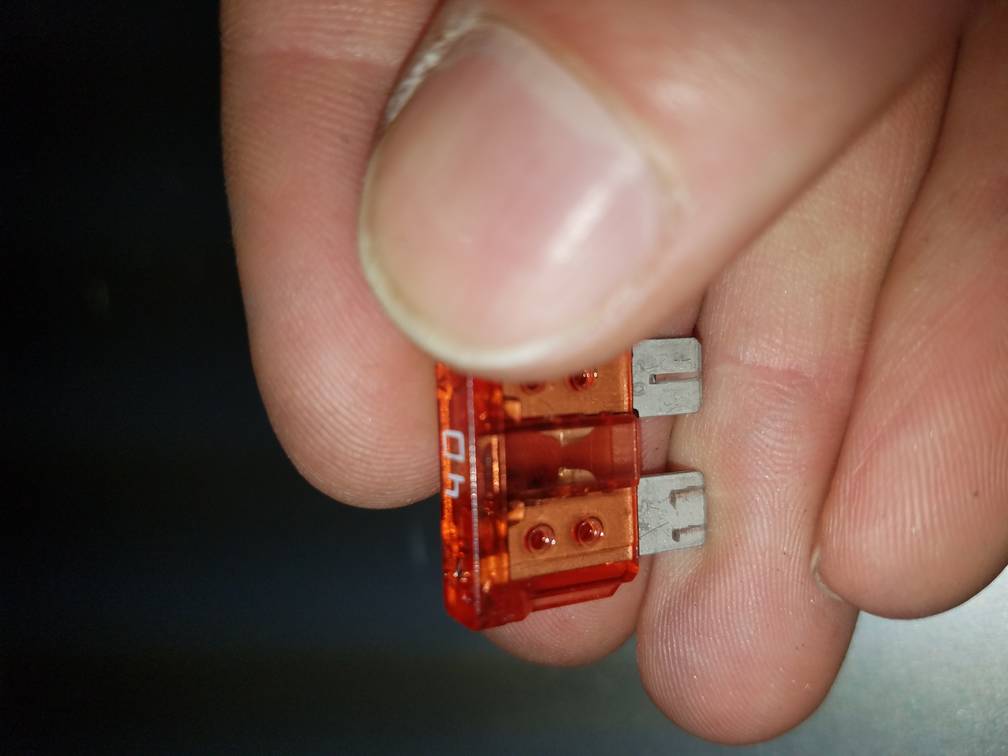

Thanks for responding everyone. There is sufficient hydraulic fluid in the pump (in between min/max). I played around in Star checking values and then realized that maybe I checked the wrong fuse. The fuse I originally checked was for the 20 amp PSE pump. I went back and checked the 40 amp fuse for the hydraulic pump and sure enough it was broke. Heading to the parts store in a little bit to get a new fuse. Hopefully this is the quick fix I was hoping for, will update a little later.
Thread Starter
Senior Member
Joined: Feb 2009
Posts: 396
Likes: 21
SL63, GTR
Bad news. I replaced the blown fuse for the hydraulic pump and it instantly blew the new one again. Any thoughts on possible causes? Is there anything else on this circuit (fuse 73) besides the hydraulic pump for the convertible top?
Last edited by B Feelgood; Feb 2, 2017 at 07:29 PM.
