If we can’t recode the EGS through Star/SDS, is there a special tool that can be done...?
EGS51 doesn’t accept any kind of coding or reprogramming,, need to swap it to EGS52,, if so. which # we have to go with...??,
and i think recode the EGS52 can’t be done with an early version of (5W 1,2,3,4) shifter, isn’t...??
ZAYED,,
EGS51 doesn’t accept any kind of coding or reprogramming,, need to swap it to EGS52,, if so. which # we have to go with...??,
and i think recode the EGS52 can’t be done with an early version of (5W 1,2,3,4) shifter, isn’t...??
ZAYED,,
Thread Starter
Senior Member
Joined: Apr 2013
Posts: 343
Likes: 48
W109 300SEL6.3, W123 280TE, W123 200T, W210 E55
Hi Zayed,
EGS52 have several modeltypes stored. Actual i use a "A0345451032". This where used in W220, W215, W211 and R230 AMGs. So i can code any of these model types. But unfortunatelly only coded as 211076 / 211276 the car will start up. I think it hase something to do with the shifter... in knew for sure that the R230 shifter has the VIN coded to it so it may be the reason why the car wont start without the correct shifter.
I have a Star Diagnosis and with this you only can programm the EGS with the model types allready stored in the software. My perfect solution would be to code the EGS52 to an R230, because the R230 SL55 had a 2.82 diff to, but coded as R230 my car wont fire up
So i asked MKB Tuning and also i hooked up to Renntech ... both can do this hard recode of the EGS52 to switch the diff ratio for a explicit model type ... this means the switch the diff ratio directly in the software from 2.65 to 2.82 (regarding the W211). But just for trying this was a little to expensive for me because at this time i didnt knew if it will work at all ... maybe now i go back to 2.82 and let the egs recode at mkb or send it over to renntech.
we will see... first of all i had to get rid of the bad gearshift behavior ... therfore i will switch the solenoid these days ... it shifts OK but a little to rough for a mercedes
greetings, Fabian
EGS52 have several modeltypes stored. Actual i use a "A0345451032". This where used in W220, W215, W211 and R230 AMGs. So i can code any of these model types. But unfortunatelly only coded as 211076 / 211276 the car will start up. I think it hase something to do with the shifter... in knew for sure that the R230 shifter has the VIN coded to it so it may be the reason why the car wont start without the correct shifter.
I have a Star Diagnosis and with this you only can programm the EGS with the model types allready stored in the software. My perfect solution would be to code the EGS52 to an R230, because the R230 SL55 had a 2.82 diff to, but coded as R230 my car wont fire up
So i asked MKB Tuning and also i hooked up to Renntech ... both can do this hard recode of the EGS52 to switch the diff ratio for a explicit model type ... this means the switch the diff ratio directly in the software from 2.65 to 2.82 (regarding the W211). But just for trying this was a little to expensive for me because at this time i didnt knew if it will work at all ... maybe now i go back to 2.82 and let the egs recode at mkb or send it over to renntech.
we will see... first of all i had to get rid of the bad gearshift behavior ... therfore i will switch the solenoid these days ... it shifts OK but a little to rough for a mercedes
greetings, Fabian
MBWorld Fanatic!
Joined: Aug 2006
Posts: 7,053
Likes: 398
From: A.D., U.A.E
2000 (W202 C200) & 2000 (W202 C55)
Thankss Fabian,,
As i know; all EGS models after 2003, programmed & combined with a tiptronic shifter to authorize starting through the ECU,,
maybe this is the reason that you have an interrupted signal, from the ECU to EGS during shifting,,
if you want to put the EGS file from R230, you need to coding the EGS, and you may need to put a data/sode to your ECU
for proper RPM ratio signal back to the EGS,,
when AMG made a W202 C55, they swapped the gear shifter to tiptronic & replaced the diff., from 3.07 to 2.82,
exactly like the W210 E55 set-up....
ZAYED,,
As i know; all EGS models after 2003, programmed & combined with a tiptronic shifter to authorize starting through the ECU,,
maybe this is the reason that you have an interrupted signal, from the ECU to EGS during shifting,,
if you want to put the EGS file from R230, you need to coding the EGS, and you may need to put a data/sode to your ECU
for proper RPM ratio signal back to the EGS,,
when AMG made a W202 C55, they swapped the gear shifter to tiptronic & replaced the diff., from 3.07 to 2.82,
exactly like the W210 E55 set-up....
ZAYED,,
Last edited by cm60k; Sep 20, 2013 at 05:26 AM.
Thread Starter
Senior Member
Joined: Apr 2013
Posts: 343
Likes: 48
W109 300SEL6.3, W123 280TE, W123 200T, W210 E55
i dont think the rpm is the problem because of the transmission itself has several rpm sensors. i also checked the wiring diagrams ... the W210 and W211 EGS32 are exactly wired the same way ... no more or less cables. Power and Can on the one connector, Connection to the transmission on the other.
i just swaped my converter lookup clutch valve agains another ... no difference, still rough gearshifts. I changed it because i didnt knew what preasurevalves where installed ... brown or blue. I got the brown ones ... maybe i should swap them next against the blues.
i had to think about this a little
greetings, Fabian
i just swaped my converter lookup clutch valve agains another ... no difference, still rough gearshifts. I changed it because i didnt knew what preasurevalves where installed ... brown or blue. I got the brown ones ... maybe i should swap them next against the blues.
i had to think about this a little
greetings, Fabian
Thread Starter
Senior Member
Joined: Apr 2013
Posts: 343
Likes: 48
W109 300SEL6.3, W123 280TE, W123 200T, W210 E55
as far as i knew the brown valves where installed until 2005? so i think i have one of the first 722.643 ... dont know what differenc the "update valve body" makes.
greetings
greetings
MBWorld Fanatic!
Joined: Aug 2006
Posts: 7,053
Likes: 398
From: A.D., U.A.E
2000 (W202 C200) & 2000 (W202 C55)
*If you have the V/B started with "140", means you don’t have the update V/B with brown solenoids,
*If you have the V/B started with "211", means you have the update V/B with updated control valve solenoid #,
from "140 277 00 35" to "04 35", with brown solenoids,
*if you have V/B started with "240", means you have the last updated V/B with updated control valve solenoid #,
from "140 277 00 35" to "04 35", with blue solenoids....
ZAYED,,
*If you have the V/B started with "211", means you have the update V/B with updated control valve solenoid #,
from "140 277 00 35" to "04 35", with brown solenoids,
*if you have V/B started with "240", means you have the last updated V/B with updated control valve solenoid #,
from "140 277 00 35" to "04 35", with blue solenoids....
ZAYED,,
Thread Starter
Senior Member
Joined: Apr 2013
Posts: 343
Likes: 48
W109 300SEL6.3, W123 280TE, W123 200T, W210 E55
The converter lookup clutch valve has 1402770435 (both, the one installed and the one i used for replacement) regarding to the EPC this is the most recent.
The "brown" Valves have 140... Numbers.
i think i will replace the brown ones with blue ones ...
The "brown" Valves have 140... Numbers.
i think i will replace the brown ones with blue ones ...
MB World Stories
The Best of Mercedes & AMG
6 Mercedes Models That Did NOT Age Well (But Are Somehow Still Cool)
Verdad Gallardo
Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun
Verdad Gallardo
Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren
Verdad Gallardo
8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine
Verdad Gallardo
Flawlessly Restored Mercedes 190E Evo II Heads to Auction
Verdad Gallardo
Electric Mercedes C-Class Unveiled: 11 Things You Need to Know
Verdad Gallardo
Mercedes EQS Gets A Major Update: Everything You Need to Know
Verdad Gallardo
5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve
Verdad Gallardo
Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping
Verdad Gallardo
MBWorld Fanatic!
Joined: Aug 2006
Posts: 7,053
Likes: 398
From: A.D., U.A.E
2000 (W202 C200) & 2000 (W202 C55)
The brown solenoids should has "203" #, and the blue solenoids comes with "240" #,,
before changing the solenoids, you should to confirm you have the V/B
"140 270 06 06" or "211 270 00 06"
ZAYED,,
before changing the solenoids, you should to confirm you have the V/B
"140 270 06 06" or "211 270 00 06"
ZAYED,,
Last edited by cm60k; Sep 20, 2013 at 07:09 PM.
Thread Starter
Senior Member
Joined: Apr 2013
Posts: 343
Likes: 48
W109 300SEL6.3, W123 280TE, W123 200T, W210 E55
Its the converter from the SL55 ... the one from my w210 was "broken"
i got the SL55 Transmission (722.643), the converter and the egs52 all in one package for 500 Euro (around 600$) ... couldn´t say no to this offer

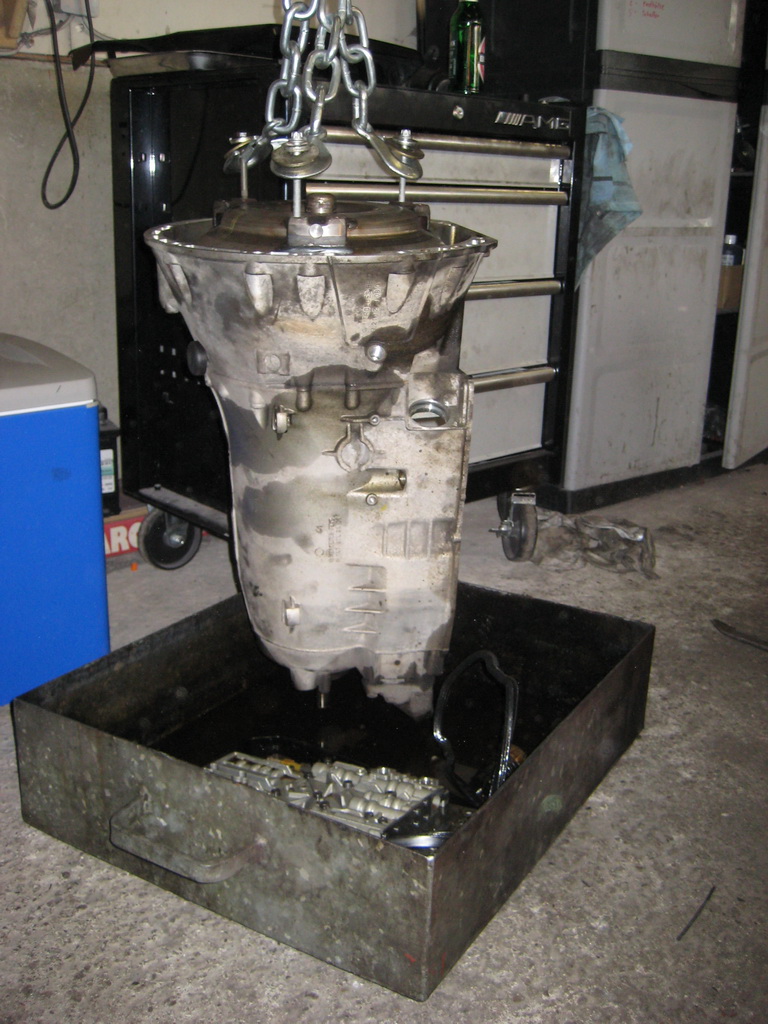

Old Tranny with converter "stucked": http://www.kaype.net/temp/w210/e55_15.jpg ... the complete transmission was lifted in the air on that picture ... source was a defective input shaft bearing wich completly broke and blocked the whole transmission ... this made the converter stuck and the wohle package a large (and heavy) pile of metal junk
here the destroyed tranmission housing: http://www.kaype.net/temp/w210/e55_19.jpg
greetings, Fabian
i got the SL55 Transmission (722.643), the converter and the egs52 all in one package for 500 Euro (around 600$) ... couldn´t say no to this offer
Old Tranny with converter "stucked": http://www.kaype.net/temp/w210/e55_15.jpg
... the complete transmission was lifted in the air on that picture ... source was a defective input shaft bearing wich completly broke and blocked the whole transmission ... this made the converter stuck and the wohle package a large (and heavy) pile of metal junk here the destroyed tranmission housing: http://www.kaype.net/temp/w210/e55_19.jpg
greetings, Fabian
Last edited by kaype; Sep 20, 2013 at 08:18 PM.
MBWorld Fanatic!
Joined: Aug 2006
Posts: 7,053
Likes: 398
From: A.D., U.A.E
2000 (W202 C200) & 2000 (W202 C55)
Sorry to hear about loosing your stock tranny,, but this is great offer to forget that broken guy...
,
Do you know any professional, that can code my early version EGS, or if im thinking to change my diff. ratio,
can he able to make it work, if so, this also will help other friends here, if they decide that as well....
ZAYED,,
, Do you know any professional, that can code my early version EGS, or if im thinking to change my diff. ratio,
can he able to make it work, if so, this also will help other friends here, if they decide that as well....
ZAYED,,
Thread Starter
Senior Member
Joined: Apr 2013
Posts: 343
Likes: 48
W109 300SEL6.3, W123 280TE, W123 200T, W210 E55
for sure i know that MKB Germany do this mods and i also had contact to someone from rennTECH here in germany ... so i would suggest you to contact rennTECH USA.
greetings, Fabian
greetings, Fabian
Thread Starter
Senior Member
Joined: Apr 2013
Posts: 343
Likes: 48
W109 300SEL6.3, W123 280TE, W123 200T, W210 E55
Nope, i where in contact with someone from germany working for renntech, but i did not hear anything from him since month so i dont know if he is still here or in the usa ... but i could check.
greetings, Fabian
greetings, Fabian
MBWorld Fanatic!
Joined: Aug 2006
Posts: 7,053
Likes: 398
From: A.D., U.A.E
2000 (W202 C200) & 2000 (W202 C55)
Thankss,,
I contacted with (RENNtech) Bob Brady, for another subject, around year ago, his a great helpFUL guy..,
as well as; (MKB) Hamann Bader, he modified my 722.6 tranny "2" years ago, fantastic guy of course..,,
i hope any one of them could help....
ZAYED,,
I contacted with (RENNtech) Bob Brady, for another subject, around year ago, his a great helpFUL guy..
,as well as; (MKB) Hamann Bader, he modified my 722.6 tranny "2" years ago, fantastic guy of course..
,,i hope any one of them could help....
ZAYED,,
Last edited by cm60k; Sep 23, 2013 at 06:47 AM.
Super Member
Joined: Aug 2012
Posts: 963
Likes: 58
From: USA
CL63 AMG
For the record, I had my old 722.6 internals professionally rebuilt the internals to much tighter tolerances on the clutch packs and the shifting time improved drastically. That's as with no software modifications. With a proper TCU tune, the old 722.6 can shift with the best of them (even better than the newer 7 speed). Only downside is no True manual mode, but that can be corrected with software too).
Super Member
Joined: Aug 2012
Posts: 963
Likes: 58
From: USA
CL63 AMG
It was w208 clk55 AMG 722.6 (same as the w210 e55). I had a performance shop rebuild it here in Texas. The transmission was good for 600+ HP/TQ easy and made the car so much more fun and lively to drive. It reduced shift times by roughly 50% alone. Wth software you could probably reduce another 25% as well.
........
Member
Joined: Jan 2005
Posts: 84
Likes: 0
From: fremont CA
99 c43
Swapping in egs52
Kaype
I'm trying to wrap my head around what you have done with the egs52 and wiring. I've consulted 202/210 with and without tiptronic
The pin input locations at the Egs module are identical with the exception of the inputs to selector module snd a couple other perimeters
When I look at the 203/211/230 Egs wiring there all the same with very different wiring locations most noticeable the can lines high and low. The only way possible I see to make one of these modules work would be to rewire some terminals .
Is must be that those who are replacing there old modules 0215458732 are getting the same module just in a newer software version egs52 because mb is no longer selling a reman part
Your thoughts please
I'm trying to wrap my head around what you have done with the egs52 and wiring. I've consulted 202/210 with and without tiptronic
The pin input locations at the Egs module are identical with the exception of the inputs to selector module snd a couple other perimeters
When I look at the 203/211/230 Egs wiring there all the same with very different wiring locations most noticeable the can lines high and low. The only way possible I see to make one of these modules work would be to rewire some terminals .
Is must be that those who are replacing there old modules 0215458732 are getting the same module just in a newer software version egs52 because mb is no longer selling a reman part
Your thoughts please
Thread Starter
Senior Member
Joined: Apr 2013
Posts: 343
Likes: 48
W109 300SEL6.3, W123 280TE, W123 200T, W210 E55
i didnt rewire anything. Original my EGS was an EGS51 from the W210 E430, swapped to a EGS52 from a late W210 E55 and finaly now to a EGS52 form a W211 E55. The all have the same connector to the tranny and can bus ... no rewiring needed. If you have the non-tiptronic shifter you have a lot more cables on the egs for all the switches and values the tiptronic shifter transmits via can.
i´ll get the "blue cap" Solenoids for my tranny today ... hopefully the last shiftingproblem are gone then. i have very(!) rough shifts from 5-4 and 4-3.
i will report
i´ll get the "blue cap" Solenoids for my tranny today ... hopefully the last shiftingproblem are gone then. i have very(!) rough shifts from 5-4 and 4-3.
i will report
Last edited by kaype; Sep 30, 2013 at 08:09 AM.
Thread Starter
Senior Member
Joined: Apr 2013
Posts: 343
Likes: 48
W109 300SEL6.3, W123 280TE, W123 200T, W210 E55
i dont know who i must thank the most ... but if i am ever able to buy him a beer ... i will do so!
i switched the two Solenoid from 140... part number to the ones with 240... part number. And thank god! WOW ... i´ve go a new transmission! The shifts are smoother then ever, it absolutly shift PERFECTLY!
YES!
W210 E55 with 722.643 Speedshift Transmission and REAL M-Mode! i like!
Here are some pic i took:

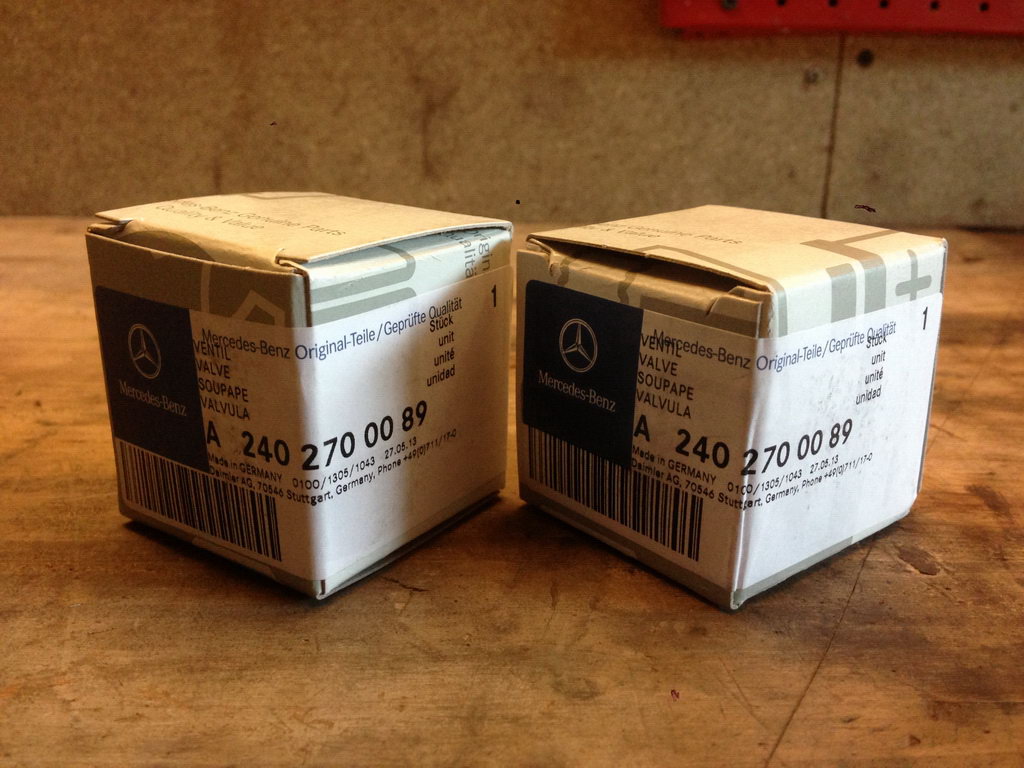

The two valves ...
transmission

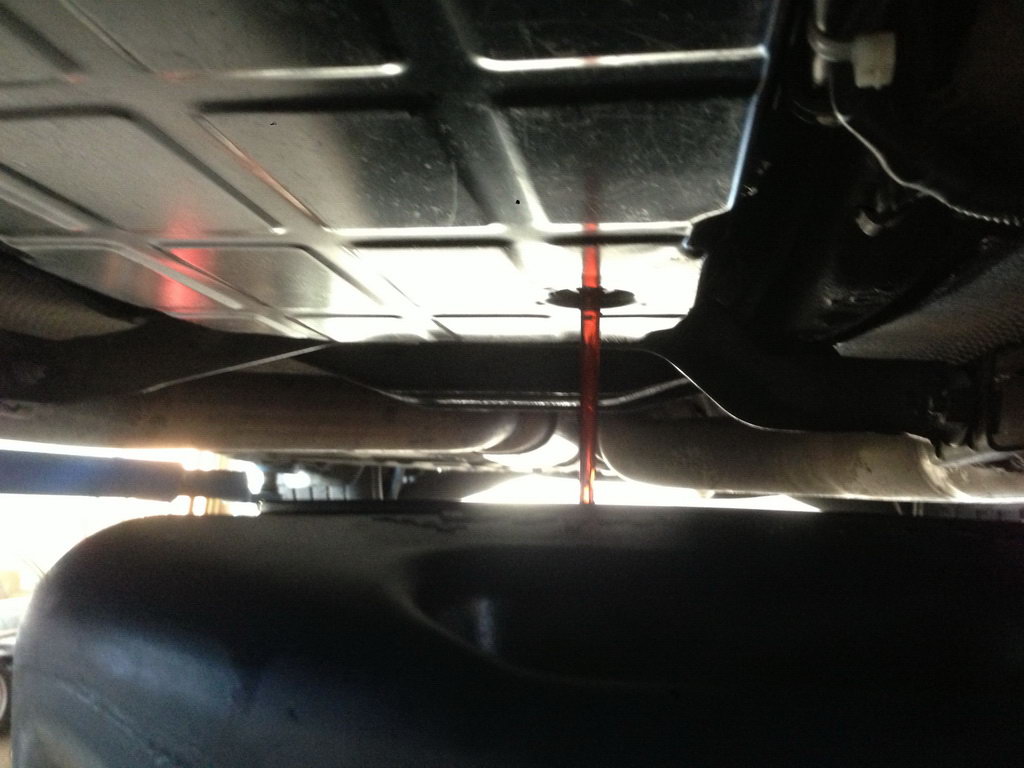

getting rid of the "old" oil ... been in the tranny for 3 days

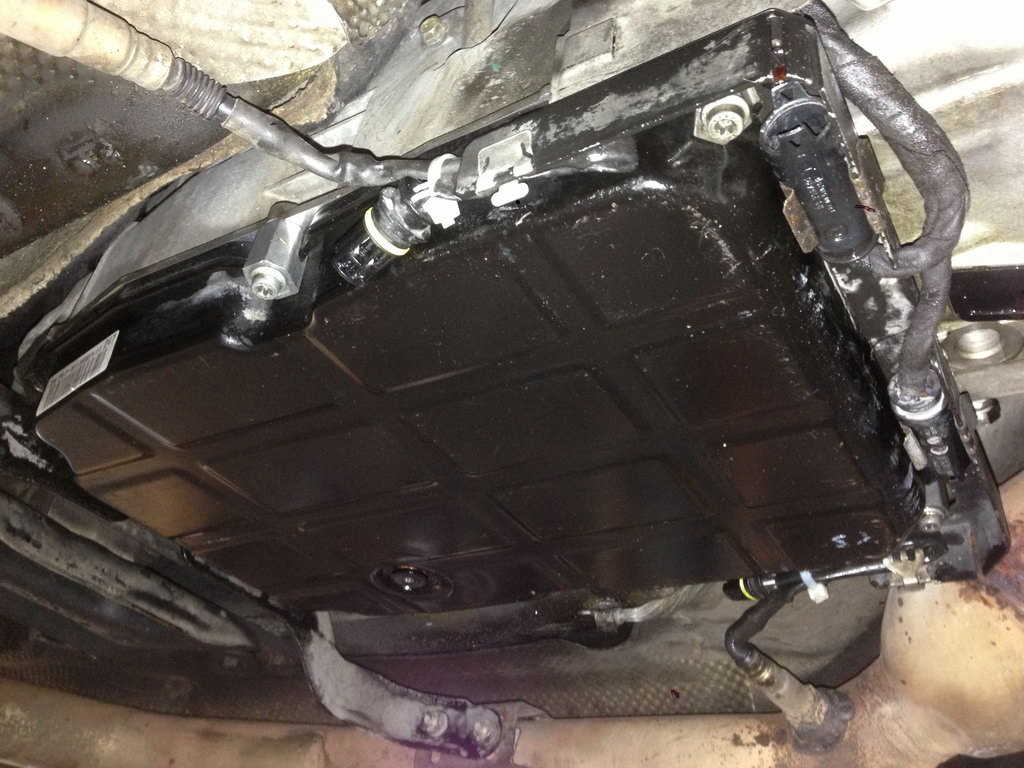

oilpan removed
removed shifting mechanics
left the new one, right the old one

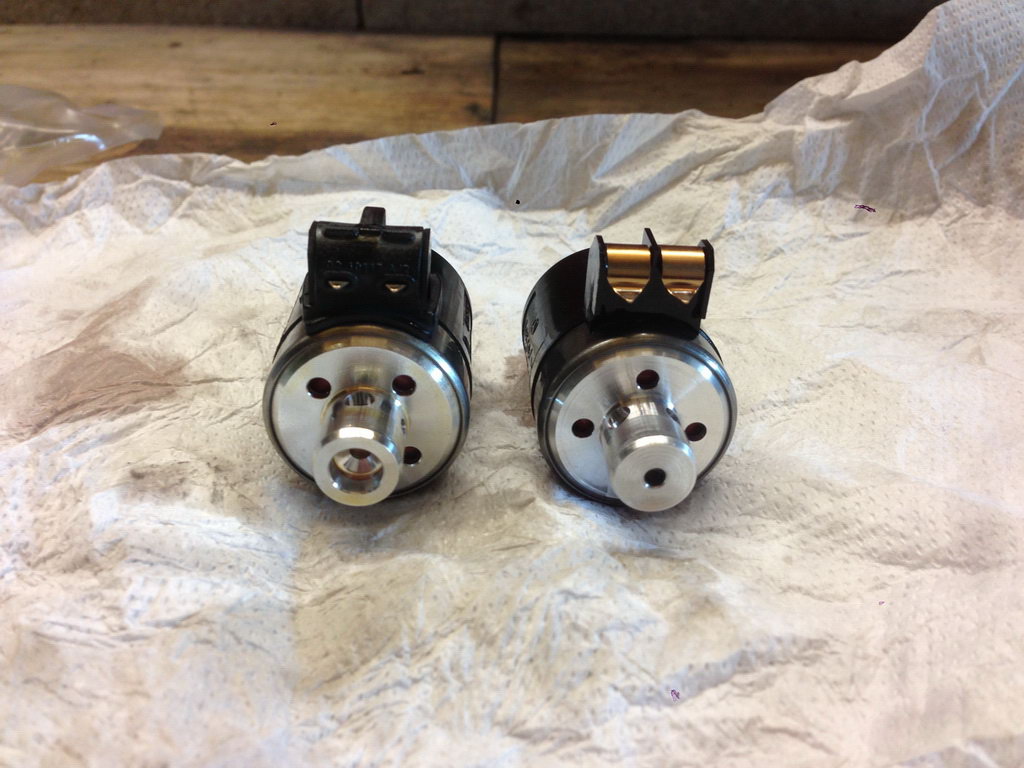

brown vs. blue
Everything put together ... oil filled in ... HAPPY!
greetings, Fabian
i switched the two Solenoid from 140... part number to the ones with 240... part number. And thank god! WOW ... i´ve go a new transmission! The shifts are smoother then ever, it absolutly shift PERFECTLY!
YES!
W210 E55 with 722.643 Speedshift Transmission and REAL M-Mode! i like!
Here are some pic i took:
The two valves ...
transmission
getting rid of the "old" oil ... been in the tranny for 3 days
oilpan removed
removed shifting mechanics
left the new one, right the old one
brown vs. blue
Everything put together ... oil filled in ... HAPPY!
greetings, Fabian
Senior Member
Joined: Mar 2008
Posts: 436
Likes: 1
From: Surrey, England.
'00 Mercedes 430/55 clk cabriolet
Hi Fabian,
One favour deserves another! We're all here to help and to learn from experiences.
I'm glad you like it and it worked out for you!
Hopefully later in the week I can get my Tech to code my EGS52 so that it works in my car. I've been busy getting a custom tune done, this and my Quaife LSD are the last of my power mods.
Are you going to get a tune on your TCU?
When I get mine to work that's what I'll be doing. My tuner says that I will then be able to handle more torque through the gears, faster shifting and I can program the TCU to shift at 6300rpm!
My tune lets me shift at 6300rpm manually but in 'D' my car shifts at 6000rpm.
I know I won't be able to get a true manual shift with paddles, (maybe that'll come later) but I'll have the effect of a manual shift with the stick which is still good!
Ps, Nice pictures by the way!
One favour deserves another! We're all here to help and to learn from experiences.
I'm glad you like it and it worked out for you!
Hopefully later in the week I can get my Tech to code my EGS52 so that it works in my car. I've been busy getting a custom tune done, this and my Quaife LSD are the last of my power mods.
Are you going to get a tune on your TCU?
When I get mine to work that's what I'll be doing. My tuner says that I will then be able to handle more torque through the gears, faster shifting and I can program the TCU to shift at 6300rpm!
My tune lets me shift at 6300rpm manually but in 'D' my car shifts at 6000rpm.
I know I won't be able to get a true manual shift with paddles, (maybe that'll come later) but I'll have the effect of a manual shift with the stick which is still good!
Ps, Nice pictures by the way!
Last edited by Pauljay; Sep 30, 2013 at 05:20 PM.
Thread Starter
Senior Member
Joined: Apr 2013
Posts: 343
Likes: 48
W109 300SEL6.3, W123 280TE, W123 200T, W210 E55
Hi Paul,
for now i am happy ... really happy ... with what i got No need for tuning for now.
Except one thing ... can you give me details on where the TCU shifts? I think the Supercharged M113 does a few more rpm then the NA M113. So my EGS things ... "ok, i´ll shift at 6300rpm" but the TCU regulates the enginespeed right before that point ... that is not bad, but lets you nod for a secound on a kickdown
Next steps will be new headers ... i´d like to buy the "old" Kleemann headers ... hopefully i get a pair soon
@photo ... unfortunately i only got my phone with me
greetings, Fabian
for now i am happy ... really happy ... with what i got
No need for tuning for now. Except one thing ... can you give me details on where the TCU shifts? I think the Supercharged M113 does a few more rpm then the NA M113. So my EGS things ... "ok, i´ll shift at 6300rpm" but the TCU regulates the enginespeed right before that point ... that is not bad, but lets you nod for a secound on a kickdown
Next steps will be new headers ... i´d like to buy the "old" Kleemann headers ... hopefully i get a pair soon
@photo ... unfortunately i only got my phone with me
greetings, Fabian
