Star Diagnostic How To DIY with lots o pics
#1627
Hey Guys,
Just joined here after acquiring a CLS Recently!
Thank you for the support so far; I have two questions!
* What sort of a Cable do I need to communicate with the CLS 63 (2007) OBD Port? (I have an ELM327 Cable which I used on my previous car, not sure whether it work though)
* Which software and where do I acquire this ? (Also, does it work on Windows) ?
- I'm pretty much looking to enable the lock / unlock beeps and any other interesting features if available.
Thanks in Advance!
Just joined here after acquiring a CLS Recently!
Thank you for the support so far; I have two questions!
* What sort of a Cable do I need to communicate with the CLS 63 (2007) OBD Port? (I have an ELM327 Cable which I used on my previous car, not sure whether it work though)
* Which software and where do I acquire this ? (Also, does it work on Windows) ?
- I'm pretty much looking to enable the lock / unlock beeps and any other interesting features if available.
Thanks in Advance!
The following users liked this post:
compaddict (11-01-2023)
#1630
MBWorld Fanatic!
![](https://mbworld.org/forums/images/ranks/veteran_army.png)
iTrader: (1)
Join Date: Nov 2016
Location: Maryland, United States
Posts: 4,214
Received 1,455 Likes
on
1,105 Posts
2015 SL400 (M276 Turbo), 2014 C350 Sport (M276 NA), 2004 SL500 (M113), 2004 Audi TT225 (BEA)
#1632
Member
2008 E350 Coding Central Gateway Module
I’m looking for a tutorial, to code a brand
new central gateway module, on a 2008
E350.
Thanks in advance.
new central gateway module, on a 2008
E350.
Thanks in advance.
#1633
MBWorld Fanatic!
![](https://mbworld.org/forums/images/ranks/veteran_army.png)
Join Date: Jan 2014
Location: Republic of Texas
Posts: 3,278
Received 956 Likes
on
742 Posts
'99 and '05 E55 AMG
A simulation module should be on the desktop of your STAR system. Mine is labeled "DAS Sim". It isn't perfect but it will walk you through most, if not all, of the process.
#1634
Member
#1635
So I thought I would help out a few MB brothers with a couple star diagnostic tutorials...
First, Lowering the car.
Get to the 211 Section
Attachment 383602
You will get to the main menu
Attachment 383603
Then go to Func perf by more than...
Attachment 383604
Then Chassis
Attachment 383605
Then Level adj
Attachment 383606
Then Suspension
Attachment 383607
And here is where people have problems, they just go to actuations and then lower it, IT WILL NOT STAY LOWERED this way, you have to go to initial startup
Attachment 383608
Then Initial with manual settings
Attachment 383609
Then F2
Attachment 383610
Here you will see a screen that shows the voltages which correspond to the height of the vehicle. they must be within the given ranges in the left hand column. use the + and - buttons to lower the car (In my screenshot I am in the car with a friend in the back seat, so that is why it is at 3.27, it should not exceed 3) Then hit F2
Attachment 383611
Enter in these inclination angles and if the car is within the voltages supplied in the page before, the car will accept the new lowered setting, if not it will reject it.
Attachment 383612
Now, how to activate the unlock and lock beep (honestly, one of the best mods to do if you have an older model e55
)
First Control units
Attachment 383613
Then Body
Attachment 383614
Then rear SAM
Attachment 383615
Then Control unit adaptations
Attachment 383616
Then national version of ATA function
Attachment 383617
At this screen you will see a pull down menu with a list of different regions on it. The only ones you need to worry about are USA with buzzer and Netherlands. If you choose USA, i will give you three short quick beeps when you lock the car and one short when you unlock it. Netherlands will give you three longer beeps when you lock the car and one long when you unlock it. Personal preference on which one you like. Then hit F3
Attachment 383618
Then F3(YES)
Attachment 383619
Hope this helps out some people. I really did not find a good DIY for Star Diagnostics, so I thought I would help out!
Thanks
Aleks
EDIT: Info for -10 Mod added
First, Lowering the car.
Get to the 211 Section
Attachment 383602
You will get to the main menu
Attachment 383603
Then go to Func perf by more than...
Attachment 383604
Then Chassis
Attachment 383605
Then Level adj
Attachment 383606
Then Suspension
Attachment 383607
And here is where people have problems, they just go to actuations and then lower it, IT WILL NOT STAY LOWERED this way, you have to go to initial startup
Attachment 383608
Then Initial with manual settings
Attachment 383609
Then F2
Attachment 383610
Here you will see a screen that shows the voltages which correspond to the height of the vehicle. they must be within the given ranges in the left hand column. use the + and - buttons to lower the car (In my screenshot I am in the car with a friend in the back seat, so that is why it is at 3.27, it should not exceed 3) Then hit F2
Attachment 383611
Enter in these inclination angles and if the car is within the voltages supplied in the page before, the car will accept the new lowered setting, if not it will reject it.
Attachment 383612
Now, how to activate the unlock and lock beep (honestly, one of the best mods to do if you have an older model e55
![Big Grin](https://mbworld.org/forums/images/smilies/biggrin.gif)
First Control units
Attachment 383613
Then Body
Attachment 383614
Then rear SAM
Attachment 383615
Then Control unit adaptations
Attachment 383616
Then national version of ATA function
Attachment 383617
At this screen you will see a pull down menu with a list of different regions on it. The only ones you need to worry about are USA with buzzer and Netherlands. If you choose USA, i will give you three short quick beeps when you lock the car and one short when you unlock it. Netherlands will give you three longer beeps when you lock the car and one long when you unlock it. Personal preference on which one you like. Then hit F3
Attachment 383618
Then F3(YES)
Attachment 383619
Hope this helps out some people. I really did not find a good DIY for Star Diagnostics, so I thought I would help out!
Thanks
Aleks
EDIT: Info for -10 Mod added
Hello I know its like milion years ago but are You still here?
I have an issue with setting the proper height my airmatic...
Here are my values from SD, is it ok?

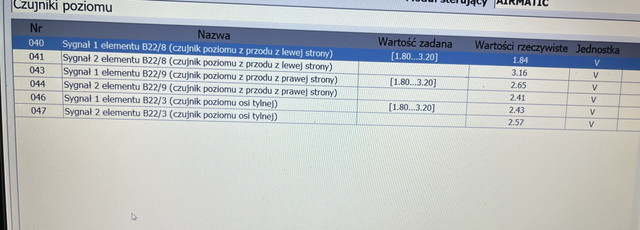

Values of the sensors
![](https://i.ibb.co/vhcs984/IMG-0923.jpg)
Car level:
![](https://i.ibb.co/XzXjTdC/IMG-0924.jpg)
#1636
MBWorld Fanatic!
![](https://mbworld.org/forums/images/ranks/veteran_army.png)
Join Date: Jan 2014
Location: Republic of Texas
Posts: 3,278
Received 956 Likes
on
742 Posts
'99 and '05 E55 AMG
First screen voltage values good.
Second screen shows inclination angles for the rear not good (too low). Raise the rear of the car another 5-10mm or so but keep voltage values within acceptable parameters.
Best to use an inclinometer app on your smart phone.
I have posted on this before. Use advanced search upper right with my username and keywords "W211 suspension calibration". Not difficult and can be performed in an hour.
Second screen shows inclination angles for the rear not good (too low). Raise the rear of the car another 5-10mm or so but keep voltage values within acceptable parameters.
Best to use an inclinometer app on your smart phone.
I have posted on this before. Use advanced search upper right with my username and keywords "W211 suspension calibration". Not difficult and can be performed in an hour.
#1637
Hey thanks for your reply, its nice!
When I checked with my mobilephones and inclino app it shows some crazy numbers i dont know if the angles are shot or my mobile phone....
So you set not height just angles and volt values? But you can set different heights and the volt values will be within range....
When I checked with my mobilephones and inclino app it shows some crazy numbers i dont know if the angles are shot or my mobile phone....
So you set not height just angles and volt values? But you can set different heights and the volt values will be within range....
#1638
MBWorld Fanatic!
![](https://mbworld.org/forums/images/ranks/veteran_army.png)
Join Date: Jan 2014
Location: Republic of Texas
Posts: 3,278
Received 956 Likes
on
742 Posts
'99 and '05 E55 AMG
W211 Airmatic suspension calibration info
EDIT: I just noted your description shows you have a G55. My numbers are for a W211 E55.
My advice is just from "eyeballing" the two photos. I've calibrated my car a few times so I have an idea of what the numbers should look like.
Trust the inclination angles using an inclinometer for maximum accuracy. Measure on the rear axle shaft, negative 0.9 degrees (highest height) to negative 1.5 degrees (lowest height). Negative angles on the rear axle shaft indicate the differential end is lower than the hub end. Should equate to camber of negative 2.2 degrees (lowest height) to negative 1.2 degrees (highest height). I target negative 1.2 degrees axle shaft inclination angle on my car and it provides me with a camber of negative 1.7 degrees.
There may be a couple of millimeters difference on the second screen but so long as all are within parameters (negative 3mm to positive 3mm) I don't worry about it.
I found correcting the front inclination angles manually with DAS corrected the values of the rear height without my having to manually adjust the rear inclination angles. So...start with the inclination angles first.
Here are my notes from the last time I calibrated the suspension:
2005 E55 AMGVIN WDBUF76JX5A779044
17 November 2022
221,751 miles
$0 total
-Calibrated suspension using DAS. Raised front from 25 ¾” to 27” fender height.
-LF was -2.7* before, +3.2* after (+3.1 to +4.1 is spec’d). Before level sensor voltage was out of range (initial -2.88 volts versus max range of -2.8 volts). End voltage -2.14 volts. Level sensors before -17mm, after +2mm. Allowable range is -3 to +3mm.
-RF was -2.4* before, +3.2* after. End voltage -2.65 volts. Level sensor before -17mm, after -3mm.
-Rear axle inclination angle correct at previously set -1.2 degrees. Correcting front corrected out of range rear level sensor; -11mm before, +1mm after.
My advice is just from "eyeballing" the two photos. I've calibrated my car a few times so I have an idea of what the numbers should look like.
Trust the inclination angles using an inclinometer for maximum accuracy. Measure on the rear axle shaft, negative 0.9 degrees (highest height) to negative 1.5 degrees (lowest height). Negative angles on the rear axle shaft indicate the differential end is lower than the hub end. Should equate to camber of negative 2.2 degrees (lowest height) to negative 1.2 degrees (highest height). I target negative 1.2 degrees axle shaft inclination angle on my car and it provides me with a camber of negative 1.7 degrees.
There may be a couple of millimeters difference on the second screen but so long as all are within parameters (negative 3mm to positive 3mm) I don't worry about it.
I found correcting the front inclination angles manually with DAS corrected the values of the rear height without my having to manually adjust the rear inclination angles. So...start with the inclination angles first.
Here are my notes from the last time I calibrated the suspension:
2005 E55 AMGVIN WDBUF76JX5A779044
17 November 2022
221,751 miles
$0 total
-Calibrated suspension using DAS. Raised front from 25 ¾” to 27” fender height.
-LF was -2.7* before, +3.2* after (+3.1 to +4.1 is spec’d). Before level sensor voltage was out of range (initial -2.88 volts versus max range of -2.8 volts). End voltage -2.14 volts. Level sensors before -17mm, after +2mm. Allowable range is -3 to +3mm.
-RF was -2.4* before, +3.2* after. End voltage -2.65 volts. Level sensor before -17mm, after -3mm.
-Rear axle inclination angle correct at previously set -1.2 degrees. Correcting front corrected out of range rear level sensor; -11mm before, +1mm after.
Last edited by bbirdwell; 05-10-2024 at 08:14 AM.
#1639
EDIT: I just noted your description shows you have a G55. My numbers are for a W211 E55.
My advice is just from "eyeballing" the two photos. I've calibrated my car a few times so I have an idea of what the numbers should look like.
Trust the inclination angles using an inclinometer for maximum accuracy. Measure on the rear axle shaft, negative 0.9 degrees (highest height) to negative 1.5 degrees (lowest height). Negative angles on the rear axle shaft indicate the differential end is lower than the hub end. Should equate to camber of negative 2.2 degrees (lowest height) to negative 1.2 degrees (highest height). I target negative 1.2 degrees axle shaft inclination angle on my car and it provides me with a camber of negative 1.7 degrees.
There may be a couple of millimeters difference on the second screen but so long as all are within parameters (negative 3mm to positive 3mm) I don't worry about it.
I found correcting the front inclination angles manually with DAS corrected the values of the rear height without my having to manually adjust the rear inclination angles. So...start with the inclination angles first.
Here are my notes from the last time I calibrated the suspension:
2005 E55 AMGVIN WDBUF76JX5A779044
17 November 2022
221,751 miles
$0 total
-Calibrated suspension using DAS. Raised front from 25 ¾” to 27” fender height.
-LF was -2.7* before, +3.2* after (+3.1 to +4.1 is spec’d). Before level sensor voltage was out of range (initial -2.88 volts versus max range of -2.8 volts). End voltage -2.14 volts. Level sensors before -17mm, after +2mm. Allowable range is -3 to +3mm.
-RF was -2.4* before, +3.2* after. End voltage -2.65 volts. Level sensor before -17mm, after -3mm.
-Rear axle inclination angle correct at previously set -1.2 degrees. Correcting front corrected out of range rear level sensor; -11mm before, +1mm after.
My advice is just from "eyeballing" the two photos. I've calibrated my car a few times so I have an idea of what the numbers should look like.
Trust the inclination angles using an inclinometer for maximum accuracy. Measure on the rear axle shaft, negative 0.9 degrees (highest height) to negative 1.5 degrees (lowest height). Negative angles on the rear axle shaft indicate the differential end is lower than the hub end. Should equate to camber of negative 2.2 degrees (lowest height) to negative 1.2 degrees (highest height). I target negative 1.2 degrees axle shaft inclination angle on my car and it provides me with a camber of negative 1.7 degrees.
There may be a couple of millimeters difference on the second screen but so long as all are within parameters (negative 3mm to positive 3mm) I don't worry about it.
I found correcting the front inclination angles manually with DAS corrected the values of the rear height without my having to manually adjust the rear inclination angles. So...start with the inclination angles first.
Here are my notes from the last time I calibrated the suspension:
2005 E55 AMGVIN WDBUF76JX5A779044
17 November 2022
221,751 miles
$0 total
-Calibrated suspension using DAS. Raised front from 25 ¾” to 27” fender height.
-LF was -2.7* before, +3.2* after (+3.1 to +4.1 is spec’d). Before level sensor voltage was out of range (initial -2.88 volts versus max range of -2.8 volts). End voltage -2.14 volts. Level sensors before -17mm, after +2mm. Allowable range is -3 to +3mm.
-RF was -2.4* before, +3.2* after. End voltage -2.65 volts. Level sensor before -17mm, after -3mm.
-Rear axle inclination angle correct at previously set -1.2 degrees. Correcting front corrected out of range rear level sensor; -11mm before, +1mm after.
thanks again for great update.
I’ll give it a try, do you do this alignment with engine running? I’ve found also for 211.065 what I have DAS is saying for front angles 3.1-4.1*
rear: -1.7 <-> -1.1*
#1640
MBWorld Fanatic!
![](https://mbworld.org/forums/images/ranks/veteran_army.png)
Join Date: Jan 2014
Location: Republic of Texas
Posts: 3,278
Received 956 Likes
on
742 Posts
'99 and '05 E55 AMG
Engine off. I did raise and lower the suspension a couple of times in case of "stiction" (static friction) before setting the inclination angles. Adjusting each front corner affects the others so there is a bit of back and forth to set both fronts and rear correctly.
#1641
Hey I think I did it or at least I am on the right path! thanks a lot
After playing for a while with DAS now Ive got at least even numbers, its not bad but after rear shock absorbers replacement next month I will target for better numbers.
Cars level:
![](https://i.ibb.co/9HtqX9g/IMG-0941.jpg)
And voltage from signals,
![](https://i.ibb.co/Bshz8S6/IMG-0940.jpg)
And the levels are (according to DAS fronts 3.1-4.1,, rear : -1.7 - -1.1*):
Front Left: 3.2*
Front Right: 3.2*
Rear Left: -1.5*
Rear Right: -1.5*
According to the inclinometer from my phone but I am not sure how accurate is this app/phone..
Oh i Have a question, did you calibrate phone with app to 0.00* to the floor for example before checking the angles?
Thanks
After playing for a while with DAS now Ive got at least even numbers, its not bad but after rear shock absorbers replacement next month I will target for better numbers.
Cars level:
![](https://i.ibb.co/9HtqX9g/IMG-0941.jpg)
And voltage from signals,
![](https://i.ibb.co/Bshz8S6/IMG-0940.jpg)
And the levels are (according to DAS fronts 3.1-4.1,, rear : -1.7 - -1.1*):
Front Left: 3.2*
Front Right: 3.2*
Rear Left: -1.5*
Rear Right: -1.5*
According to the inclinometer from my phone but I am not sure how accurate is this app/phone..
Oh i Have a question, did you calibrate phone with app to 0.00* to the floor for example before checking the angles?
Thanks
#1642
MBWorld Fanatic!
![](https://mbworld.org/forums/images/ranks/veteran_army.png)
Join Date: Jan 2014
Location: Republic of Texas
Posts: 3,278
Received 956 Likes
on
742 Posts
'99 and '05 E55 AMG
Good numbers. ![thumbs](https://mbworld.org/forums/images/smilies/thumbsup.gif)
I use two identical sockets plus a six foot piece of 1 inch square aluminum tubing with a carpenter level or inclinometer app. Place sockets where front tires will be, place aluminum tube across sockets, then slip floor tiles under sockets until aluminum is level. Repeat for rear and then front to back.
Leave floor tiles in place and roll car so tires are on floor tiles. That is my starting point for a level surface. IIRC, for my car and my garage, it is two floor tiles under left front and one floor tile under left rear tire. Not a $5000 professional setup but good enough for me.
I calibrate my phone on the floor to start but the floor is fairly level to begin with.
Good to see you making good progress.![drive](https://mbworld.org/forums/images/smilies/driving.gif)
![thumbs](https://mbworld.org/forums/images/smilies/thumbsup.gif)
I use two identical sockets plus a six foot piece of 1 inch square aluminum tubing with a carpenter level or inclinometer app. Place sockets where front tires will be, place aluminum tube across sockets, then slip floor tiles under sockets until aluminum is level. Repeat for rear and then front to back.
Leave floor tiles in place and roll car so tires are on floor tiles. That is my starting point for a level surface. IIRC, for my car and my garage, it is two floor tiles under left front and one floor tile under left rear tire. Not a $5000 professional setup but good enough for me.
I calibrate my phone on the floor to start but the floor is fairly level to begin with.
Good to see you making good progress.
![drive](https://mbworld.org/forums/images/smilies/driving.gif)
#1643
Junior Member
#1644
Junior Member
Can we bring this thread back
This is by far best thread...I know it's old I have 2004 e320 4matic I have had AR for 12 months done everthing I could all on own. Got star and open port slow but works well DAS so far I pur new Face lift cluster in and put og miles back on. Got Manuel and agility on gear box Got fuel remaining in tank. And the big one for me is sos telaid I got it gone forever. I went to dealer they said 250 to code to not present 3.5 hours later they said can't get into your system must be broken wire. They said they hooked 3 different computer up. Well when I got my star went to DAS had it coded in 3 min gone dealer lies they wer prob using xentry it was not even out in 04 lol DAS vedimo is the ticket. Is their anything else I can do?
#1645
This is by far best thread...I know it's old I have 2004 e320 4matic I have had AR for 12 months done everthing I could all on own. Got star and open port slow but works well DAS so far I pur new Face lift cluster in and put og miles back on. Got Manuel and agility on gear box Got fuel remaining in tank. And the big one for me is sos telaid I got it gone forever. I went to dealer they said 250 to code to not present 3.5 hours later they said can't get into your system must be broken wire. They said they hooked 3 different computer up. Well when I got my star went to DAS had it coded in 3 min gone dealer lies they wer prob using xentry it was not even out in 04 lol DAS vedimo is the ticket. Is their anything else I can do?
#1646
Junior Member
