Or look under the plastic trunk liner of the CL203.
'01 C Class Lateral Acceleration Sensor
Thread Starter
Newbie
Joined: Sep 2008
Posts: 8
Likes: 0
Mercedes 190sl, Mercedes 230 (66)
'01 C Class Lateral Acceleration Sensor
Does anyone know where on the car this sensor is located? I've been looking for a long while and cannot find it. Any help will be greatly appreciated.
Thanks!
Thanks!
Super Moderator
Joined: Jun 2008
Posts: 19,942
Likes: 192
From: Llandudno, Cape Town, South Africa
late 2009 CLK 350 Coupe Elegance, '65 Jaguar S Type wires
For ESP or for BiX? Merc call a yaw sensor for BiX - I don't know the answer to either but would love to. Have not found on any forum. Maybe the pros can help.
Thread Starter
Newbie
Joined: Sep 2008
Posts: 8
Likes: 0
Mercedes 190sl, Mercedes 230 (66)
For ESP. I'm assuming there is only one. The thing is elusive! I've looked in both fuseboxes, under the hood, all over. Will keep looking and report if i've found anything. A thorough google session didn't yield much, but let's hope one of the pros here can chime in...
If anyone is interested, the part number is:
163 542 06 18
If anyone is interested, the part number is:
163 542 06 18
MBWorld Fanatic!
Joined: Jul 2004
Posts: 1,194
Likes: 2
From: Diamond Bar & Anaheim, CA
2003 C-Class Sportcoupe
Your best bet would be to ask the question in the Tech ? section of the forum. Or call your local parts manager at the dealer and have them find the part on EPC. Even if you find it and replace it, you'll probably need to have the code cleared with DAS.
Thread Starter
Newbie
Joined: Sep 2008
Posts: 8
Likes: 0
Mercedes 190sl, Mercedes 230 (66)
pshek,
thanks for the leads. i'll do some uncovering and see if I discover anything....Also will get a photo of this part up so people know what it looks like. It's quite small.
side topic:
pshek, is there a thread about your car on here? I'm pretty intrigued at a 203 coupe with a c32 engine. Sounds insane!
thanks for the leads. i'll do some uncovering and see if I discover anything....Also will get a photo of this part up so people know what it looks like. It's quite small.
side topic:
pshek, is there a thread about your car on here? I'm pretty intrigued at a 203 coupe with a c32 engine. Sounds insane!
MBWorld Fanatic!
Joined: Jul 2004
Posts: 1,194
Likes: 2
From: Diamond Bar & Anaheim, CA
2003 C-Class Sportcoupe
pshek,
thanks for the leads. i'll do some uncovering and see if I discover anything....Also will get a photo of this part up so people know what it looks like. It's quite small.
side topic:
pshek, is there a thread about your car on here? I'm pretty intrigued at a 203 coupe with a c32 engine. Sounds insane!
thanks for the leads. i'll do some uncovering and see if I discover anything....Also will get a photo of this part up so people know what it looks like. It's quite small.
side topic:
pshek, is there a thread about your car on here? I'm pretty intrigued at a 203 coupe with a c32 engine. Sounds insane!
Here's the link. I haven't updated the thread for awhile now even though I've since added a lot more mods. Lazy I guess.
Trending Topics
MB World Stories
The Best of Mercedes & AMG
Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun
Verdad Gallardo
Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren
Verdad Gallardo
8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine
Verdad Gallardo
Flawlessly Restored Mercedes 190E Evo II Heads to Auction
Verdad Gallardo
Electric Mercedes C-Class Unveiled: 11 Things You Need to Know
Verdad Gallardo
Mercedes EQS Gets A Major Update: Everything You Need to Know
Verdad Gallardo
5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve
Verdad Gallardo
Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping
Verdad Gallardo
10 Most Reliable Mercedes-Benz Models You Can Buy Used
Verdad Gallardo
MBWorld Fanatic!
Joined: Jul 2004
Posts: 1,194
Likes: 2
From: Diamond Bar & Anaheim, CA
2003 C-Class Sportcoupe
thanks, you can try searching through these pdfs on ESP...at least they're informative about all the technical aspects of MBs.
Thread Starter
Newbie
Joined: Sep 2008
Posts: 8
Likes: 0
Mercedes 190sl, Mercedes 230 (66)
Morning All,
With pshek's direction, I found this diagram about the w203 esp/bas system. The closest thing to what I've got is here:
However, the code I get is "C1142 ABS lateral acceleration sensor (B24/2), short/open circuit"
The one in the diagram is B24/15. Same thing? Also, the diagram is a bit vague with regards to location. I checked under/around the ashtray, and in and around the shifter housing. Nothing.
With pshek's direction, I found this diagram about the w203 esp/bas system. The closest thing to what I've got is here:
However, the code I get is "C1142 ABS lateral acceleration sensor (B24/2), short/open circuit"
The one in the diagram is B24/15. Same thing? Also, the diagram is a bit vague with regards to location. I checked under/around the ashtray, and in and around the shifter housing. Nothing.
Super Moderator
Joined: Jun 2008
Posts: 19,942
Likes: 192
From: Llandudno, Cape Town, South Africa
late 2009 CLK 350 Coupe Elegance, '65 Jaguar S Type wires
Morning All,
With pshek's direction, I found this diagram about the w203 esp/bas system. The closest thing to what I've got is here:
However, the code I get is "C1142 ABS lateral acceleration sensor (B24/2), short/open circuit"
The one in the diagram is B24/15. Same thing? Also, the diagram is a bit vague with regards to location. I checked under/around the ashtray, and in and around the shifter housing. Nothing.
With pshek's direction, I found this diagram about the w203 esp/bas system. The closest thing to what I've got is here:
However, the code I get is "C1142 ABS lateral acceleration sensor (B24/2), short/open circuit"
The one in the diagram is B24/15. Same thing? Also, the diagram is a bit vague with regards to location. I checked under/around the ashtray, and in and around the shifter housing. Nothing.
Last edited by Glyn M Ruck; Sep 24, 2008 at 04:41 PM.
Thread Starter
Newbie
Joined: Sep 2008
Posts: 8
Likes: 0
Mercedes 190sl, Mercedes 230 (66)
problem solved...
The damn sensor was deep in the trunk underneath the rear seat (but accessed from the trunk), so Pshek was right about the location. Gah. Code is gone. $104 little plastic box did the trick.
The damn sensor was deep in the trunk underneath the rear seat (but accessed from the trunk), so Pshek was right about the location. Gah. Code is gone. $104 little plastic box did the trick.
Super Moderator
Joined: Jun 2008
Posts: 19,942
Likes: 192
From: Llandudno, Cape Town, South Africa
late 2009 CLK 350 Coupe Elegance, '65 Jaguar S Type wires
MBWorld Fanatic!
Joined: Nov 2001
Posts: 5,851
Likes: 196
From: Huntington Beach, Ca.
'17 Jaguar XF
Is it this black box in the middle of the picture? I just started getting a solid ESP error message after being intermittent for a couple of weeks. Start the car and let it idle and the message comes up. Wheel full lock left/right/left doesn't help. ESP appears to be not initializing. If the part is only $104 then it's worth the gamble to shotgun it. Steering angle sensor is almost $400.
MBWorld Fanatic!
Joined: Jun 2003
Posts: 9,498
Likes: 4
From: San Diego, CA & San Jose, Costa Rica & Stuttgart, Germany
1959 220S / 1979 230 G / 2002 A210 AMG / 2003 C320 SC / 2004.5 C320 SS / 2005 ML350 SE / 2008 smart
interesting that the diagram shows the B24/15 right around the top / center of the dashboard in the cabin, and it turns out to be under the rear seat.
Maybe, that's an old ESP diagram, or model specific.
so where on this picture is the Lateral Acceleration Sensor ??
Carlos
Saprissa@aol.com
Maybe, that's an old ESP diagram, or model specific.
so where on this picture is the Lateral Acceleration Sensor ??
Carlos
Saprissa@aol.com
MBWorld Fanatic!
Joined: Jun 2003
Posts: 9,498
Likes: 4
From: San Diego, CA & San Jose, Costa Rica & Stuttgart, Germany
1959 220S / 1979 230 G / 2002 A210 AMG / 2003 C320 SC / 2004.5 C320 SS / 2005 ML350 SE / 2008 smart
Thread Starter
Newbie
Joined: Sep 2008
Posts: 8
Likes: 0
Mercedes 190sl, Mercedes 230 (66)

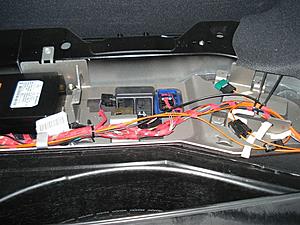

Ok, in the trunk photo. The LAS is underneath one of the other sensors around that blue area. The sensor itself looks like this:
