HELP! Transmission dead, part needed!
#1
Senior Member
Thread Starter
Join Date: Dec 2008
Location: Taipei, Taiwan
Posts: 343
Likes: 0
Received 2 Likes
on
2 Posts
C32 '02
HELP! Transmission dead, part needed!
Yesterday I was driving slowly and then i hear this whining noise that goes with the engine rpm, the higher the rev, the louder the noise. Anywayz, the sound came from the transmission area and after hooking up to Star, there wasn't mush to go by. So today I took apart the transmission. What i found was that the needle bearings on the casting part.140 272 22 24 was broken, it was actually in several pieces. I couldn't find this part from EPC. From the looks of it, it would seem that I would have to replace this whole part. I couldn't find in EPC for this needle bearing as well, it looked like it was pressed in. Does this look right? the part in question is the part that holds the clutch plates. Regular 722.6 only has 3 clutch plates, ours had 4.

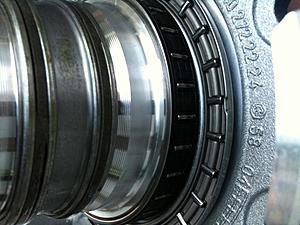

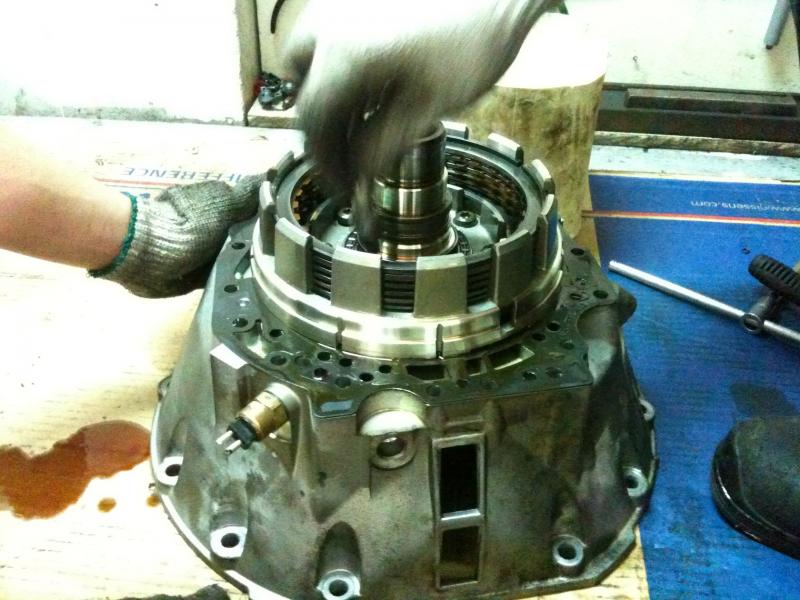

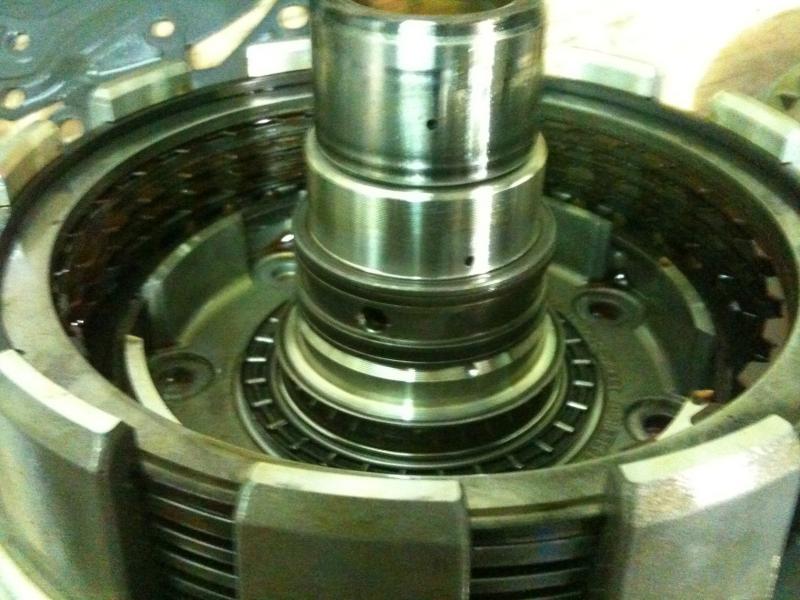

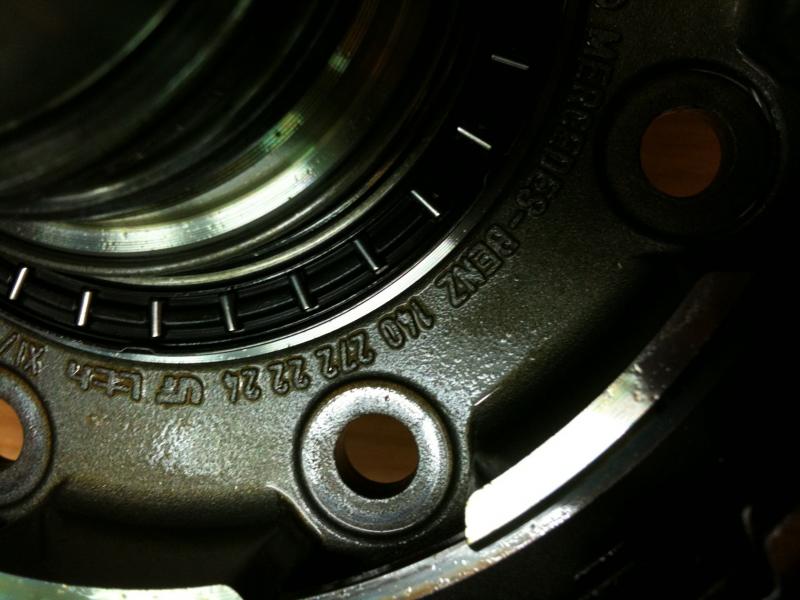

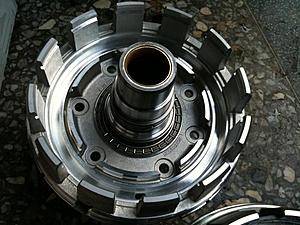

From the pictures i've taken you can see the horizontal needle bearing. the red arrow pointing is where the broken needle bearing suppose to be. anyone know where or whom I can get this part from? I'm gonna try the stealership tomorrow too to see if i can get a quote. Any advice and comments are more that welcome.
TIA!
