Update on my Oil Pump issue for 2003 m113 swap

For backstory see this thread with a couple pics showing part of the issue: https://mbworld.org/forums/clk-class...t-none-us.html

The Update: The pump was unobtainable because they were issuing a new part number and waiting for the old part number to sell out. Apparently they upgraded a component of the pump. As a reminder, it's the pump for a S55 or CL55 from 2003 - 2006.

New Part Number: 1131811201. About $500 from MB. Nobody would sell me one used because then their engine is worthless.
Old Part Number: 1131802501

So if you are ordering a new one from the factory it will be the 1201. If searching for a used one (good luck) its the 2501. As far as I can see they are identical.

Here is a picture of the stock clk430 one the left, new pump on the right. My fingers are pointing to the spacing difference on the mounting points. on the CLK430 pump, the space/gap is on the right of the port, whereas on the new pump the space/gap is on the left of the port. In other words, the new pump's port is moved slightly to the right to line up with a 2003's block.

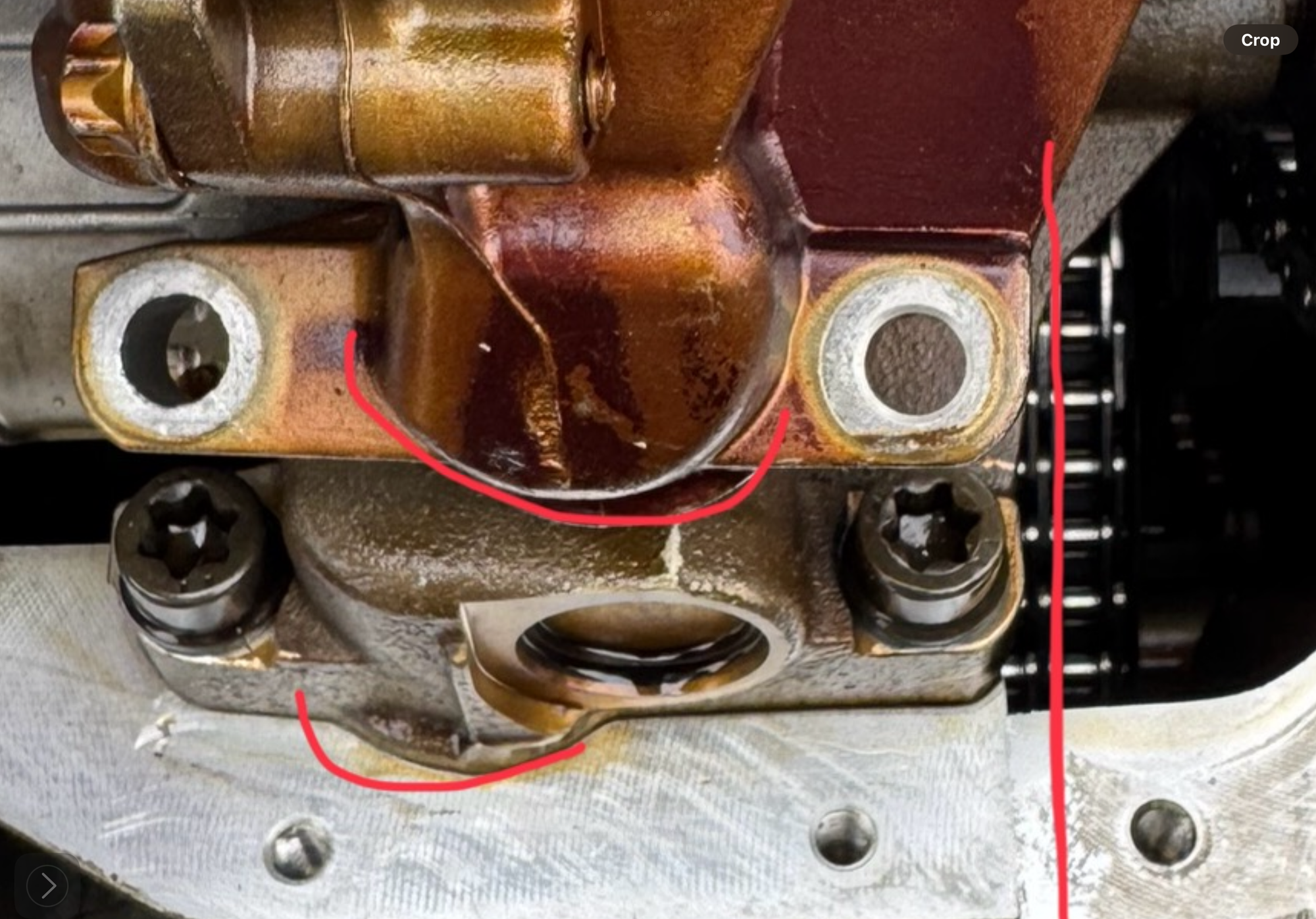

Here's the other picture showing how the CLK430's port does not line up with the 2003 block:

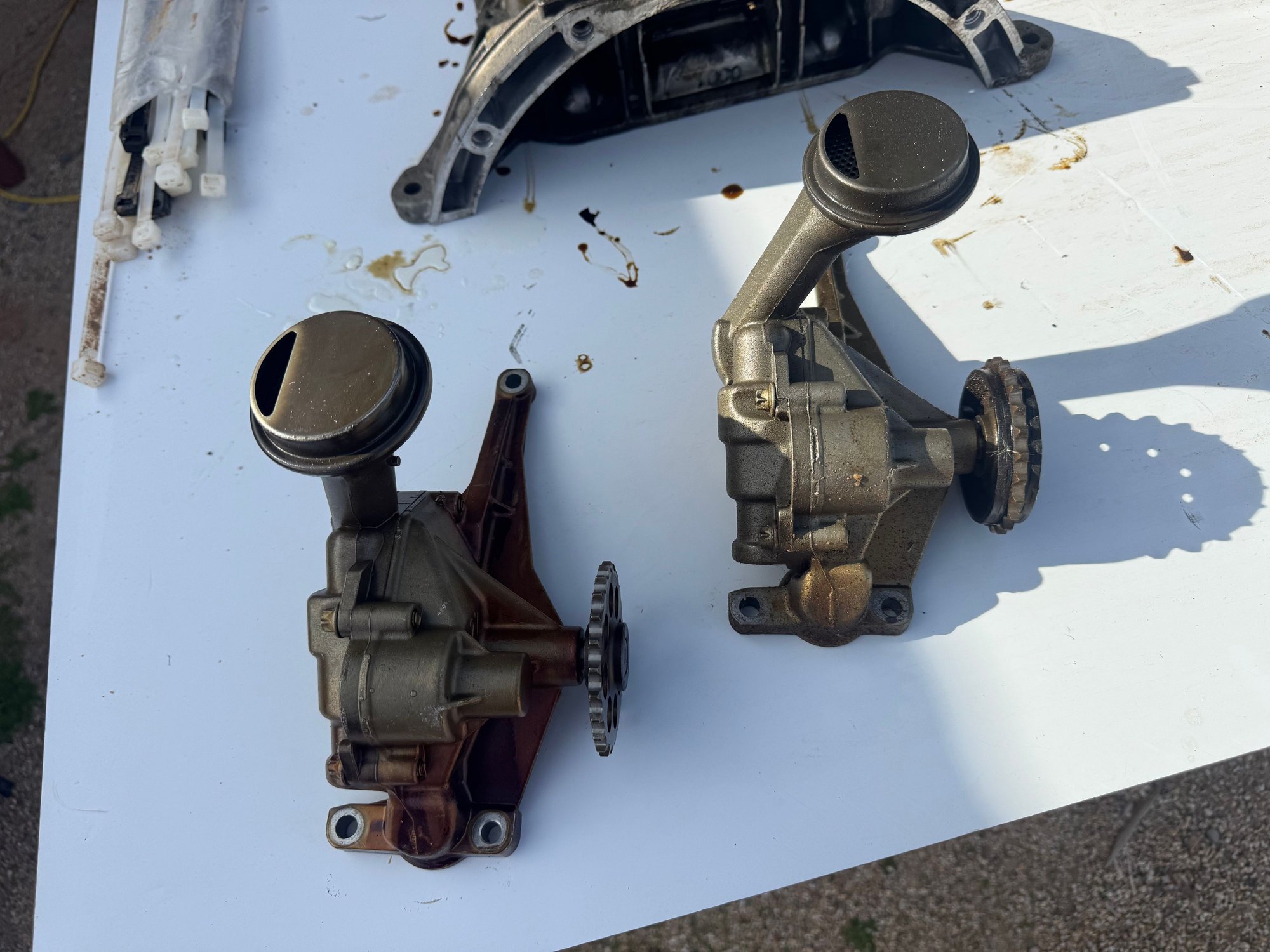

Another pic of the two pumps side by side for comparison. Only difference I noticed is the angle of the snorkels. I might be mistaken but I think the w208 430s, 55s and 320s all use this pump. Regardless you can find them all day on ebay for anywhere from $25-$75. Also in the background you can see the tubing that is a part of the 2003 CLK55's stock pump. That is the tubing that prevents your 430 pan from mounting to the 2003 block and the reason this hybrid pump is necessary.





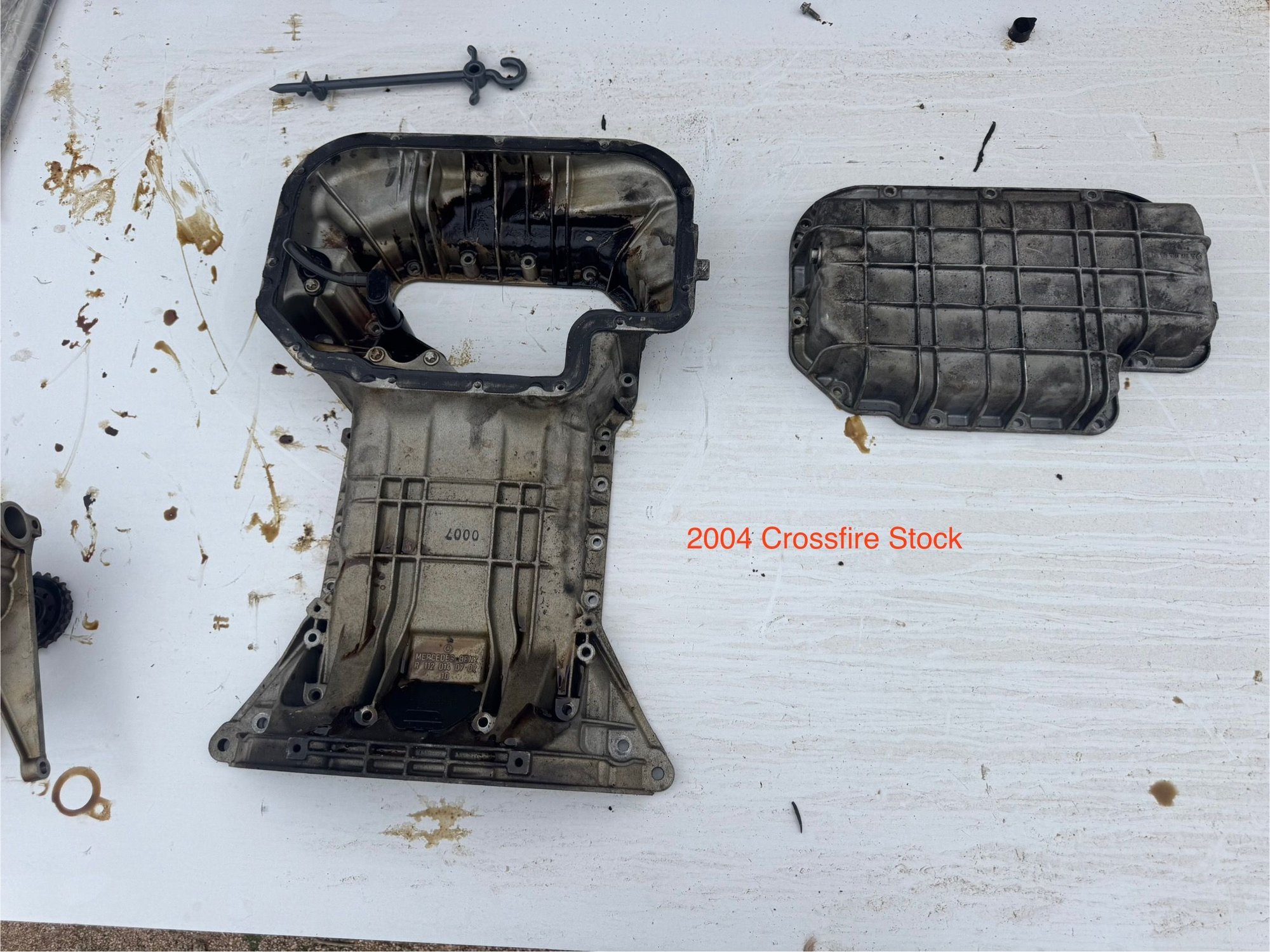

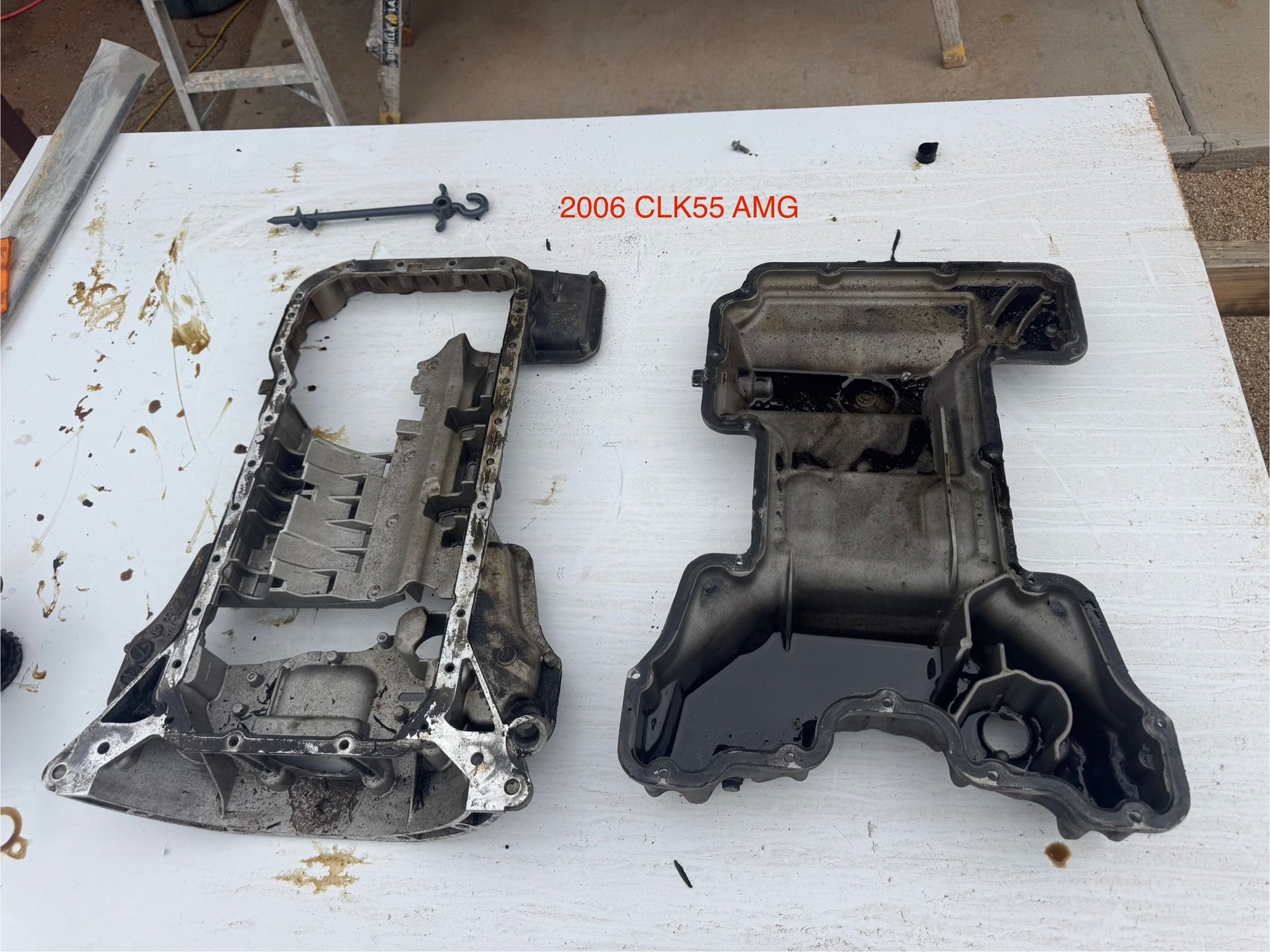

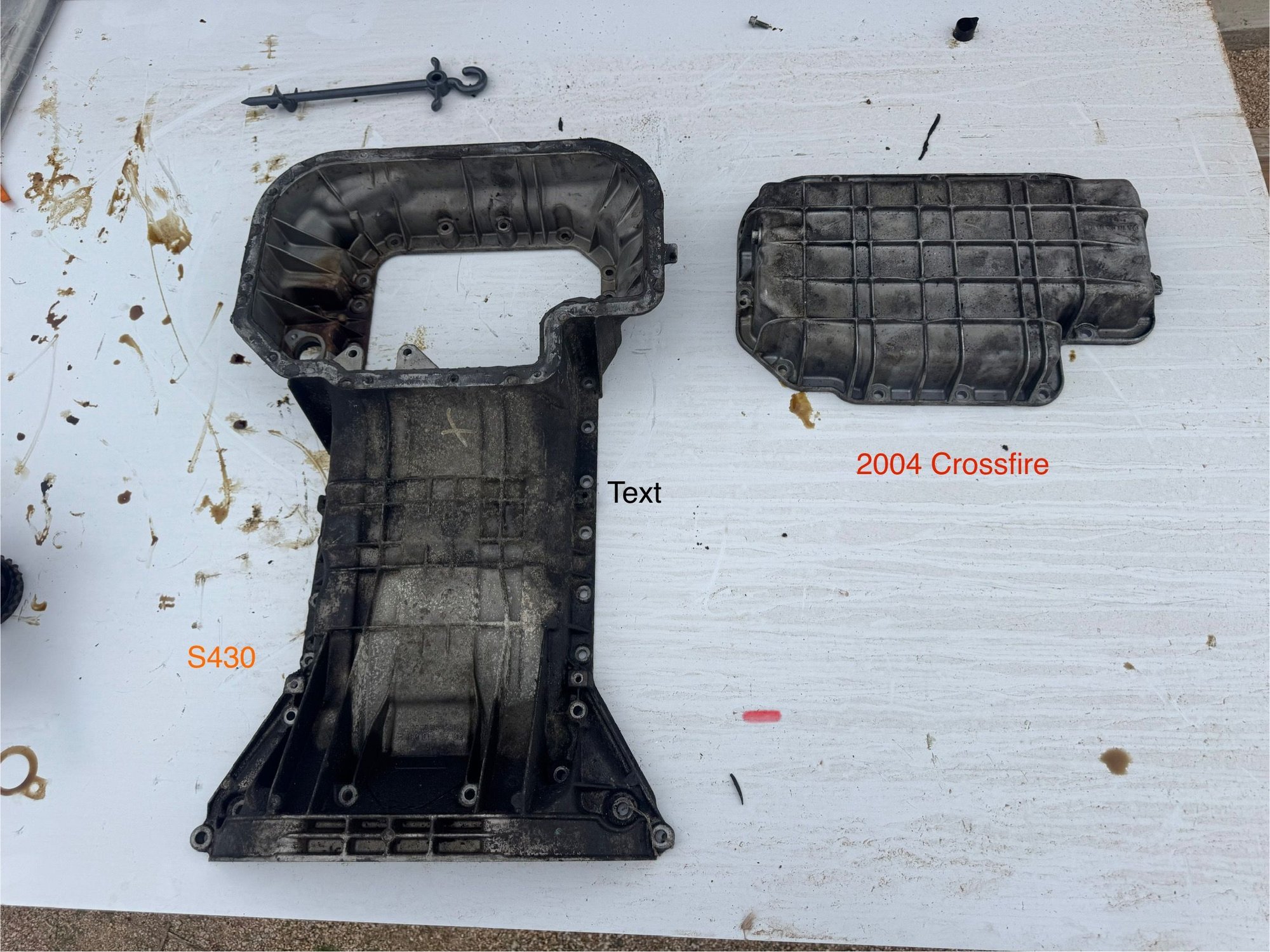

Since I have't had time to mount it yet, I do not know for sure if the new pump's snorkel clears the stock 430 oil pan. I opted to just use the old snorkel on the new pump. Here's the finished product.





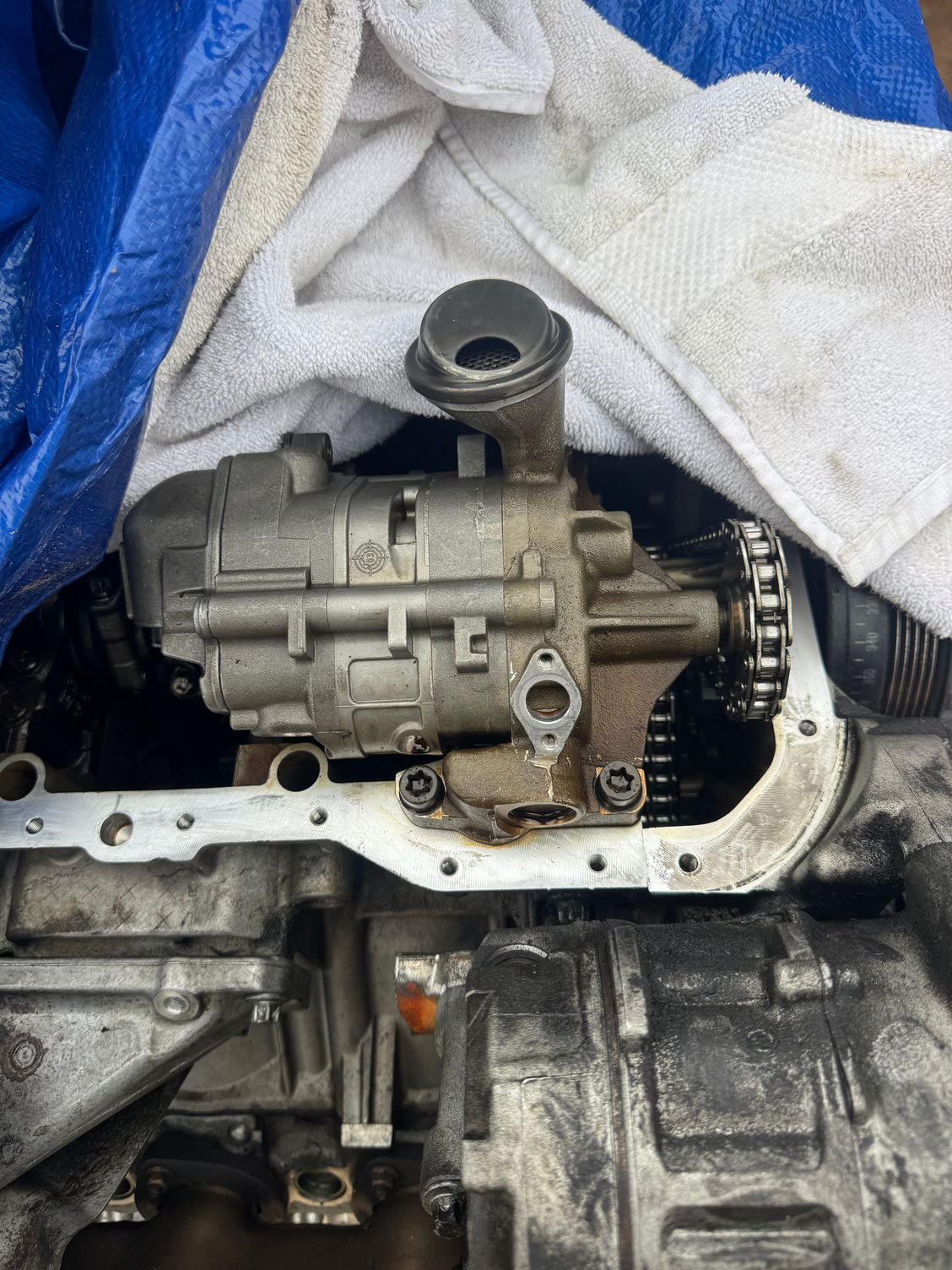

Bonus pic of the pump that prevents your 430 pan from bolting up. Seems to be the most common variation of the oil pumps used in 2003 m113s both N/A and supercharged:
