Camber is too negative -- shop says something is bent? Help...
Thread Starter
MBWorld Fanatic!
Joined: Apr 2007
Posts: 2,381
Likes: 29
E
Camber is too negative -- shop says something is bent? Help...
I just got done replacing my lower control arms because the bushings were cracked. Also the ball joints and upper control arms.
I took it to the shop to get aligned this morning and the shop just called me...they told me -1.5deg camber driver and -2.5 passenger. (I used a level gauge and that's what I read too, but I thought it may have been just my gauge or garage floor etc).
He said that something must be bent somewhere. He is setting the toe up so its driveable, but obviously something is wrong on that side.
Any ideas what to do or where to look? Never ran into this before...
I took it to the shop to get aligned this morning and the shop just called me...they told me -1.5deg camber driver and -2.5 passenger. (I used a level gauge and that's what I read too, but I thought it may have been just my gauge or garage floor etc).
He said that something must be bent somewhere. He is setting the toe up so its driveable, but obviously something is wrong on that side.
Any ideas what to do or where to look? Never ran into this before...
Thread Starter
MBWorld Fanatic!
Joined: Apr 2007
Posts: 2,381
Likes: 29
E
Of course he cant get both sides equal because its not adjustable. I already have the camber bolts installed correctly in attempt to bring it in closer, but it didn't work and its still -2.5deg on that side.
I have "googled" on the subject. I want to know if there are any particular items to check specific to the W211 that could be bent.
I need advice here. The car shows no signs of any accidents. Original paint, bumpers, fenders etc.
I have "googled" on the subject. I want to know if there are any particular items to check specific to the W211 that could be bent.
I need advice here. The car shows no signs of any accidents. Original paint, bumpers, fenders etc.
Thread Starter
MBWorld Fanatic!
Joined: Apr 2007
Posts: 2,381
Likes: 29
E
I already have that and the mb dvd along with the specific document you mentioned. I don't think you read the thread otherwise you would understand it's beyond adjustment and that is why I am asking for advice on direction. My personal preference is not to throw money at something without input and a logical process.
MBWorld Fanatic!
Joined: Apr 2015
Posts: 1,486
Likes: 46
From: dmv
2009 E550 2000 Honda civic mash n' go
You need a NEW bolt kit for the f/l and f/r. that is in fact the only way you can fix that negative camber. Not to question your mechanical capabilities, but from my experience it looks like you dont have your bolts installed correctly. Are your bushings notched or are your bolts notched?
Thread Starter
MBWorld Fanatic!
Joined: Apr 2007
Posts: 2,381
Likes: 29
E
I have a 2008 E350 4matic Sport and I have the bolt kit installed correctly per the factory manual, but for purpose of this thread...Rearward camber bolt installed with the washer mounted so the bolt is closest to the chassis.
The bolt kit allows for 0.4deg +-...I am -1.0deg out. Somethings bent. This isn't an adjustment issue as I have already mentioned
The bolt kit allows for 0.4deg +-...I am -1.0deg out. Somethings bent. This isn't an adjustment issue as I have already mentioned
Trending Topics
MBWorld Fanatic!
Joined: Jan 2014
Posts: 3,969
Likes: 1,317
From: Republic of Texas
'99 and '05 E55 AMG
It is possible the lower control arms that you installed just happen to be at the opposite extremes of the manufacturing tolerance. One is at the maximum positive length and the other at the minimum negative length (optimal length set at zero variation). I've experienced this before and it played havoc with my alignments.
You can trade caster for camber. I.e. change caster by 0.3 degrees and the camber will move 0.3 degrees in the opposite direction (e.g. less caster gives you more negative camber, more caster gives you more positive camber).
In your case, I agree the camber is really off. The right-side caster is "good enough for government work" compared to the left side but the right side lower control arm needs to be pulled in somewhere in the neighborhood of 1 mm (or the upper control arm needs to be pushed out ~1mm). At this point, I'd be tempted to say cut your losses, purchase and install a K-Mac bushing kit in the front lower control arms, and correct the camber.
Afterthought: have you checked to see if the right front is marginally lower than the left front? A sagging suspension on one side will increase negative camber but not greatly affect caster. Measure from the fender roll to the center of the hub or to the ground. Perhaps raise the front right a bit? A few millimeters will translate to several tenths of a degree of camber. I believe (but I haven't tried it) you can connect the car to a diagnostic system and individually adjust the front suspension height. (Assuming Airmatic Suspension)
Keep trying and please post your solution.
You can trade caster for camber. I.e. change caster by 0.3 degrees and the camber will move 0.3 degrees in the opposite direction (e.g. less caster gives you more negative camber, more caster gives you more positive camber).
In your case, I agree the camber is really off. The right-side caster is "good enough for government work" compared to the left side but the right side lower control arm needs to be pulled in somewhere in the neighborhood of 1 mm (or the upper control arm needs to be pushed out ~1mm). At this point, I'd be tempted to say cut your losses, purchase and install a K-Mac bushing kit in the front lower control arms, and correct the camber.
Afterthought: have you checked to see if the right front is marginally lower than the left front? A sagging suspension on one side will increase negative camber but not greatly affect caster. Measure from the fender roll to the center of the hub or to the ground. Perhaps raise the front right a bit? A few millimeters will translate to several tenths of a degree of camber. I believe (but I haven't tried it) you can connect the car to a diagnostic system and individually adjust the front suspension height. (Assuming Airmatic Suspension)
Keep trying and please post your solution.
Last edited by bbirdwell; Jun 15, 2015 at 11:05 PM.
MB World Stories
The Best of Mercedes & AMG
6 Mercedes Models That Did NOT Age Well (But Are Somehow Still Cool)
Verdad Gallardo
Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun
Verdad Gallardo
Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren
Verdad Gallardo
8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine
Verdad Gallardo
Flawlessly Restored Mercedes 190E Evo II Heads to Auction
Verdad Gallardo
Electric Mercedes C-Class Unveiled: 11 Things You Need to Know
Verdad Gallardo
Mercedes EQS Gets A Major Update: Everything You Need to Know
Verdad Gallardo
5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve
Verdad Gallardo
Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping
Verdad Gallardo
SPONSOR
Joined: Apr 2013
Posts: 1,722
Likes: 179
Mercedes-Benz CLK 550
THERE IS ONLY TOE ADJUSTMENT OEM. SO YES – AT K-MAC WE SAW THE NEED AND MANUFACTURE FOR THE 4MATIC (AND VIRTUALLY EVERY OTHER MODEL 1968 TO 2015) FRONT LOWER CONTROL ARM INNER CAMBER BUSHINGS ALONG WITH SIMILAR THRUST ARM TO CHASSIS CASTER BUSHINGS.
THE UNIQUE K-MAC patented design provides up to 3 times the adjustment range of the inaccurate (one only position) offset fluted bolts.
It means you can now have precise, single wrench ongoing adjustment capability. On car – no labour intensive disassembly each time – accurately (under load) direct on alignment rack.
Allowing to return to factory specs after curb knock damage, altering height, load carrying, fitting wide profile tires/wheels or if wanting to alter/adjust alignment specs for track days!
Fixing it right the 1st time. Resolving steering pull, costly premature edge tire wear. No more ongoing visits to dealers or alignment shops because of not being able to obtain precise adjustment.
Front K-MAC P/N (W211 4matic) 502416 $480.
For the rear (also only Toe adjustment OEM) similar lower control arm bushings for precise Camber adjustment, along with additional Toe adjustment to compensate for this new Camber facility.
Rear K-MAC P/N (W211) 502526 $480.
Added bonus is the 4 front and 4 rear bushes replace the highest wearing suspension bushings with twice the load bearing area and improve brake and steering response.
All kits come with bush extraction/insertion tubes.
This month’s special delivery price for MB World members USA/Canada - $30 one kit or $40 front and rear. Payment can be made by Visa, MasterCard or PayPal.
See link for out latest 2015 catalog http://K-mac.com/mercedes/
Thread Starter
MBWorld Fanatic!
Joined: Apr 2007
Posts: 2,381
Likes: 29
E
I'd prefer to fix the underlying issue, but I will definitely consider it.
For reference though, does the kit include what looks like the pressing tool to get the old bushings out and k-mac ones in? Or is that additional?
For reference though, does the kit include what looks like the pressing tool to get the old bushings out and k-mac ones in? Or is that additional?
SPONSOR
Joined: Apr 2013
Posts: 1,722
Likes: 179
Mercedes-Benz CLK 550

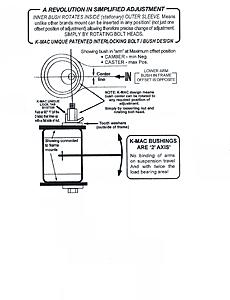

Diagram below sets out the ease of adjustment.
Also forum member HeissRod https://mbworld.org/forums/w211-amg/518431-k-mac-bushing-install-guide-w211-airmatic.html has kindly provided step by step pictures re use of the pressing tools included re removal and replacement of the front bushes.
For the rear the actual bushes are not in arms but frame so this bush extraction tool supplied is designed so rear can be installed on car.
See link for our latest 2015 catalog http://K-mac.com/mercedes/
MBWorld Fanatic!
Joined: Jul 2013
Posts: 3,133
Likes: 134
From: Down Unda
W204 C63 AMG, W212 E250 CGI, C207 E250 CGI
reminds me of a problem I had with my old W124 decades ago. wheel shop couldnt figure out what was wrong with it, front left (if I remember it right) has a negative camber they cant fix. turns out lower control arm was bent. can hardly tell the difference between the bent and the straight but fixed the problem after we replaced it.
