Rotor won't fit over new P-brake! Can't move
Thread Starter
Member
Joined: Sep 2012
Posts: 154
Likes: 29
From: MA
e350 4matic wagon 2009
Rotor won't fit over new P-brake! Can't move

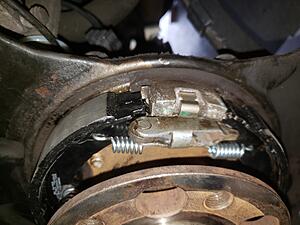

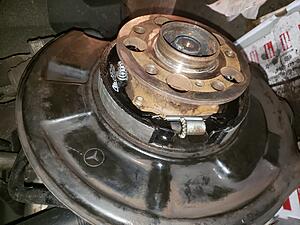

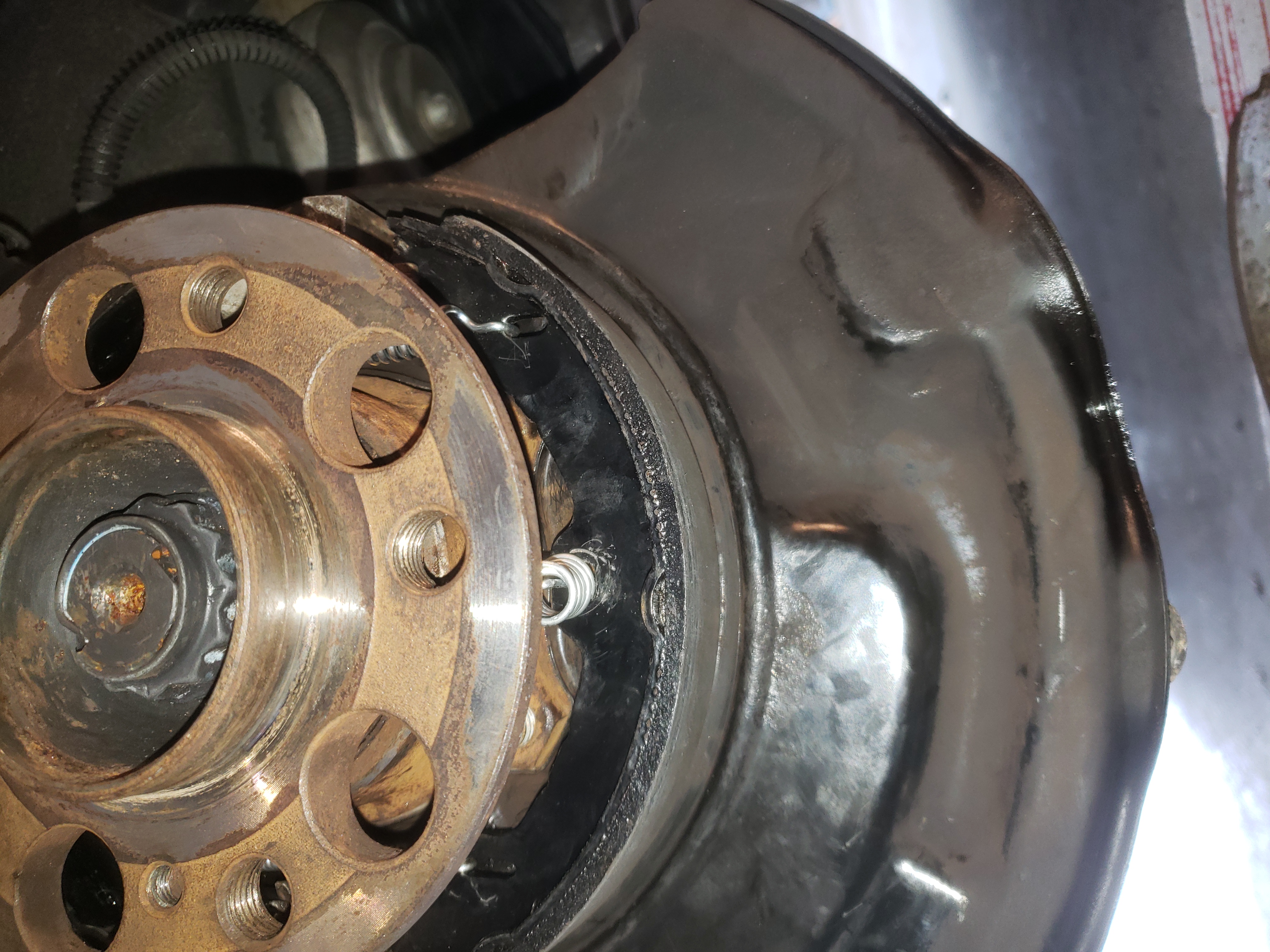

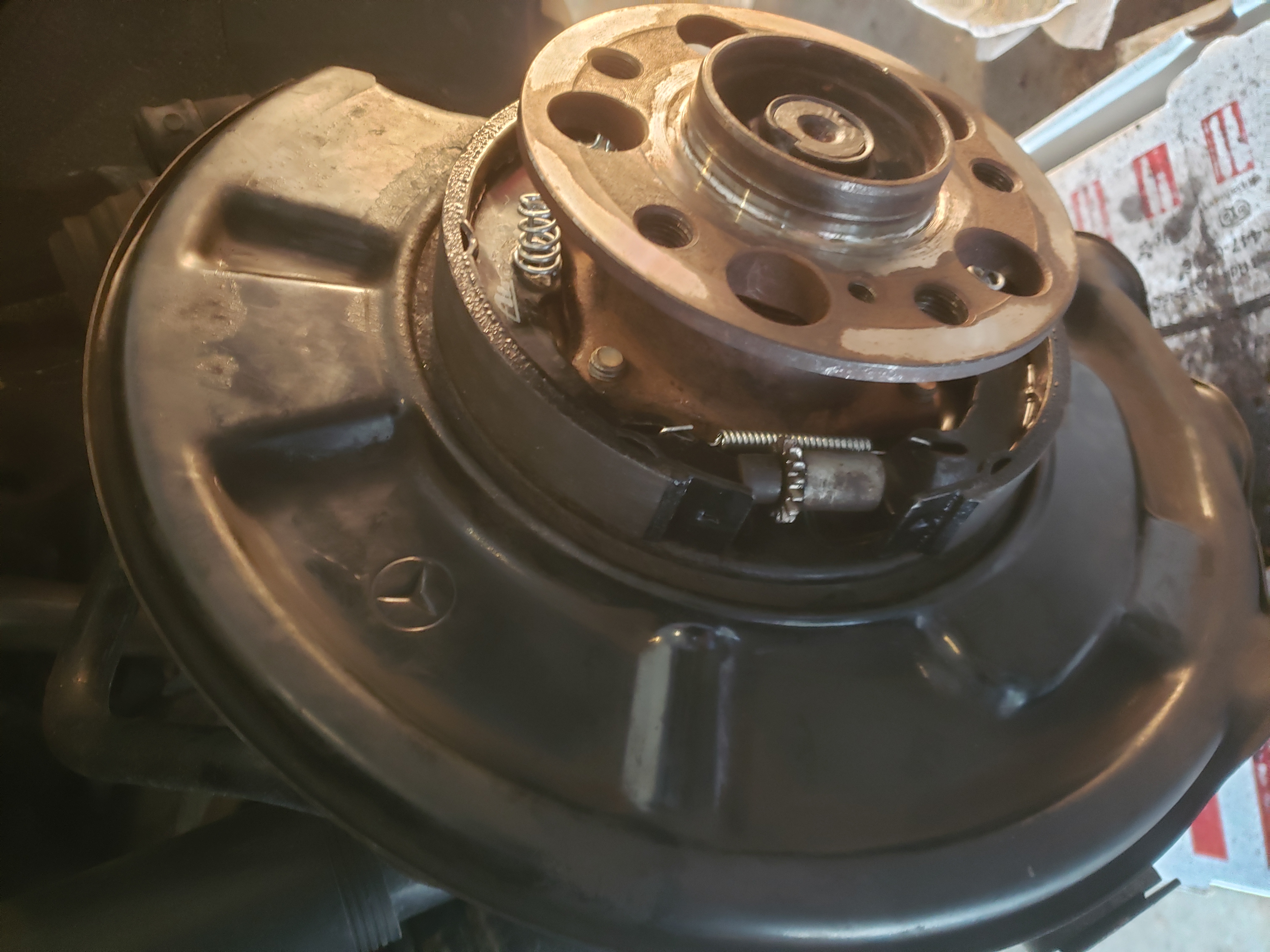

I just replaced my parking brake shoes with new springs and the new rotor won't fit over the brake shoes! Both parts from FCP are supposed to fit and look like they do (links below). Shoes match up with the old. Rotor measures out exactly as old so and old rotor won't fit over new shoes either. it must be the Parking brake, but I can't see what I'm doing wrong. The grooves on the shoes look seated in the expander, the tabs are seated in the slots on the tensioner, the tensioner is backed off all the way and the brake pedal is released. Pics of it below. What am I missing?
Also, in videos I watch they are able to spin the hub. Mine will not. why?
Any quick help on the P-Brake issue is appreciated as I'm dead in the water and without transportation until I resolve this.
Also, in videos I watch they are able to spin the hub. Mine will not. why?
Any quick help on the P-Brake issue is appreciated as I'm dead in the water and without transportation until I resolve this.
MBWorld Fanatic!
Joined: Jan 2016
Posts: 2,748
Likes: 880
From: In the Shadow of the Tetons
2013 ML350 Bluetec
Worst case scenario just leave the shoes out of the assembly when you put things together (as well as anything that would be rattling around without the shoes, of course). You won't have a parking brake but you'll be fine without it.
You're POSITIVE the adjuster is all the way in and the ends of the shoes are as close together as they can possibly get? Any chance the parking brake is in the "on" position?
What's the inner diameter of the new rotor (drum) compared to the old one?
Would the old shoes fit with new springs?
You're POSITIVE the adjuster is all the way in and the ends of the shoes are as close together as they can possibly get? Any chance the parking brake is in the "on" position?
What's the inner diameter of the new rotor (drum) compared to the old one?
Would the old shoes fit with new springs?
Last edited by rapidoxidation; Apr 9, 2022 at 05:30 PM.
Thread Starter
Member
Joined: Sep 2012
Posts: 154
Likes: 29
From: MA
e350 4matic wagon 2009
Thanks for the quick response. I took it all down and put it all back and it worked. I think I had the cable pulled into the assembly too far and it held the expander open a little the grooved end looked closer together and so that must have been it. Phew, and thank you!
Thread Starter
Member
Joined: Sep 2012
Posts: 154
Likes: 29
From: MA
e350 4matic wagon 2009
ANSWERS IN ALL CAPS (don't know how to do color or remove italics?)
I know this was a short thread but hopefully someone who may have the same issue will find it someday.
Worst case scenario just leave the shoes out of the assembly when you put things together (as well as anything that would be rattling around without the shoes, of course). You won't have a parking brake but you'll be fine without it. I WAS THINING ABOUT IT!
You're POSITIVE the adjuster is all the way in and the ends of the shoes are as close together as they can possibly get? THIS WAS THE PROBLEM DISCOVERED AFTER TAKING IT DOWN AND RE-INSTALLING. THE CABLE WAS PULLED INTO THE ASSEMBLY A LITTLE
Any chance the parking brake is in the "on" position? NO, I MADE SURE
What's the inner diameter of the new rotor (drum) compared to the old one? SAME, 17"
Would the old shoes fit with new springs? DIDN'T TRY BUT I DID MATCH UP THE OLD SHOES TO THE NEW AND THEY SEEMED ESSENTIALLY IDENTICAL. NEW SPRINGS WERE ACTUALLY A LITTLE SHORTER BUT THAT WOULDN'T OPEN THE SHOES
You're POSITIVE the adjuster is all the way in and the ends of the shoes are as close together as they can possibly get? THIS WAS THE PROBLEM DISCOVERED AFTER TAKING IT DOWN AND RE-INSTALLING. THE CABLE WAS PULLED INTO THE ASSEMBLY A LITTLE
Any chance the parking brake is in the "on" position? NO, I MADE SURE
What's the inner diameter of the new rotor (drum) compared to the old one? SAME, 17"
Would the old shoes fit with new springs? DIDN'T TRY BUT I DID MATCH UP THE OLD SHOES TO THE NEW AND THEY SEEMED ESSENTIALLY IDENTICAL. NEW SPRINGS WERE ACTUALLY A LITTLE SHORTER BUT THAT WOULDN'T OPEN THE SHOES
Thread Starter
Member
Joined: Sep 2012
Posts: 154
Likes: 29
From: MA
e350 4matic wagon 2009
Yes, I did make the adjustment but only after figured it all out and was able to get the rotor back on. That video is helpful though for future reference. Thank you.
QUESTION: I cannot rotate the tire or hub. I adjusted P brake by spinning rotor before inserting the set screw. I have car in park but also tried to rotate hub in N with tire blocked. Is it because I only have that one corner jacked up? Do i need to have BOTH rear wheels off the ground to rotate? What am I doing wrong? Why won't hub spin? It's not the brake cuz I tried before even installing P brake.
QUESTION: I cannot rotate the tire or hub. I adjusted P brake by spinning rotor before inserting the set screw. I have car in park but also tried to rotate hub in N with tire blocked. Is it because I only have that one corner jacked up? Do i need to have BOTH rear wheels off the ground to rotate? What am I doing wrong? Why won't hub spin? It's not the brake cuz I tried before even installing P brake.
Thread Starter
Member
Joined: Sep 2012
Posts: 154
Likes: 29
From: MA
e350 4matic wagon 2009
Now P brake won't engage
First side (passenger side) figured out, installed, adjusted, and working properly. Then I did the driver side and it was easy now that I know what to do. Looked perfect. BUT... it does not move when pressing the P-brake pedal and in fact NEITHER now work as the pedal just goes straight down without any resistance at all which i guess means the passenger side is now not working either. What could I have done on the driver's side to affect Both sides? Makes no sense, it feels like the pedal is connected to nothing.
Trending Topics
MBWorld Fanatic!
Joined: Jan 2016
Posts: 2,748
Likes: 880
From: In the Shadow of the Tetons
2013 ML350 Bluetec
Check your cables from pedal to each brake. I bet you find a connection that isn't connected anymore.
Last edited by rapidoxidation; Apr 10, 2022 at 10:58 PM.
MB World Stories
The Best of Mercedes & AMG
Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun
Verdad Gallardo
Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren
Verdad Gallardo
8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine
Verdad Gallardo
Flawlessly Restored Mercedes 190E Evo II Heads to Auction
Verdad Gallardo
Electric Mercedes C-Class Unveiled: 11 Things You Need to Know
Verdad Gallardo
Mercedes EQS Gets A Major Update: Everything You Need to Know
Verdad Gallardo
5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve
Verdad Gallardo
Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping
Verdad Gallardo
10 Most Reliable Mercedes-Benz Models You Can Buy Used
Verdad Gallardo
MBWorld Fanatic!
Joined: Sep 2013
Posts: 2,346
Likes: 692
2021 GLB250 FWD, 2023 GLA250 FWD, 2013 C250, 2015 GLK350, 2005 ML350SE, 2003 E320
One cable loose causes neither parking brake to function. Didn’t have this problem on my W211 but on a different MB chassis, a Y shaped connector splitting the cable to the back wheels dropped one cable and caused the exact symptom.
Super Member
Joined: Jul 2021
Posts: 528
Likes: 157
2006 E280
I need to do some work to my e-brake, so for future reference if it needs more than just adjustment and if I manage to drop the cable from the Y shaped connector, where exactly it is located?
Thread Starter
Member
Joined: Sep 2012
Posts: 154
Likes: 29
From: MA
e350 4matic wagon 2009
Yes, where is it Located? And if this is the case is it possible the cable came off at the brake pedal itself with all the up and down I was doing? If so, how do I get to that?
MBWorld Fanatic!
Joined: Sep 2013
Posts: 2,346
Likes: 692
2021 GLB250 FWD, 2023 GLA250 FWD, 2013 C250, 2015 GLK350, 2005 ML350SE, 2003 E320
On the W163 the adjuster and the splitter were in the driveshaft tunnel. I’m assuming it’s similar on a W211, which, of course, could be wrong because they’re different chassis from different design eras.
Super Member
Joined: Jul 2021
Posts: 528
Likes: 157
2006 E280
Did not find a picture for the E-class, but on a C-class there is a cover under the rear seat. Middle. Remove that, and you'll get access to cable divider.
To have access to pedal itself, remove the plastic from under the dash (three T20 screws IIRC). I've spend some time under there, but didn't pay attention that how easily you can get to the cable.
Last edited by Heguli; Apr 11, 2022 at 12:47 PM.
Thread Starter
Member
Joined: Sep 2012
Posts: 154
Likes: 29
From: MA
e350 4matic wagon 2009
Did a little googling, and found this (post #2): https://mbworld.org/forums/e-class-w...-question.html
Did not find a picture for the E-class, but on a C-class there is a cover under the rear seat. Middle. Remove that, and you'll get access to cable divider.
To have access to pedal itself, remove the plastic from under the dash (three T20 screws IIRC). I've spend some time under there, but didn't pay attention that how easily you can get to the cable.
Did not find a picture for the E-class, but on a C-class there is a cover under the rear seat. Middle. Remove that, and you'll get access to cable divider.
To have access to pedal itself, remove the plastic from under the dash (three T20 screws IIRC). I've spend some time under there, but didn't pay attention that how easily you can get to the cable.
Thread Starter
Member
Joined: Sep 2012
Posts: 154
Likes: 29
From: MA
e350 4matic wagon 2009
Problem solved
My mechanic had the car up on the lift to weld a hanger for the exhaust and found the left cable had come disconnected at the Y junction. He was able to reattach it and all is good. Not sure how I knocked it loose from fiddlng with the end of the cable at the brake shoe but apparently I did.
