Wiring diagram esp abs
MBWorld Fanatic!
Joined: May 2018
Posts: 6,600
Likes: 6,547
From: Jakarta-Indonesia
2014 - W212.065 - E400 ( M276.820, 3 liter Turbo) RWD not Hybrid

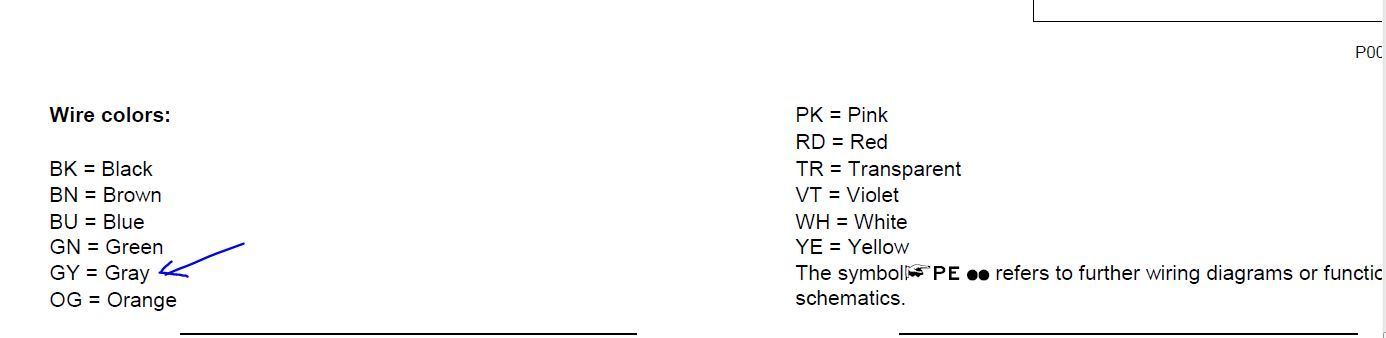

Here u go, A3 print size for ABS-ESP module N30/4. good size to prevent mistake when viewing
.

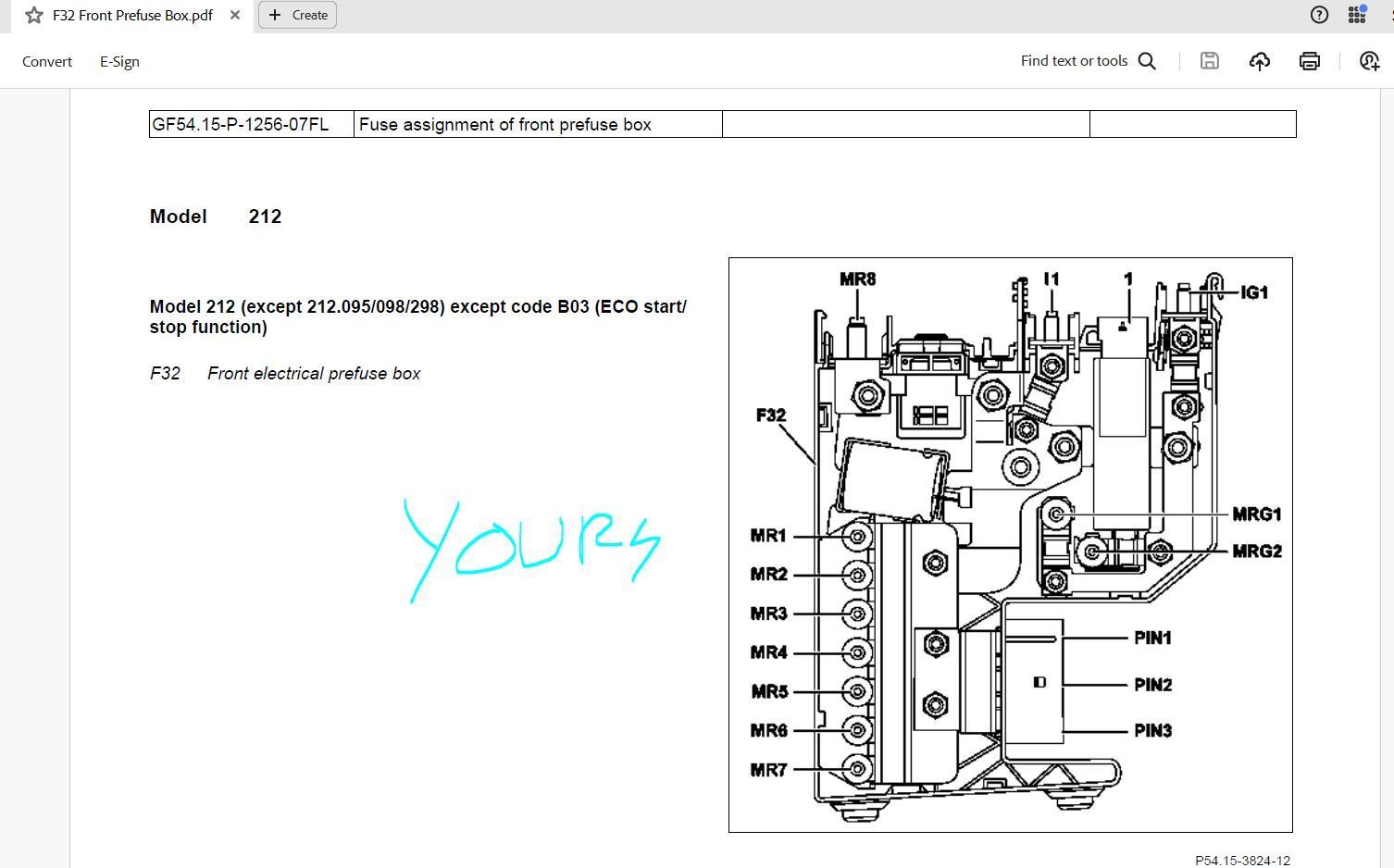

Your F32 prefuse box would be this one below :
-----------------
Right Hand Drive car, use U13. So your ESP/ABS power source is from F32 and not Front SAM N10/1 , thus I gave you F32 document.
.
Read so very slowly these wiring diagrams.
Good luck...........
.
Your F32 prefuse box would be this one below :
-----------------
Right Hand Drive car, use U13. So your ESP/ABS power source is from F32 and not Front SAM N10/1 , thus I gave you F32 document.
.
Read so very slowly these wiring diagrams.
Good luck...........
Thread Starter
Junior Member
Joined: Jun 2007
Posts: 27
Likes: 2
Here u go, A3 print size for ABS-ESP module N30/4. good size to prevent mistake when viewing
.
Your F32 prefuse box would be this one below :
-----------------
Right Hand Drive car, use U13. So your ESP/ABS power source is from F32 and not Front SAM N10/1 , thus I gave you F32 document.
.
Read so very slowly these wiring diagrams.
Good luck...........
.
Your F32 prefuse box would be this one below :
-----------------
Right Hand Drive car, use U13. So your ESP/ABS power source is from F32 and not Front SAM N10/1 , thus I gave you F32 document.
.
Read so very slowly these wiring diagrams.
Good luck...........
Wow thanks very much S-Prihadi, I hope this DTC may gone soon..
Out Of Control!!
Joined: Apr 2019
Posts: 11,923
Likes: 6,776
From: Silicon Valley
W212 MY'14 M276-3.5NA @75kMi
LOOSE PINS INACTION
once you get done with initial checks, realize you're dealing with now defective solderless connections. Bosch ESP connects essential parts eith pressed pins some of which have now oxidized.
ESP is built in two sections: hydraulics and control.
The failed electronic module can be easily serviced by trained specialist...
HK Island - RHD MAYBACK S500 👍
ESP is built in two sections: hydraulics and control.
The failed electronic module can be easily serviced by trained specialist...
HK Island - RHD MAYBACK S500 👍
Last edited by CaliBenzDriver; Feb 25, 2025 at 07:38 AM.
Thread Starter
Junior Member
Joined: Jun 2007
Posts: 27
Likes: 2
once you get done with initial checks, realize you're dealing with now defective solderless connections. Bosch ESP connects essential parts eith pressed pins some of which have now oxidized.
ESP is built in two sections: hydraulics and control.
The failed electronic module can be easily serviced by trained specialist...
HK Island - RHD MAYBACK S500 👍
ESP is built in two sections: hydraulics and control.
The failed electronic module can be easily serviced by trained specialist...
HK Island - RHD MAYBACK S500 👍
But I'm still confuse how to open the back cover without damaging it...
Out Of Control!!
Joined: Apr 2019
Posts: 11,923
Likes: 6,776
From: Silicon Valley
W212 MY'14 M276-3.5NA @75kMi
ESP solderless
4 screws to remove this control. DISCONNECT BATTS. The metal cover is silicone glued.
Let me find the link for ya
plenty of opportunities to make this module work better
Here you go!
This VIP module shares CAN data with ECU and directly impacts engine core timings.
Standard fix is replace and code new unit.
A working ESP works a real treat for the ECU/TCU.
HK Style: 2 colors MAYBACK S580 👏
Last edited by CaliBenzDriver; Feb 26, 2025 at 06:55 AM.
Thread Starter
Junior Member
Joined: Jun 2007
Posts: 27
Likes: 2
It's actually fairly easy...
4 screws to remove this control. DISCONNECT BATTS. The metal cover is silicone glued.
Let me find the link for ya
plenty of opportunities to make this module work better
Here you go!
This VIP module shares CAN data with ECU and directly impacts engine core timings.
Standard fix is replace and code new unit.
A working ESP works a real treat for the ECU/TCU.
HK Style: 2 colors MAYBACK S580 👏
4 screws to remove this control. DISCONNECT BATTS. The metal cover is silicone glued.
Let me find the link for ya
plenty of opportunities to make this module work better
Here you go!
This VIP module shares CAN data with ECU and directly impacts engine core timings.
Standard fix is replace and code new unit.
A working ESP works a real treat for the ECU/TCU.
HK Style: 2 colors MAYBACK S580 👏
Trending Topics
Out Of Control!!
Joined: Apr 2019
Posts: 11,923
Likes: 6,776
From: Silicon Valley
W212 MY'14 M276-3.5NA @75kMi
ESP brakes are best kept reliable
You can try to soften it. It's RTV silicone.
I used an Exacto/scalpel knife to cut seal out without slicing off my fingers.
It's fairly easy to open
If you decide to work on this you'll need high-temp/engine RTV to reseal it shut/waterproof.
It's fairly easy to close.
I used an Exacto/scalpel knife to cut seal out without slicing off my fingers.
It's fairly easy to open
If you decide to work on this you'll need high-temp/engine RTV to reseal it shut/waterproof.
It's fairly easy to close.
MB World Stories
The Best of Mercedes & AMG
Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun
Verdad Gallardo
Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren
Verdad Gallardo
8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine
Verdad Gallardo
Flawlessly Restored Mercedes 190E Evo II Heads to Auction
Verdad Gallardo
Electric Mercedes C-Class Unveiled: 11 Things You Need to Know
Verdad Gallardo
Mercedes EQS Gets A Major Update: Everything You Need to Know
Verdad Gallardo
5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve
Verdad Gallardo
Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping
Verdad Gallardo
10 Most Reliable Mercedes-Benz Models You Can Buy Used
Verdad Gallardo
Thread Starter
Junior Member
Joined: Jun 2007
Posts: 27
Likes: 2
You can try to soften it. It's RTV silicone.
I used an Exacto/scalpel knife to cut seal out without slicing off my fingers.
It's fairly easy to open
If you decide to work on this you'll need high-temp/engine RTV to reseal it shut/waterproof.
It's fairly easy to close.
I used an Exacto/scalpel knife to cut seal out without slicing off my fingers.
It's fairly easy to open
If you decide to work on this you'll need high-temp/engine RTV to reseal it shut/waterproof.
It's fairly easy to close.
MBWorld Fanatic!
Joined: May 2018
Posts: 6,600
Likes: 6,547
From: Jakarta-Indonesia
2014 - W212.065 - E400 ( M276.820, 3 liter Turbo) RWD not Hybrid
Prakersa, becareful if your fingers are ROUGH GRADE like mine
Cali has surgeon grade fingers, thus he can do delicate stuff without breaking things.
Me will break something for sure if pastic stuff hahahahah
Cali has surgeon grade fingers, thus he can do delicate stuff without breaking things.
Me will break something for sure if pastic stuff hahahahah
