Expansion Valve Location on R Class

Anyone know where the expansion valve is on the R Class. Is it easily accessed, or should I pay someone to do it.
Songminer is offline
Old 07-10-2019, 10:00 PM
  #2
MBWorld Fanatic!

chassis's Avatar

Join Date: Sep 2018
Location: Indiana, USA
Posts: 1,165
Received 137 Likes on 135 Posts
2017 GLE350 4MATIC, 2018 BMW X3 xDrive30i
Looks like it is near the evap?

https://www.mercedesbenzstarparts.co...ssor-and-lines

Item 12 in the lower diagram.
chassis is offline
Old 07-11-2019, 04:01 PM
  #3
Junior Member
Thread Starter

Songminer's Avatar

Join Date: Aug 2018
Location: NW Ohio
Posts: 22
Likes: 0
Received 0 Likes on 0 Posts
2011 E350 Bluetec; 2004 E320
Originally Posted by chassis View Post
Looks like it is near the evap?

https://www.mercedesbenzstarparts.co...ssor-and-lines

Item 12 in the lower diagram.
I saw that, but didn't understand what I'm looking at. Is it in the engine compartment or behind the dash?

T
Songminer is offline
Old 07-11-2019, 10:21 PM
  #4
MBWorld Fanatic!

chassis's Avatar

Join Date: Sep 2018
Location: Indiana, USA
Posts: 1,165
Received 137 Likes on 135 Posts
2017 GLE350 4MATIC, 2018 BMW X3 xDrive30i
While not an R-Class, this video may help:

And this: https://www.benzworld.org/forums/w21...alve-w210.html
chassis is offline
Old 07-12-2019, 11:49 AM
  #5
Junior Member
Thread Starter

Songminer's Avatar

Join Date: Aug 2018
Location: NW Ohio
Posts: 22
Likes: 0
Received 0 Likes on 0 Posts
2011 E350 Bluetec; 2004 E320
Thanks. The firewall on an R Class is about a foot in beyond the hood hinge. I'm hoping there's an easier way to get to it than this on the R Class. I'll do some looking tonight.
Songminer is offline
Old 07-12-2019, 08:01 PM
  #6
MBWorld Fanatic!

chassis's Avatar

Join Date: Sep 2018
Location: Indiana, USA
Posts: 1,165
Received 137 Likes on 135 Posts
2017 GLE350 4MATIC, 2018 BMW X3 xDrive30i

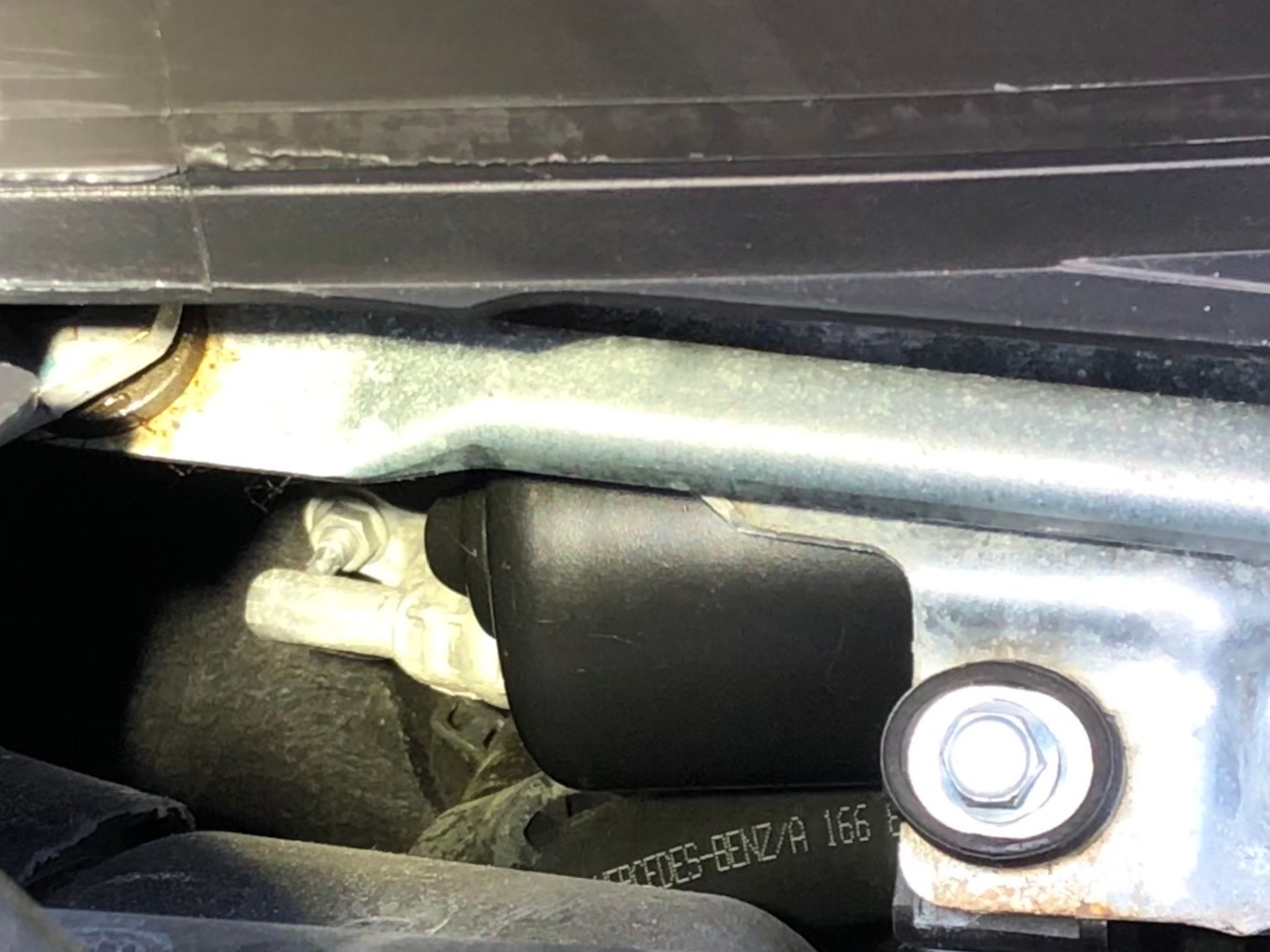

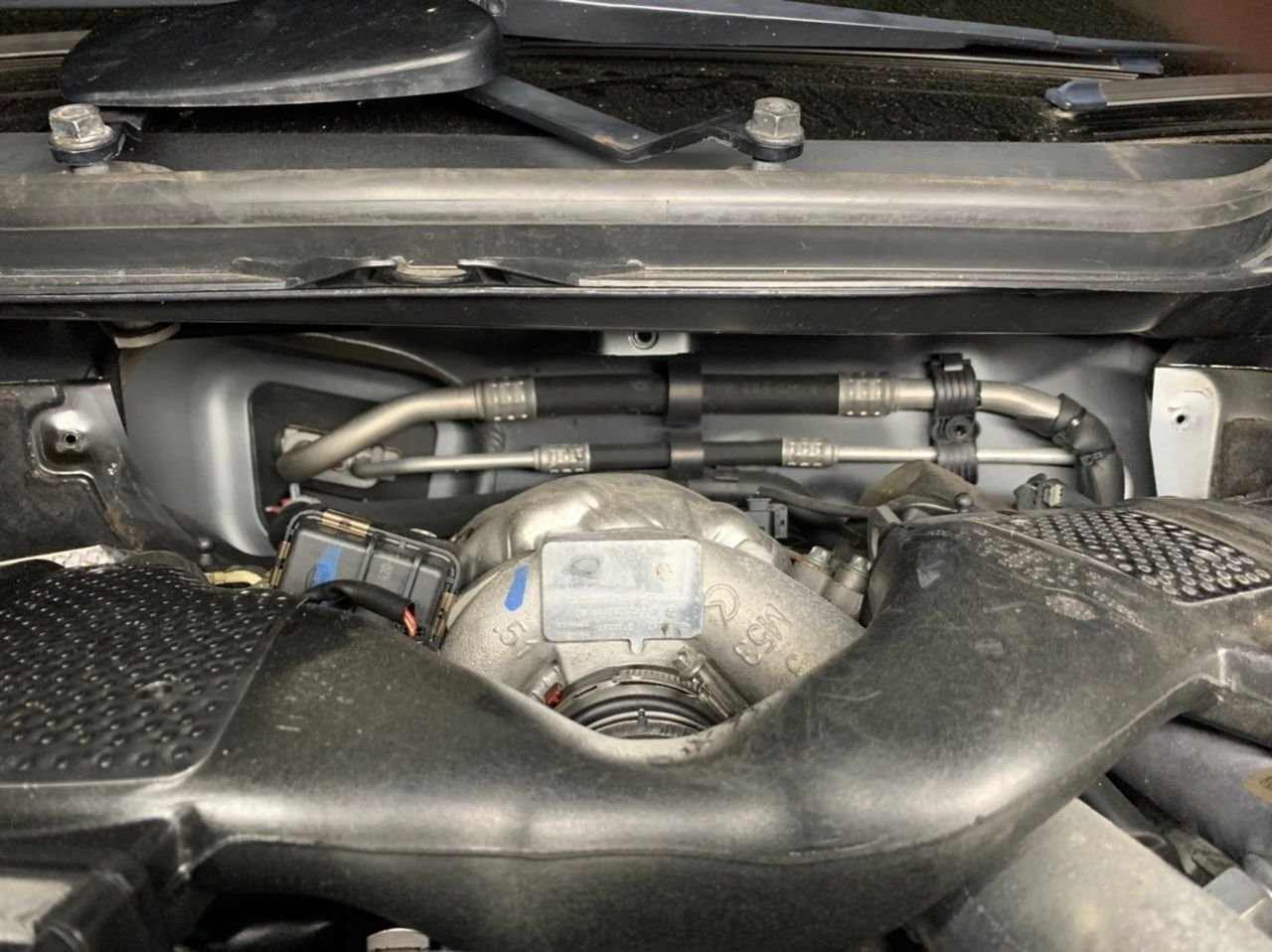

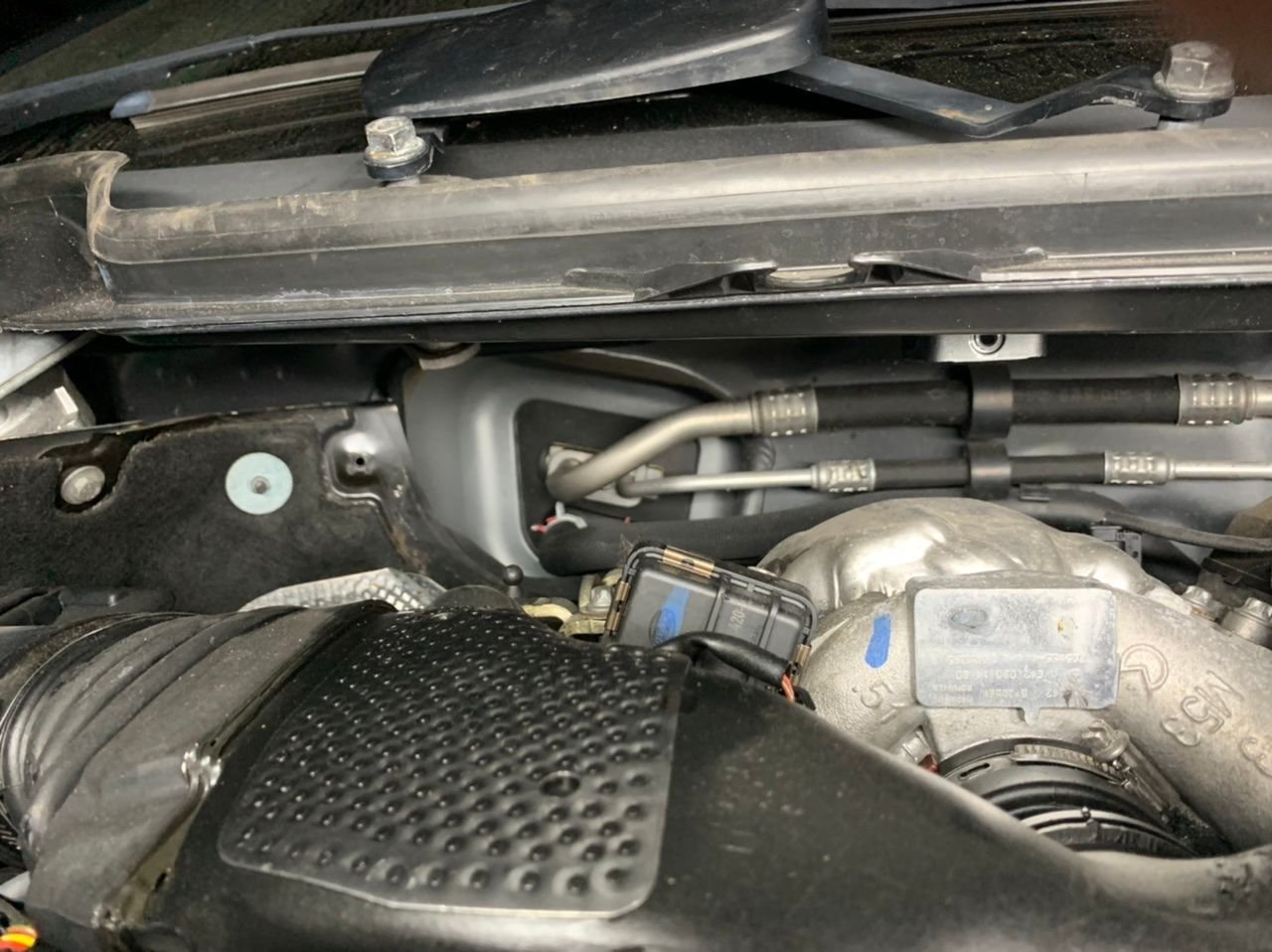

Looked at my W166 tonight. If I were to do this on my car, I would remove the cowl cover (no fasteners, it slips and clips in), small air duct or cowl drain (no fasteners), left (driver's side) and center bulkhead panels. The bulkhead panels seem relatively easily removed with a small number of accessible fasteners on the W166. On my vehicle the refrigerant tubes (pictured) penetrate the dash panel near the inboard edge of the steering wheel. I am not 100% certain the TXV can be removed after disconnecting the refrigerant tubes. This idea follows what is shown on the ML320 video above.

From this: https://mercedes-benz-publicarchive....tml?oid=453321

And this: https://de.wikipedia.org/wiki/Merced...z_Baureihe_251

It seems the W164/X164 platforms may share parts or portions of the architecture. Look at mercedesbenzstarparts at the X164 TXV and it can be imagined that is it similar to the R-Class. The parts diagram requires some guesswork.



Last edited by chassis; 07-13-2019 at 08:38 AM.
chassis is offline
Old 07-18-2019, 12:50 PM
  #7
Junior Member
Thread Starter

Songminer's Avatar

Join Date: Aug 2018
Location: NW Ohio
Posts: 22
Likes: 0
Received 0 Likes on 0 Posts
2011 E350 Bluetec; 2004 E320
2008 R Class Expansion Valve Location

So, the search continues. I actually am having the fender (and Xenon Headlight assembly) replaced on the R Class (someone backed a trailer into it.)

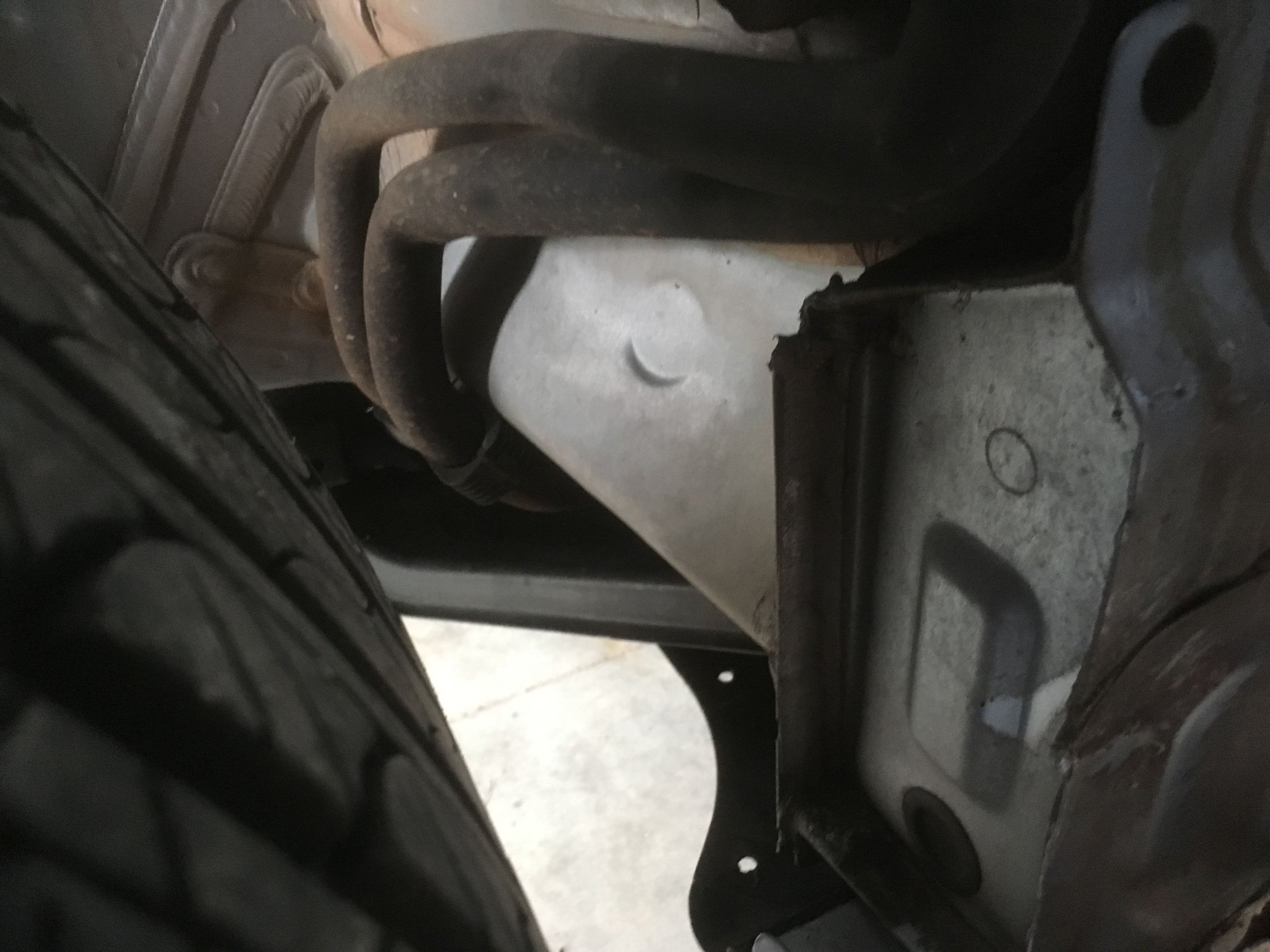

I had the guy snap a couple of pictures. You can see the tire in the left lower corner.

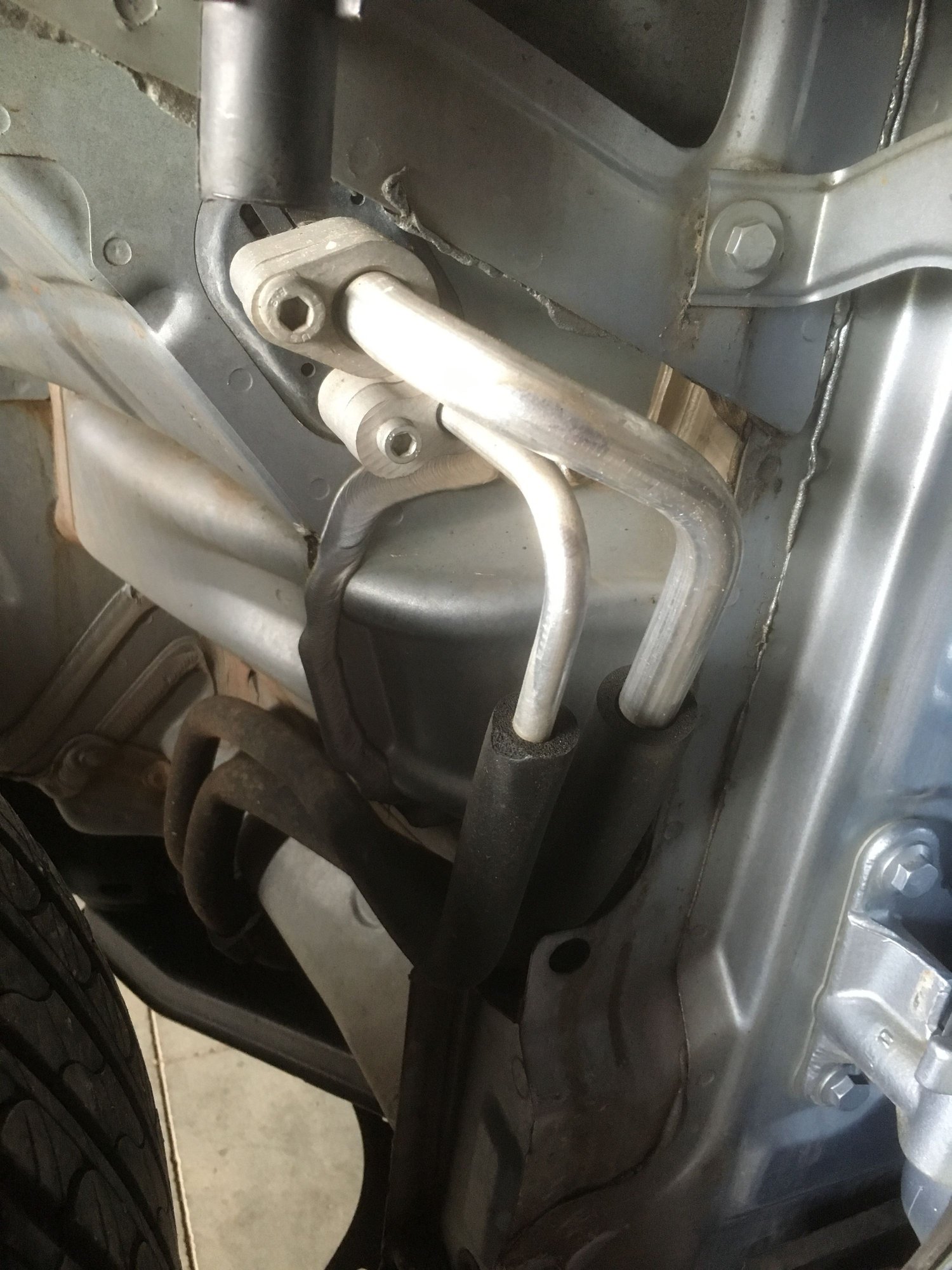

This confirms my theory that the valve isn't in the engine bay/firewall. You can see the lines came through the inner fender wall and down, then insulated and head under the floor, just beneath the steering column.

Now where?



Songminer is offline
Old 07-18-2019, 12:52 PM
  #8
Junior Member
Thread Starter

Songminer's Avatar

Join Date: Aug 2018
Location: NW Ohio
Posts: 22
Likes: 0
Received 0 Likes on 0 Posts
2011 E350 Bluetec; 2004 E320
Songminer is offline
