63 AMG Engine Dynos
#51
#52
MBWorld Fanatic!
Thread Starter
Join Date: Nov 2006
Location: California, USA
Posts: 9,137
Likes: 0
Received 4 Likes
on
4 Posts
E63 P30, CL500 Sport
Let me get this straight, you are offering a comp (free or greatly discounted) C63 ECU tune to someone living in SOCAL for a neatural territory dyno shootout against a Powerchip ECU tuned C63? Sounds like you are stepping up to the plate with a no bull **** offer like that. Come on people, we could have results by the end of next week if somebody mans up quick.
#53
Brad initially wanted to tune the same car, and while that sounds great on paper it wouldn't work in reality. A tune from anyone takes 200 miles or so to be fully learned by ECU/TCU. After 30 miles of hard driving you'll get most of the benefits, but not 100%. Obviously a testing scenario like that would favor whatever tune was in the vehicle to start, unless the owner decided to make passes/dyno then install a new ECU drive around for 200 miles and repeat the testing.
#54
What would happen if you took a bone stock car, dyno'd it, applied Vendor #1 tune, re-dyno'd it, applied Vendor #2 tune, and re-dyno'd it? You'd have a baseline + two tune results. Even if the computer doesn't have enough time to fully exploit the tune, shouldn't get you a relative (%) comparison of the gains?
#57
Junior Member
Join Date: Aug 2008
Location: South Australia
Posts: 18
Likes: 0
Received 0 Likes
on
0 Posts
CLS63, C220CDi
Here is a metric dyno for the Aussies out there
The end result = 400rwhp tuned, which may seem low, but this is a Mainline chassis dyno, referred to in Australia as the 'heart breaker' and folks go to the Dyno Dynamics looking for a big figure. True.....if only we had Dynojet we could (adds Dr Evil voice) make 1,000,000 horsepower
What blows me away is some of the real squiggly jagged lines, and how some tunes are showing > 50rwhp gains at 3000rpm, which Sherlock, is physically impossible for a C63+tune
The end result = 400rwhp tuned, which may seem low, but this is a Mainline chassis dyno, referred to in Australia as the 'heart breaker' and folks go to the Dyno Dynamics looking for a big figure. True.....if only we had Dynojet we could (adds Dr Evil voice) make 1,000,000 horsepower
What blows me away is some of the real squiggly jagged lines, and how some tunes are showing > 50rwhp gains at 3000rpm, which Sherlock, is physically impossible for a C63+tune
#58
Super Moderator Alumni
Join Date: Dec 2009
Location: USA
Posts: 2,189
Likes: 0
Received 6 Likes
on
4 Posts
2011 GLK 350, 2013 GT-R, & 2013 RAM 1500
Stock C63 (BMC Filters / No Charcoals) + Kleemann K1 ECU Tune:
More data/graphs here -> https://mbworld.org/forums/c63-amg-w...2010-c63s.html
More data/graphs here -> https://mbworld.org/forums/c63-amg-w...2010-c63s.html
Last edited by superlubricity; 01-16-2010 at 12:11 AM.
#59
Super Moderator Alumni
Join Date: Dec 2009
Location: USA
Posts: 2,189
Likes: 0
Received 6 Likes
on
4 Posts
2011 GLK 350, 2013 GT-R, & 2013 RAM 1500
My Car:
2010 C63 AMG w/ Kleemann K1 ECU Tune (No Charcoal Filters)
2,104 Miles
92 Octane (Shell)
Results:

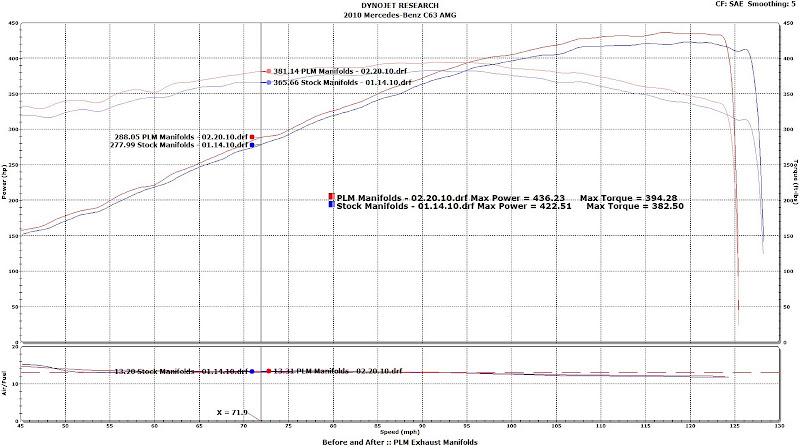

w/ PLM Exhaust Manifolds (Best After Pull):
02/20/10 = 436.23 RWHP / 394.26 RWTQ
w/ Stock Exhaust Manifolds (Before Pulls):
01/14/10 = 422.53 RWHP / 382.50 RWTQ
01/14/10 = 426.19 RWHP / 385.00 RWTQ
01/14/10 = 423.01 RWHP / 384.06 RWTQ
02/19/10 = 423.64 RWHP / No Torque Recorded (Wanted a more current baseline, tach sensor was flaky*)
More data in my signature . . .
2010 C63 AMG w/ Kleemann K1 ECU Tune (No Charcoal Filters)
2,104 Miles
92 Octane (Shell)
Results:
w/ PLM Exhaust Manifolds (Best After Pull):
02/20/10 = 436.23 RWHP / 394.26 RWTQ
w/ Stock Exhaust Manifolds (Before Pulls):
01/14/10 = 422.53 RWHP / 382.50 RWTQ
01/14/10 = 426.19 RWHP / 385.00 RWTQ
01/14/10 = 423.01 RWHP / 384.06 RWTQ
02/19/10 = 423.64 RWHP / No Torque Recorded (Wanted a more current baseline, tach sensor was flaky*)
More data in my signature . . .
#61
Out Of Control!!
Join Date: Sep 2004
Location: San Diego
Posts: 13,394
Likes: 0
Received 4 Likes
on
4 Posts
2015 S212
You guys are just looking at the "gains". Take a look at the difference between the STOCK profiles of the E63 vs CLS63 vs C63. You'll note that the STOCK C63 falls on its face hard (goes flat) at around 5k rpms (right when it would be getting up to speed). We all know that is simply the MB detuning (i.e. TB not openning all the way and richer conditions).
I only bring this up because it is clearly a much harder challenge to get a CLS63 tuned (and show lots of difference) than it will a C63, so you guys need to take C63 initial gains with that grain of salt.
#62
MBWorld Fanatic!
Join Date: Jul 2009
Location: Dallas, TX
Posts: 1,347
Likes: 0
Received 1 Like
on
1 Post
2007 E63, 2005 Dodge Ram Hemi
Here's mine on the heartbreaker load bearing Mustang dyno. Pre and post tune overlayed. I don't have my sheets yet so it's just an iPhone snap shot. Not sure why the dyno redlined before my motor did...I think it woulda pulled up to 380...Add about 15% to compare to a dynojet...
Last edited by citylightva; 02-26-2010 at 07:48 PM.
#63
Registered User
My baseline Dyno was 408 with the Charcoals removed . and 466 after all the goodies . I gotta get the sheets and throw em up . Was done in Dead of summer too so i bet these cold days we should be able to put down a few more ponies
#64
Stock C63 Dyno run on September 12, 2009
308whp and 302 lb-ft wheel torques
Powerchip tune dyno run on January 23rd, 2009
357whp and 331 lb-ft wheel torques
49whp gain and 29 lb-ft wheel torques gain
308whp and 302 lb-ft wheel torques
Powerchip tune dyno run on January 23rd, 2009
357whp and 331 lb-ft wheel torques
49whp gain and 29 lb-ft wheel torques gain
#66
I don't really mind it, I was only interested in the gains after the tune since a dyno is only used for tuning purposes only. If I wanted to brag then I'd just go to a dynojet.
#67
Registered User
Did you dyno with Traction on ? Or in Dyno mode ? I had done a few pulls on a Dyno @ mustang magic back when the car had 5000 miles on it and it was reading 330-340 hp but it was done with Traction off but not in Dyno mode .
#70
PREMIER SPONSOR
Join Date: Nov 2001
Location: Huntington Beach, CA
Posts: 2,922
Likes: 0
Received 0 Likes
on
0 Posts
None fast enough!
Evosport Long Tube Headers with our evo2 Performance Race Exhaust System. Vehicle also has a preliminary evo2/Powerchip ECU Upgrade (v1). Working on another version of the ECU for this application. This is hand's down the BEST sounding 63 AMG we have done!
Car made +63H HP and +55 Torque (on CA 91). The SL63's are known to dyno pretty low in stock form.
Please feel free to email us with any questions.
Smoothing 5:
Smoothing 0:
YouTube Video: http://www.youtube.com/watch?v=kFJKWDrc1lQ
.
Car made +63H HP and +55 Torque (on CA 91). The SL63's are known to dyno pretty low in stock form.
Please feel free to email us with any questions.
Smoothing 5:
Smoothing 0:
YouTube Video: http://www.youtube.com/watch?v=kFJKWDrc1lQ
.
#71
MBWorld Fanatic!
Thread Starter
Join Date: Nov 2006
Location: California, USA
Posts: 9,137
Likes: 0
Received 4 Likes
on
4 Posts
E63 P30, CL500 Sport
Evosport Long Tube Headers with our evo2 Performance Race Exhaust System. Vehicle also has a preliminary evo2/Powerchip ECU Upgrade (v1). Working on another version of the ECU for this application. This is hand's down the BEST sounding 63 AMG we have done!
Car made +63H HP and +55 Torque (on CA 91). The SL63's are known to dyno pretty low in stock form.
Please feel free to email us with any questions.
Smoothing 5:
Car made +63H HP and +55 Torque (on CA 91). The SL63's are known to dyno pretty low in stock form.
Please feel free to email us with any questions.
Smoothing 5:
By the way, why do they dyno so low? I've seen stock C63s dyno between 370 and 380 whp and the SL63 is supposed to have +67 hp more in stock form
#74
Super Moderator Alumni
Join Date: Dec 2009
Location: USA
Posts: 2,189
Likes: 0
Received 6 Likes
on
4 Posts
2011 GLK 350, 2013 GT-R, & 2013 RAM 1500
Before/After evosport Power Pulley Install
Results:
evosport Power Pulley (After Pulls):
03/27/10 = 446.05 RWHP / 407.98 RWTQ
03/27/10 = 445.93 RWHP / 400.58 RWTQ
03/27/10 = 444.73 RWHP / 402.56 RWTQ
Stock Crank Pulley/Harmonic Balancer (Before Pulls):
03/27/10 = 435.85 RWHP / 395.79 RWTQ
03/27/10 = 434.67 RWHP / 395.50 RWTQ
03/27/10 = 433.78 RWHP / 397.37 RWTQ
Gains:
Power / Torque vs. Highest Same Day Baseline
+10.12 RWHP / +12.19 RWTQ (Peak)
+12.96 RWHP / +15.76 RWTQ @ 4300 RPM
+15.07 RWHP / +12.24 RWTQ @ 6450 RPM
Full thread and more details here -> https://mbworld.org/forums/c63-amg-w...-2010-c63.html
Results:
evosport Power Pulley (After Pulls):
03/27/10 = 446.05 RWHP / 407.98 RWTQ
03/27/10 = 445.93 RWHP / 400.58 RWTQ
03/27/10 = 444.73 RWHP / 402.56 RWTQ
Stock Crank Pulley/Harmonic Balancer (Before Pulls):
03/27/10 = 435.85 RWHP / 395.79 RWTQ
03/27/10 = 434.67 RWHP / 395.50 RWTQ
03/27/10 = 433.78 RWHP / 397.37 RWTQ
Gains:
Power / Torque vs. Highest Same Day Baseline
+10.12 RWHP / +12.19 RWTQ (Peak)
+12.96 RWHP / +15.76 RWTQ @ 4300 RPM
+15.07 RWHP / +12.24 RWTQ @ 6450 RPM
Full thread and more details here -> https://mbworld.org/forums/c63-amg-w...-2010-c63.html
