Airmatic problems -- extremely hard ride -- help
Posting in the e55 section because the w164 forum is dead. The airmatic system in my ml63 is pretty similar to the e55 so maybe someone here can help me. Recently I noticed the ride in my 2007 ml63 is extremely hard and uncomfortable. My lowered e55 on 20" wheels was way more compliant over rough surfaces.. The ml rides like a skateboard. There is no difference between sport/comfort/raised/normal in the suspension settings, they all ride really hard. The first thing I tried was hook it up to STAR and test the various airmatic components. Everything checks out fine and there are no faults:
Then I did a visual check of the springs/shocks/ air lines. It looked fine except the rear shocks which were leaking, so I replaced them with new OEM mercedes shocks.

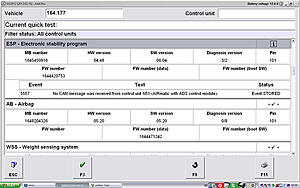

The ride is still extremely hard. I did however get this message a few days ago, but it hasn't appeared since then (I've never seen this error before in the ~6 months I've had this problem):
At this point I'm leaning towards a ESP/airmatic/ADS module problem. Various searches revealed different solutions ranging from replacing the valve block/front shocks/computer but I don't want to start replacing random parts hoping to fix it yet. Is there a way in STAR developer to reset the airmatic or ads module? I played around in STAR a bit and managed to soften the damping through the actuations in the STAR developer menus but it doesn't hold the settings when you start the car. Any help is greatly appreciated.
Then I did a visual check of the springs/shocks/ air lines. It looked fine except the rear shocks which were leaking, so I replaced them with new OEM mercedes shocks.
The ride is still extremely hard. I did however get this message a few days ago, but it hasn't appeared since then (I've never seen this error before in the ~6 months I've had this problem):
At this point I'm leaning towards a ESP/airmatic/ADS module problem. Various searches revealed different solutions ranging from replacing the valve block/front shocks/computer but I don't want to start replacing random parts hoping to fix it yet. Is there a way in STAR developer to reset the airmatic or ads module? I played around in STAR a bit and managed to soften the damping through the actuations in the STAR developer menus but it doesn't hold the settings when you start the car. Any help is greatly appreciated.
#3
Member
Thread Starter
Join Date: Jun 2007
Posts: 189
Likes: 0
Received 0 Likes
on
0 Posts
2003 SL55, 1978 280SL, 2007 ML63
I haven't heard any weird noises or thumps. I don't think its a mechanical problem. I took a look at all the bushings and ball joints and everything appears to be pretty tight. I'll take another look at the subframe bolts just in case but the car handles/steers fine, the ride/damping is just really really hard.
#5
Member
Thread Starter
Join Date: Jun 2007
Posts: 189
Likes: 0
Received 0 Likes
on
0 Posts
2003 SL55, 1978 280SL, 2007 ML63
I also found this http://workshop-manuals.com/mercedes...ins/page_1323/ Unfortunately there is no fault code stored as described
Not looking forward to inspecting the module http://workshop-manuals.com/mercedes...ins/page_1317/
Finally, I did notice I have a REAR SAM error. (open circuit, blown fuse). I'll try to get a picture later. This could be related to my problem: http://workshop-manuals.com/mercedes...ins/page_1321/
Stop lamp switch:
When the driver presses the brake pedal, a signal is received by the ADS logic component and the damping at all wheels is set to "hard". The pitch motion of the vehicle when braking can therefore be reduced.
When the driver presses the brake pedal, a signal is received by the ADS logic component and the damping at all wheels is set to "hard". The pitch motion of the vehicle when braking can therefore be reduced.
#7
Member
Thread Starter
Join Date: Jun 2007
Posts: 189
Likes: 0
Received 0 Likes
on
0 Posts
2003 SL55, 1978 280SL, 2007 ML63
Update-
So I took a look at the module, looks fine, no noticeable moisture. On the advice of another member I unplugged it for 15 min to maybe reset it. I put it back but the problem still remains.
I also took it to the stealership but they weren't much help. They recommended I change the airmatic links as they are seized (???) for only $500 I looked at the links and they are fine. I removed them and cleaned them just to be sure they move freely.
At this point I'm pretty much stumped I don't know what to do. I guess I'll keep my eyes open for a used airmatic module or maybe a new valve block...
So I took a look at the module, looks fine, no noticeable moisture. On the advice of another member I unplugged it for 15 min to maybe reset it. I put it back but the problem still remains.
I also took it to the stealership but they weren't much help. They recommended I change the airmatic links as they are seized (???) for only $500 I looked at the links and they are fine. I removed them and cleaned them just to be sure they move freely.
At this point I'm pretty much stumped I don't know what to do. I guess I'll keep my eyes open for a used airmatic module or maybe a new valve block...
Trending Topics
#8
Newbie
Join Date: May 2014
Posts: 5
Likes: 0
Received 1 Like
on
1 Post
ML350 (W164), S320 (W220), C200k (W203), E220 (W115)
I too am facing a super stiff suspension in my W164 ML350. My rear SAM module has failed too, but i'm not sure if there is a connecting link.
I'll let you know the results once i've changed the rear SAM module. I do suspect that is the cause of the super stiff ride (the suspension modes are making no difference to my car either. Its hard as a rock)
I'll let you know the results once i've changed the rear SAM module. I do suspect that is the cause of the super stiff ride (the suspension modes are making no difference to my car either. Its hard as a rock)
#9
Member
Thread Starter
Join Date: Jun 2007
Posts: 189
Likes: 0
Received 0 Likes
on
0 Posts
2003 SL55, 1978 280SL, 2007 ML63
I too am facing a super stiff suspension in my W164 ML350. My rear SAM module has failed too, but i'm not sure if there is a connecting link.
I'll let you know the results once i've changed the rear SAM module. I do suspect that is the cause of the super stiff ride (the suspension modes are making no difference to my car either. Its hard as a rock)
I'll let you know the results once i've changed the rear SAM module. I do suspect that is the cause of the super stiff ride (the suspension modes are making no difference to my car either. Its hard as a rock)
I also bought a used airmatic computer from a GL550 (different car, exact same part number). I didn't transfer the coding from my unit to the gl unit, I just wanted to see how the car behaves with a different airmatic unit. The car rides WORSE with the gl unit... it is undrivable. This kind of leads me to believe my airmatic computer is working fine. At this point I'll probably replace the valve block and then the front struts and see if that helps.
#10
Member
Thread Starter
Join Date: Jun 2007
Posts: 189
Likes: 0
Received 0 Likes
on
0 Posts
2003 SL55, 1978 280SL, 2007 ML63
http://www.google.com/translate?hl=e...-t4657404.html Someone else has also had this problem on a german MB forum. No solution posted
#11
Newbie
Join Date: May 2014
Posts: 5
Likes: 0
Received 1 Like
on
1 Post
ML350 (W164), S320 (W220), C200k (W203), E220 (W115)
.trunzx: Thanks for the info on the SAM.
I had a similar problem with my W220- but only on one side. This was due to the level sensor on the front left shock being adjusted wrongly (The link had broken and i had tied it up using a wire- in order to prevent the car from getting too low. This was a temporary arrangement till the new links arrived.) The result was that the front left shock got super stiff as it was overpressurized. The problem was solved when i replaced the old links with new ones (and as a result, the height feedback was corrected).
When i contacted the dealership, i did not get any conclusive reply on this.
Incidentally, i have a leak on the front right shock of the W164- although i do not think that would be the cause either. The logical solutions i can think of are:
1. Shock absorbers not being good (Now this shouldn't happen to all 4 at the same time?)
2. Air springs being over pressurized (But then the car should be too high?)
3. Control issues on the airmatic struts- (There should be a solenoid valve to release pressure?) But this doesnt make sense due to point number 2.
I guess i do not understand the system too well yet.
Do keep me posted if there are any developments at your end.
I had a similar problem with my W220- but only on one side. This was due to the level sensor on the front left shock being adjusted wrongly (The link had broken and i had tied it up using a wire- in order to prevent the car from getting too low. This was a temporary arrangement till the new links arrived.) The result was that the front left shock got super stiff as it was overpressurized. The problem was solved when i replaced the old links with new ones (and as a result, the height feedback was corrected).
When i contacted the dealership, i did not get any conclusive reply on this.
Incidentally, i have a leak on the front right shock of the W164- although i do not think that would be the cause either. The logical solutions i can think of are:
1. Shock absorbers not being good (Now this shouldn't happen to all 4 at the same time?)
2. Air springs being over pressurized (But then the car should be too high?)
3. Control issues on the airmatic struts- (There should be a solenoid valve to release pressure?) But this doesnt make sense due to point number 2.
I guess i do not understand the system too well yet.
Do keep me posted if there are any developments at your end.
#12
Member
Thread Starter
Join Date: Jun 2007
Posts: 189
Likes: 0
Received 0 Likes
on
0 Posts
2003 SL55, 1978 280SL, 2007 ML63
.trunzx: Thanks for the info on the SAM.
I had a similar problem with my W220- but only on one side. This was due to the level sensor on the front left shock being adjusted wrongly (The link had broken and i had tied it up using a wire- in order to prevent the car from getting too low. This was a temporary arrangement till the new links arrived.) The result was that the front left shock got super stiff as it was overpressurized. The problem was solved when i replaced the old links with new ones (and as a result, the height feedback was corrected).
When i contacted the dealership, i did not get any conclusive reply on this.
Incidentally, i have a leak on the front right shock of the W164- although i do not think that would be the cause either. The logical solutions i can think of are:
1. Shock absorbers not being good (Now this shouldn't happen to all 4 at the same time?)
2. Air springs being over pressurized (But then the car should be too high?)
3. Control issues on the airmatic struts- (There should be a solenoid valve to release pressure?) But this doesnt make sense due to point number 2.
I guess i do not understand the system too well yet.
Do keep me posted if there are any developments at your end.
I had a similar problem with my W220- but only on one side. This was due to the level sensor on the front left shock being adjusted wrongly (The link had broken and i had tied it up using a wire- in order to prevent the car from getting too low. This was a temporary arrangement till the new links arrived.) The result was that the front left shock got super stiff as it was overpressurized. The problem was solved when i replaced the old links with new ones (and as a result, the height feedback was corrected).
When i contacted the dealership, i did not get any conclusive reply on this.
Incidentally, i have a leak on the front right shock of the W164- although i do not think that would be the cause either. The logical solutions i can think of are:
1. Shock absorbers not being good (Now this shouldn't happen to all 4 at the same time?)
2. Air springs being over pressurized (But then the car should be too high?)
3. Control issues on the airmatic struts- (There should be a solenoid valve to release pressure?) But this doesnt make sense due to point number 2.
I guess i do not understand the system too well yet.
Do keep me posted if there are any developments at your end.

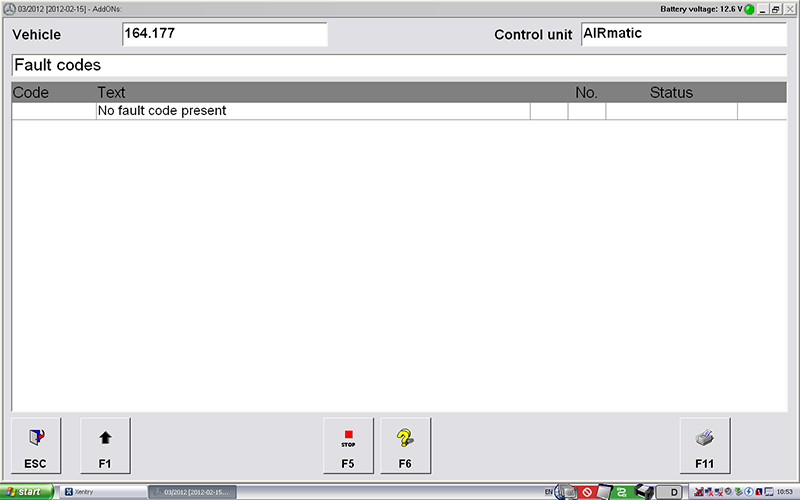

I don't think it's an electronic problem as I get no error messages. If there was a broken wire or implausible reading from the level sensor I think it would throw a code. I don't believe it's a level sensor as the ride height looks good. The only thing I can think of is the pressure sensor in the valve block failing and reading too "high". If the pressure sensor is "off" by 1 bar or something, it can over-pressurize the system and cause a bad ride. This way the car wouldn't throw any codes as it assumes the pressure sensor is working correctly. That's my guess anyway
Here's what I found to solve this problem (on other cars, information on the w164 is limited), sorted by most common fix:
1.) Front struts
2.) Airmatic valve block
3.) Airmatic computer
4.) Airmatic compressor
5.) Acceleration/Ride height sensors
6.) Accumulators (not relevant on our cars)
7.) Rear SAM (Haven't found much information on rear SAM fixing this problem, but it does play a role in suspension based on information I posted above)
#13
Super Member
Check the Body Acelleration Sensor is so equipped
ON my E55, I had similar behavior after i got hit from behind. The car drove like it was in Sport II all the time. I unplugged the connector to the body acceleration sensor for the rear (passenger side wheel well), cleaned the connector and plugged it back in and car then rode smooth. I can't recall though if it tripped a code when it was riding harsh.
HTH.
HTH.
#14
Member
Thread Starter
Join Date: Jun 2007
Posts: 189
Likes: 0
Received 0 Likes
on
0 Posts
2003 SL55, 1978 280SL, 2007 ML63
ON my E55, I had similar behavior after i got hit from behind. The car drove like it was in Sport II all the time. I unplugged the connector to the body acceleration sensor for the rear (passenger side wheel well), cleaned the connector and plugged it back in and car then rode smooth. I can't recall though if it tripped a code when it was riding harsh.
HTH.
HTH.
#15
Super Member
Fingers crossed for ya
I had to drive my car that way to Chicago. Felt so stiff the whole ride, first thing I did after a 11 hour road trip was to jack the car, pop off the rear wheel and liner and unplug and replug that sensor. The drive back was much better as the suspension worked normally then.
#17
Junior Member
Join Date: Feb 2002
Location: N. California
Posts: 42
Likes: 0
Received 0 Likes
on
0 Posts
1994 C280, 2002 E320
Have you hit anything hard lately? Years ago, I ran over a curb with the rear wheel on my E wagon. Immediately after that, it rode like a truck. The ride height didn't change, but you could stand on the rear bumper and the only thing that bounced was the tires.
If your ride height is fine, it sounds like you have the same issue that happened to me. In the airmatic strut, there is a seal that separates the air pressure coming in from the oil in the damper. This seal can rupture and consequently fill the air pressure system with oil from the strut. Oil doesn't compress nearly as much as air, so movement of the suspension system essentially stops.
This isn't an electronic problem, as all it controls is ride height. More air pressure and the car is too high, and less air pressure makes the car too low. Adding more air pressure doesn't make your suspension stiffer.
I do remember it being a pretty expensive curb.
If your ride height is fine, it sounds like you have the same issue that happened to me. In the airmatic strut, there is a seal that separates the air pressure coming in from the oil in the damper. This seal can rupture and consequently fill the air pressure system with oil from the strut. Oil doesn't compress nearly as much as air, so movement of the suspension system essentially stops.
This isn't an electronic problem, as all it controls is ride height. More air pressure and the car is too high, and less air pressure makes the car too low. Adding more air pressure doesn't make your suspension stiffer.
I do remember it being a pretty expensive curb.
#18
Member
Thread Starter
Join Date: Jun 2007
Posts: 189
Likes: 0
Received 0 Likes
on
0 Posts
2003 SL55, 1978 280SL, 2007 ML63
I had to drive my car that way to Chicago. Felt so stiff the whole ride, first thing I did after a 11 hour road trip was to jack the car, pop off the rear wheel and liner and unplug and replug that sensor. The drive back was much better as the suspension worked normally then.
I'm considering it more and more at this point lol
Have you hit anything hard lately? Years ago, I ran over a curb with the rear wheel on my E wagon. Immediately after that, it rode like a truck. The ride height didn't change, but you could stand on the rear bumper and the only thing that bounced was the tires.
If your ride height is fine, it sounds like you have the same issue that happened to me. In the airmatic strut, there is a seal that separates the air pressure coming in from the oil in the damper. This seal can rupture and consequently fill the air pressure system with oil from the strut. Oil doesn't compress nearly as much as air, so movement of the suspension system essentially stops.
This isn't an electronic problem, as all it controls is ride height. More air pressure and the car is too high, and less air pressure makes the car too low. Adding more air pressure doesn't make your suspension stiffer.
I do remember it being a pretty expensive curb.
If your ride height is fine, it sounds like you have the same issue that happened to me. In the airmatic strut, there is a seal that separates the air pressure coming in from the oil in the damper. This seal can rupture and consequently fill the air pressure system with oil from the strut. Oil doesn't compress nearly as much as air, so movement of the suspension system essentially stops.
This isn't an electronic problem, as all it controls is ride height. More air pressure and the car is too high, and less air pressure makes the car too low. Adding more air pressure doesn't make your suspension stiffer.
I do remember it being a pretty expensive curb.
That makes sense though. Looks like I'll be replacing the shocks on the front then, fingers crossed.
#19
Junior Member
Join Date: Aug 2014
Location: Turkey
Posts: 34
Likes: 0
Received 0 Likes
on
0 Posts
E55AMG
Hi guys, I am owner of an E55AMG'05. My car has an airmatic problem. The diagnosis gives these fault codes (5132-left side airmatic sensor/5142-right side airmatic sensor/5152-rear airmatic sensor)
Airmatic kompressor works fine up and down.
The problem is that car's left side is 12mm down then right side or opposite! (right side is 12mm upper then left side)
While we connect the car to diagnosis,we made felt and right at same balance but whenever disconnect from diagnosis and try to up or down the airmatic, the problem occurs again.
I think a wire contact to chasis,also deaits of the fault code says the same.
If somebody had the same problem,then help me where to start?
Thanks. I am sorry about my english,hope you understand well.
Note: sensors are fine,sockets are fine.
Airmatic kompressor works fine up and down.
The problem is that car's left side is 12mm down then right side or opposite! (right side is 12mm upper then left side)
While we connect the car to diagnosis,we made felt and right at same balance but whenever disconnect from diagnosis and try to up or down the airmatic, the problem occurs again.
I think a wire contact to chasis,also deaits of the fault code says the same.
If somebody had the same problem,then help me where to start?
Thanks. I am sorry about my english,hope you understand well.
Note: sensors are fine,sockets are fine.
#20
Junior Member
Join Date: Aug 2014
Posts: 24
Likes: 0
Received 0 Likes
on
0 Posts
2000 mercedes benz s500
#21
Newbie
Join Date: May 2014
Posts: 5
Likes: 0
Received 1 Like
on
1 Post
ML350 (W164), S320 (W220), C200k (W203), E220 (W115)
Any update?
Hi .trunzx! Is there any update on the problem?
I am proceeding with changing the rear shocks as well (mine aren't leaking but it definitely feels as though they're on vacation).
Other than that i've heard the linear acceleration sensors could be acting funny; however, i do wonder if thats the case, and whether their live data is available on the star diagnosis (I haven't checked yet).
I'm facing another interesting situation- The front Airmatic leaks out air every now and then (front right is quite often, front left once in a while). At first i was suspecting a leak in the O rings of the front Air spring- however, my opinion changed recently and has confused me even further. When i am opening and closing the driver door, the deflation of the air spring is interrupted! (open- deflation stops, closed- deflation continues; this is in standstill condition).
Now i probably wouldn't bother with this phenomenon- the problem i am facing is that while i'm driving, it decides to deflate, and the front suspension becomes noisy and very bumpy till the time the compressor is able to re-inflate the air spring. i don't think this is how Mercedes would've planned out their design. Also i'm worried i'm going to kill the compressor because this inflation deflation cycle keeps happening while i'm driving.
The next question- when the air spring does have to deflate, where should the air escape from? The deflation mentioned above is quite clearly from the wheel arch area of whichever side is deflating. In my opinion, this should occur near the front of the car on the right hand side only, where the air valve is (the airmatic strut does not have a second air outlet, and extra air exhaust should occur from the solenoid block only in my opinion, and not from the strut area).
My car's been quite an experience. If it makes any difference, its an ML350 4Matic, 2006-7 build.
EDIT: I've replaced both the SAM units- front and rear (they were both faulty). All ancillary functions are now OK- but with no difference to the ride quality.
I am proceeding with changing the rear shocks as well (mine aren't leaking but it definitely feels as though they're on vacation).
Other than that i've heard the linear acceleration sensors could be acting funny; however, i do wonder if thats the case, and whether their live data is available on the star diagnosis (I haven't checked yet).
I'm facing another interesting situation- The front Airmatic leaks out air every now and then (front right is quite often, front left once in a while). At first i was suspecting a leak in the O rings of the front Air spring- however, my opinion changed recently and has confused me even further. When i am opening and closing the driver door, the deflation of the air spring is interrupted! (open- deflation stops, closed- deflation continues; this is in standstill condition).
Now i probably wouldn't bother with this phenomenon- the problem i am facing is that while i'm driving, it decides to deflate, and the front suspension becomes noisy and very bumpy till the time the compressor is able to re-inflate the air spring. i don't think this is how Mercedes would've planned out their design. Also i'm worried i'm going to kill the compressor because this inflation deflation cycle keeps happening while i'm driving.
The next question- when the air spring does have to deflate, where should the air escape from? The deflation mentioned above is quite clearly from the wheel arch area of whichever side is deflating. In my opinion, this should occur near the front of the car on the right hand side only, where the air valve is (the airmatic strut does not have a second air outlet, and extra air exhaust should occur from the solenoid block only in my opinion, and not from the strut area).
My car's been quite an experience. If it makes any difference, its an ML350 4Matic, 2006-7 build.
EDIT: I've replaced both the SAM units- front and rear (they were both faulty). All ancillary functions are now OK- but with no difference to the ride quality.
Last edited by jaideepshinh; 10-21-2014 at 03:18 AM. Reason: Additional information added
#22
Member
Thread Starter
Join Date: Jun 2007
Posts: 189
Likes: 0
Received 0 Likes
on
0 Posts
2003 SL55, 1978 280SL, 2007 ML63
I replaced both the front struts and it made no difference. I've given up at this point and I'll just learn to live with the hard ride. The tires need to be changed soon so I might try another brand and do an alignment to see if that helps.
It sounds like your air bags might be leaking somewhere I'd hook it up to star and see if it detects a leak anywhere
It sounds like your air bags might be leaking somewhere I'd hook it up to star and see if it detects a leak anywhere
#23
Newbie
Join Date: May 2014
Posts: 5
Likes: 0
Received 1 Like
on
1 Post
ML350 (W164), S320 (W220), C200k (W203), E220 (W115)
further updates
Well I changed the rear shock on one side, and things got a little better. I haven't changed the second shock absorber, and am holding that for later.

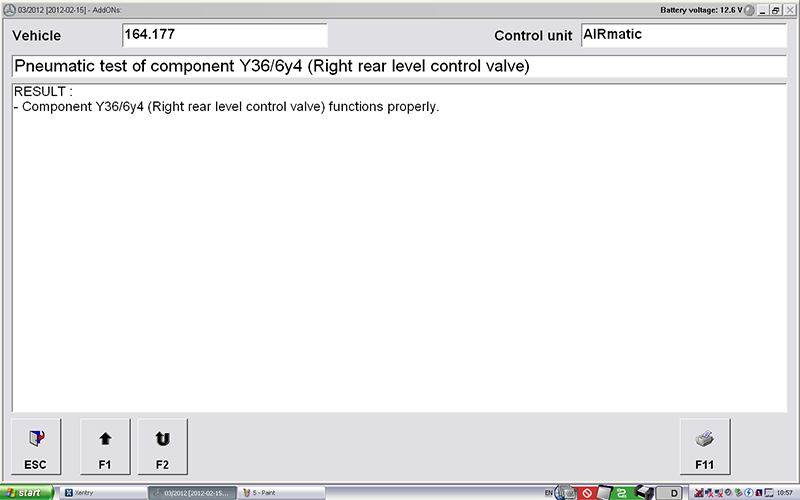

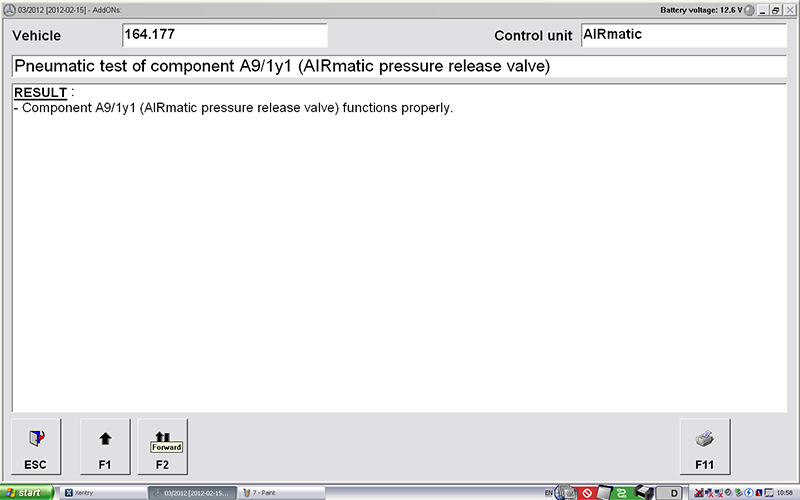

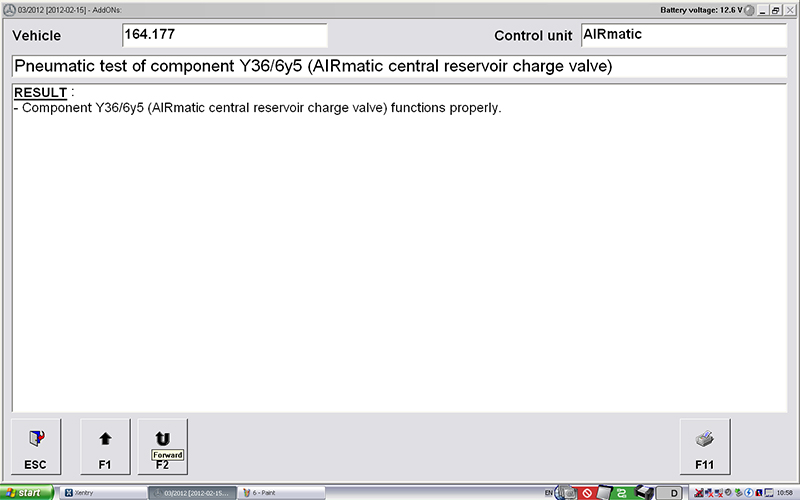

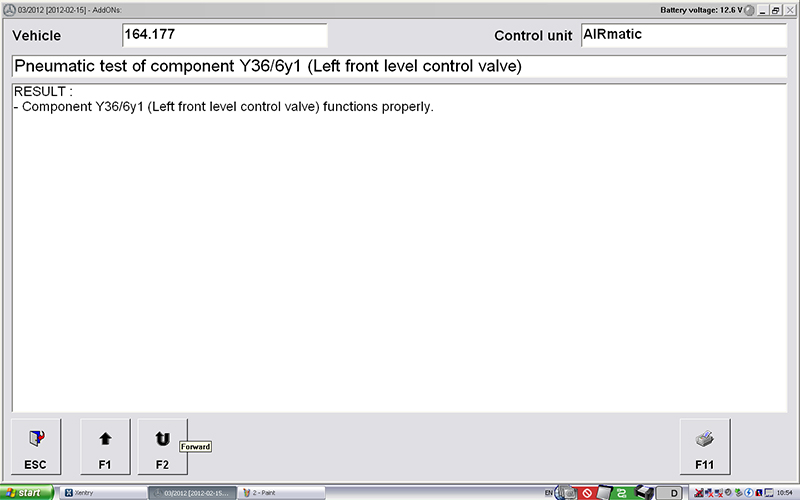

I ran the tests on the airmatic suspension using DAS, and the following things have caught my attention:
1. My compressor isn't feeling to well. It didn't pass the 40 second inflation test.

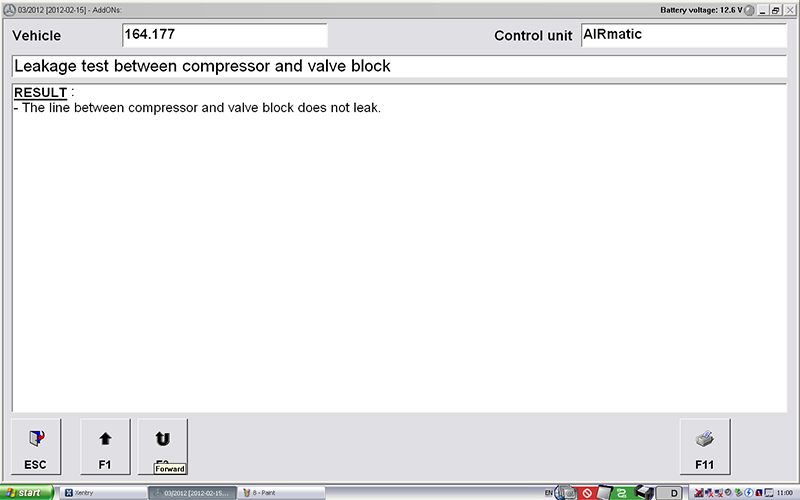

2. All lines are OK as per the tests- no leakage anywhere.
3. ADS actuators are working fine (reading correct current readings when they are actuated)
4. The acceleration sensors seem to be at the end of the limit (2627mV
Now interestingly, the car exhibited the deflation at the time i was performing the tests, and the readings are in the last two images. The front RHS strut deflated the most (as you can see, -79mm), and the entire system pressure dropped to 4 Bar (strange?)
Now why would that happen? If there's a leak in one strut, the other struts should read a pressure of 7-8 bar; but the whole system pressure dropped. DAS isn't detecting any error however.
Do you have any idea what could be doing this? any suggestions on the way forward? I am quite hating the ride of this car.
- max is supposed to be 2.65mV
I ran the tests on the airmatic suspension using DAS, and the following things have caught my attention:
1. My compressor isn't feeling to well. It didn't pass the 40 second inflation test.
2. All lines are OK as per the tests- no leakage anywhere.
3. ADS actuators are working fine (reading correct current readings when they are actuated)
4. The acceleration sensors seem to be at the end of the limit (2627mV
Now interestingly, the car exhibited the deflation at the time i was performing the tests, and the readings are in the last two images. The front RHS strut deflated the most (as you can see, -79mm), and the entire system pressure dropped to 4 Bar (strange?)
Now why would that happen? If there's a leak in one strut, the other struts should read a pressure of 7-8 bar; but the whole system pressure dropped. DAS isn't detecting any error however.
Do you have any idea what could be doing this? any suggestions on the way forward? I am quite hating the ride of this car.
- max is supposed to be 2.65mV
#24
ESP malfunction
Hi. I have the exact same problem on my 2007 E280 CDI. The car is riding really hard. I had also got an ESP Malfunction error msg but that was fixed by the Dealer by replacing the Steering Angle Sensor. The error msg is now gone but the car is still riding very hard. I can feel every bump on the road.
Pls help.
Pls help.
#25
Member
Thread Starter
Join Date: Jun 2007
Posts: 189
Likes: 0
Received 0 Likes
on
0 Posts
2003 SL55, 1978 280SL, 2007 ML63
As an update to my problem: I replaced the wheels/tires with winter tires and the ride improved quite a bit. I think my issue was caused by worn out tires with a hard sidewall and the ml63's firm ride. It should also be noted that the winter tires are 275 profile instead of 295. This reduces tramlining and has an improvement on ride quality. I drove my brothers c63 with performance package and the ride is back breakingly hard. It makes my ml63 seem tame by comparison.
