Understanding Intercooling, Charge-Coolers, Heat Exchangers and Circulation Pumps
Super Member
Joined: May 2015
Posts: 554
Likes: 37
2004 S600
Are you still running a pump in the stock location "inline"? It's ridiculous how painless it is by comparison having an "open" system and drawing directly from a reservoir. No more bleeding, ever. No issues with frothing or cavitation since the pump inlet is unrestricted. I really need to get my HE fixed though, it's been like a year now that I've just been babying the car around due to the leaky HE.
Thread Starter
MBWorld Fanatic!
Joined: Nov 2010
Posts: 2,605
Likes: 343
From: Welwyn, Herts, UK
2006 S600
Yes, my pump is still in stock location. That's because it's horizontal, low down, and in the part of the circuit with the highest pressure and lowest temperature - the general rules for cooling pumps.
If I was going to do anything different, I'd probably add a second CWA-50 in line, though I'd like to get a flow meter in there to see what I'm flowing.
It could be that in my configuration I've gone too far from the nominal operating point for the Pierburg, and the impeller is stalling or cavitating.
Nick
If I was going to do anything different, I'd probably add a second CWA-50 in line, though I'd like to get a flow meter in there to see what I'm flowing.
It could be that in my configuration I've gone too far from the nominal operating point for the Pierburg, and the impeller is stalling or cavitating.
Nick
Super Member
Joined: May 2015
Posts: 554
Likes: 37
2004 S600
That's my understanding/opinion of what's going on anyway.
Thread Starter
MBWorld Fanatic!
Joined: Nov 2010
Posts: 2,605
Likes: 343
From: Welwyn, Herts, UK
2006 S600
There's a difference between static pressure and dynamic pressure.
Static pressure comes from density, gravity, and the pressurisation of the coolant due to temperature.
Dynamic pressure comes from the pump, which raises pressure, and the chain of resistances, which lower the pressure.
The inlet to the pump is usually the lowest pressure part of the system, and the outlet is usually the highest pressure. Everything else in the system just represents a pressure drop.
It would be nice to feed from an open reservoir, high up, but I don't think that's practical in a car, and the reality is that a cooling system at operating temp is going to be pressurised to some extent. For the engine, that helps to raise the boiling point, but that hardly matter for intercoolers.
I don't think it matters if the pump doesn't draw from the reservoir, as long as there's no air in the water. Pumps are usually located at the outlet of the radiator, and again usually from a port at the BOTTOM of the outlet header tank, to reduce the probability of air being drawn in. The radiator will add resistance to the inlet, but I don't think that matters in a sealed system, as it's just a pressure drop that is added up around the circuit.
Those pressure drops are dynamic pressure drops, and they're relative, not absolute. The pump inlet will still have the lowest pressure in the circuit, regardless of whether it feeds from the reservoir or the HE.
More to come....
Nick
Static pressure comes from density, gravity, and the pressurisation of the coolant due to temperature.
Dynamic pressure comes from the pump, which raises pressure, and the chain of resistances, which lower the pressure.
The inlet to the pump is usually the lowest pressure part of the system, and the outlet is usually the highest pressure. Everything else in the system just represents a pressure drop.
It would be nice to feed from an open reservoir, high up, but I don't think that's practical in a car, and the reality is that a cooling system at operating temp is going to be pressurised to some extent. For the engine, that helps to raise the boiling point, but that hardly matter for intercoolers.
I don't think it matters if the pump doesn't draw from the reservoir, as long as there's no air in the water. Pumps are usually located at the outlet of the radiator, and again usually from a port at the BOTTOM of the outlet header tank, to reduce the probability of air being drawn in. The radiator will add resistance to the inlet, but I don't think that matters in a sealed system, as it's just a pressure drop that is added up around the circuit.
Those pressure drops are dynamic pressure drops, and they're relative, not absolute. The pump inlet will still have the lowest pressure in the circuit, regardless of whether it feeds from the reservoir or the HE.
More to come....
Nick
Last edited by Welwynnick; Jun 29, 2017 at 01:23 PM.
Super Member
Joined: May 2015
Posts: 554
Likes: 37
2004 S600
The only way I would see feeding from a reservoir in these cars is sharing the washer fluid bottle (which is what I do on my other car), but in that case you'd probably want to eliminate the heating loop to it. The other option is a trunkmount tank like I have on the S600. Beyond that, you're right, it's fairly impractical given the space we have to work with.
I honestly don't know exactly how the pressure scenario plays out in a closed system. Only that a reservoir system seems to completely eliminate all the bleeding and frothing nightmares...and that's good enough for me.
I honestly don't know exactly how the pressure scenario plays out in a closed system. Only that a reservoir system seems to completely eliminate all the bleeding and frothing nightmares...and that's good enough for me.
Thread Starter
MBWorld Fanatic!
Joined: Nov 2010
Posts: 2,605
Likes: 343
From: Welwyn, Herts, UK
2006 S600
I was going to add that I tried different power settingsyesterday when I went to work, and watched the Tecomotive temp gauge. The gauge is very crude – 7 LED’s that represent coolant temps ranging from 0 C to 55 C (the Tecomotive’s control range). I take this to mean LED 1 = 0 C,LED 2 = 9 C, 3 = 18 C, 4 = 27 C, 5 = 37C, 6 = 46 C, 7 = 55 C.
On the way in, I set the pump to 100% continuous. It was a cool morning, 12 C ambient, and onlyLED 2 lit. During the drive, LED 3 lit. When I got to work, I tried taking the cap off, but the coolant was frothing and under pressure, and it spurted out. Therefore when the coolant is frothing, it allows the temperature to increase above ambient.
At lunchtime, the IC had heat-soaked and LED 6 was lit. The coolant was hot and frothed, and it still over-flowed.
At home time, the weather had warmed up and the engine cooled down. The coolant cooled down to LED 3, and the coolant was clear. I set the pump to 50% continuous, and the temp remained at LED 3 all the way home. When I got home I opened the hood with the engine running and removed the cap. There was no frothing, no pressurisation, no spilling, and the coolant remained close to ambient. The engine also ran better than it’s ever done.
This is only a CWA-50 remember, and on the basis of this I’m happy that I’ve got the air out of the system, but I still wouldn’t be happy running at 100% all the time. At 50%, I’d have full confidence in the system, though I’m going back to auto / thermostatic control for a while, and see if that will keep the coolant clear.
I have some unusual advantages in my installation: I can positively bleed the IC’s and the HE. I can see the coolant as it’s circulating. I can monitor the coolant temp at the IC outlet. I can manually change the speed of the pump. (What I can’t do, yet, is measure the flow rate in-circuit, which I’m keen to do). None of these are possible with the stock system, so if you change the pump, it’s difficult to tell how the system behaves.
Going by what I’ve seen, I wouldn’t be happy running a CWA-50 or -100 under ignition control (12V to the PWM input pin). I can’t say that everyone should run a Tecomotive pump controller, as it’s hard to justify the expense, and it’s a pain to install and use. The SFR Electronics controller is better, with much more displayed information, but it’s more expensive, and theTecomotive does do the job.
It could be that the Bosch pump also causes frothing, but no-one will know. Maybe Mercedes found that was the case, and implemented on-demand thermostatic control to allow the coolant time to settle between pulls. On the face of it, thermostatic control is there to protect the pump from burning out it’s commutator brushes too quickly, but Mercedes may be smarter than we realise. Who knows.
Regards, Nick
On the way in, I set the pump to 100% continuous. It was a cool morning, 12 C ambient, and onlyLED 2 lit. During the drive, LED 3 lit. When I got to work, I tried taking the cap off, but the coolant was frothing and under pressure, and it spurted out. Therefore when the coolant is frothing, it allows the temperature to increase above ambient.
At lunchtime, the IC had heat-soaked and LED 6 was lit. The coolant was hot and frothed, and it still over-flowed.
At home time, the weather had warmed up and the engine cooled down. The coolant cooled down to LED 3, and the coolant was clear. I set the pump to 50% continuous, and the temp remained at LED 3 all the way home. When I got home I opened the hood with the engine running and removed the cap. There was no frothing, no pressurisation, no spilling, and the coolant remained close to ambient. The engine also ran better than it’s ever done.
This is only a CWA-50 remember, and on the basis of this I’m happy that I’ve got the air out of the system, but I still wouldn’t be happy running at 100% all the time. At 50%, I’d have full confidence in the system, though I’m going back to auto / thermostatic control for a while, and see if that will keep the coolant clear.
I have some unusual advantages in my installation: I can positively bleed the IC’s and the HE. I can see the coolant as it’s circulating. I can monitor the coolant temp at the IC outlet. I can manually change the speed of the pump. (What I can’t do, yet, is measure the flow rate in-circuit, which I’m keen to do). None of these are possible with the stock system, so if you change the pump, it’s difficult to tell how the system behaves.
Going by what I’ve seen, I wouldn’t be happy running a CWA-50 or -100 under ignition control (12V to the PWM input pin). I can’t say that everyone should run a Tecomotive pump controller, as it’s hard to justify the expense, and it’s a pain to install and use. The SFR Electronics controller is better, with much more displayed information, but it’s more expensive, and theTecomotive does do the job.
It could be that the Bosch pump also causes frothing, but no-one will know. Maybe Mercedes found that was the case, and implemented on-demand thermostatic control to allow the coolant time to settle between pulls. On the face of it, thermostatic control is there to protect the pump from burning out it’s commutator brushes too quickly, but Mercedes may be smarter than we realise. Who knows.
Regards, Nick
Last edited by Welwynnick; Jun 30, 2017 at 01:59 PM.
Thread Starter
MBWorld Fanatic!
Joined: Nov 2010
Posts: 2,605
Likes: 343
From: Welwyn, Herts, UK
2006 S600
If the system is empty, there is more air to evacuate, and it will take a long time.
If the system is full, coolant will get sucked into the vacuum pump. Vacuum pumps tolerate a small amount of water vapour, but not liquid water.
I would say fill it up, then drain half a litre out. That will account for the loss of volume caused by the flexible hoses
squashing under vacuum.
Nick
MB World Stories
The Best of Mercedes & AMG
Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun
Verdad Gallardo
Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren
Verdad Gallardo
8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine
Verdad Gallardo
Flawlessly Restored Mercedes 190E Evo II Heads to Auction
Verdad Gallardo
Electric Mercedes C-Class Unveiled: 11 Things You Need to Know
Verdad Gallardo
Mercedes EQS Gets A Major Update: Everything You Need to Know
Verdad Gallardo
5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve
Verdad Gallardo
Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping
Verdad Gallardo
10 Most Reliable Mercedes-Benz Models You Can Buy Used
Verdad Gallardo
Thread Starter
MBWorld Fanatic!
Joined: Nov 2010
Posts: 2,605
Likes: 343
From: Welwyn, Herts, UK
2006 S600
I found some information about other car's charge cooling radiators.
There's a few part numbers and dimensions there.
The M5/M6 radiator isn't quite as big as I thought it was.
Radiator Intercooler Mercedes S-Class W222 A222 C217 a0995003603
http://www.ebay.co.uk/itm/Radiator-Intercooler-Mercedes-S-Class-W222-A222-C217-a0995003603/222649420062?ssPageName=STRK%3AMEBIDX%3AIT&_trksid =p2060353.m1438.l2649
Radiator Intercooler Mercedes E - Class W213 A213 A0995002003
http://www.ebay.co.uk/itm/Radiator-Intercooler-Mercedes-E-Class-W213-A213-A0995002003/322759324366?ssPageName=STRK%3AMEBIDX%3AIT&_trksid =p2060353.m1438.l2649
Intercooler Radiator for W205 C160 C180 C200 C220 C250 C300 C400 C450 13->ON OE
https://www.ebay.co.uk/itm/Intercooler-Radiator-for-W205-C160-C180-C200-C220-C250-C300-C400-C450-13-ON-OE/372123591122?ssPageName=STRK%3AMEBIDX%3AIT&_trksid =p2060353.m1438.l2649
Intercooler Radiator for AUDI A8 4H 4.0 12->ON CGTA CTFA Petrol Saloon 520 OE
Intercooler Radiator for BMW F10 M5 4.4 10->16 S63B44B Petrol Saloon 560 OE
https://www.ebay.co.uk/itm/Intercooler-Radiator-for-BMW-F10-M5-4-4-10-16-S63B44B-Petrol-Saloon-560-OE/372123658584?_trkparms=aid%3D222007%26algo%3DSIM.M BE%26ao%3D2%26asc%3D49130%26meid%3D1be9973d87f8457 2bc3bb5bd8b67c5c8%26pid%3D100005%26rk%3D3%26rkt%3D 4%26sd%3D401434520317&_trksid=p2047675.c100005.m22 19
There's a few part numbers and dimensions there.
The M5/M6 radiator isn't quite as big as I thought it was.
Radiator Intercooler Mercedes S-Class W222 A222 C217 a0995003603
http://www.ebay.co.uk/itm/Radiator-Intercooler-Mercedes-S-Class-W222-A222-C217-a0995003603/222649420062?ssPageName=STRK%3AMEBIDX%3AIT&_trksid =p2060353.m1438.l2649
Radiator Intercooler Mercedes E - Class W213 A213 A0995002003
http://www.ebay.co.uk/itm/Radiator-Intercooler-Mercedes-E-Class-W213-A213-A0995002003/322759324366?ssPageName=STRK%3AMEBIDX%3AIT&_trksid =p2060353.m1438.l2649
Intercooler Radiator for W205 C160 C180 C200 C220 C250 C300 C400 C450 13->ON OE
https://www.ebay.co.uk/itm/Intercooler-Radiator-for-W205-C160-C180-C200-C220-C250-C300-C400-C450-13-ON-OE/372123591122?ssPageName=STRK%3AMEBIDX%3AIT&_trksid =p2060353.m1438.l2649
Intercooler Radiator for AUDI A8 4H 4.0 12->ON CGTA CTFA Petrol Saloon 520 OE
Intercooler Radiator for BMW F10 M5 4.4 10->16 S63B44B Petrol Saloon 560 OE
https://www.ebay.co.uk/itm/Intercooler-Radiator-for-BMW-F10-M5-4-4-10-16-S63B44B-Petrol-Saloon-560-OE/372123658584?_trkparms=aid%3D222007%26algo%3DSIM.M BE%26ao%3D2%26asc%3D49130%26meid%3D1be9973d87f8457 2bc3bb5bd8b67c5c8%26pid%3D100005%26rk%3D3%26rkt%3D 4%26sd%3D401434520317&_trksid=p2047675.c100005.m22 19
Last edited by Welwynnick; Nov 17, 2017 at 12:07 PM.
Junior Member
Joined: Jan 2014
Posts: 16
Likes: 1
LOTUS ESPRIT TURBO
Hi Everybody,
Could you tell me where I'm wrong or point me toward other heat exchange equations/formulae for a heat transfer ratio applicable to HE-s?
I'm trying to prove someone wrong. This individual insists, that because of the higher coolant velocity (if I use a larger pump), the heat transfer in the radiator is slower, because "the heat does not have enough time to convect out of the coolant, because it flows too fast" .
IMO, he is spewing a shear heresy.
The equations cited in this paper http://jullio.pe.kr/fluent6.1/help/html/ug/node245.htm
show the only time dependent element,
=fluid mass flow rate (kg/s), is in the numerator, hence the heat flux q increases proportionally with fluid mass flow rate. In another words, bigger the pump trough-put results in a higher heat transfer and efficiency.
The same is true for the heat transfer coefficient,
,
Could you tell me where I'm wrong or point me toward other heat exchange equations/formulae for a heat transfer ratio applicable to HE-s?
I'm trying to prove someone wrong. This individual insists, that because of the higher coolant velocity (if I use a larger pump), the heat transfer in the radiator is slower, because "the heat does not have enough time to convect out of the coolant, because it flows too fast" .
IMO, he is spewing a shear heresy.
The equations cited in this paper http://jullio.pe.kr/fluent6.1/help/html/ug/node245.htm
show the only time dependent element,
=fluid mass flow rate (kg/s), is in the numerator, hence the heat flux q increases proportionally with fluid mass flow rate. In another words, bigger the pump trough-put results in a higher heat transfer and efficiency.The same is true for the heat transfer coefficient,
,
Last edited by MrDangerUS; Nov 25, 2017 at 05:43 PM.
Thread Starter
MBWorld Fanatic!
Joined: Nov 2010
Posts: 2,605
Likes: 343
From: Welwyn, Herts, UK
2006 S600
Heat exchanger modelling is very complex, and there isn't really a simple robust equation, there are so many variables and non-linearities.
You're right, heat flux does increase with coolant flow, but it's non-linear. It does plateau at very high rates, so you do get to diminishing returns. You have to have a high pressure to get there, and the pump would have to be very big and powerful. The increase in pumping power required becomes very high compared to the increase in cooling capacity. In normal automotive IC's operating around 0.5 bar, a better pump is a big win.
Careful with upgrading the pump though, you can't simply buy a pump with a higher flow figure. High pressure is more likely to increase cooling than high flow.
The individual you refer to is certainly wrong, and he's not on his own. He's probably thinking in terms of the coolant temperature change, which is different. Higher flow will certainly result in a lower coolant temperature change, but that is actually desirable, as it's associated with a lower thermal resistance of that heat exchanger. At a system level, that is what you want to achieve. The lower coolant temperature change is compensated by the higher coolant flow rate, and the reduction in the latter is greater than the decrease in the former.
Nick
You're right, heat flux does increase with coolant flow, but it's non-linear. It does plateau at very high rates, so you do get to diminishing returns. You have to have a high pressure to get there, and the pump would have to be very big and powerful. The increase in pumping power required becomes very high compared to the increase in cooling capacity. In normal automotive IC's operating around 0.5 bar, a better pump is a big win.
Careful with upgrading the pump though, you can't simply buy a pump with a higher flow figure. High pressure is more likely to increase cooling than high flow.
The individual you refer to is certainly wrong, and he's not on his own. He's probably thinking in terms of the coolant temperature change, which is different. Higher flow will certainly result in a lower coolant temperature change, but that is actually desirable, as it's associated with a lower thermal resistance of that heat exchanger. At a system level, that is what you want to achieve. The lower coolant temperature change is compensated by the higher coolant flow rate, and the reduction in the latter is greater than the decrease in the former.
Nick
Newbie
Joined: Jan 2018
Posts: 1
Likes: 0
several
Hi Everybody,
Could you tell me where I'm wrong or point me toward other heat exchange equations/formulae for a heat transfer ratio applicable to HE-s?
I'm trying to prove someone wrong. This individual insists, that because of the higher coolant velocity (if I use a larger pump), the heat transfer in the radiator is slower, because "the heat does not have enough time to convect out of the coolant, because it flows too fast" .
IMO, he is spewing a shear heresy.
The equations cited in this paper http://jullio.pe.kr/fluent6.1/help/html/ug/node245.htm
show the only time dependent element,=fluid mass flow rate (kg/s), is in the numerator, hence the heat flux q increases proportionally with fluid mass flow rate. In another words, bigger the pump trough-put results in a higher heat transfer and efficiency.
The same is true for the heat transfer coefficient,,
Could you tell me where I'm wrong or point me toward other heat exchange equations/formulae for a heat transfer ratio applicable to HE-s?
I'm trying to prove someone wrong. This individual insists, that because of the higher coolant velocity (if I use a larger pump), the heat transfer in the radiator is slower, because "the heat does not have enough time to convect out of the coolant, because it flows too fast" .
IMO, he is spewing a shear heresy.
The equations cited in this paper http://jullio.pe.kr/fluent6.1/help/html/ug/node245.htm
show the only time dependent element,
=fluid mass flow rate (kg/s), is in the numerator, hence the heat flux q increases proportionally with fluid mass flow rate. In another words, bigger the pump trough-put results in a higher heat transfer and efficiency.The same is true for the heat transfer coefficient,
,
Member
Joined: Dec 2010
Posts: 84
Likes: 1
From: Wollongong, sydney Australia
R170 99SLK230 + SLK32

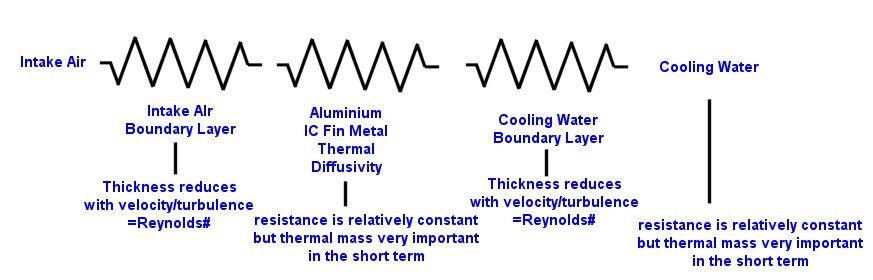

Faster flowing coolant will always have a larger delta T between it and air in a liquid to air HE, especially toward the coolant exiting end of the HE. Q is always greater with a larger delta T. Therefor faster flow enables more cooling of the coolant in the HE. Some things are not necessarily intuitive to us (or your friend) and thermodynamics sometimes falls into that category!
