Hello friends , I need a bit help , I had an issue with my Mercedes , I had one thread oppened up here , https://mbworld.org/forums/e-class-w...f-problem.html , after some digging , I got to an point , When the front Cooling fan turn's on randomly it goes high speed and the cars shuts off most likely . I think its the ECU i have ordered a new one, but want to eliminate other things that could be , but I would need an wiring diagram for the Front suction (cooling) fan . I'm not able to find it on my wis asra .
I will have to thank S-Prihadi ON THE PREVIOUS THREAD HE HELPED A LOT . I managed to eliminate a lot of possibilities . Attached is my datacard , also thanks to S-Prihadi for the data card .
There are too many wiring schematic in 1 car, so you need to narrow it down what you want to go deep into.
You must have a proper scanner, which must be able to do bi-directional, otherwise you may end up wasting so much time if not parts you may mistakenly assumed as bad.
Depending on the issue, at times you need to have a scope ( oscilloscope ) too.
Proper DMM able to to read duty cycle and current clamp is a must have too.
You already have these from me at your earlier post:
Have fun reading that thread I linked ..............
Also, it is about time you get Ebay version of WIS/EPC of Mercedes, year 2020 is more than adequate.
These WIS/EPC have everything you need for schematic and most How-To.
The key is SPEND A LOT OF TIME reading and reading......... no other way.
Hello , I have issues with my WIS/ASRA , Most of the wiring diagrams I can find , but I'm not able to find diagram for throttle body (valve actuator) for my 651 Engine model .
WDD 2120021A286427. I was able to find part number on EPC , but nothing regarding wirings .Need to see where it goes does it maybe connect on the z5/5z1, Its hard to get to it on this car physically, I have now an pico scope want to test the throttle body . If someone can assist please . Here are the pictures .
Thank you for your respond, Once you can would apricate it . I waited for my pico scope will post some footage on the thread where I posted my issue . I had played wit the CAN's and LIN line's to .
Will send Errors scanned from Xentry .
Thank you !
you wrote : Need to see where it goes does it maybe connect on the z5/5z1 There is no such splice/connection of that number on both ECM wiring diagram.
Hello,
I do not found any wiring diagram for my 2011 W212 E350 CDI navigation module (A2049018201)
It looks like the highspeed CAN signal goes into the navigation module, but it doesn't comes out from it. I found the CAN signal cables are brown and brown-red, but I don't find a diagram with this cables.
The command display (A2129004900) doesnt works, and the head unit (A2129004910) has no backlight as well.
If anybody has the correct wiring diagrams for these area above please share.
Thanks!
Last edited by injektor; May 30, 2024 at 04:17 AM.
Get your data card using your VIN number.
After that you will know what options/module on your car, and slowly edit out which modules or wiring IS NOT FOR YOUR CAR.
Its not too easy to sort things out, but it is what it is because MB sold so many variant of W212, so the diagram covers all of their W212 ( facelift and before )....you need to IGNORE which
ones do not apply to your car
Ineed help with my 2010 w212 missing signal to ism and shift lever i hit my dead en…
Originally Posted by S-Prihadi
Tomorrow Monday 20th I will be back home in Jakarta, late evening.
By 21st I can help you find the wiring diagram. Its on my PC at home u see.
I replace ism reprogram it and change the shift lever and still the same fault codes (c103) and (1709) checked all the fuses and they are all good replase all the CAN Blocks from the inside and no improvement i have been with this problem for 2 years and no solution found. I will appreciate the help
I replace ism reprogram it and change the shift lever and still the same fault codes (c103) and (1709) checked all the fuses and they are all good replase all the CAN Blocks from the inside and no improvement i have been with this problem for 2 years and no solution found. I will appreciate the help
Sorry you did all that, I am sure you did not have a choice.
maybe it's time to put your thinking cap on.
At this stage something else got to be causing that, right?
What are your faults codes telling you?
Any missing modules?
What's the chassis fault report? (what else is bad)
Do you know if my 2010 w212 has steering lock module I took the steering column out and didn’t find it anywhere and has no plug visible for it
There is no steering lock on your car.

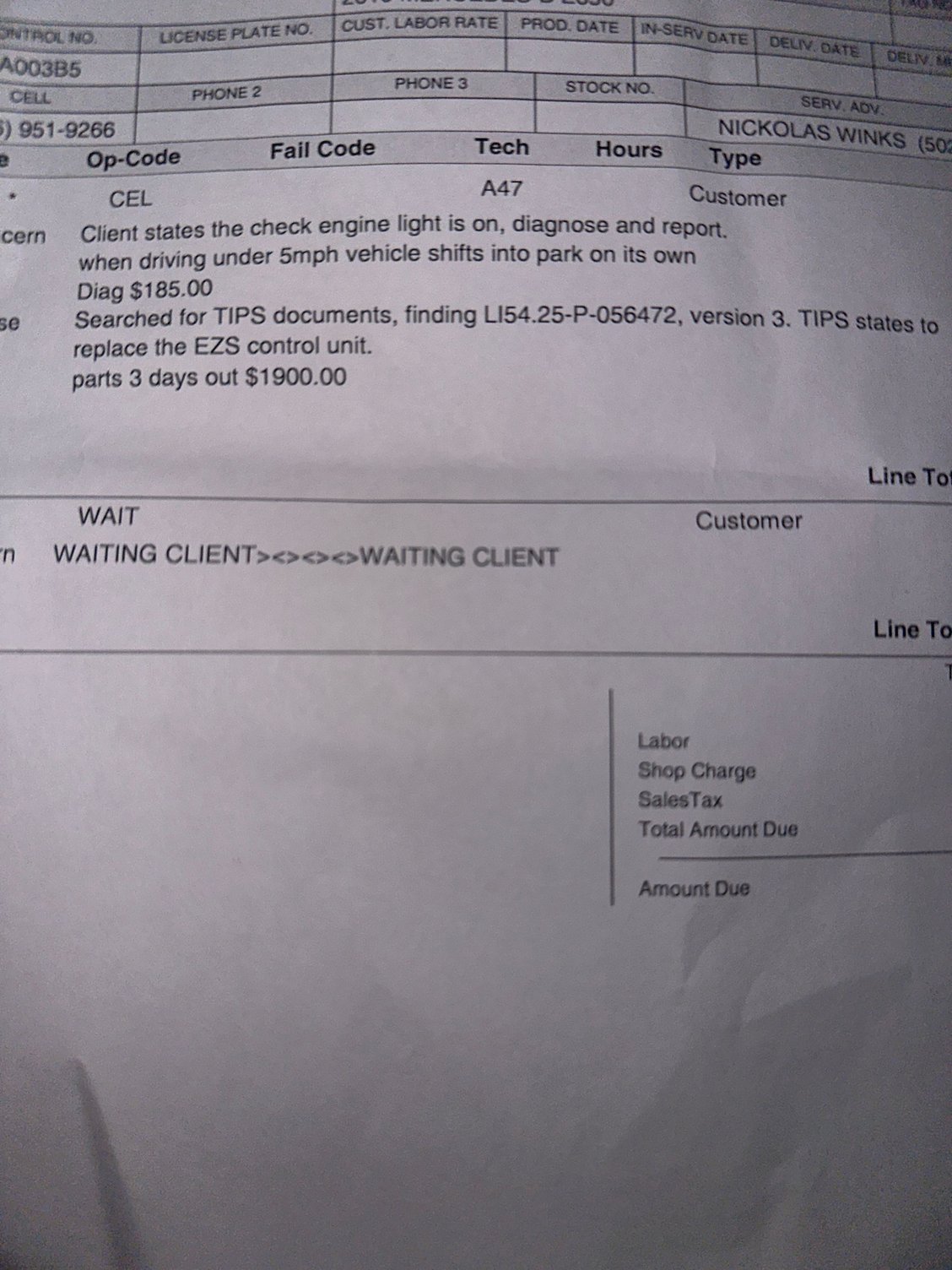

But if shift to Park at 5 mph, then the Tips documents marked on your dealer diag report is very clear. The EZS need to be exchanged, the 5 mph is just a Software condition to switch to P when the key is not present - your faulty EZS can not see the key after some time.
